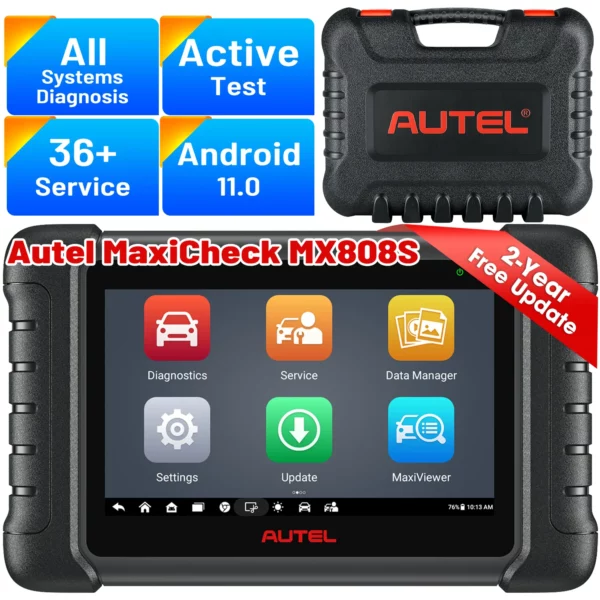

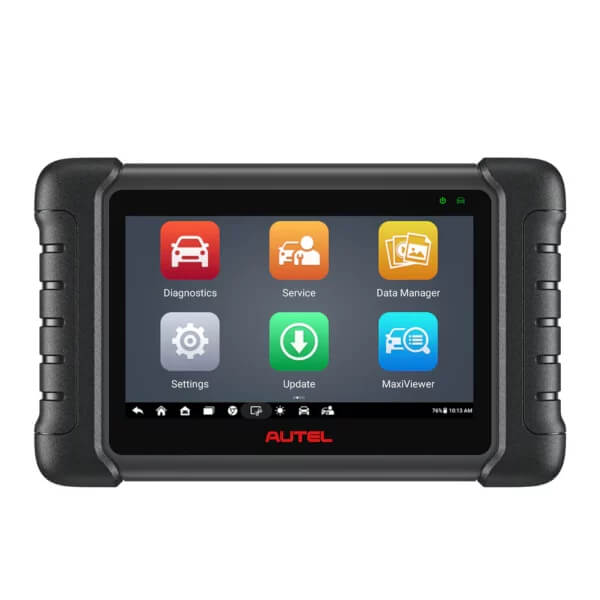

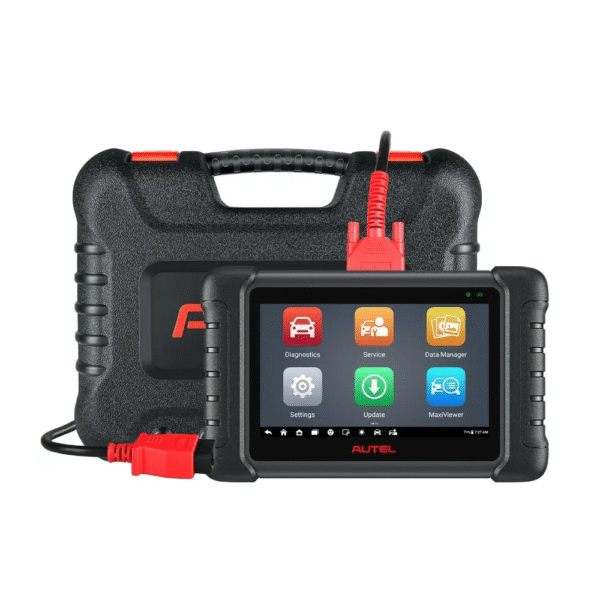

Autel MaxiCheck MX808S Car Diagnostic Scan Tool, same as Autel MK808/MX808, which can access and diagnose all available systems for all US/EU/AS OBD2 vehicles from 1996. As a professional automotive diagnostic scanner, Autel MX808S Can:
- Read fault codes & provides a description
- Clear fault codes & warning lights (e.g. airbag, ABS, engine light etc)
- Service functions – interval light/oil reset light / EPB / injectors etc
- Access to live data streams (oxygen sensor rich/lean indication, coolant temperature, mass air flow etc)
Features
• Powertrain System- Read / Test / Clear trouble codes all modules
• Body System – Read / Test / Clear trouble codes all modules
• Chassis System- Read / Test / Clear trouble codes all modules
• Info & Communication- Read / Test / Clear trouble codes all modules
• Auto VIN Detection
• Auto Scan all major systems
• Live Data to test individual systems
• Communicate with door modules, body controllers, electronic modules
• Support all OBDII protocols and 10 test modes including Freeze Frame, Enhanced Mode 6, Vehicle Info, I/M Readiness, On-Board Monitor and Component Tests
• Graph, record and playback freeze frame data

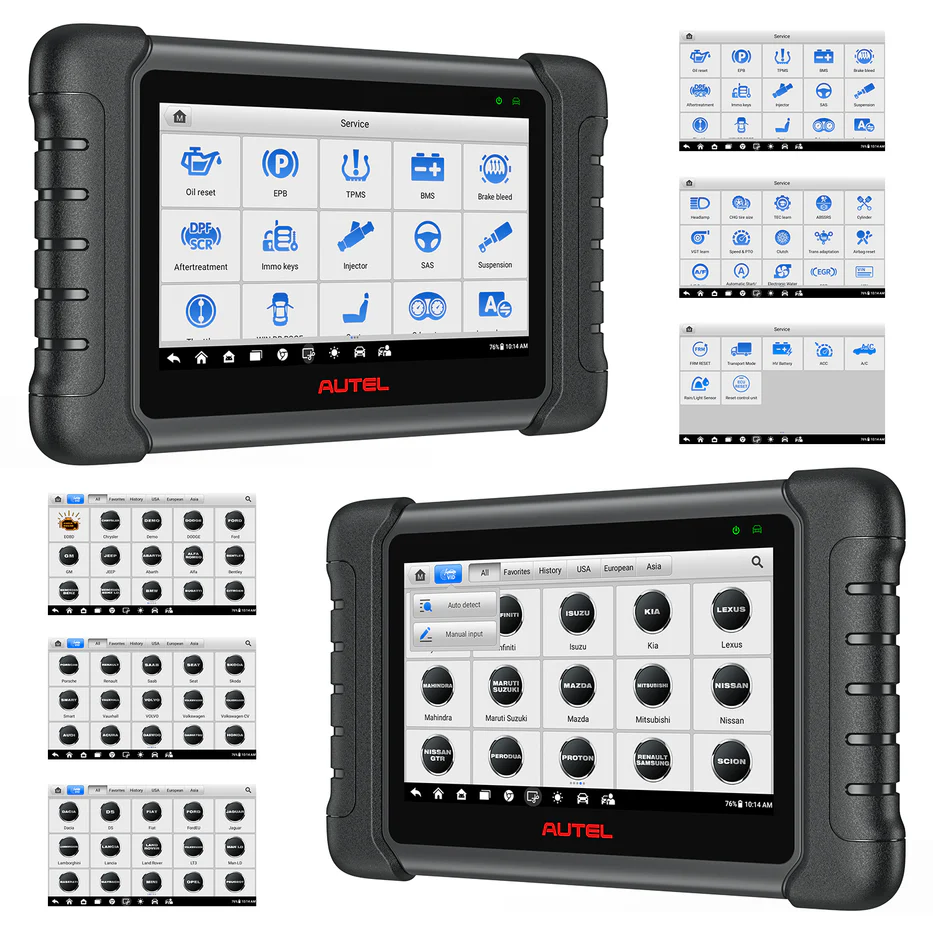

Service Functions
- Oil Reset Service
- EPB Service (Electronic Parking Brake)
- BMS (Battery Management System)
- SAS Service (Steering Angle Sensor)
- DPF Service (Diesel Particulate Filter)
- TPMS Service (Tire Pressure Monitor System)
- IMMO Service (Immobilizer)
- Brake Bleed
- Injector Coding
- Throttle
- WIN DR ROOF
- Seats
Vehicle Coverage and Function?
This unit will cover nearly all manufacturers in the South African market.
And covers 80+ car makes globally
For detailed info, please see click here
- Select the tool, such as MX808, and click the search button.
—

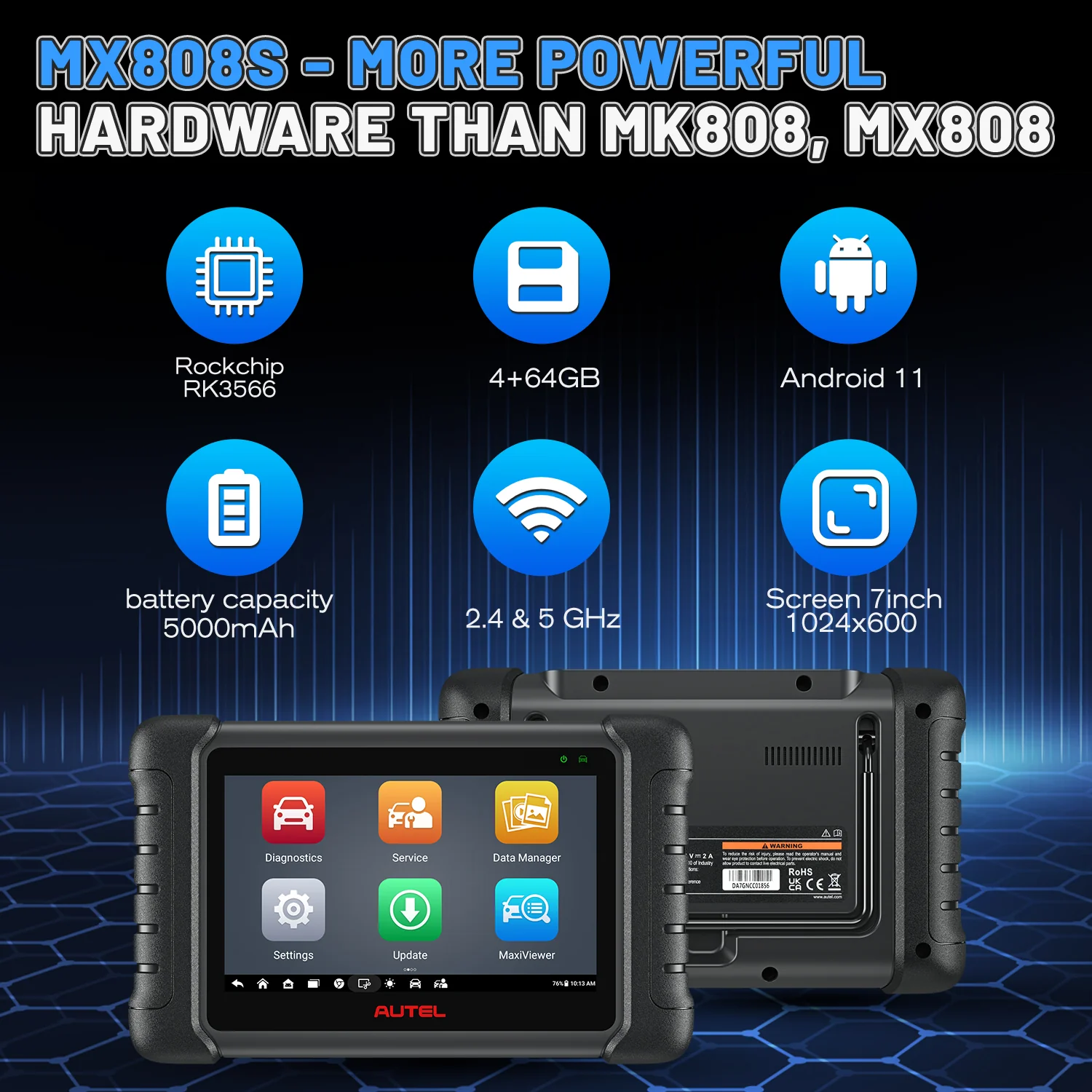

Specifications
Features |
Autel MX808 |
Works: | All 1996 US-based, 2000 EU-based, and newer vehicles |
Operating System(OS): | Android 11 |
Processor: | Cortex-A9 processor (1.5 GHz) |
Display: | 7-inch LCD capacitive touch screen with 1024×600 resolution |
Memory: | 64GB |
Connectivity: | • Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB) |
Audio Input/Output: | • Input: N/A • Output: buzzer |
Sensors: | Ambient light sensor for brightness auto changing |
Power and Battery: | 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply |
Tested Battery Life: | Around 4.5 hours of continuous use |
Power Consumption: | 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
Battery Charging Input: | 5 V/1.5 A |
Operating Temp: | -10 to 60°C(14 to 140°F) |
Storage Temp: | -20 to 70°C (-4 to 158°F) |
Operating Humidity: | 5% – 95% non-condensing |
Read/Clear Codes: | Yes |
Auto VIN Detection: | Yes |
Display live data in text: | Yes |
Support IMMO(Anti-theft matching) Functions: | Yes |
Oil Reset,EPB, BMS, SAS, DPF, ENG/AT/ABS/SRS Codes: | Yes |
Basic TPMS Service, ABS Bleeding, Injector Coding, Suspension Calibration: | Yes |
Freeze Frame Data: | Yes |
battery registration and reset: | Yes |
Mode: | 10 |
I/M Readiness: | Yes |
Live Data: | Yes |
Check Engine Light: | Yes |
