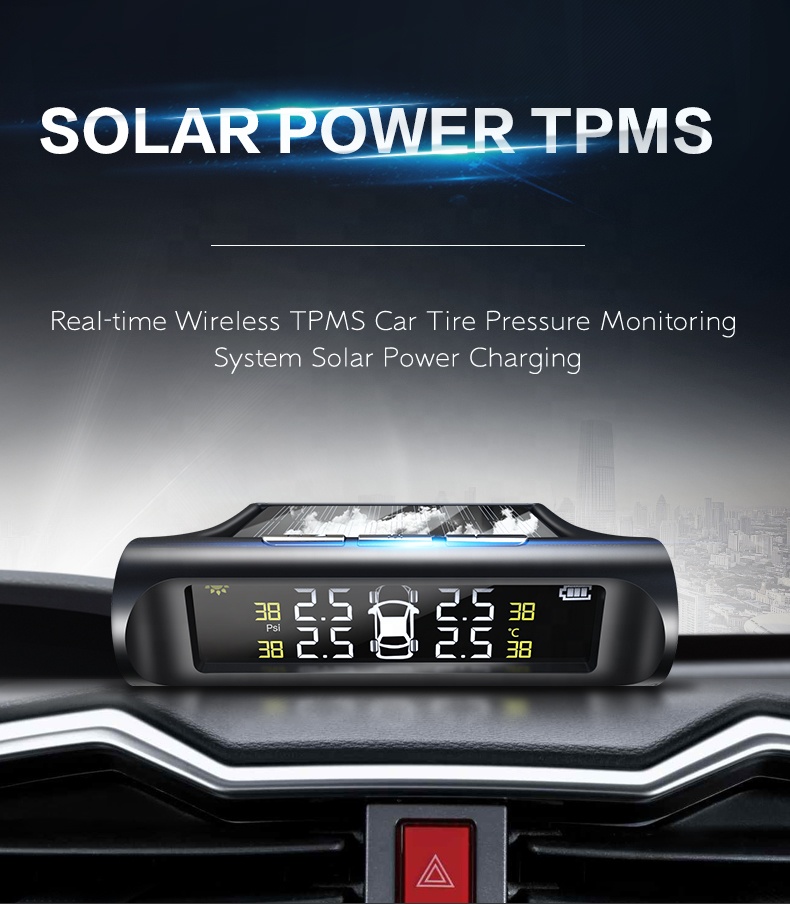

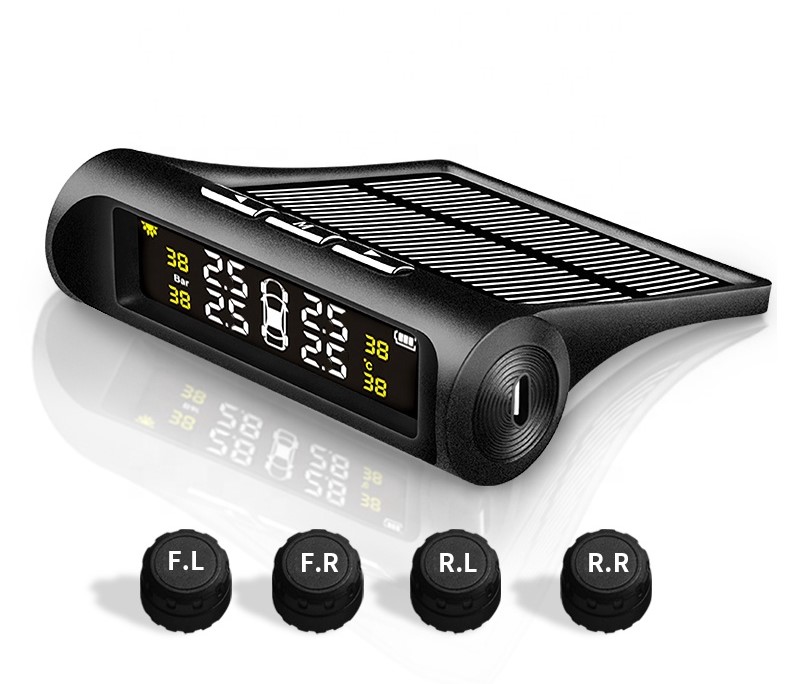

Wireless Car TPMS (Tyre Pressure Monitoring System) – External Sensors (Solar Powered)
R869.00 incl. VAT
R755.65 excl. VAT
Availability: In stock
Available 'Buy Now Pay Later' Options
R72.42 x 12 months
Available 'Buy Now Pay Later' Options
R72.42 x 12 months
Delivery anywhere is SA
Once we receive payment for your order, delivery updates will be sent via email to keep you updated.
Collection Points
Visit our offices in Cape Town or Johannesburg. Our work hours are from 8am-5pm.

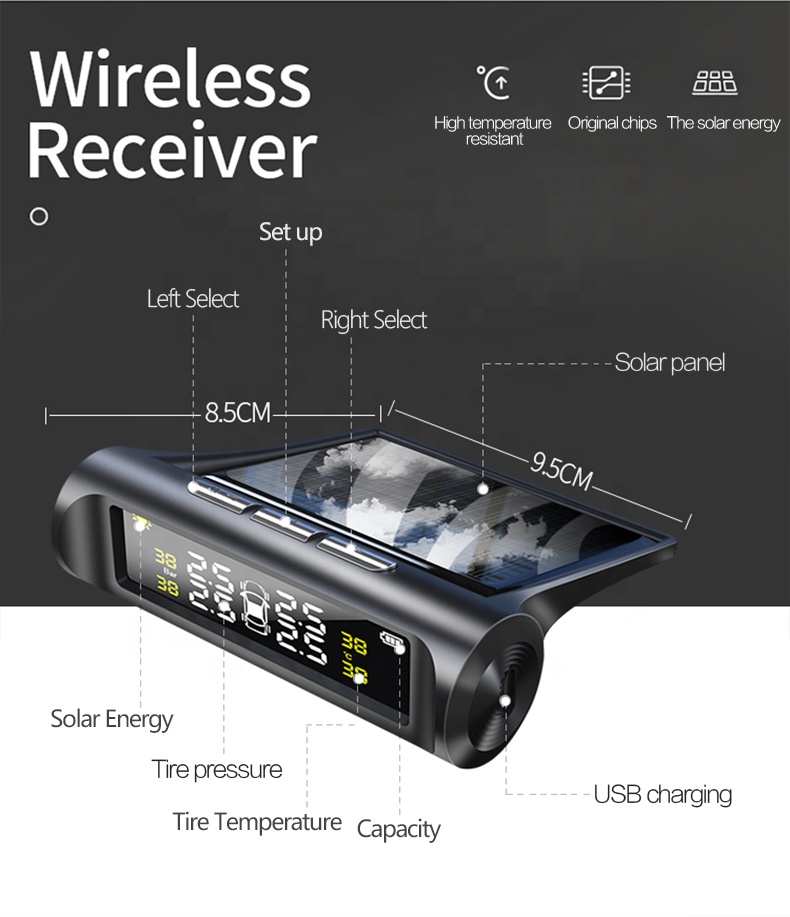

Main Features:
1.Use solar energy to get electricity, with 4 internal or external sensors.

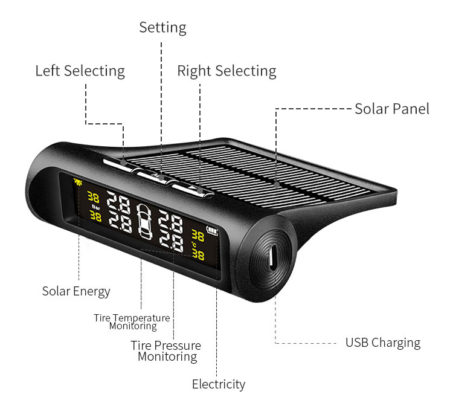

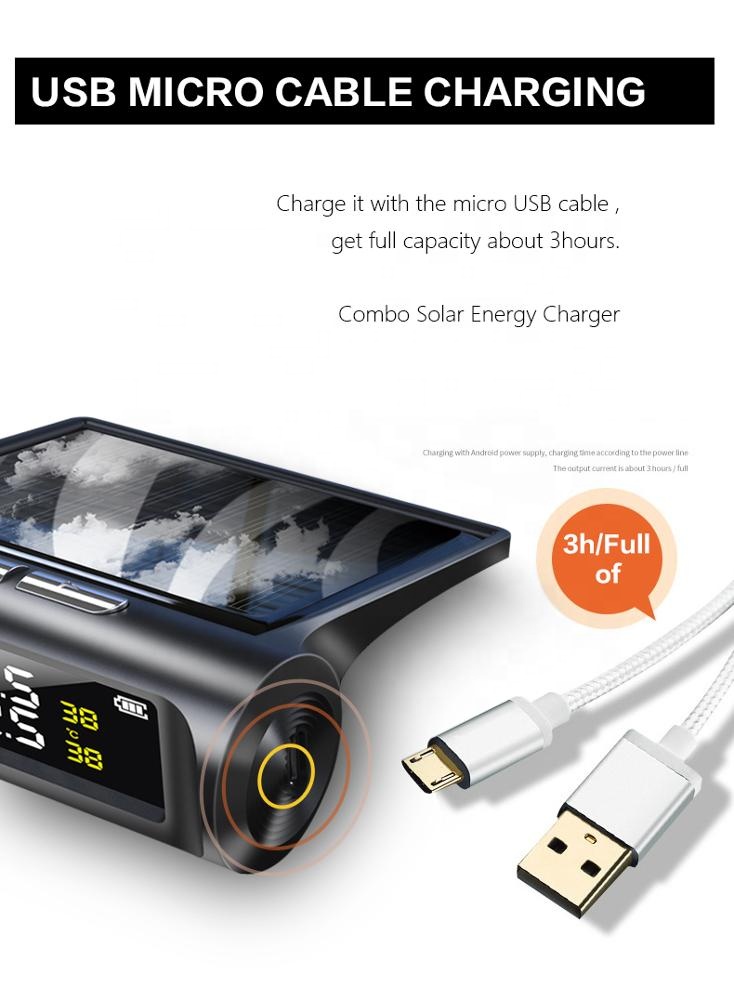

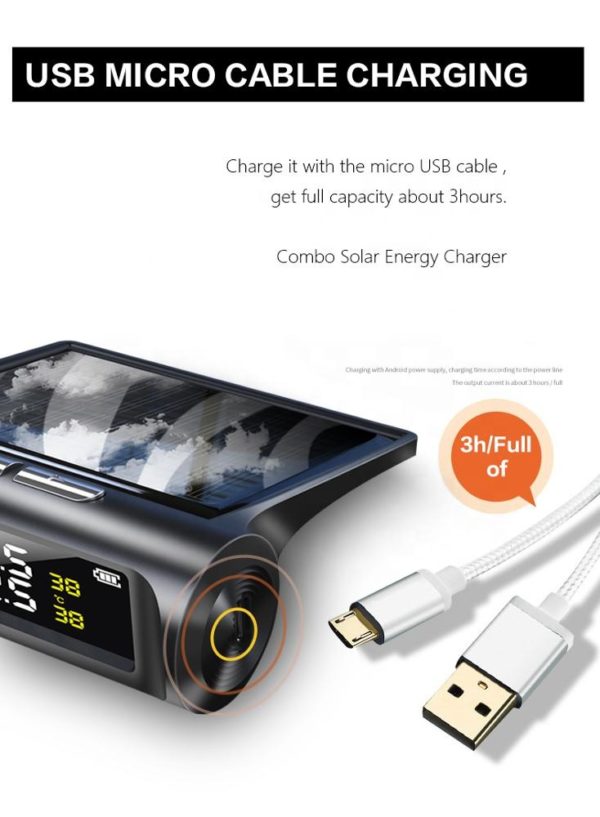

2.LCD panel, with extra Micro USB port for charging.
3.Light weight design for sensor, no need to adjust to be balance when the tire moving.
4.Real-time Monitor the temperature and pressure with high degree accuracy
5.Save fuel, foresee air leakage, reduce tire wear out, balance tire pressure, ensure safety driving.
6.RF wireless technology, can auto-alarm, when tire pressure and temperature is abnormal.
7.With two pressure unit “PSI, BAR ” and two temperature unit”℃,℉” for option.
8.Support tire position exchange function.
9.Sensor waterproof grade: IP67.
10.With Infineon Chip and RENATA anti-explosion battery.
11.YB068 Cheapest Good Quality Solar Wireless TPMS Sensors
Quick Details:
Type: Digital
Certification: ce
Voltage: 3V DC
Model Number: YB068
Operating voltage: 3.7V-5V
Chip: Infineon/Freescale (Import from Germany/USA)
Working temperature: -30°C-85°C
RF Emission frequency: 433.92MHz±50KHz
Display: LCD Colour display
Working pressure: 0-73PSI (Infineon chip)
Working Pressure: 0-102Psi (Freescale chip)
Solar Panel Capacity: 400mA
Default Pressure: 26PSI-46PSI (Adjustable)
Specifications:
| Monitor Specification | |
| 1.Operating Voltage | 3.7-5v |
| 2.Storage Temperature | -30℃-90℃ |
| 3.Working Temperature | -30℃-85℃ |
| 4.RF Emission Frequency | 433.92MHZ+/-50MHZ |
| 5.Monitor Mode | LCD Color Display |
| 6.Working Pressure | 0-116 PSI(Freescale) 0-9PSI(Infineon) |
| 7.Bright Operating Current | ≤6mA |
| 8.Black Operating Current | ≤4mA |

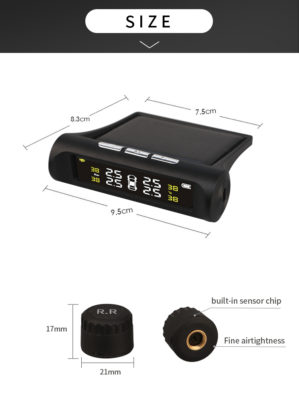

| 9.Size | 95*83*75MM |
| 10.Chip | Infineon (Import Germany)Freescale(USA) |
| 11. Use time/cycle | 10-15days after get full charged |
| 12.Factory Default Pressure | 26-46 PSI |
| 13.Solar Panel Battery Capacity | 400 ma |
| 10.NW | 0.3KG |
| 11.GW | 0.36KG |
| External Sensor Specification | |
| 1. Battery Life | 24months |
| 2.Operating Voltage | 3v |
| 3.Storage Temperature | -30℃-90℃ |
| 4.Working Temperature | -30℃-85℃ |
| 5.Temperature Resolution | +/-2℃(25℃) |
| 6.Pressure Range | 0-7.0Bar |
| 7.Waterproof Grade | IP67 |
| 8.Transmitted Power | ≤10dBm |
| 9.Transmitted Frequency | 433.92MHZ |
| 10.Size | 21*17mm |
| 11.Weight | 9g |
| 12.Lithium Battery | CR1632 |
| Certification | CE ROHS |
| Aging test | full 72hours aging test |
| QC testing | 100% full inspection before shipping out
|

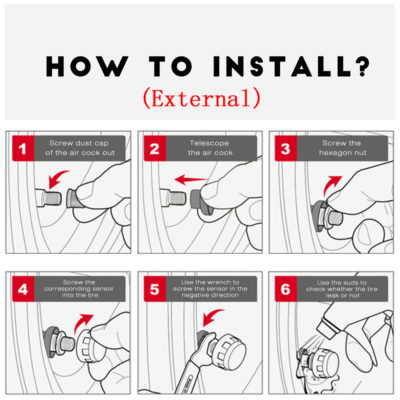

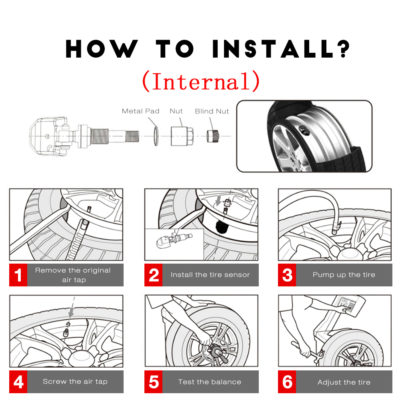

How To Install:

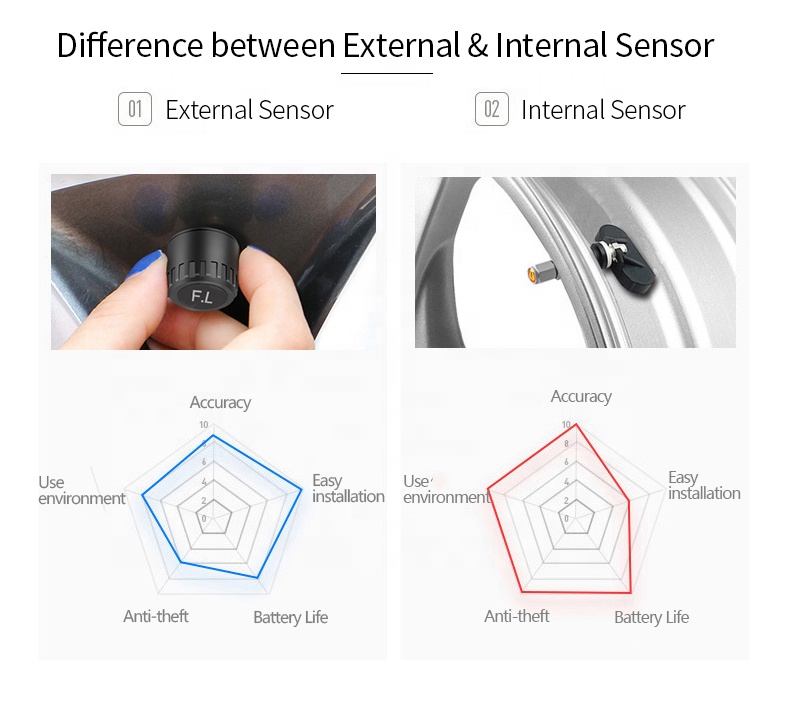

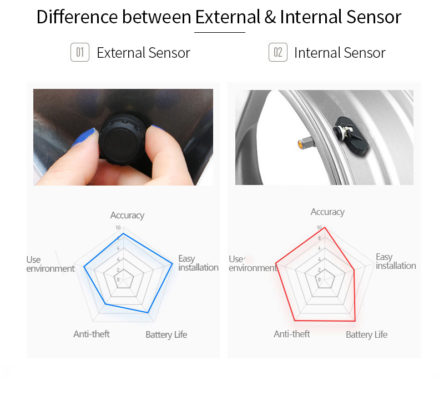

Differences Between An External & Internal Sensor:
| Weight | 0.235 kg |
|---|---|
| Dimensions | 18 × 13 × 4.5 cm |
| Sales Rep | salesrep2 |
| Category ID | tpms |
ZAWireless Car TPMS
Excellent product. Does the job, simple and easy to install
