Volvo S40, S80, XC90 (4-5-6-Cylinder ) Engine Timing Tool Kit

Purpose for alignment of the cam and crankshafts. Also enables correct installation of the Camshafts with the cam cover. This master tool set for Volvo is designed for use on 4, 5, and 6 cylinder engines to align the cam, cylinder head, and crankshaft during the removal and installation of cylinder head assemblies. It can also be used to install a camshaft cover to the engine head properly and is very helpful when replacing the camshaft seal. Properly secure and align the cam and crankshaft during R & R of cylinder head assemblies on (5) and (6) cyl engines -also for the proper installation of camshaft cover to the engine head and useful when replacing camshaft seal.

Suitable Engines:

B4164S
B4164S2
B4184
B4184S
B4184S10
B4184S2
B4184S3
B4184S9
B4184SJ
B4194T
B4194T2
B4204S
B4204S2
B4204T
B4204T2
B4204T2 CVVT
B4204T3
B4204T3
B4204T4
B4204T5
B5202FS
B5204FS
B5204FT
B5204T2
B5204T3
B5204T4
B5204T5
B5234FS
B5234FT
B5234T2
B5234T3
B5234T4
B5234T5
B5234T6
B5234T7
B5234T8
B5234T9
B5244S
B5244S
B5244S4
B5244S5
B5244S6
B5244S7
B5244SG
B5244SG2
B5244T
B5244T2
B5244T3
B5244T4
B5244T5
B5244T7
B5252FS
B5254FS LH 3.2
B5254FS M 4.3
B5254T
B5254T2

Suitable For:

Volvo:
– S80 (07-)
– V70 (08-)
– S80 (-06)
– XC90, V70 (00-08)
– V70 XC (01-) / XC70 (-07)
– S60, C30, C70 (06-)
– S40 (04-)
– V50, S40 (-04)
– V40, 850
– C70 Coupe (-05)
– S70, V70 (-00)
– V70 XC (-00)
– 960
– S90
– V90

For alignment of the cam and crankshafts also for correct installation of the camshafts over the cam cover suitable for 4-, 5- and 6-cyl. twin cam engines (not 3.21) until 2006 on Volvo models:

– 700
– 800
– 900
– 960
– C70
– S40
– S60
– S70
– S80
– S90
– V70 -2000V70X
– XC70
– V90
– XC90

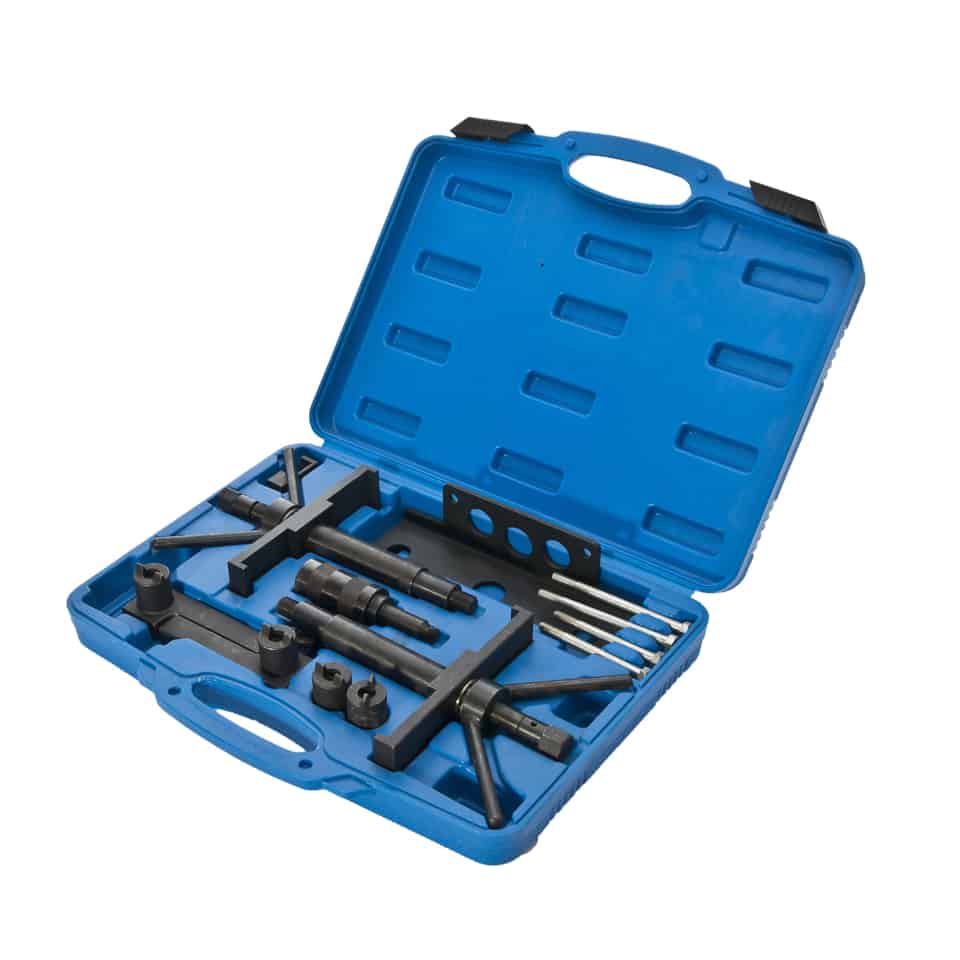

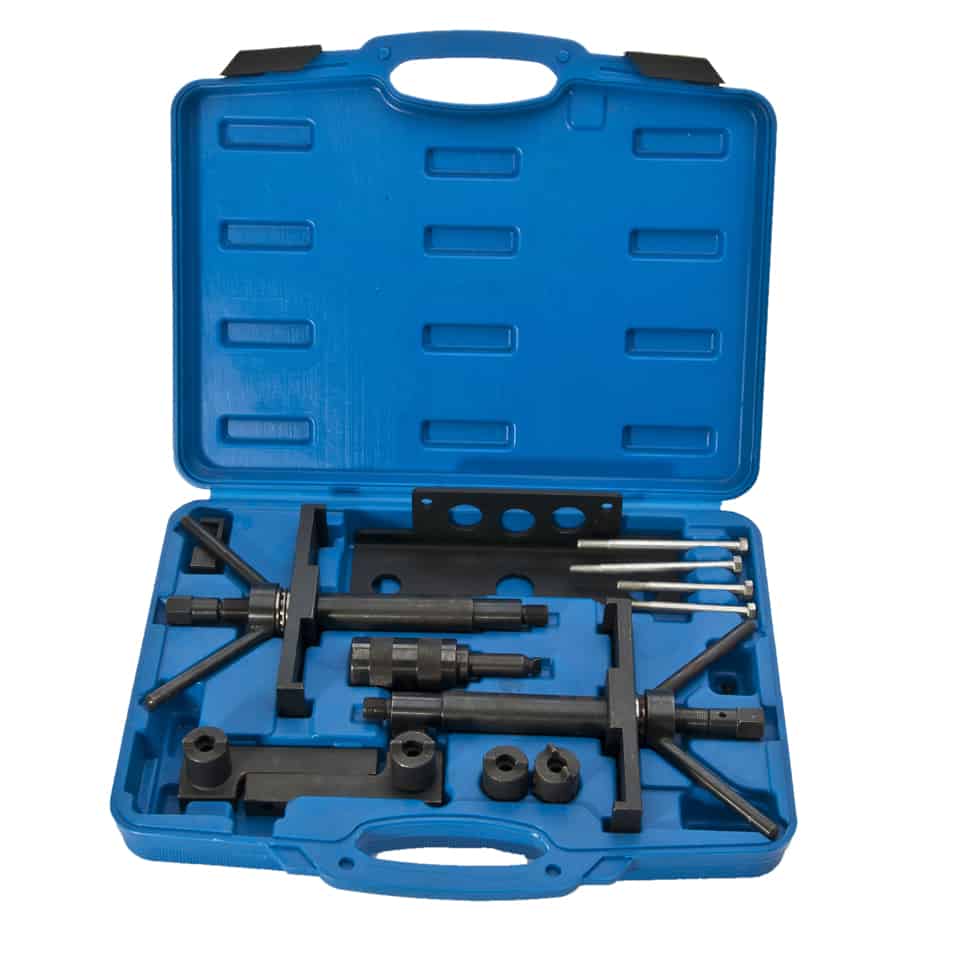

Contents:

– 2PC camshaft cover tool, to be used as OEM 9995454.
– Crankshaft locking tool, to be used as OEM 9995452
– Camshaft setting tool, to be used as OEM 999545
– 1PC Holder, to be used as OEM 9995453 2x110mm and 2x85mm screws.
