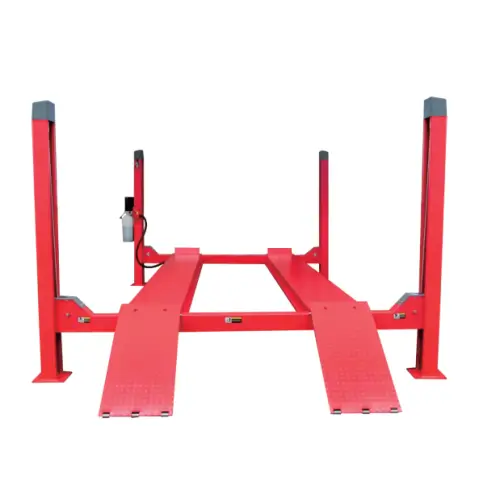

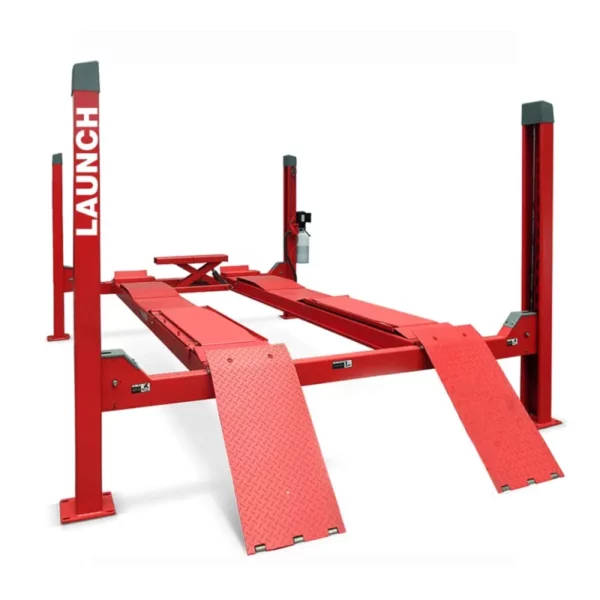

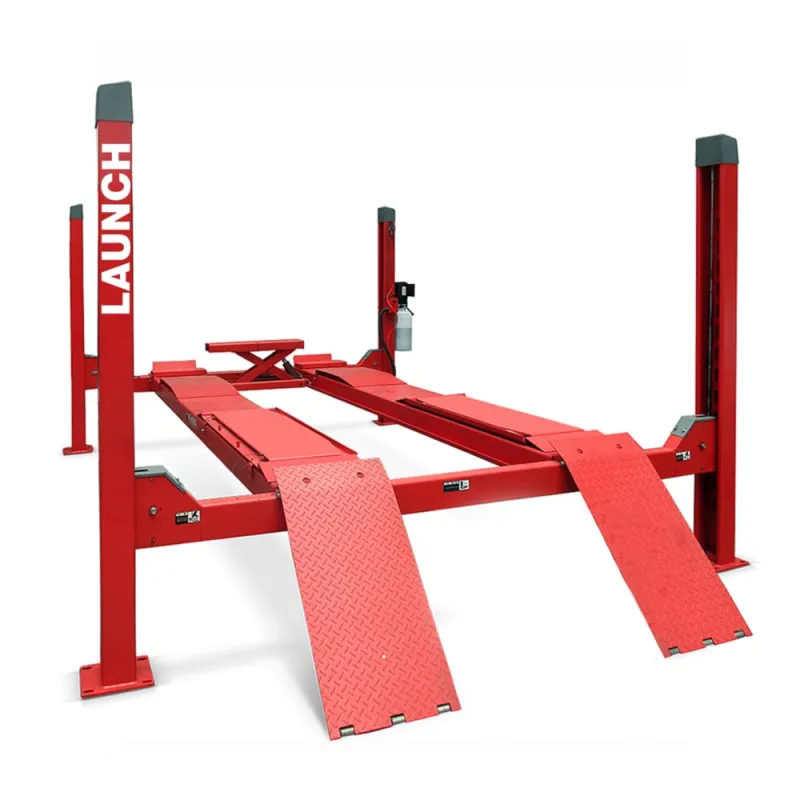

Launch TLT440W Four Post Alignment Lift – 4000KG Capacity
The Launch TLT440W is a premium four-post alignment lift designed to handle comprehensive vehicle servicing needs with precision and strength. With a 4000KG lifting capacity, it accommodates most vehicles on the road today and is fully compatible with advanced 3D wheel alignment systems. This lift is perfect for service centers looking to perform high-accuracy wheel alignment and vehicle maintenance for a wide range of vehicle sizes. The two-layer concealed plate structure provides excellent synchronizing performance with horizontal precision of 1mm, ensuring accurate and reliable lifts for precise alignment work.
Key Features:
- Adjustable Front Wheel Turn Plates: Position can be moved backward and forward to fit various vehicle sizes, offering enhanced versatility for alignment needs.
- Rear Sliding Plates: Extended rear sliding plates allow for adjustments to accommodate different vehicle types, improving accuracy and flexibility in wheel alignments.
- 2 Ton Rolling Jack: Includes a rolling jack with a small scissor hydraulic system for lifting and lowering. The jack is movable, making tire adjustments and alignments more efficient.
- Hydraulic Cylinder with Mechanical Locking System: Features a hydraulic cylinder for lifting and a full-scope mechanical safety locking system operated by a latch for secure positioning.
- Electronically Controlled Lifting with Manual Lowering: Provides safe and easy operation through electronic lifting and manual lowering functionality.
- Adjustable Distance Between Rails: Enables customization of the platform distance to fit vehicles with varying wheelbases, ensuring adaptability for different vehicle types.
- Adjustable Positioning Levels: Adjustable positioning levels, platform distances, and wheelbase scopes ensure precise alignment and adaptability to various vehicle types.
- Cable Rupture Safety System: Protects vehicles by ensuring synchronized movement of all lifting components, preventing sloping and tilting.
- Cylinder Travel Limit Device: Extends the cylinder’s lifespan by preventing over-extension and ensuring durability.
- Scratch-Resistant Powder Coating: High-quality coating minimizes wear and tear, extending the operational lifespan of the lift.
- Multiple Safety Locks: Equipped with locking positions at various heights for securing vehicles during maintenance.
- Installation Flexibility: The installation positions of the turntable and side slip plates are adjustable to accommodate different wheelbases.
- CE Certified: Meets stringent European safety standards, ensuring reliable and safe operation.
Technical Specifications:
Specification | Details |
---|---|
Rated Load | 4000KG |
Lifting Height | 1850mm |
Initial Height | 170mm |
Lifting Time | ≤80 seconds |
Lowering Time | ≥20s, ≤40 seconds |
Max Drive-On Width | 3045mm |
Platform Length | 4240mm |
Platform Width | 500mm |
Overall Width | 3445mm |
Overall Height | 2172mm |
Motor Power | 2.2KW |
Motor Voltage | 3 phase / 380V or Single phase / 220V |
Working Noise | ≤70dB(A) |
Oil Pressure | 20 MPa |
Air Pressure | 0.5 – 0.7 MPa |
Benefits:
- Perfect for Precision Alignments: Adjustable front wheel turn plates, rear sliding plates, and a 2-ton rolling jack ensure precise alignments for various vehicle types.
- Enhanced Safety and Reliability: Features like a cable rupture safety system, hydraulic cylinder with pneumatic locking, and multiple safety locks provide a secure and reliable lifting experience.
- Adaptability for Different Vehicles: Adjustable positioning levels, platform distances, and wheelbase scopes allow this lift to accommodate vehicles of varying sizes and designs.
- Built for Durability: The scratch-resistant powder coating and a cylinder travel limit device enhance the lift’s durability and ensure long-lasting performance.
- Versatile Installation Options: Movable turntable and side slip plates, along with adjustable rails, make it suitable for a wide range of vehicle service requirements.
Warranty:
- One-Year Warranty: Includes a one-year warranty, ensuring reliability and support for your workshop needs.
