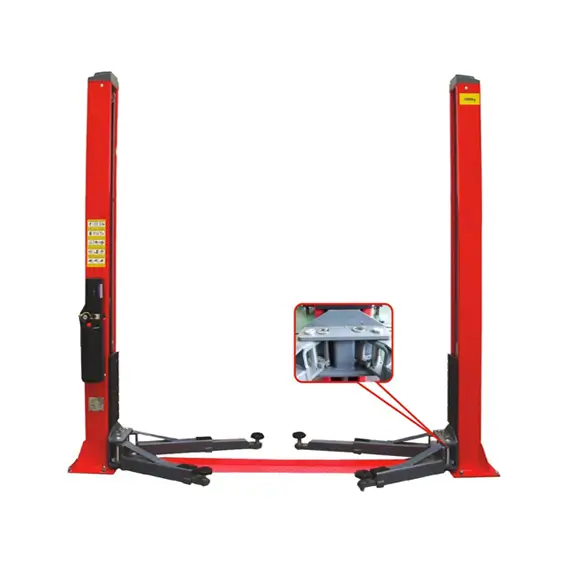

Launch TLT240SB Two Post Base Car Lift – 4000KG Capacity
The Launch TLT240SB is a robust two-post car lift designed for professional automotive workshops, repair centers, and garages. With a lifting capacity of 4000KG, this lift ensures superior performance through its dual hydraulic cylinders and high-strength chain drive, guaranteeing smooth and stable lifting and lowering for vehicles of various sizes, including light lorries and SUVs. The patented slider bracket design enhances replacement efficiency, making it a practical choice for busy service environments. Additionally, all components are CE certified, meeting the stringent demands of garages and workshops for safety and reliability.
Key Features:
- Bilateral Manual Safety Unlocking System: Provides enhanced safety during operation, allowing easy control from either side of the lift.
- Concealed Cable and Oil Pipe: Offers a sleek and organized appearance, minimizing wear and tear while improving the overall aesthetic of your workspace.

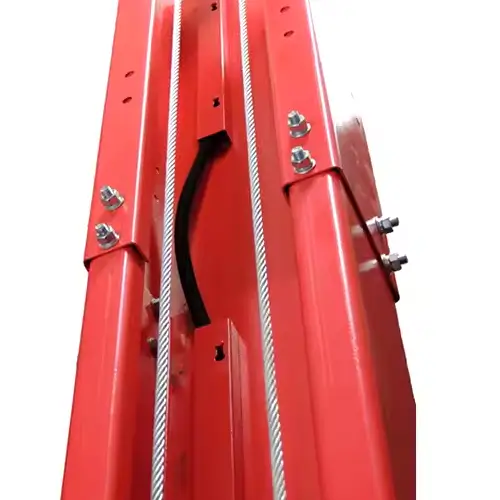

- Wire Rope Equalization System: Ensures the synchronous movement of both carriages, preventing vehicle tilting during the lift.
- 24V Low Voltage Control Box (IP54 Rated): Prioritizes operator safety with a low-voltage electrical system and a weather-resistant design.
- 24V Cylinder Travel Limit Switch: Protects the hydraulic cylinder, extending its lifespan by preventing overextension.
- Door Rubber Pads: Safeguard vehicle doors from damage during lifting, minimizing the risk of scratches or dents.
- Adjustable Lifting Pads: Accommodates vehicles with varying clearance heights, perfect for light trucks and SUVs.
- CE Certification: Passed rigorous 115% dynamic loading and 150% static loading tests, ensuring it meets European safety standards.
- Flexible Installation Options: Offers both symmetric and asymmetric installation types to suit various garage layouts.

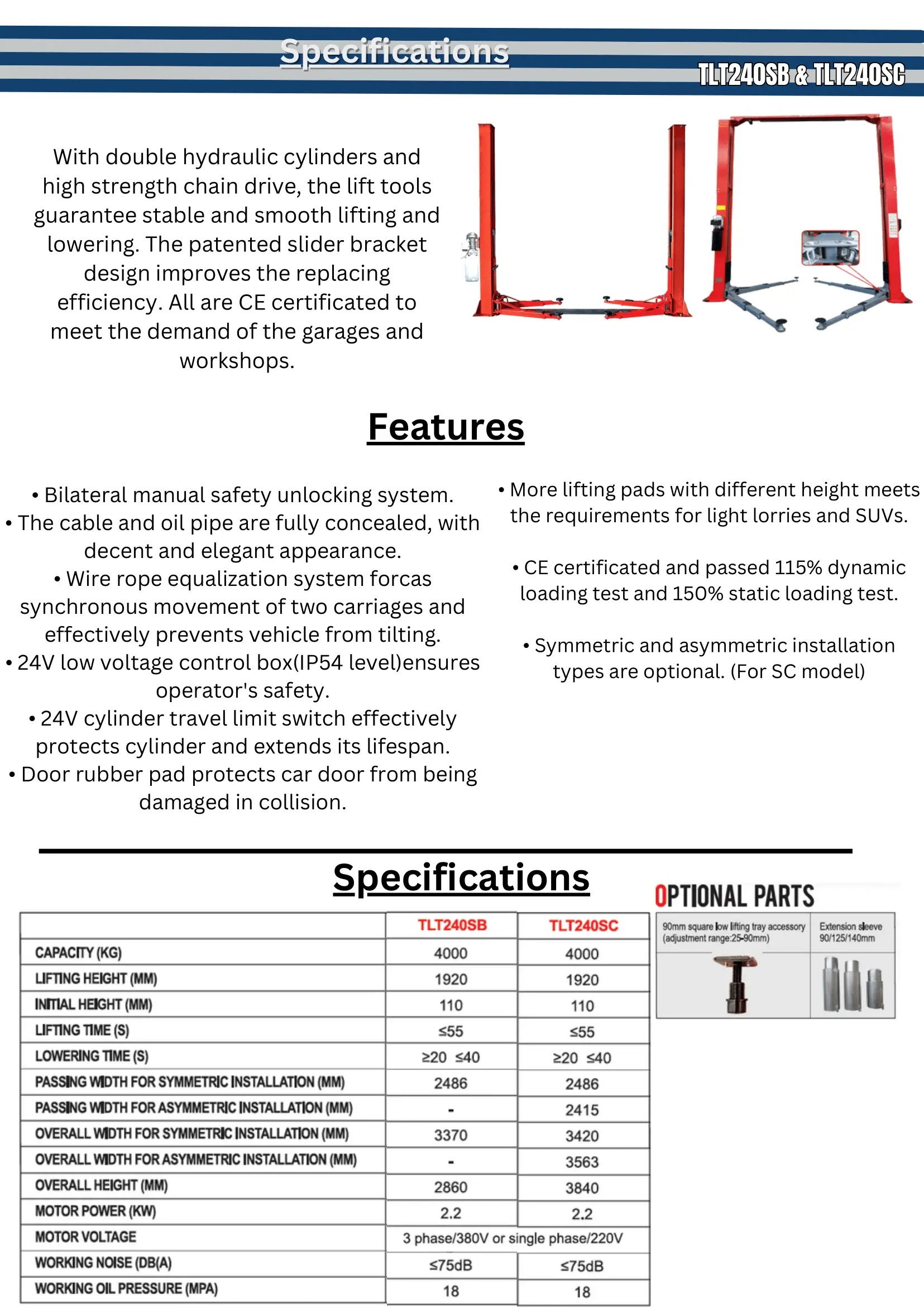

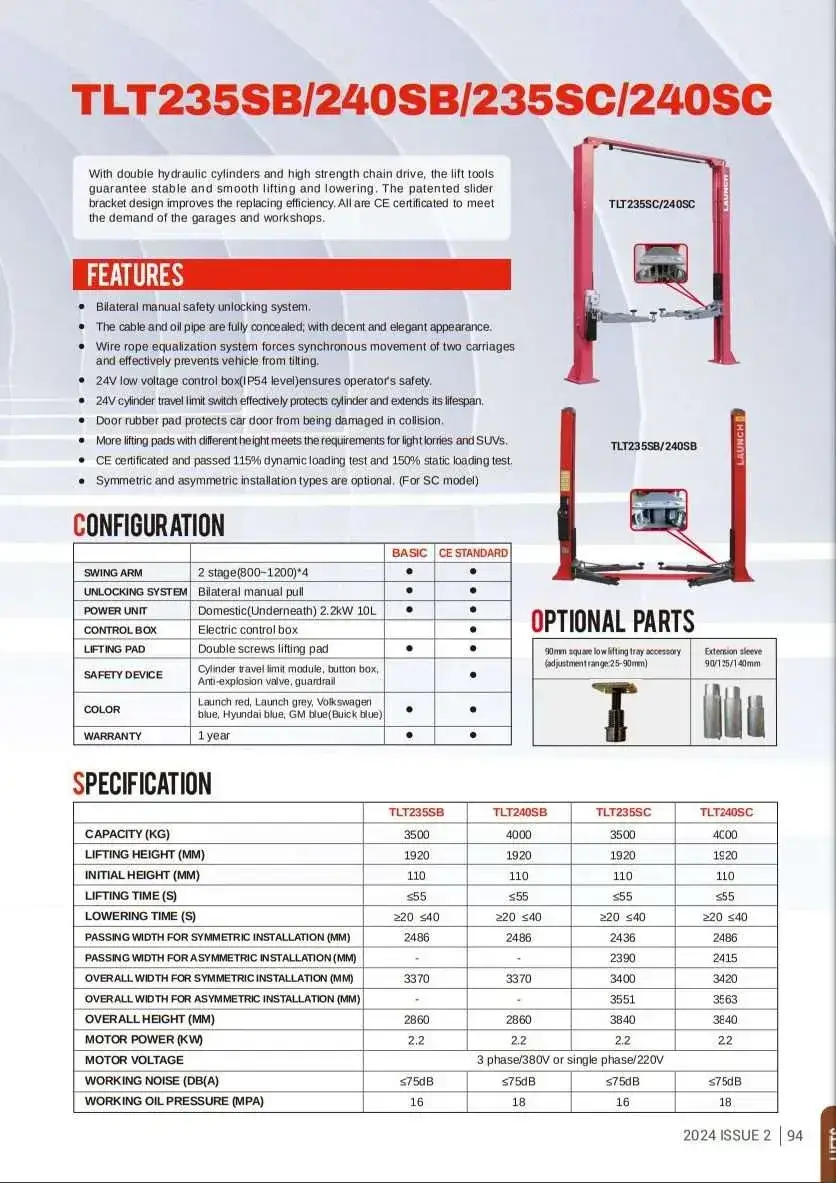

Technical Specifications:
Specification | Details |
---|---|
Load Capacity | 4000KG |
Lifting Height | 1920mm |
Initial Height | 110mm |
Lifting Time | ≤55 seconds |
Lowering Time | ≥20s, ≤40 seconds |

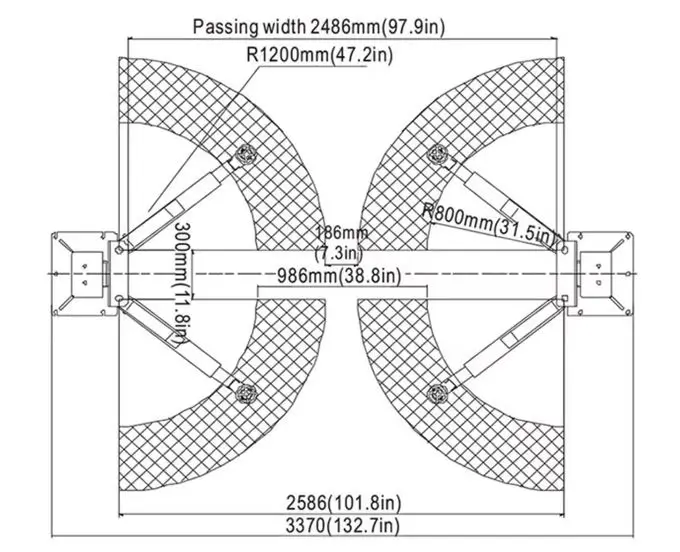

Passing Width for Symmetric Installation | 2486mm |
Overall Width for Symmetric Installation | 3370mm |

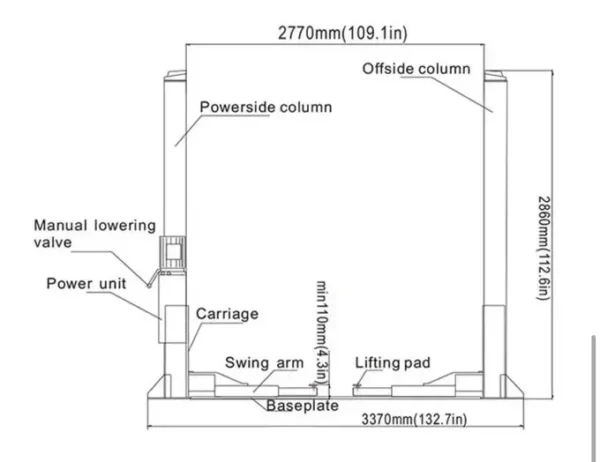

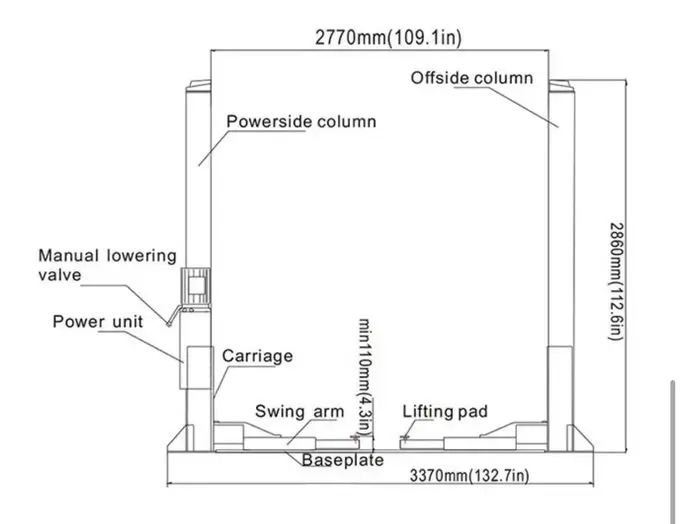

Overall Height | 2860mm |
Motor Power | 2.2KW |
Motor Voltage | 3 phase / 380V or 220V |
Working Noise | ≤75dB(A) |
Working Oil Pressure | 18 MPa |
Benefits:
- Stable and Smooth Lifting: Dual hydraulic cylinders and high-strength chain drive provide consistent, vibration-free operation.
- Durable Build: The system is built with quality materials and tested for durability, ensuring long-term reliability for your workshop.
- Safety Prioritized: Multiple safety features, including the manual unlocking system, low voltage control, and cylinder protection, guarantee secure operation.
- Adaptable for Various Vehicle Types: Adjustable lifting pads make the TLT240SB versatile for a range of vehicles, from sedans to SUVs and light trucks.
