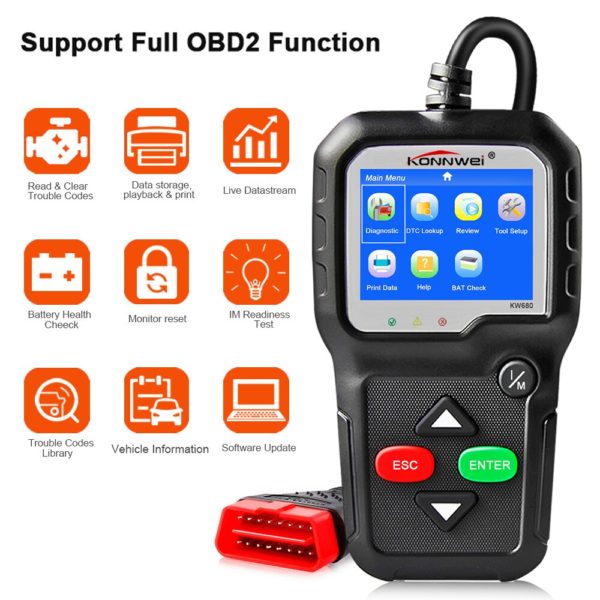

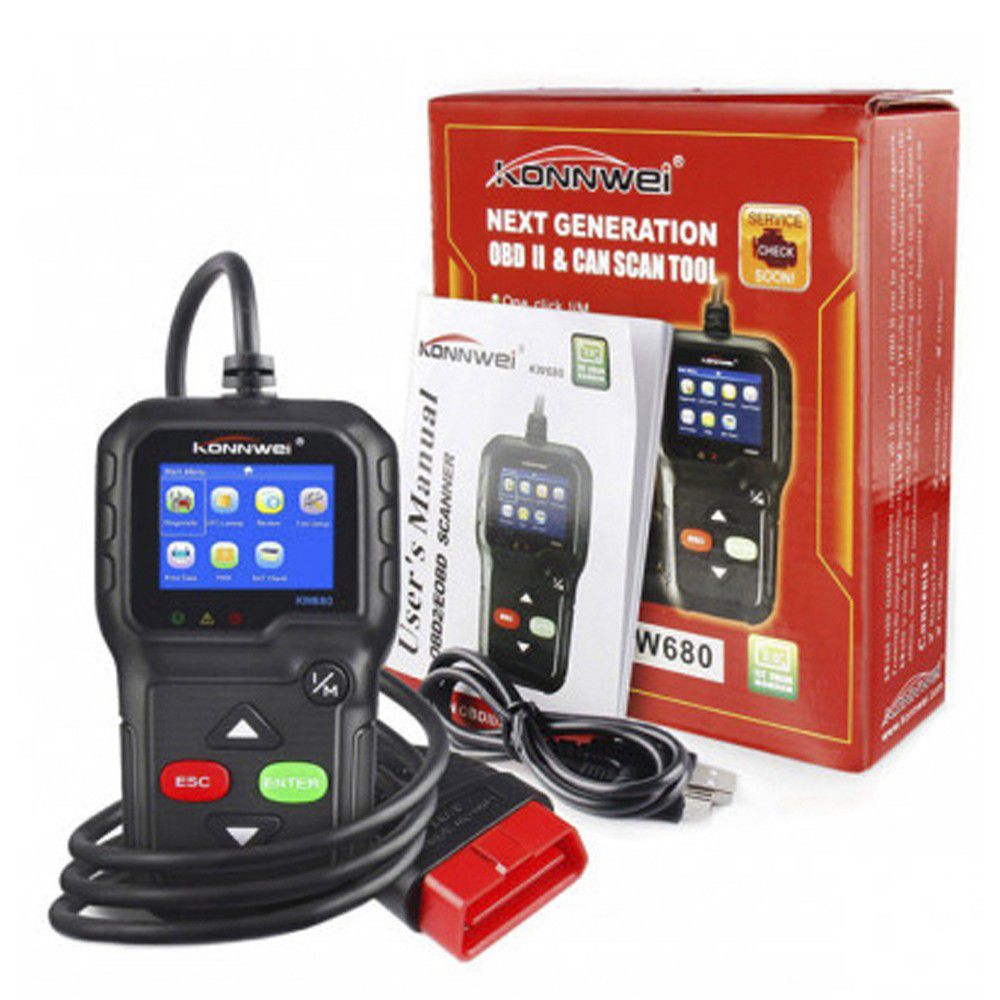

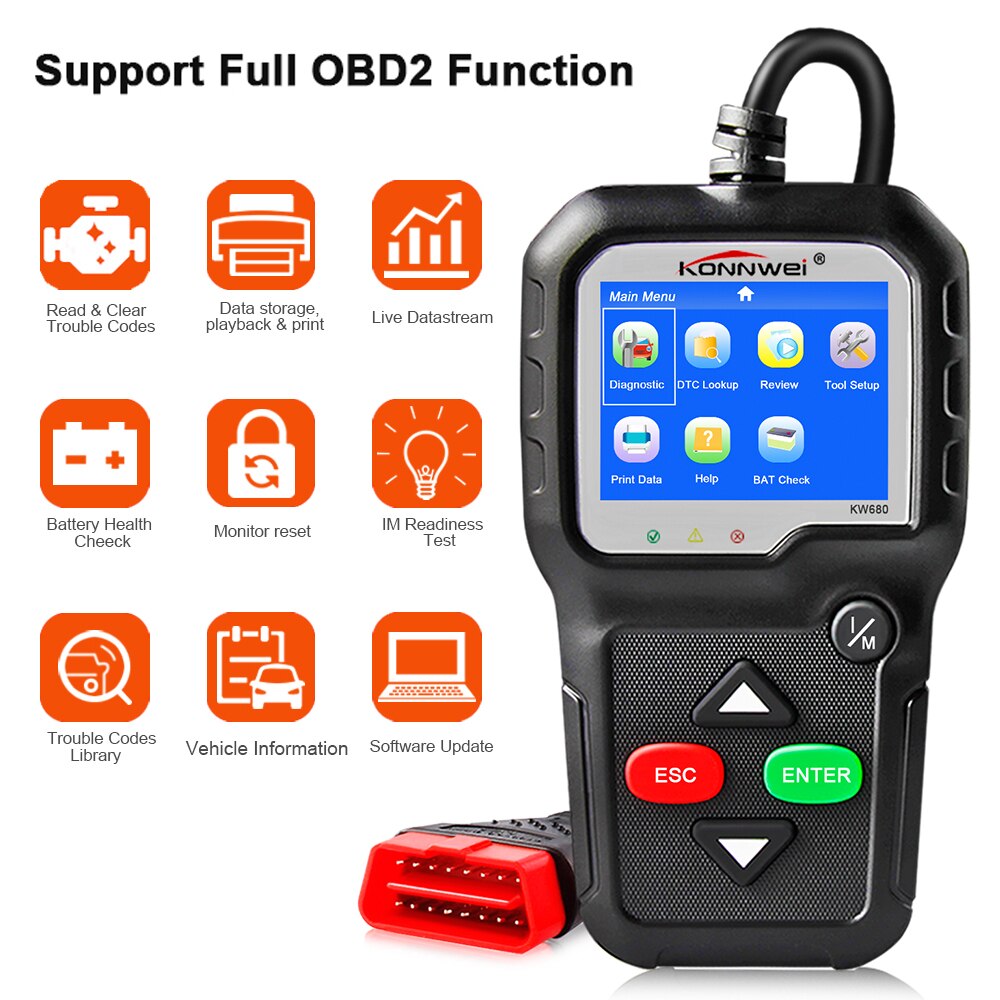

Konnwei KW680 Diagnostic Scan Tool (OBDII Engine Codes & Live Data)

Product Description

Built to be the perfect, user-friendly diagnostic scan tool for small workshops and DIY enthusiasts, the KW680 does not lack what you need to perform diagnostic scanning fast. Incorporating features mostly found on higher-end tools, the KW680 gives you the power to do what you need to do to get the job done!

Functions

1. Works on ALL 1996 and newer vehicles (OBDII & CAN) – domestic and import
2. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.
3. Bright color coded LEDs indicators and built-in speaker provide both visual and audible tone for readiness verification
4. Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes
5. Easily determines the cause of the Check Engine Light(MIL)
6. Turns off Check Engine Light (MIL), clears codes, and resets monitors
7. Enhanced OBD2 Mode 6 On-Board Monitoring Test Results for Specific Monitored Systems.
8. Views freeze frame data
9. Displays monitor and I/M readiness status (emissions)
10. Reads live PCM datastream
11. Displays live O2 sensor test data
12. EVAP System test data
13. Live sensor data in text mode and graph mode (1996 and newer vehicles)
14. Reads, stores, and playbacks live sensor data
15. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time
16. Battery Voltage real-time monitoring.
?17. Built-in DTC look-up library and display definition.
18. Retrieves vehicle information (VIN, CIN, and CVN)
19. Internet updateable and upgradeable
20. Prints data via PC

Hardware specifications

• Display: TFT color screen ( 320*240dpi)
• Operating Temperature: 0 to 60 ? (32 to 140 ?)
• Storage Temperature: -20 to 70 ? (-4 to 158 ?)
• Power: 8 to 18 V provided via vehicle
• Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
