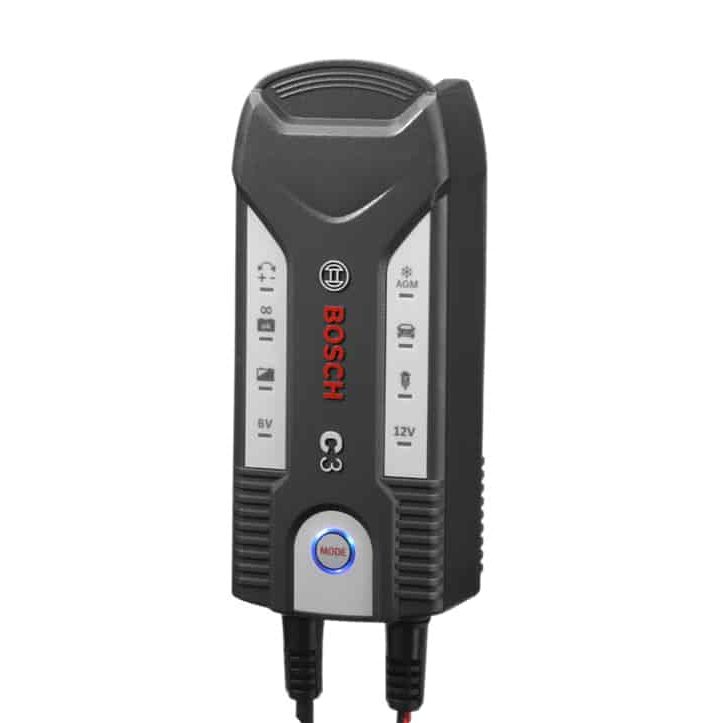

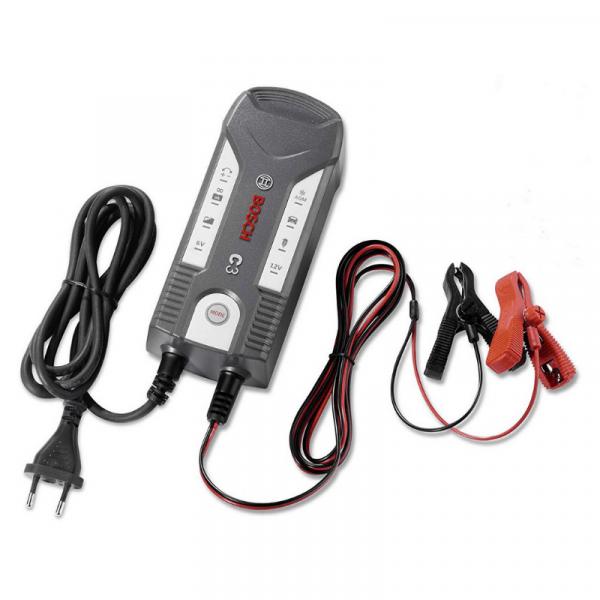

Bosch C3 Battery Charger
The Bosch C3 battery charger is an intelligent four-stage automatic battery charger with pulse charging and trickle charging capabilities. Its trickle charging mode enables the charger to monitor and keep the battery at a high level of charge which helps to reduce self-discharge.
Features:

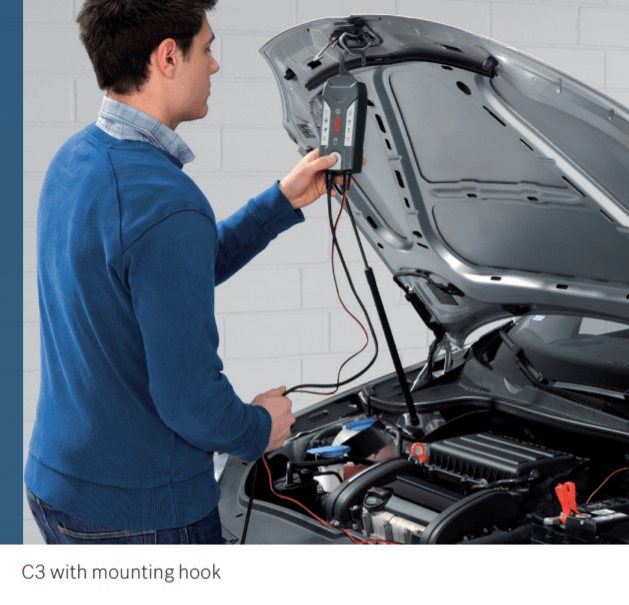

- Mounting hook
- Suitable for Lead-acid wet, AGM and gel batteries
- No risk of overcharge
- Protection against sparks
- Full protection against short-circuit & reverse polarity
- One button for ease of use
- Fully automatic charging
- Protection against overheating
- Memory function
- The C3 battery charger meets the IP65 dust and splashproof standard and is certified to Australian electrical standards.
Specifications:
- Input Voltage: 230-240v AC 50Hz
- Starting Current: <50a
- Rated Input Current: max 0.6a (rms value)
- Power Input: 60w
- Rated Output Voltage: 6v / 12v
- Charging Voltage: 14.7v +/-0.25v, 7.2v +/- 0.25v
- Charging Current: 3.8a +/- 10%, 0.8a +/- 10%
- Ripple: Max 150 mV
- Backflow Current: <5mA
- Battery Type: 6v and 12v AGM, GEL, Flooded and VLRA
- Battery Capacity: 6v 1.2ahr-14ahr, 12v 1.2ahr-120ahr
- Fuse Internal: 1.6a
- Noise Level: <50 dBA
- Dimensions: 185mm x 81mm x 55mm
