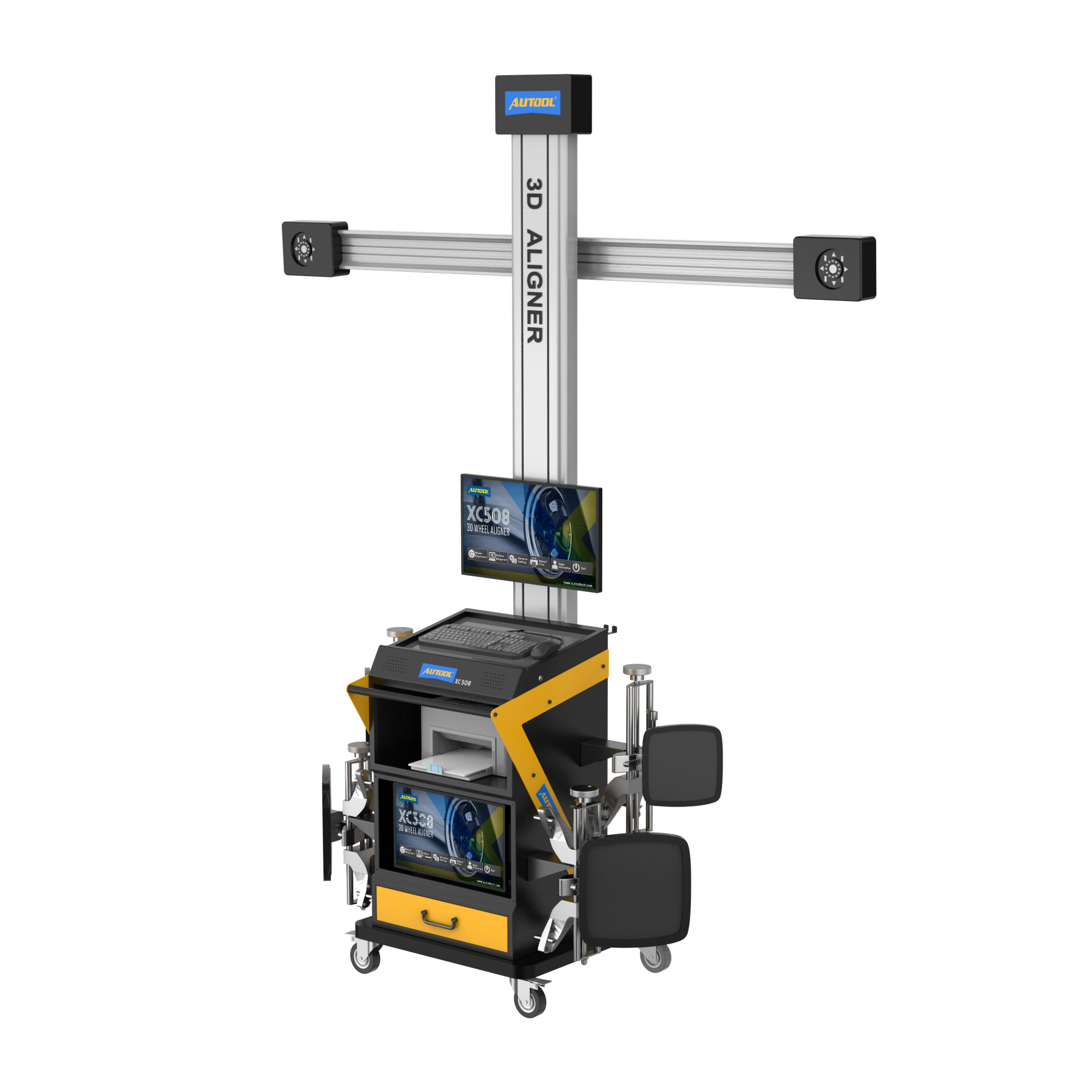

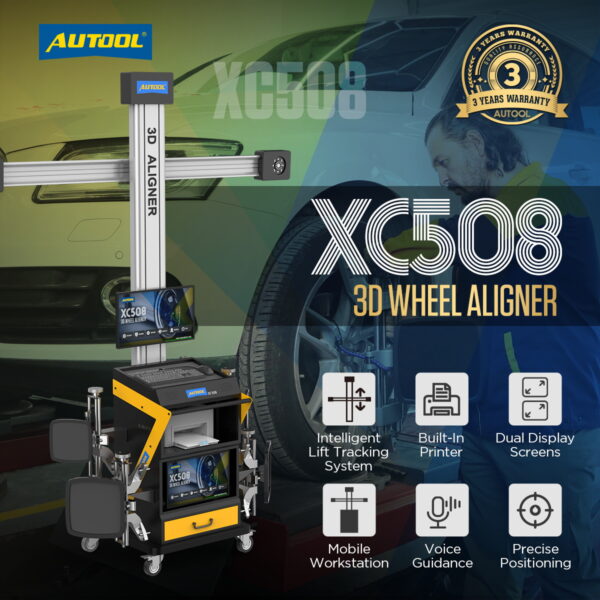

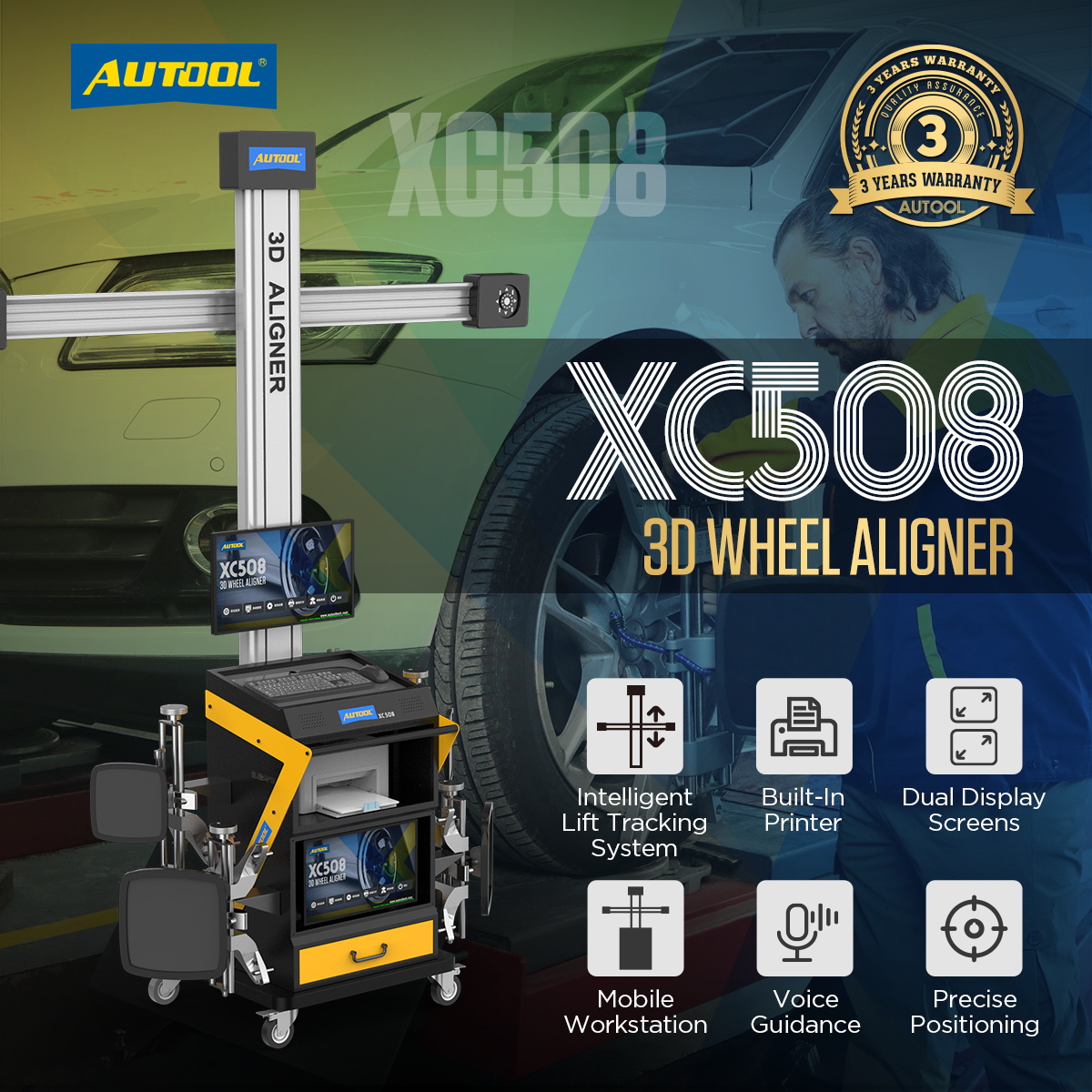

AUTOOL XC508 3D Wheel Alignment Machine – Automatic Tire Aligner with Dual Display & Mobile Workstation

The AUTOOL XC508 3D Wheel Alignment Machine is an advanced, fully automatic tire aligner system designed to deliver precision and efficiency in wheel alignment. It uses state-of-the-art 3D imaging technology and a comprehensive body size measurement system to ensure accurate and reliable alignment data, minimizing tire wear and improving driving performance. With a dual display design, built-in printer, and intelligent tracking elevation system, the XC508 is the ideal solution for tire shops, repair garages, and automotive service centers looking for a professional-grade alignment tool.

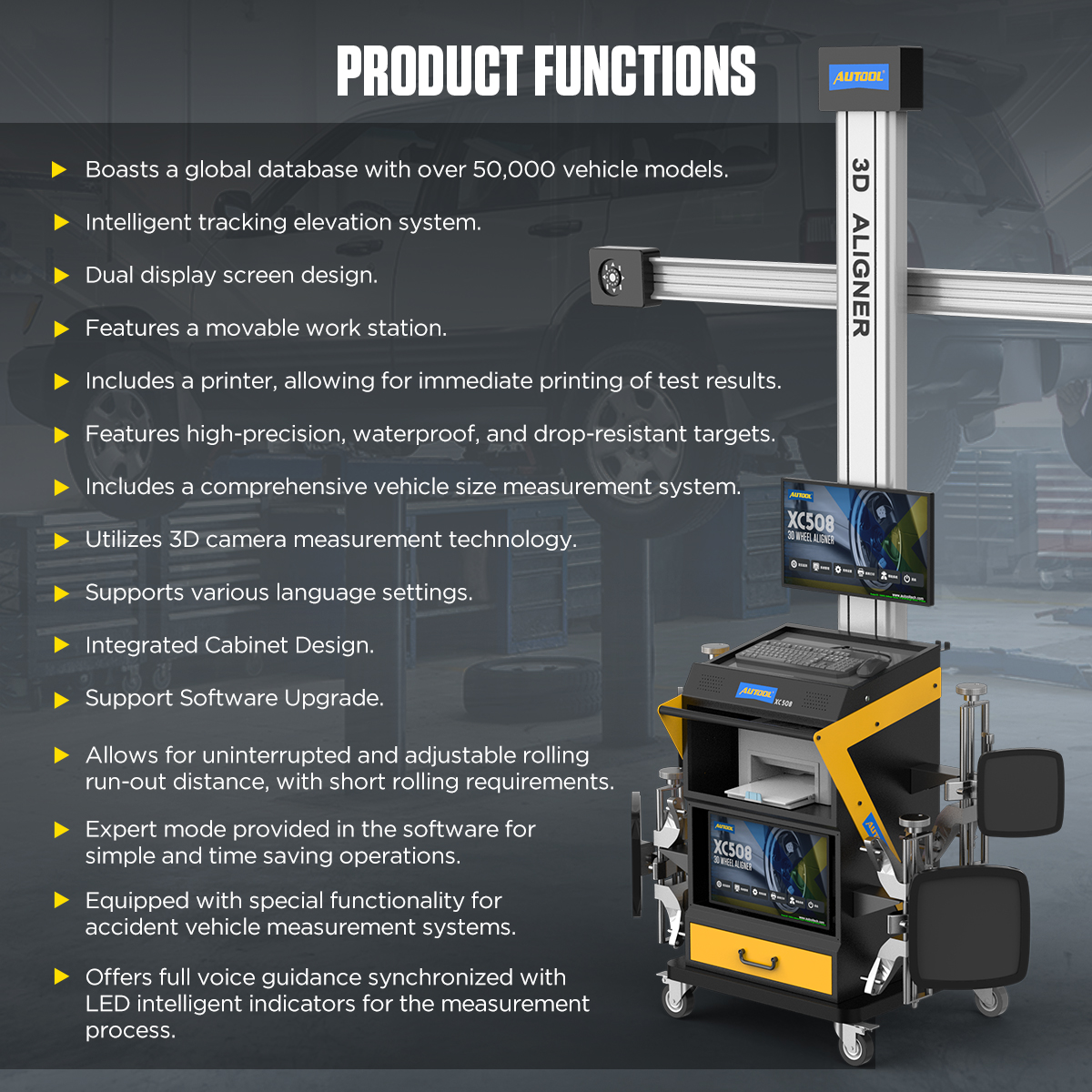

Key Features:

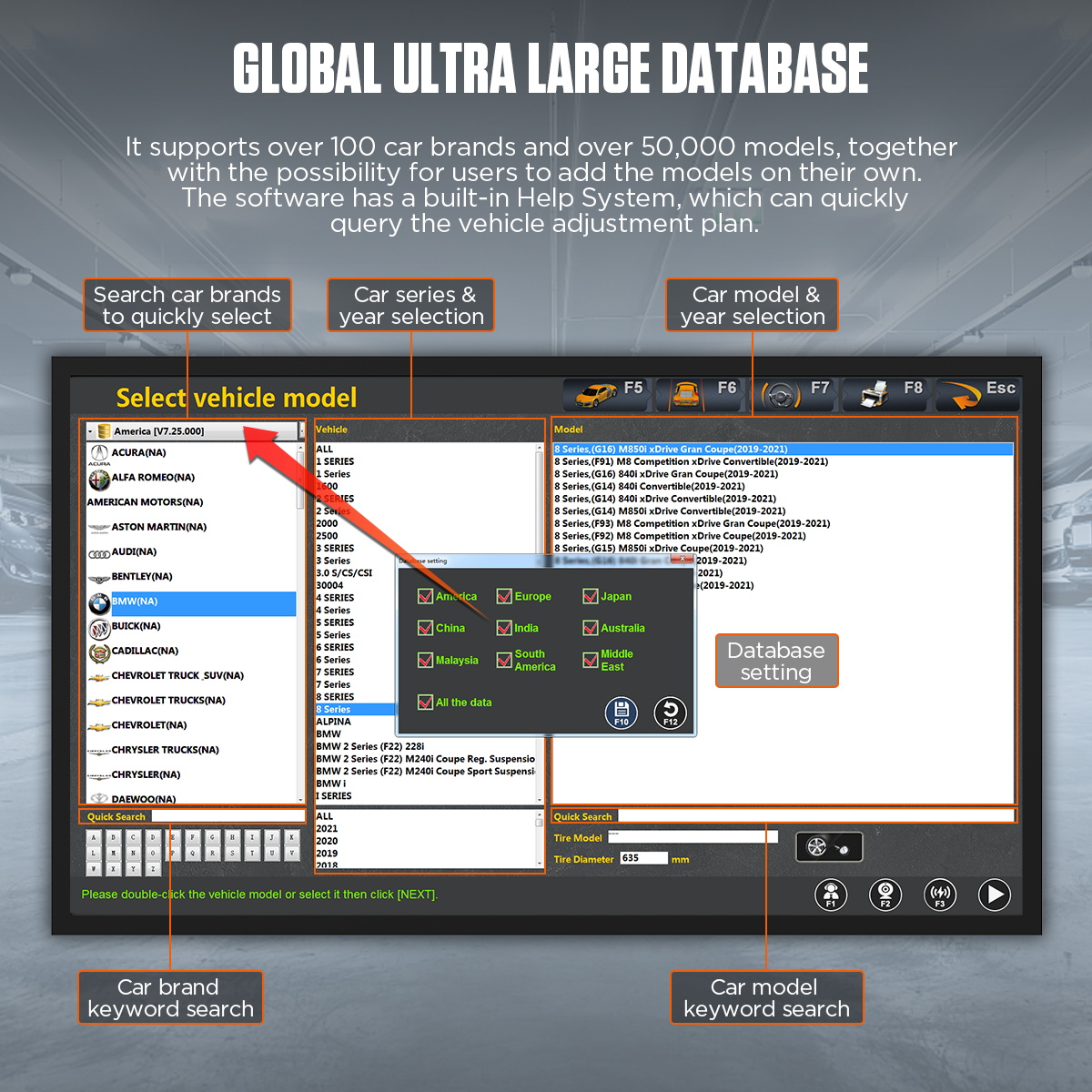

• Global Database Support: The XC508 comes with a robust database supporting over 100 car brands and more than 50,000 vehicle models. Users can add customized car models as needed, and the software includes a built-in help system for quick access to vehicle adjustment plans.

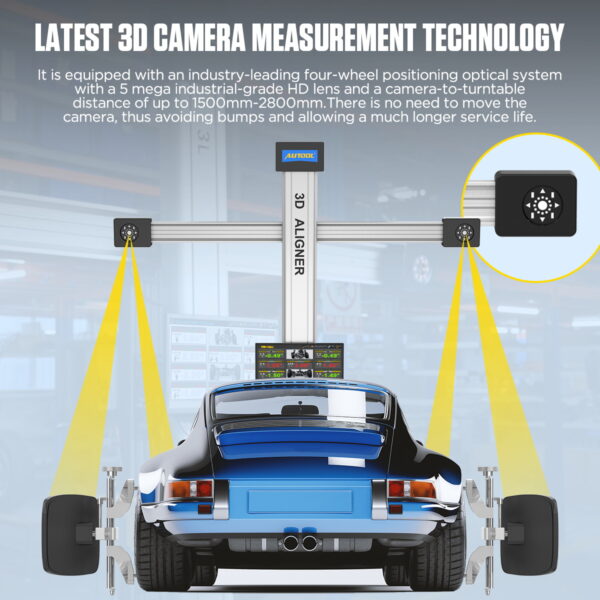

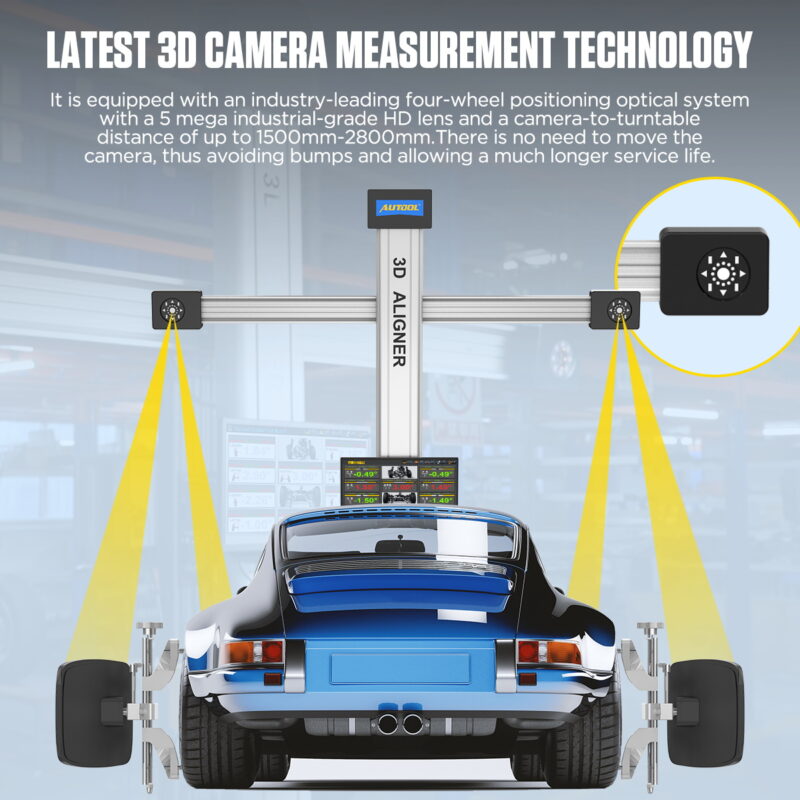

• Advanced 3D Camera Measurement Technology: Equipped with an industry-leading four-wheel alignment optical system and a 5-megapixel industrial-grade HD lens, the XC508 provides high-precision measurements without needing to move the camera. This enhances the device’s durability and simplifies the operation.

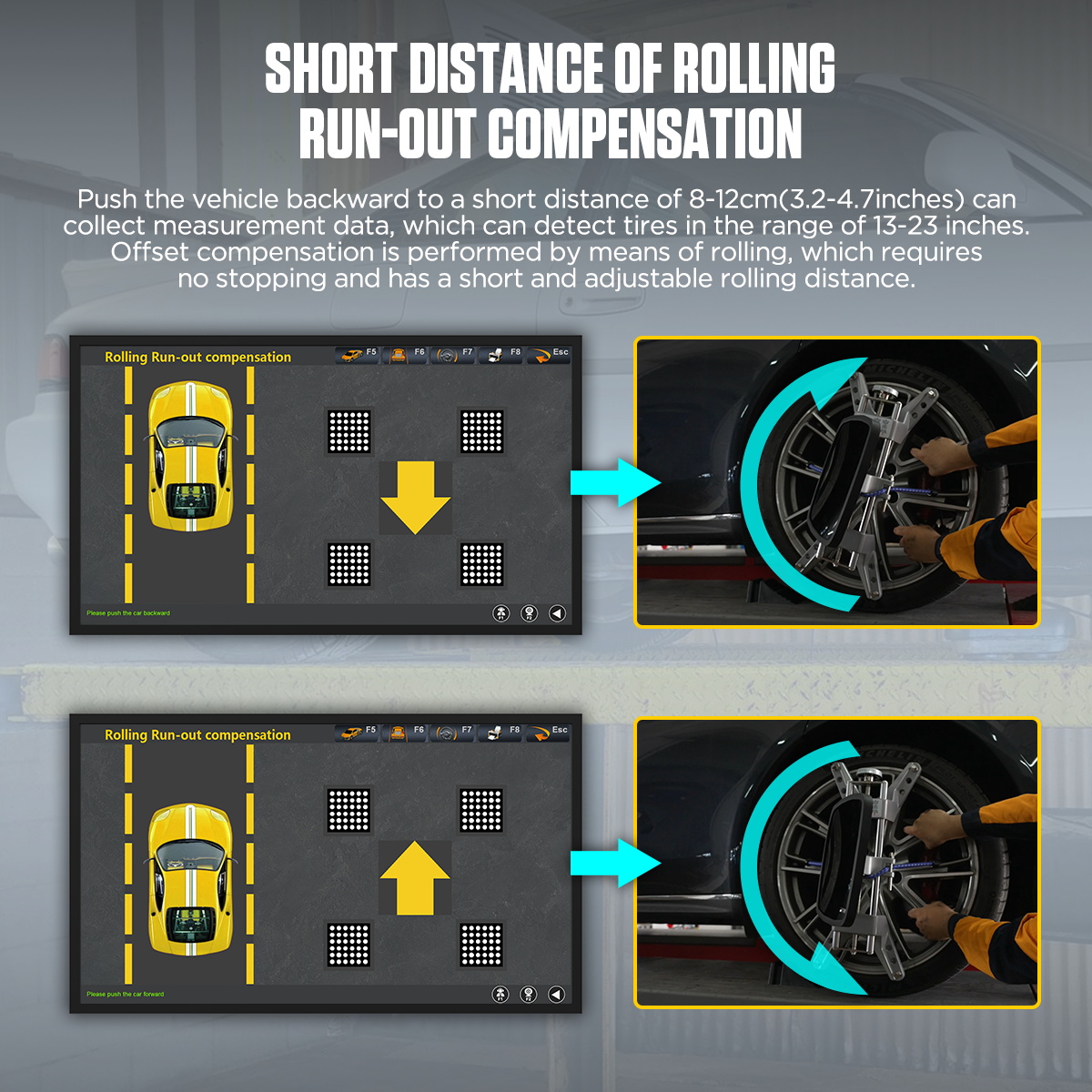

• Short Distance Runout Compensation: Easily collect measurement data by pushing the vehicle back 8-12 cm (3.2-4.7 inches). The system can detect tire sizes in the range of 13-23 inches and perform offset compensation through rolling without stopping, providing quick and efficient measurements.

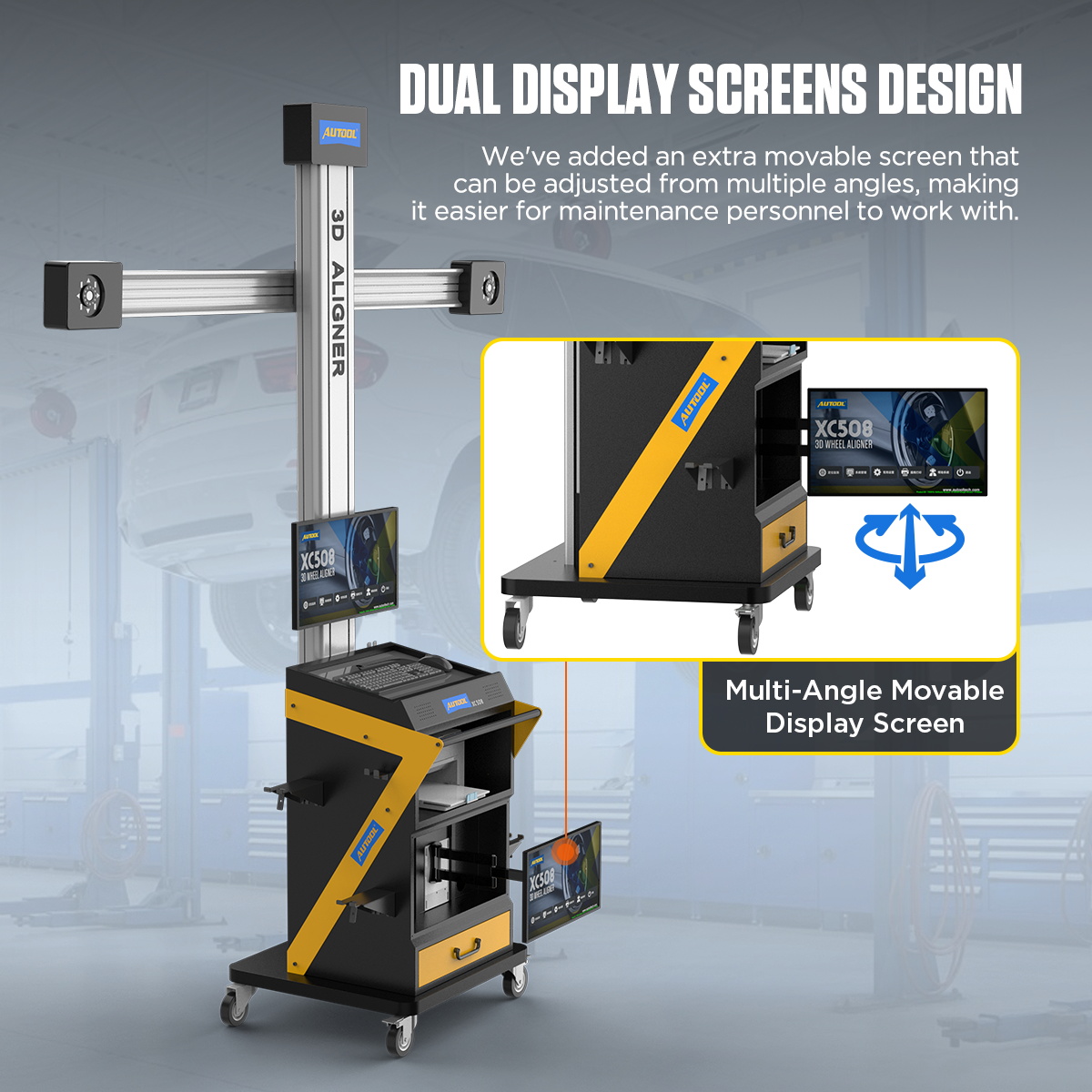

• Dual Display Screen Design: The XC508 features a movable dual display design that can be adjusted at multiple angles, providing better visibility and convenience for maintenance personnel during operation.

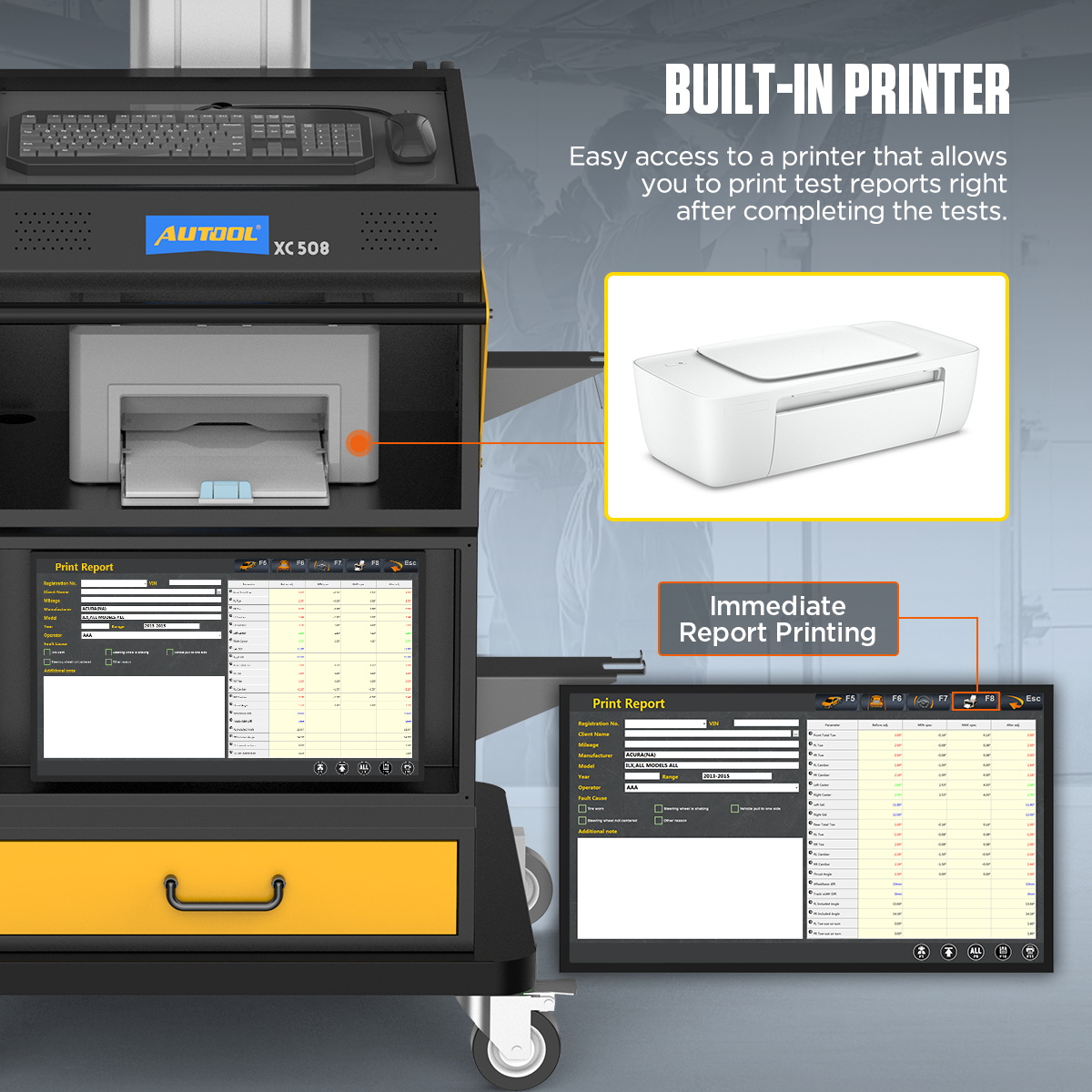

• Built-In Printer: The integrated printer allows for immediate printing of test reports, ensuring quick and professional documentation of alignment results.

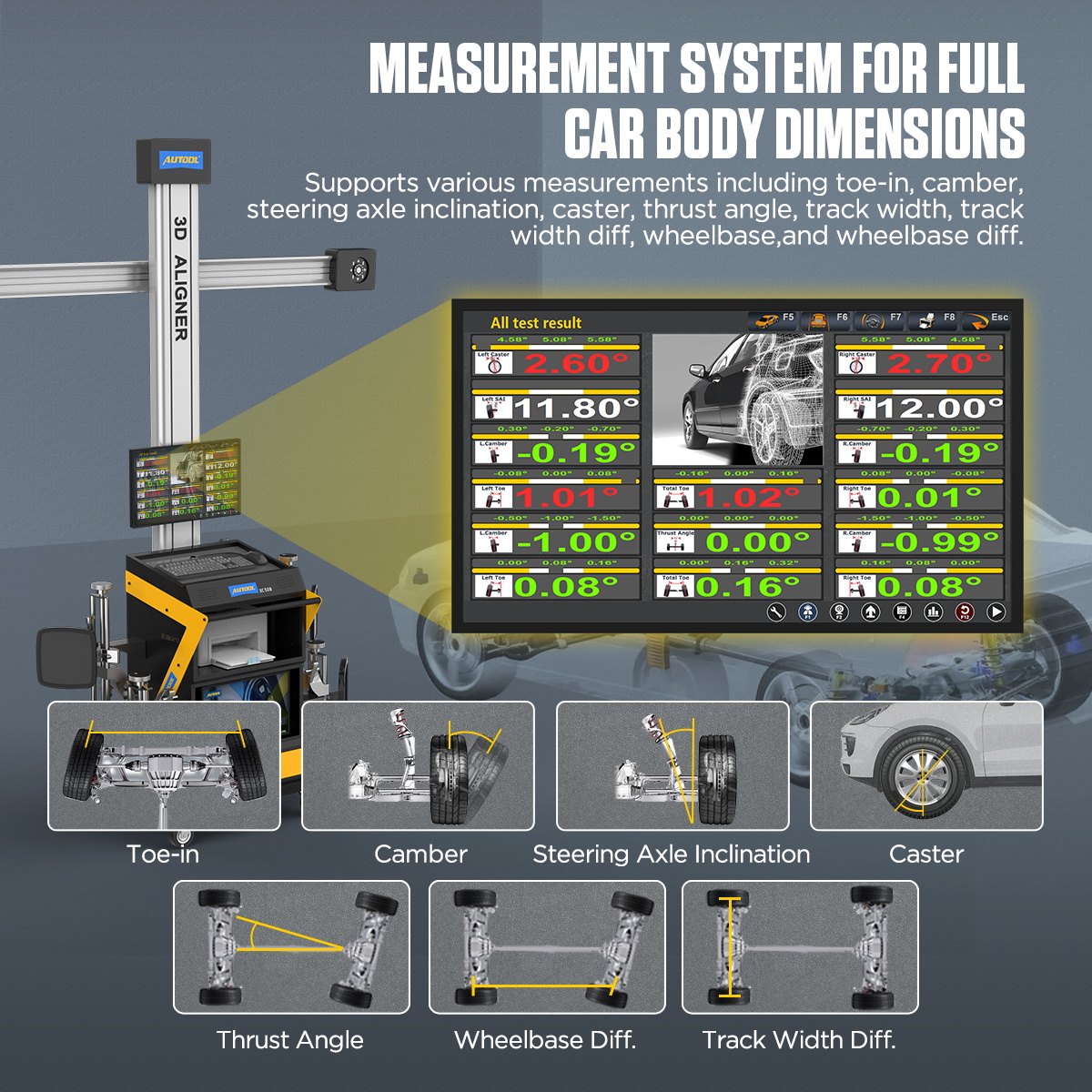

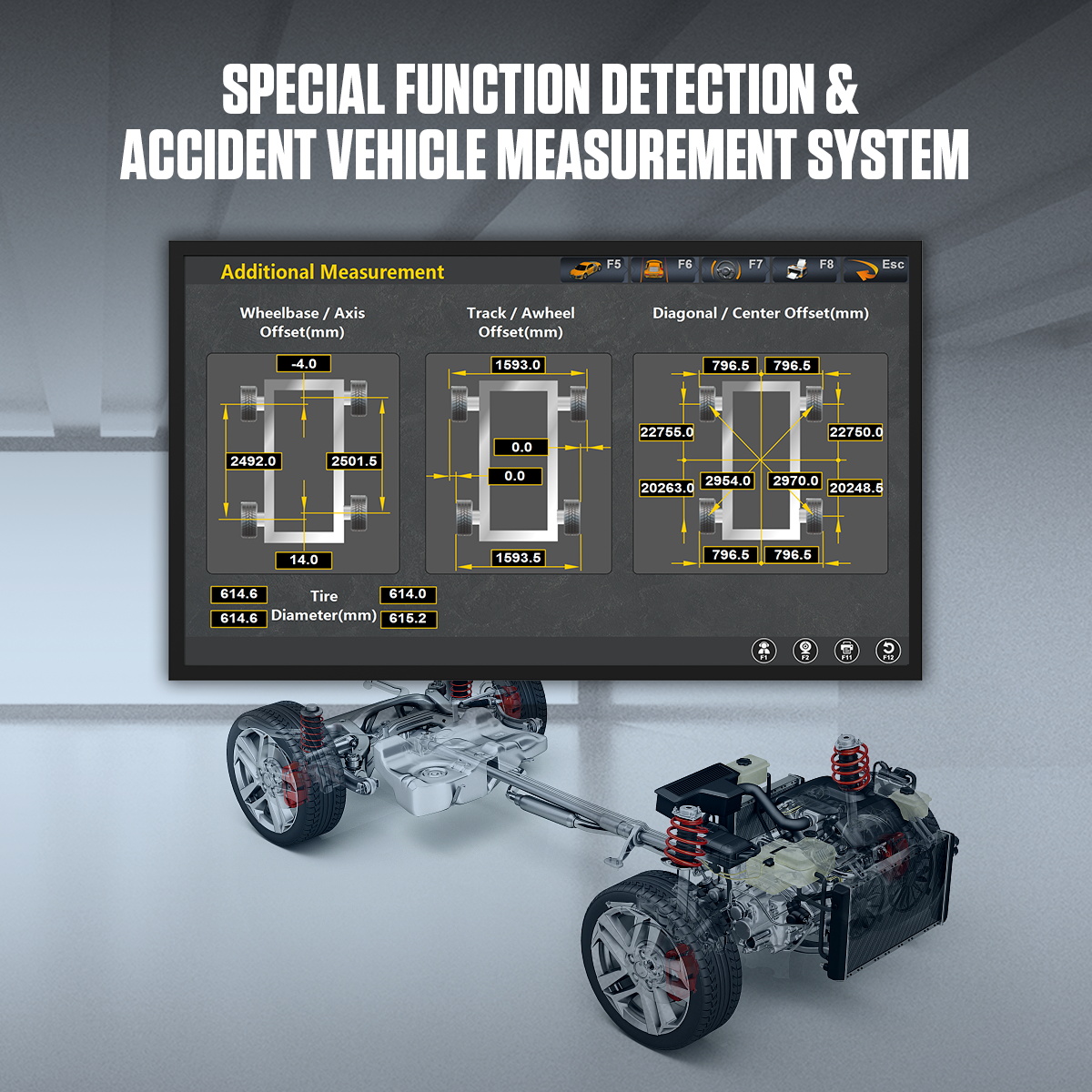

• Comprehensive Measurement System: The XC508 supports a variety of measurement parameters, including toe, camber, caster, thrust angle, track, track difference, wheelbase, and wheelbase difference, offering a complete and detailed vehicle assessment.

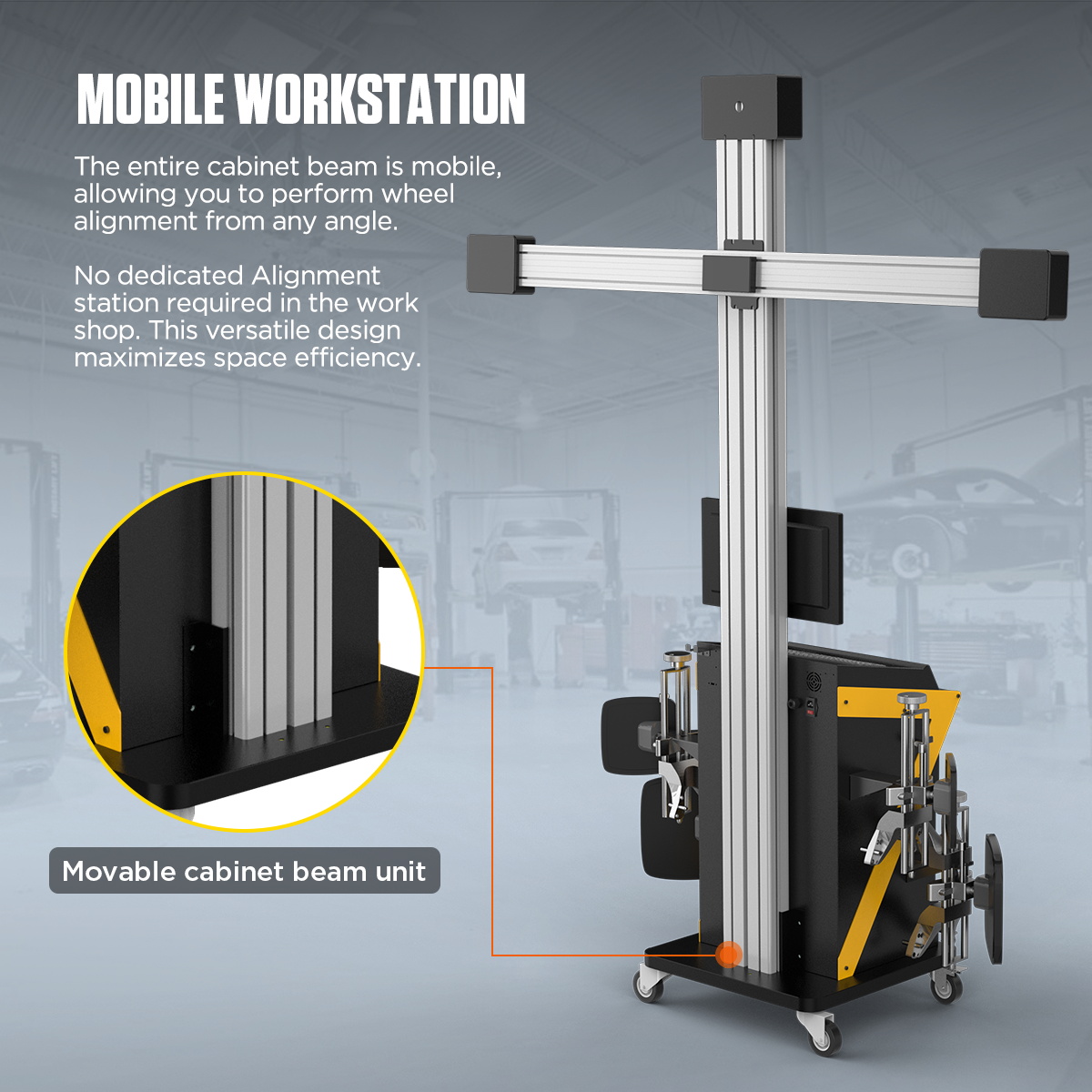

• Mobile Workstation: The XC508’s cabinet crossbar is removable, allowing for flexible wheel alignment from any angle. This design eliminates the need for a dedicated alignment station, maximizing space efficiency in the workshop.

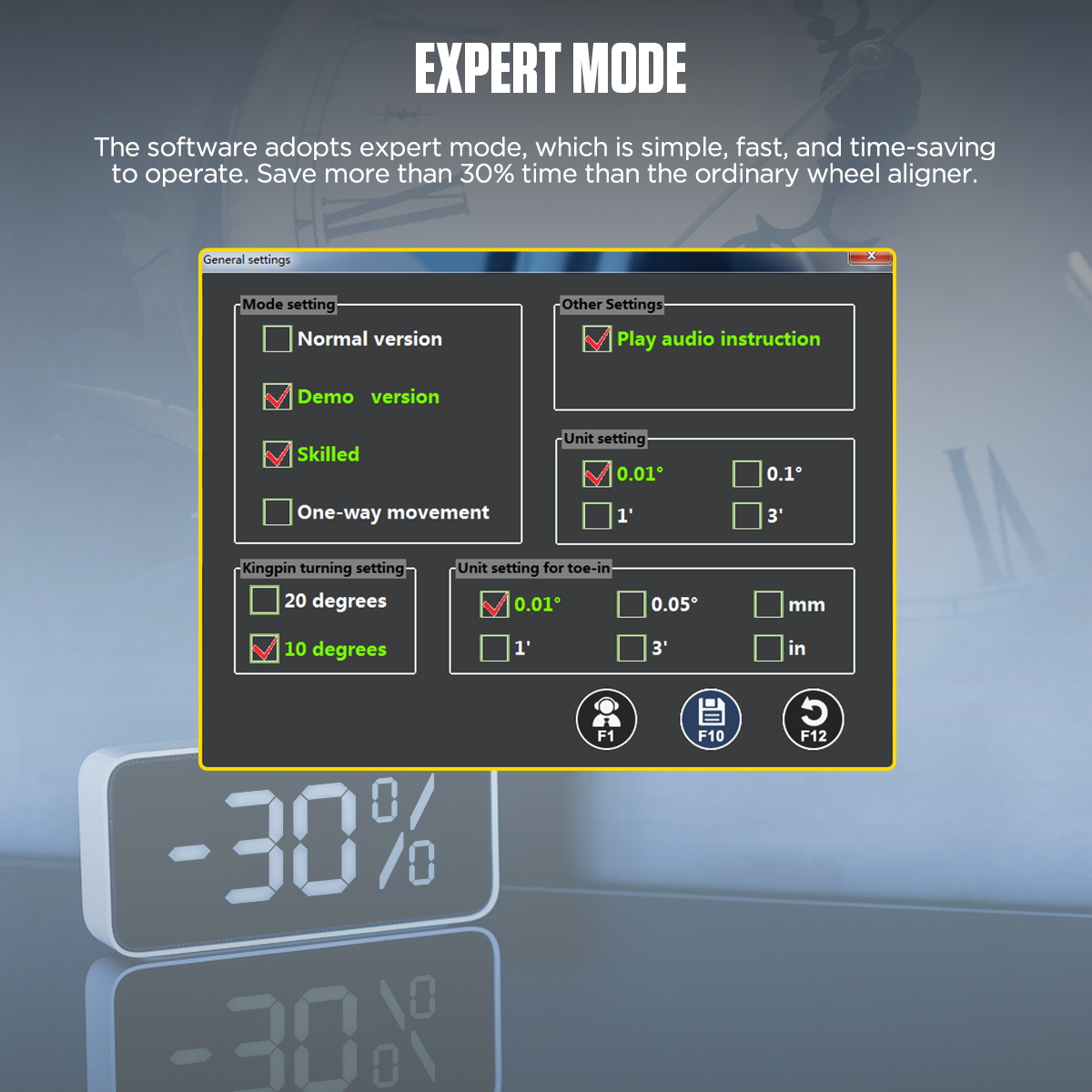

• Professional Level Software: The XC508 utilizes an expert mode in its software, enabling fast, simple, and time-saving operations. It saves over 30% of the time compared to traditional wheel aligners, increasing productivity and efficiency.

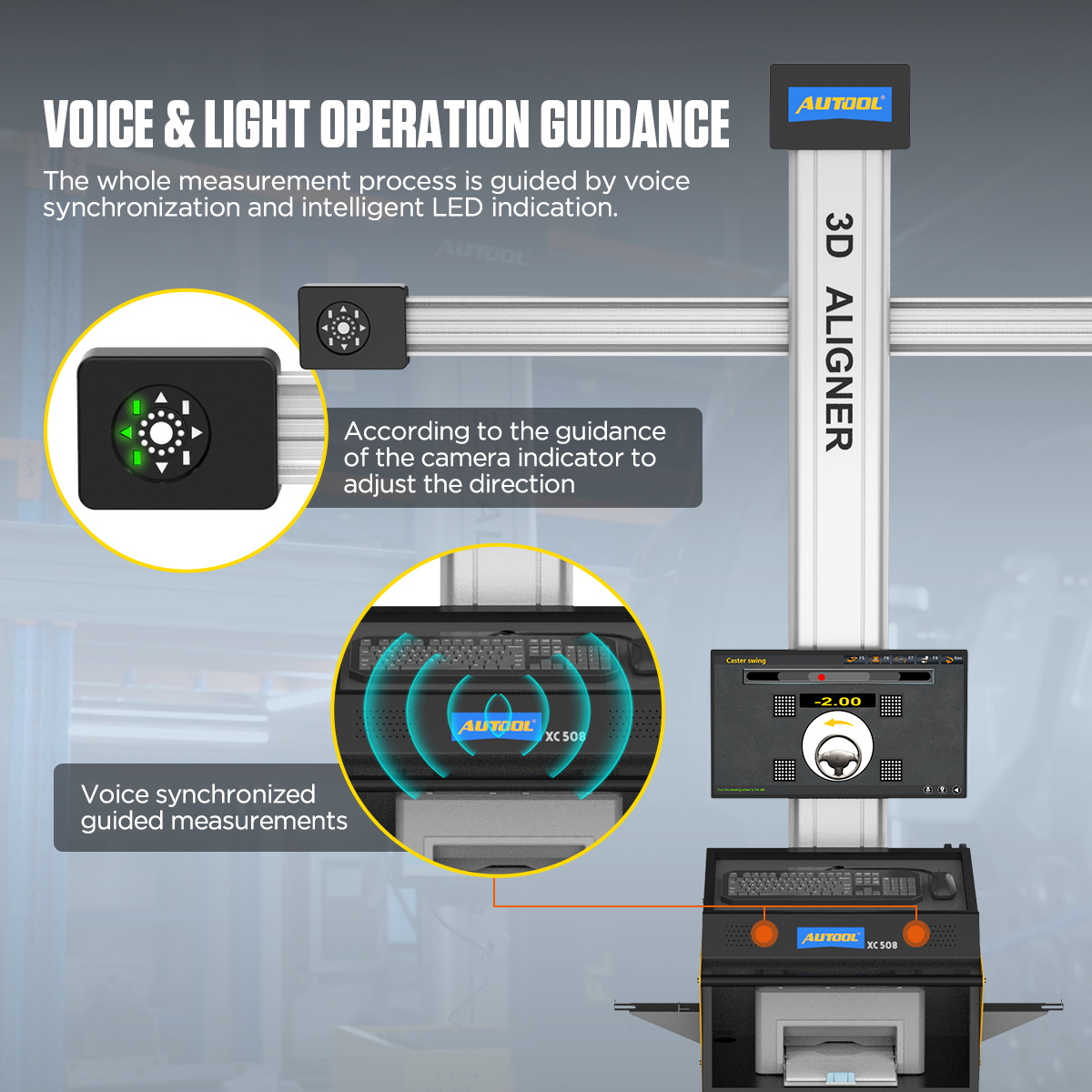

• Voice and Light Operation Guidance: The entire measurement process is guided by synchronized voice instructions and smart LED indicators, enabling accurate and efficient operations without constant monitoring of the screen.
• Multi-Language Support: The XC508 supports multiple languages, including English, Spanish, Russian, Arabic, Thai, Portuguese, Chinese, and German, making it accessible for users worldwide.

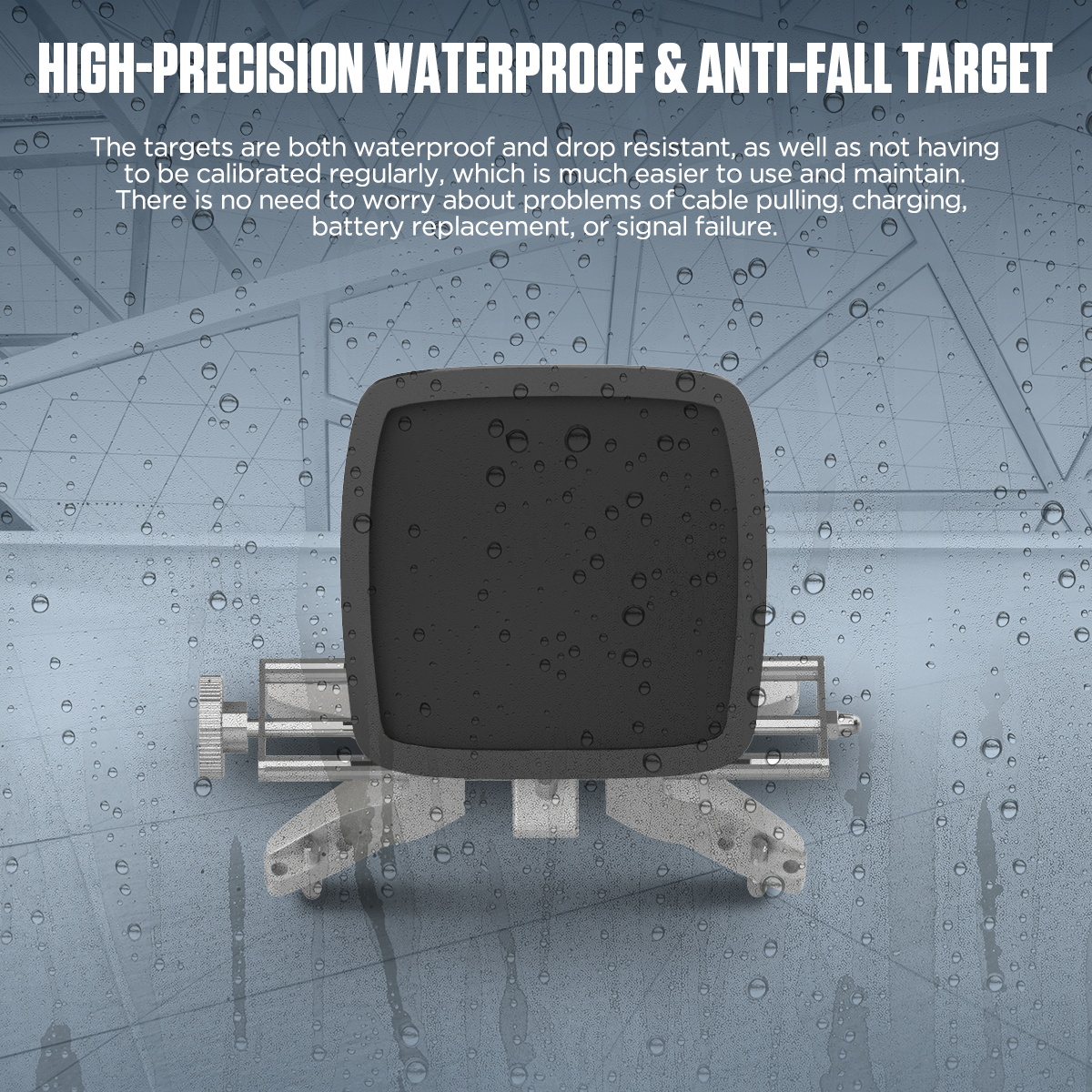

• High-Precision Waterproof and Drop-Proof Targets: The XC508’s targets are designed to be waterproof and drop-resistant, providing high precision and reliability. The system does not require regular calibration, reducing maintenance efforts.

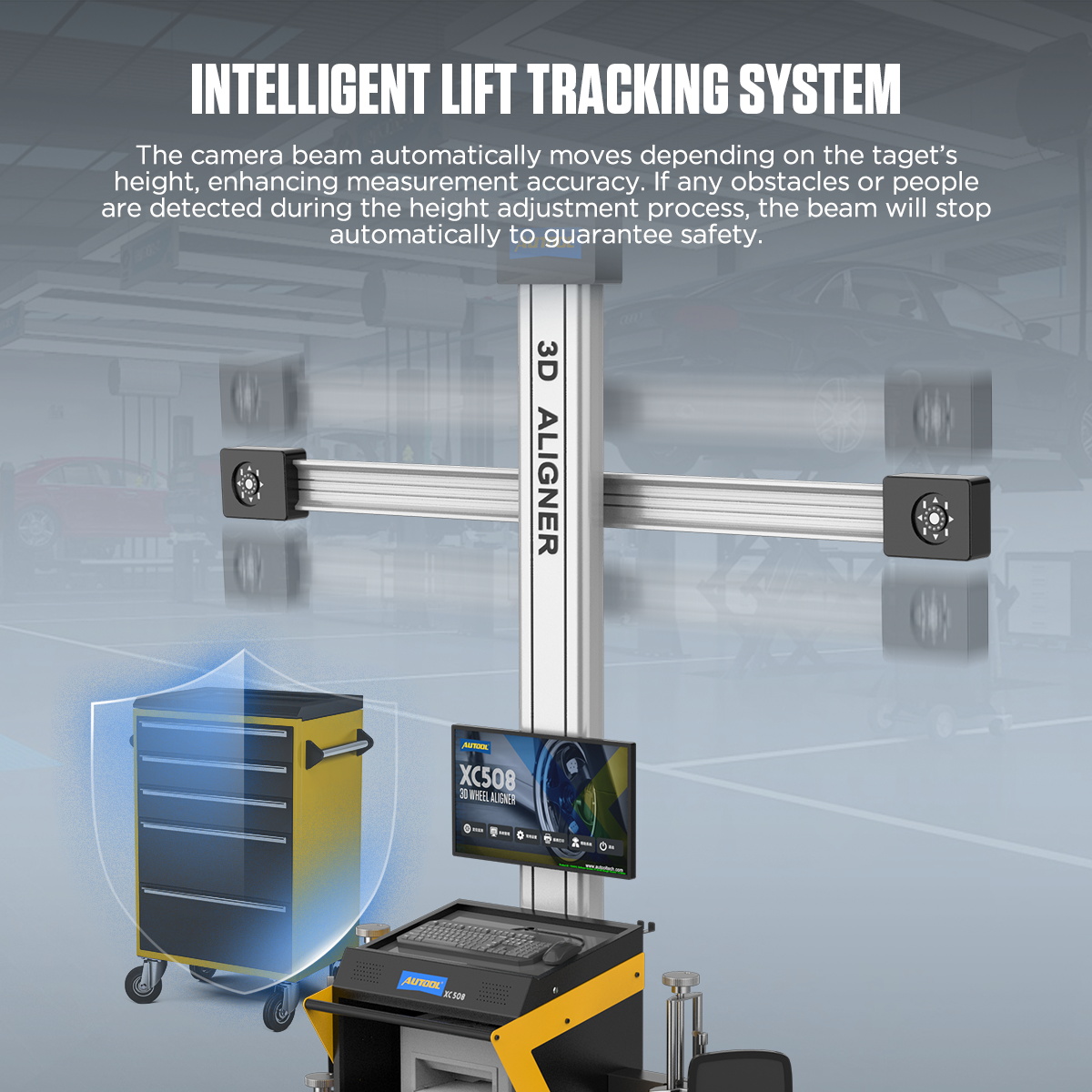

• Smart Elevator Tracking System: The camera beam automatically adjusts its height according to the target’s position, ensuring precise measurements. It features an obstacle detection function that stops the beam if an object or person is detected, enhancing safety during operations.
• Integrated Cabinet Design: The XC508 features an integrated cabinet design, allowing all components to be housed within a single unit, improving overall durability and ease of use.
• Three-Year Warranty: AUTOOL offers a three-year warranty for damages caused by non-human factors. Our dedicated support team is available 24/7 to assist with any queries, ensuring a seamless user experience.

Important Usage Notes and Warm Tips:

1. Power Supply Requirements: The 3D four-wheel aligner uses AC mains power 1PH AC220V±10% 50Hz or 1PH AC110V±10% 60Hz. Regularly check the power connection and ensure it is reliable and undamaged. If the power supply voltage is unstable, use an AC voltage stabilizer.
2. Check Bolts and Components: After vehicle maintenance is completed, ensure all bolts and components are tightened as required to maintain safety.
3. Avoid Obstruction of Light Path: The 3D wheel aligner uses computer vision technology to detect the target on the wheel. Avoid blocking the light path between the target and the camera during operation.
4. Installation Restrictions: Do not install the aligner on a vibrating object or inclined surface. Protect the system from direct sunlight and moisture for optimal performance.
5. Target Handling: The target is a key component of the aligner. Avoid damaging its structure and keep the surface clean. If stained, wipe with a soft cloth and neutral detergent or absolute alcohol.
6. Cable Handling: The wires in the column and camera beam are tightly connected. Do not touch the wires after initial installation to prevent damage.
7. Camera Calibration: The camera is accurately calibrated before leaving the factory. Do not open or adjust the camera at any time to avoid affecting detection accuracy.
8. Unauthorized Disassembly Prohibited: Do not disassemble columns, beams, or targets without manufacturer authorization to avoid damage and invalidating the warranty.
9. Proper Wheel Clamp Installation: Select the installation method based on the rim condition. Apply even force and check the clamp’s stability to prevent inaccuracies.
10. Maintain Clean Camera Filter: Keep the camera filter surface clean. Gently wipe with lens paper if stained.
11. Knob Operation: Apply even force when using each knob and avoid over-tightening to prevent damage to the locking mechanism.
12. Power Off After Use: Always disconnect the power supply after use to prevent electrical hazards.
13. Fire Safety Measures: Do not operate the aligner in flammable or explosive environments. Ensure the equipment is away from combustible materials and sources of fire.
14. No Flammable Materials Near Equipment: If any flammable materials are stored in the vehicle, keep the equipment away from fire sources to prevent accidents.

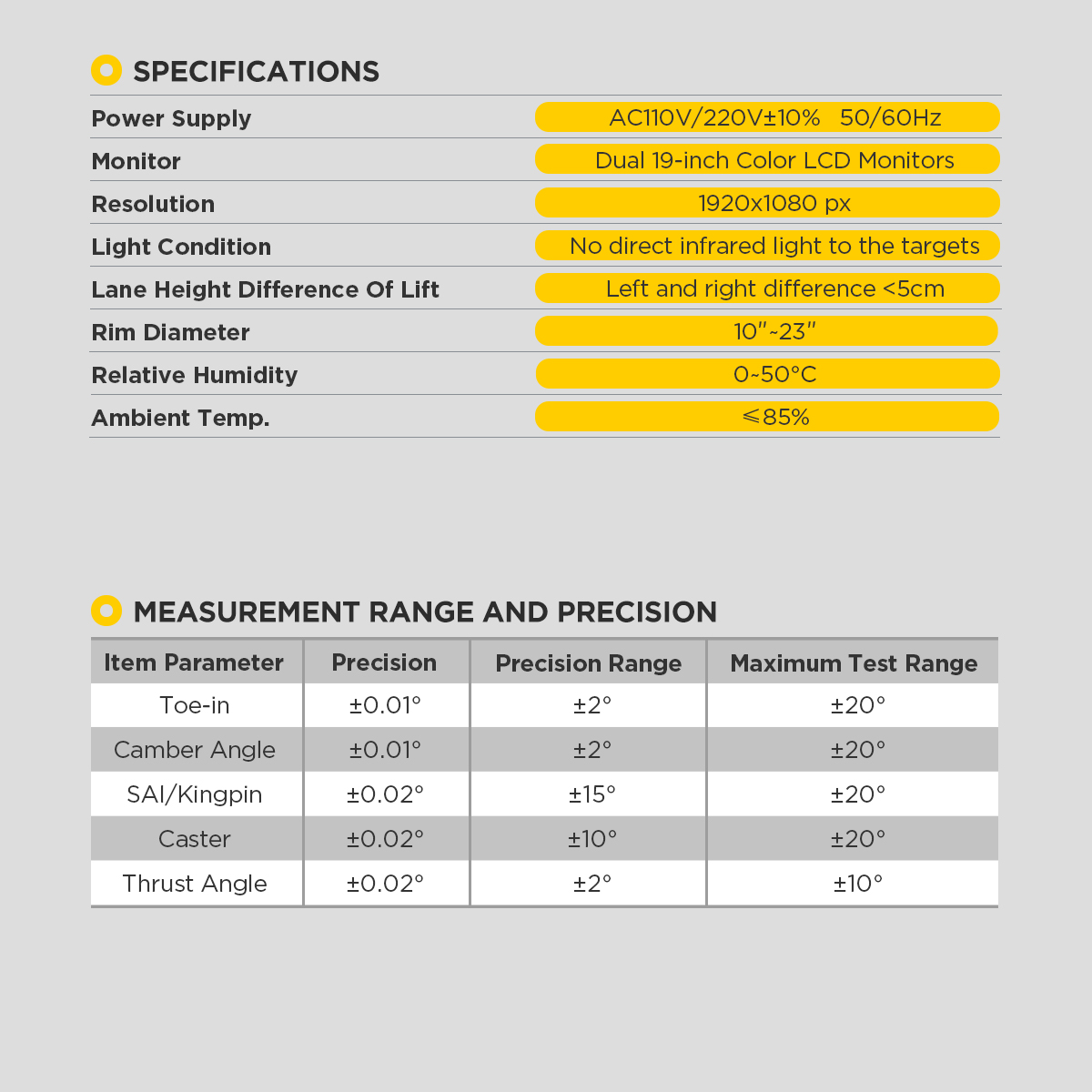

Specifications:

• Power Supply: AC110V/220V ±10%, 50/60Hz
• Monitor: Dual Display Screens
• Resolution: 1920 x 1080 pixels
• Light Condition: No direct infrared light to the targets
• Lane Height Difference of Lift: Left and right < 5 cm
• Measurable Rim Size: 13″ – 23 inches
• Ambient Temperature: 0-50°C (32-122°F)
• Relative Humidity: ≤85%

Packing List:

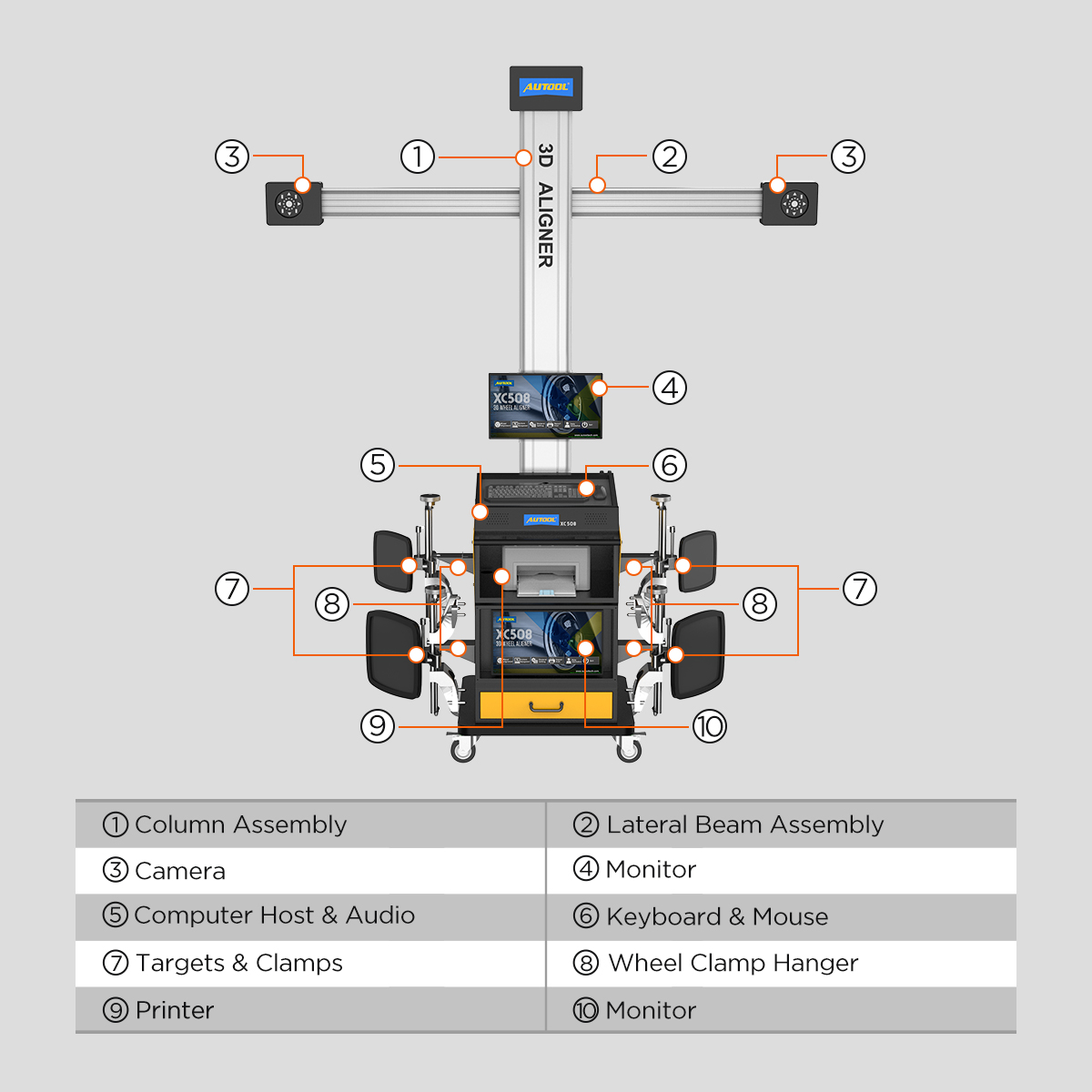

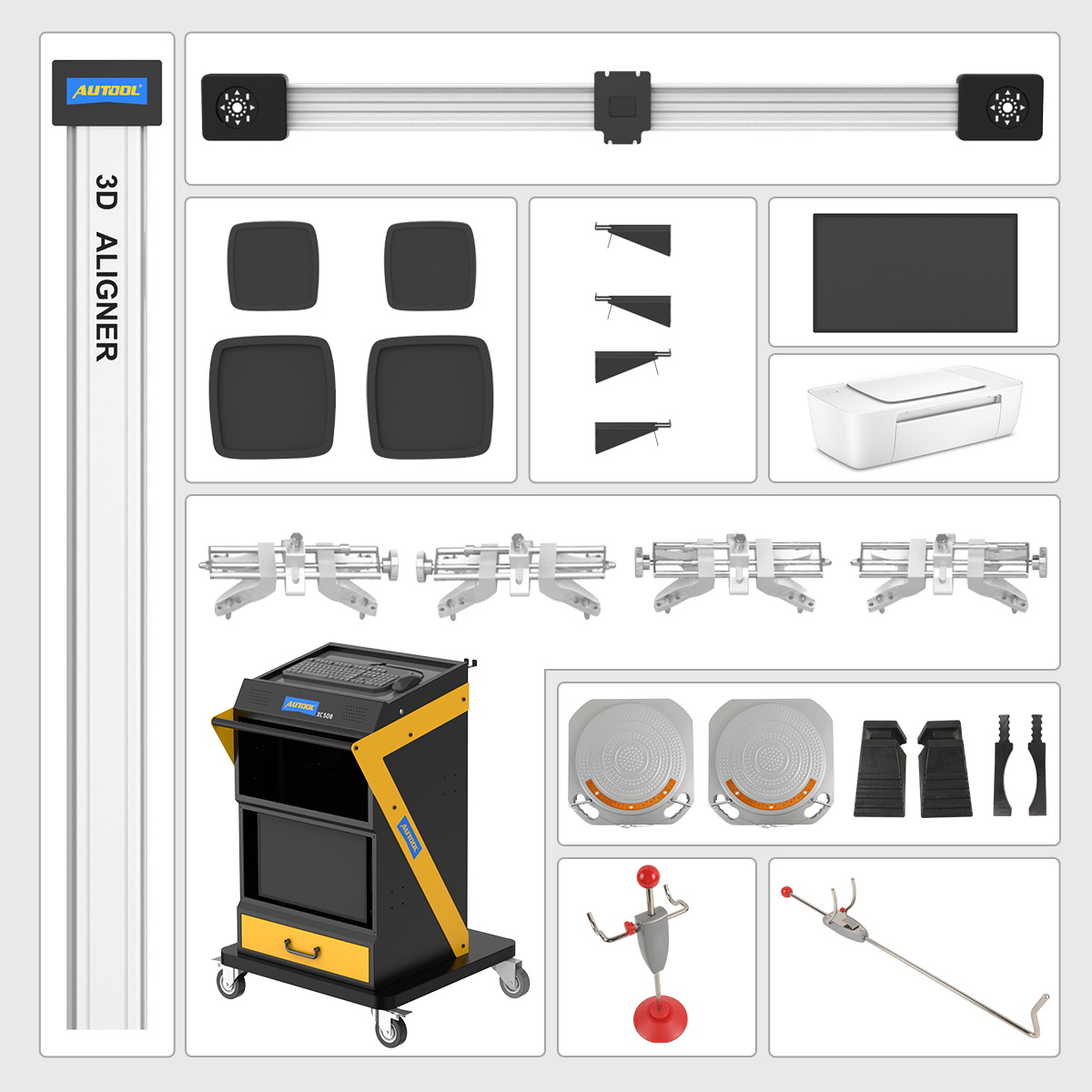

• 1 x AUTOOL XC508 Main Unit
• 1 x Column Assembly
• 1 x Lateral Beam Assembly with Camera
• 2 x Monitors
• 1 x Computer Host & Audio
• 1 x Keyboard & Mouse
• 4 x Targets & Clamps
• 4 x Wheel Clamp Hanger
• 1 x Printer
• 2 x Lifter Corner Discs
• 2 x Wedge-Shaped Pads
• 2 x Corner Disc Transition Blocks
• 1 x Steering Wheel Mount
• 1 x Brake Retainer

The AUTOOL XC508 3D Wheel Alignment Machine is a top-of-the-line tool designed for professional automotive service centers looking for precision, efficiency, and versatility in wheel alignment operations. With its advanced features and easy-to-use interface, the XC508 ensures high-quality service, making it the perfect choice for enhancing your workshop capabilities. Experience unmatched value with the AUTOOL XC508 and deliver superior alignment services.
