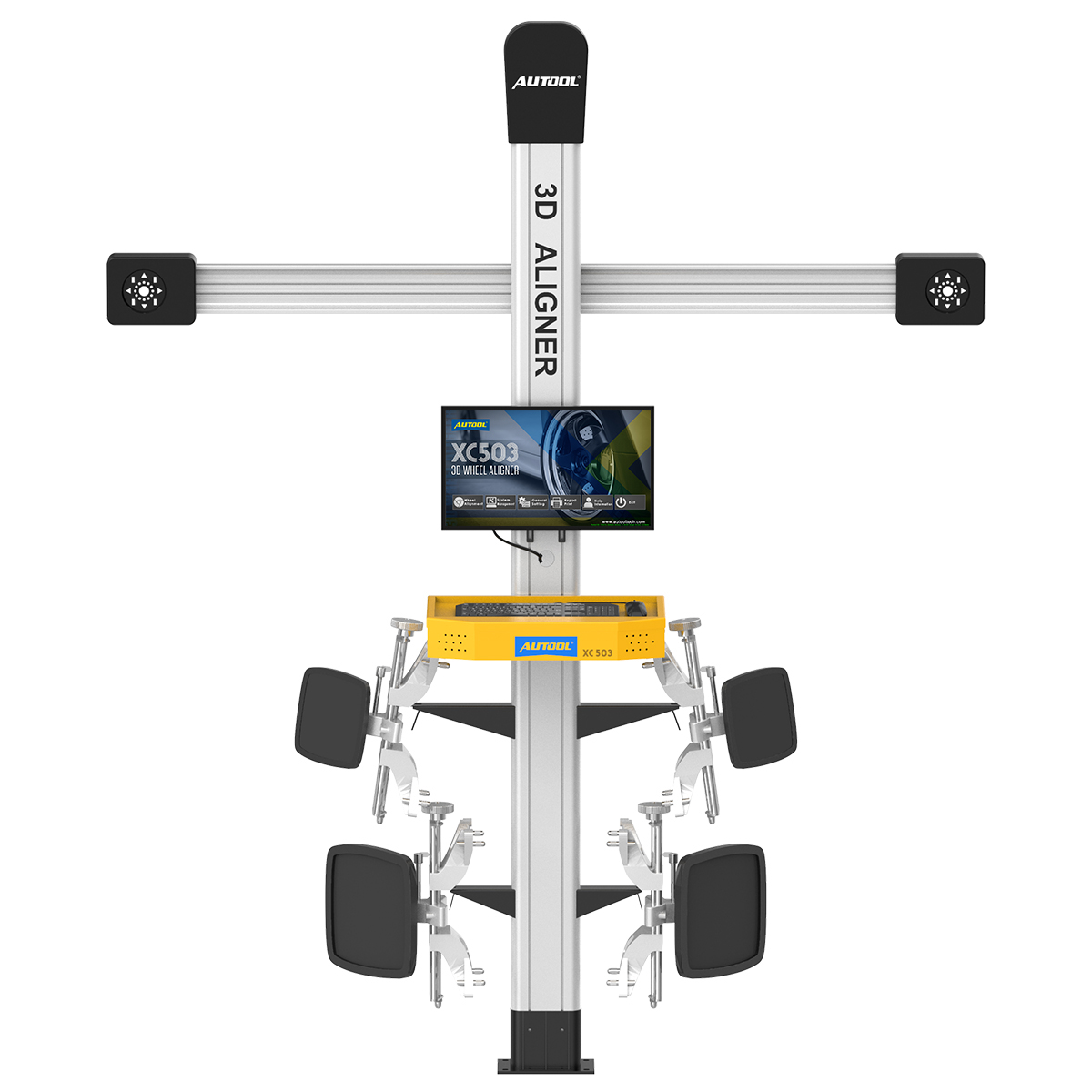

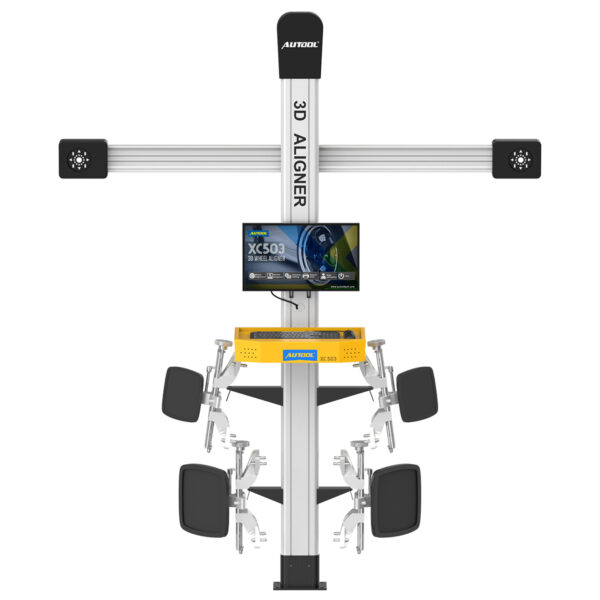

AUTOOL XC503 3D Wheel Aligner – High-Precision Alignment with Advanced 3D Imaging Technology

The AUTOOL XC503 3D Wheel Aligner is an innovative tool that utilizes advanced 3D imaging and body-based measurement technology to deliver real-time, high-precision wheel alignment data. Perfect for tire stores, repair garages, and automobile 4S shops, this aligner offers professional measurement accuracy, ease of use, and a comprehensive database, making it ideal for a wide range of vehicle types. The XC503 is designed to operate efficiently in various environments, unaffected by lifting platforms and limited space, providing unmatched versatility and applicability.

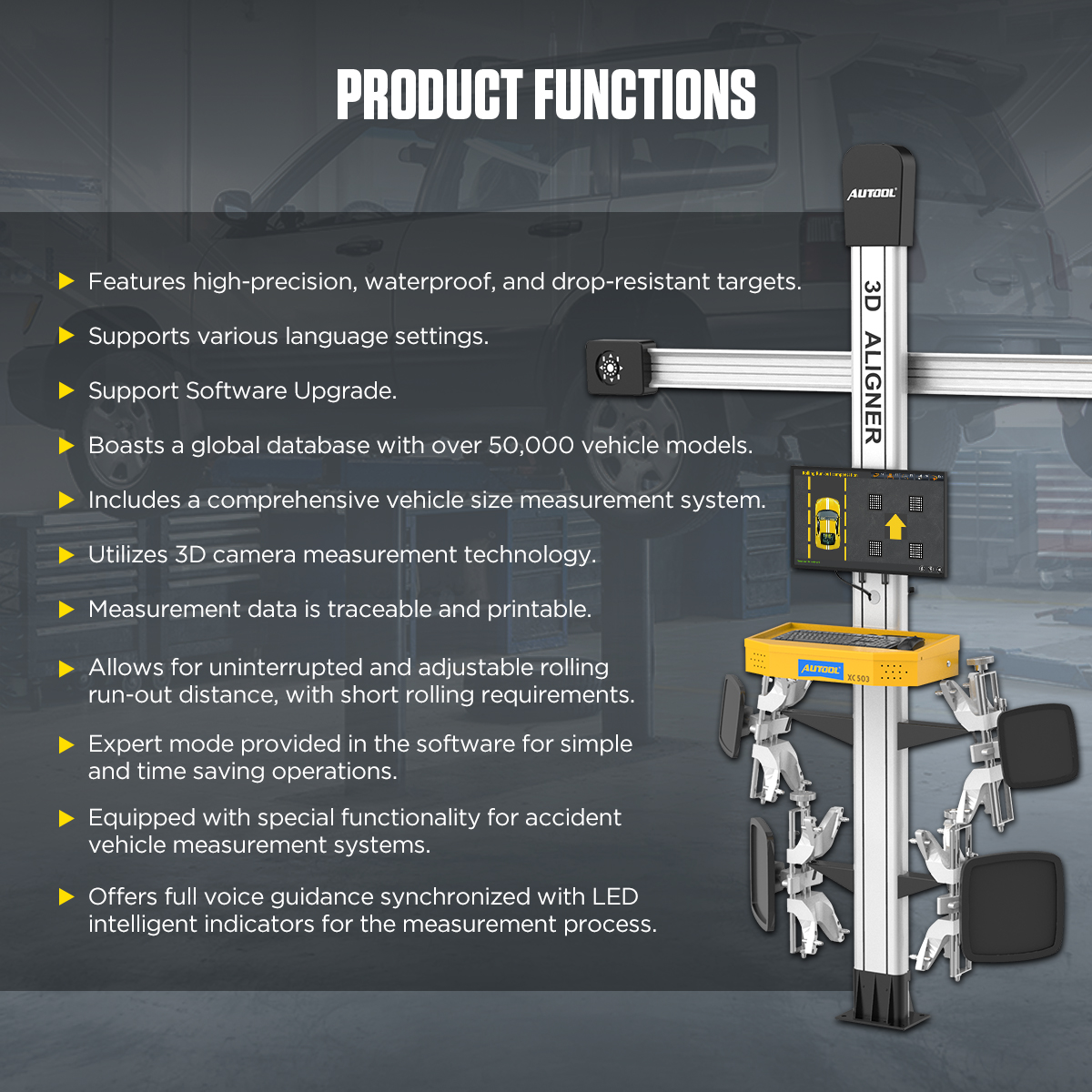

Key Features:

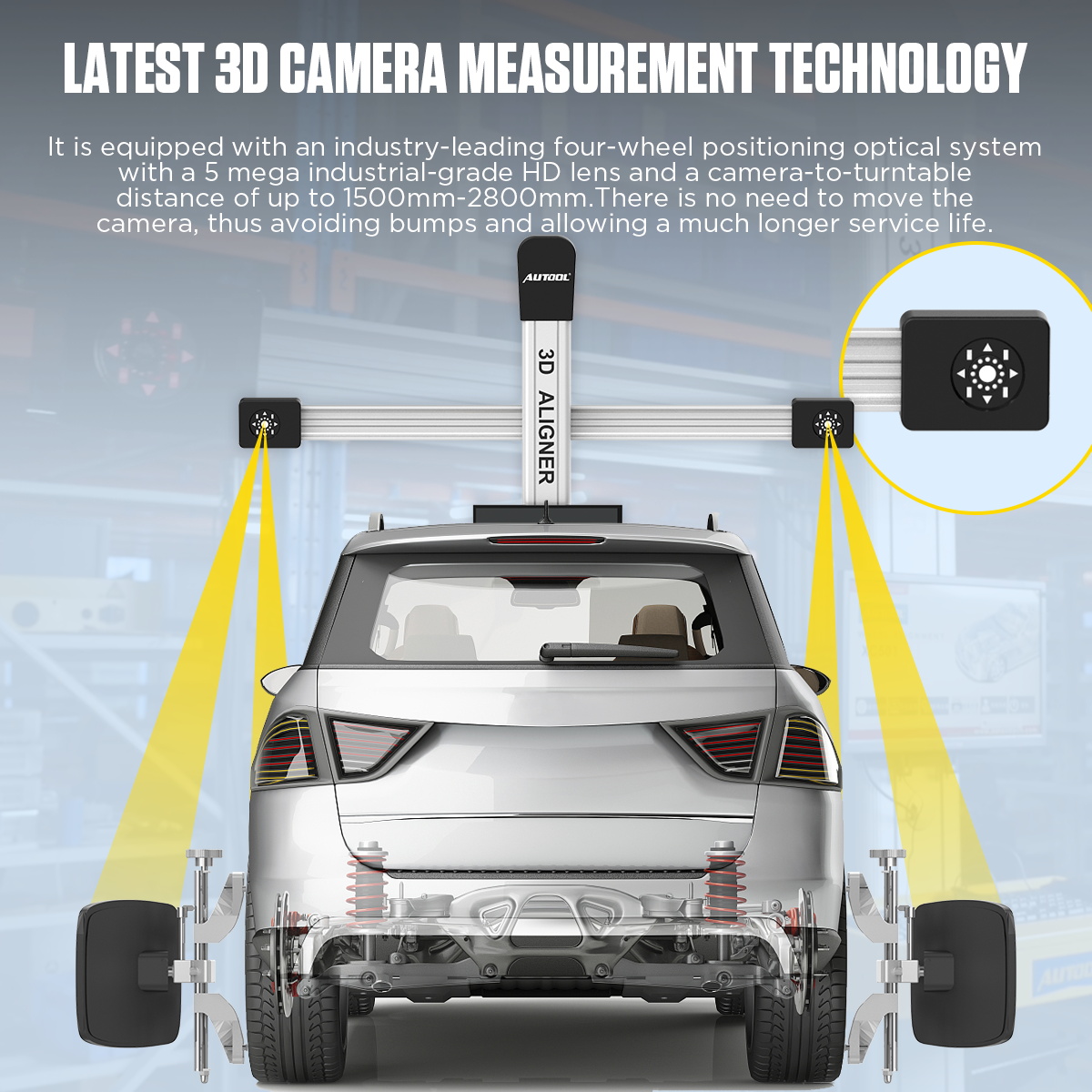

• Advanced 3D Imaging Positioning Technology: The XC503 uses a 5-megapixel industrial-grade HD lens to capture precise alignment data through a high-resolution optical system. This technology ensures real-time detection of wheel alignment with high accuracy and stability, adapting to various lighting conditions.

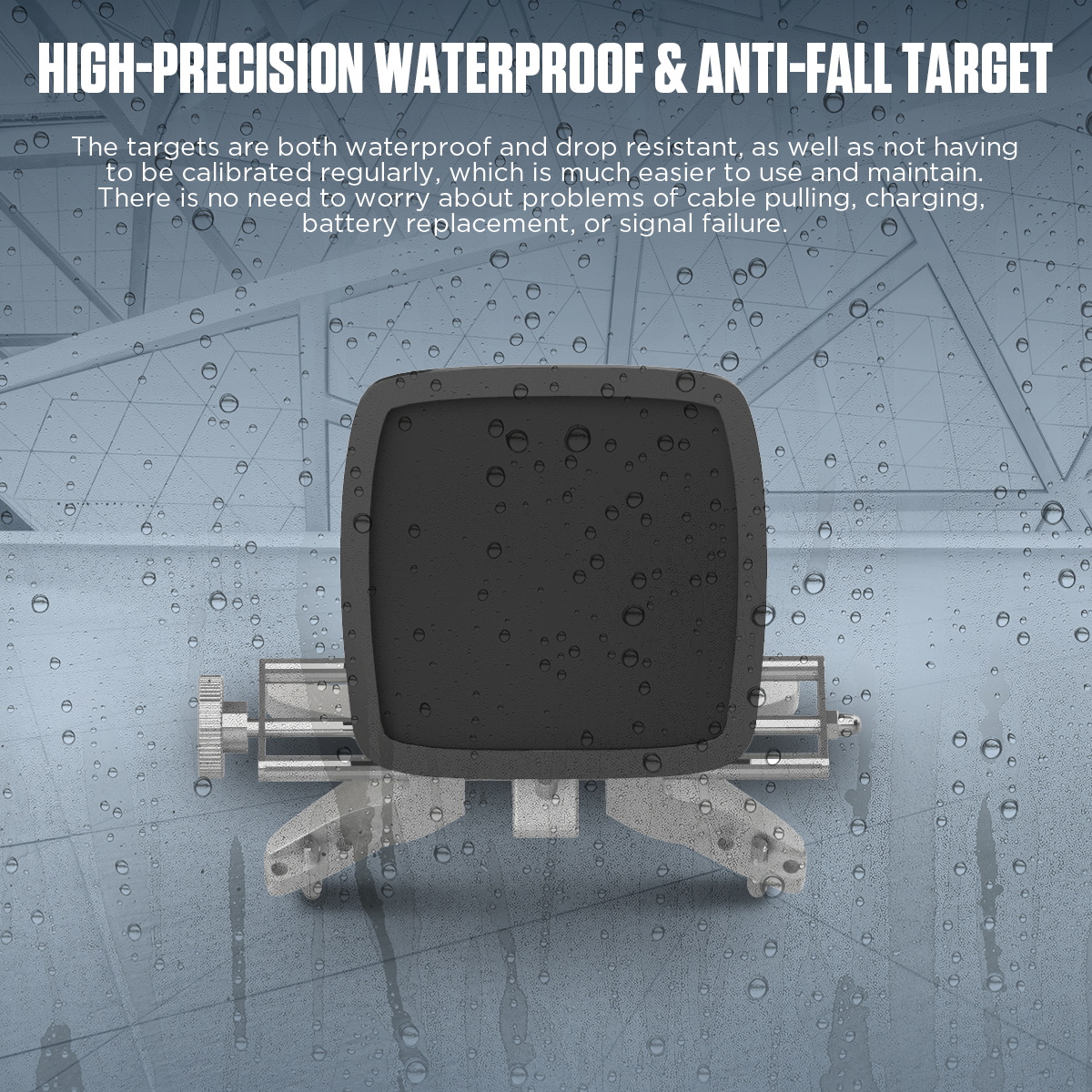

• High-Precision, Waterproof, and Drop-Resistant Targets: The professionally designed targets are durable, waterproof, and drop-resistant, ensuring reliable performance and long-lasting service life in any working environment.

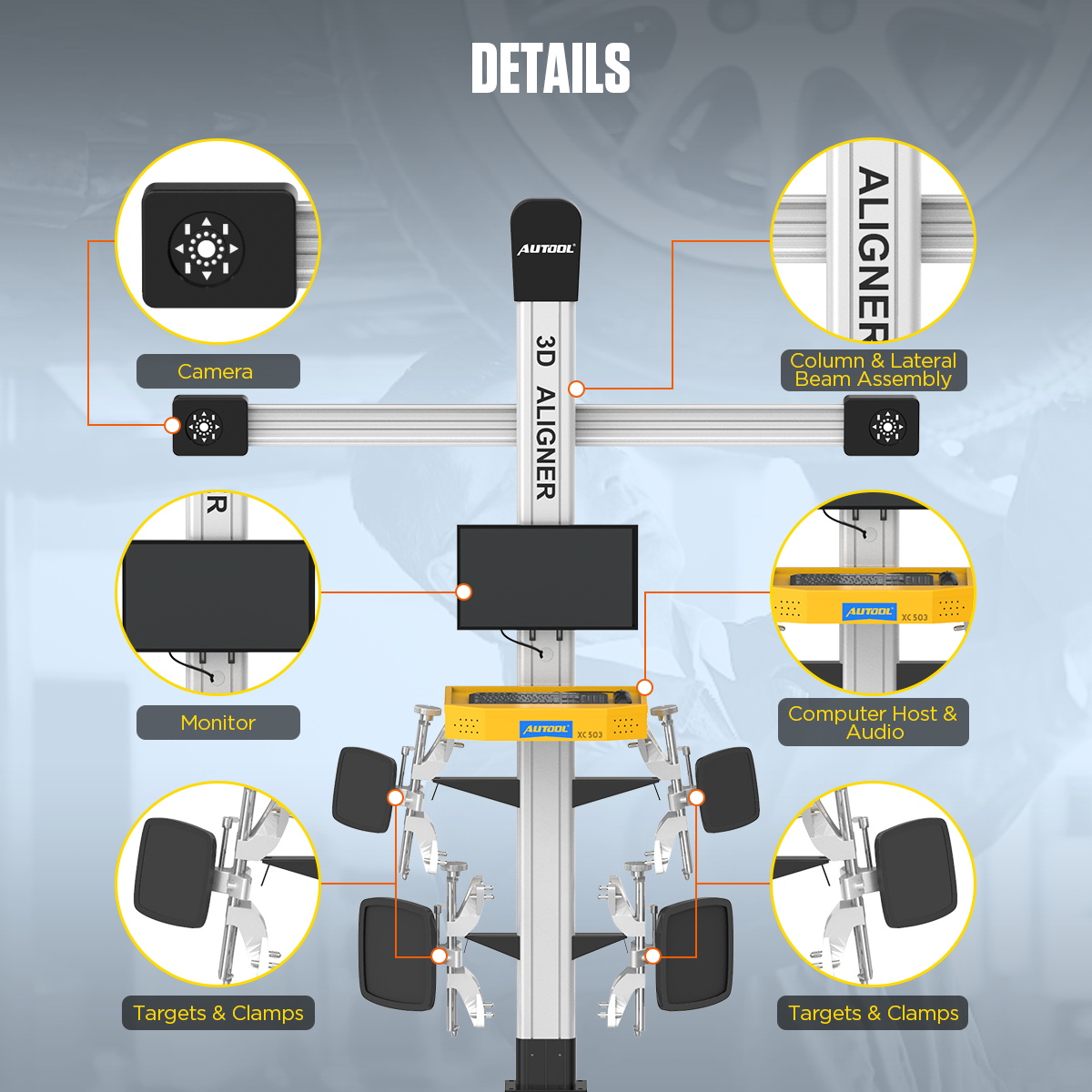

• Fixed Column Design: The stable column structure offers a safer, more fashionable appearance and supports the aligner’s overall performance and reliability.

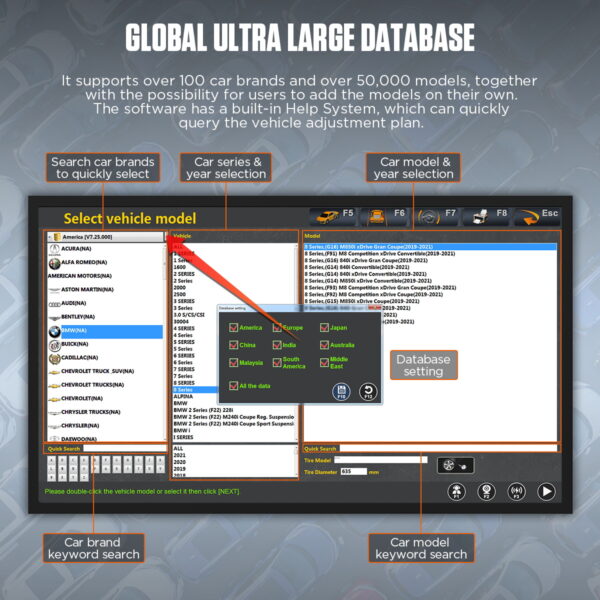

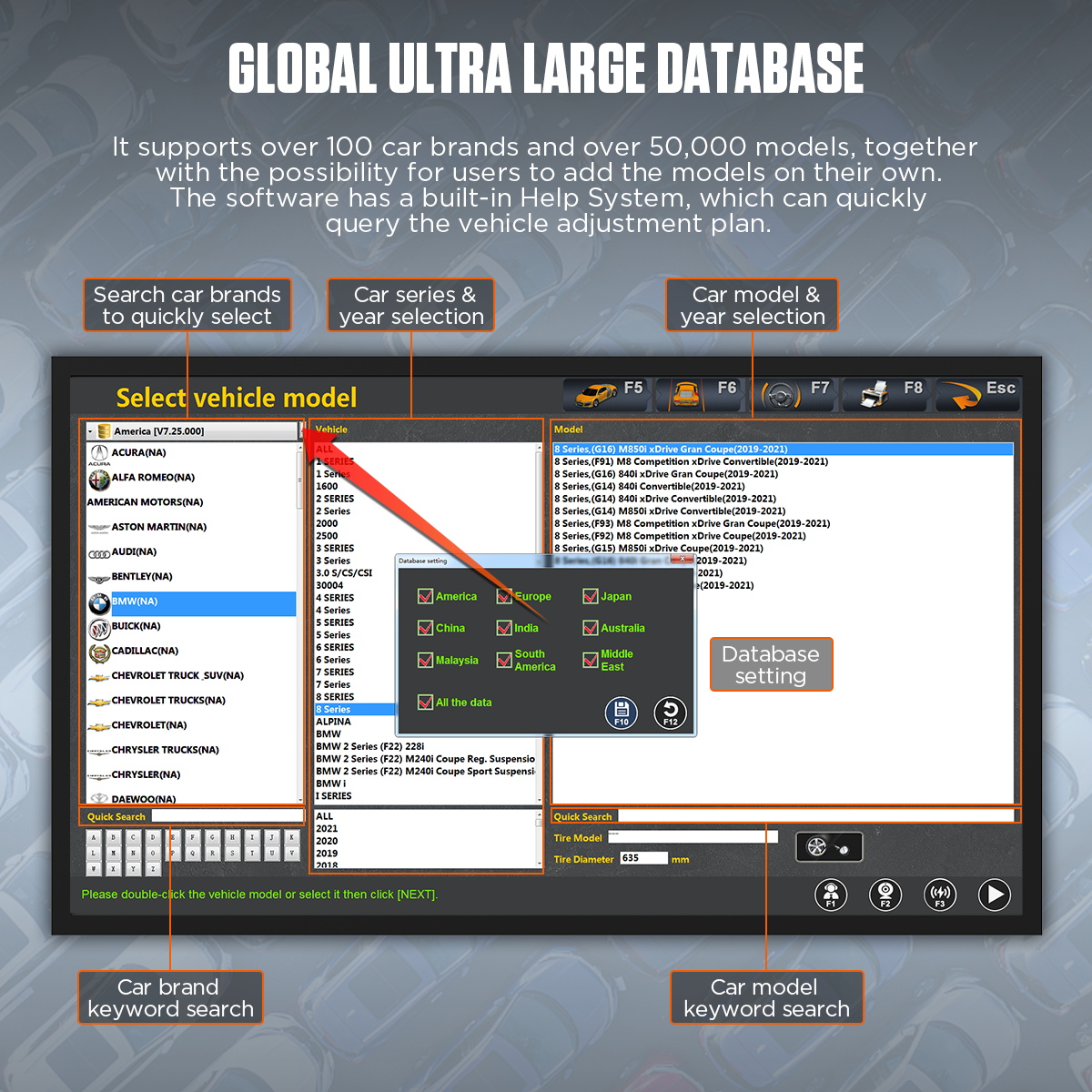

• Comprehensive Vehicle Database: The XC503 includes a global database covering over 100 auto brands and more than 50,000 models. This allows for easy and accurate vehicle model selection, supporting rapid setup and alignment adjustments.

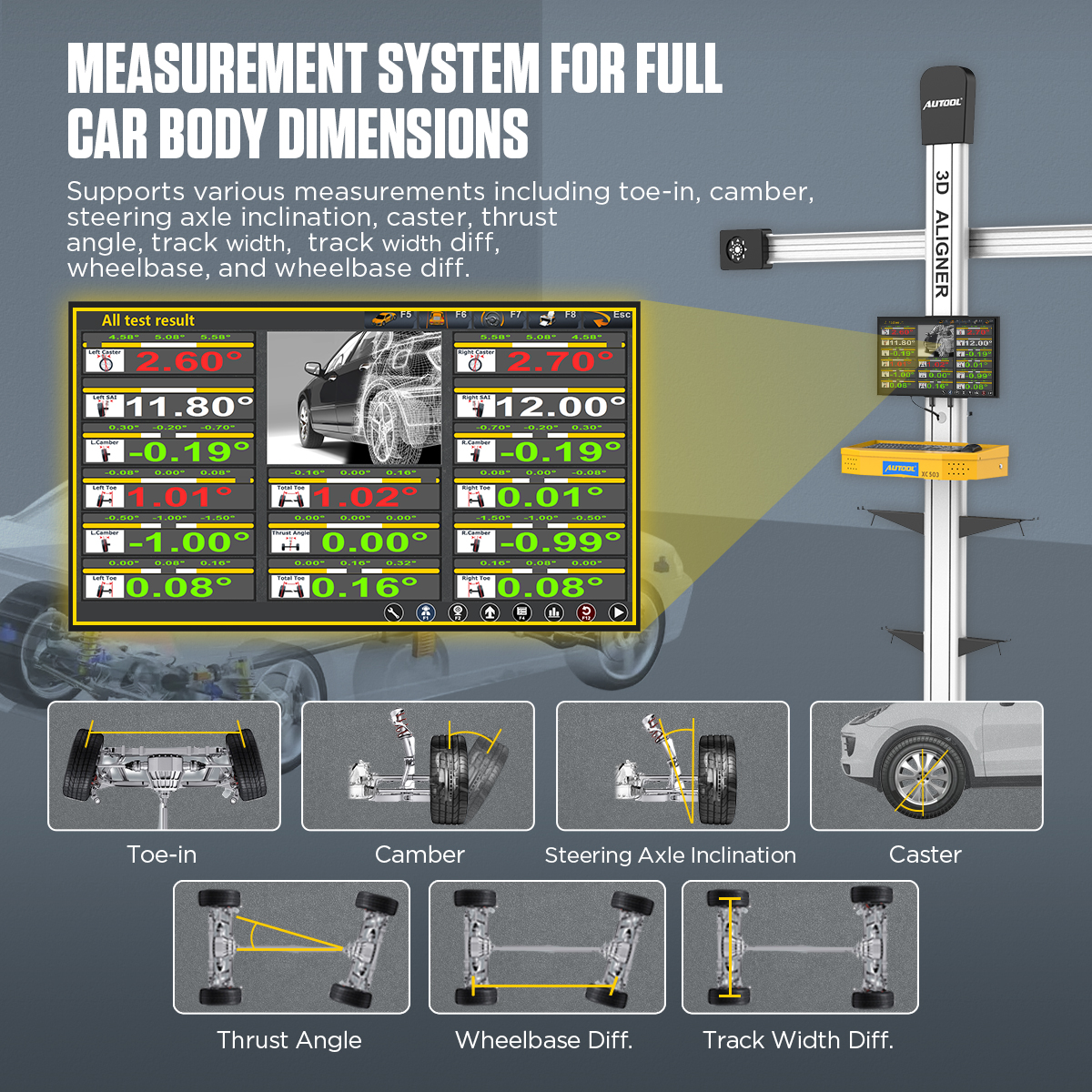

• Multiple Measurement Capabilities: The XC503 supports special measurements including wheelbase/axle offset, wheel track/wheel offset, diagonal center offset, and tire diameter, providing comprehensive vehicle data for precise alignment.

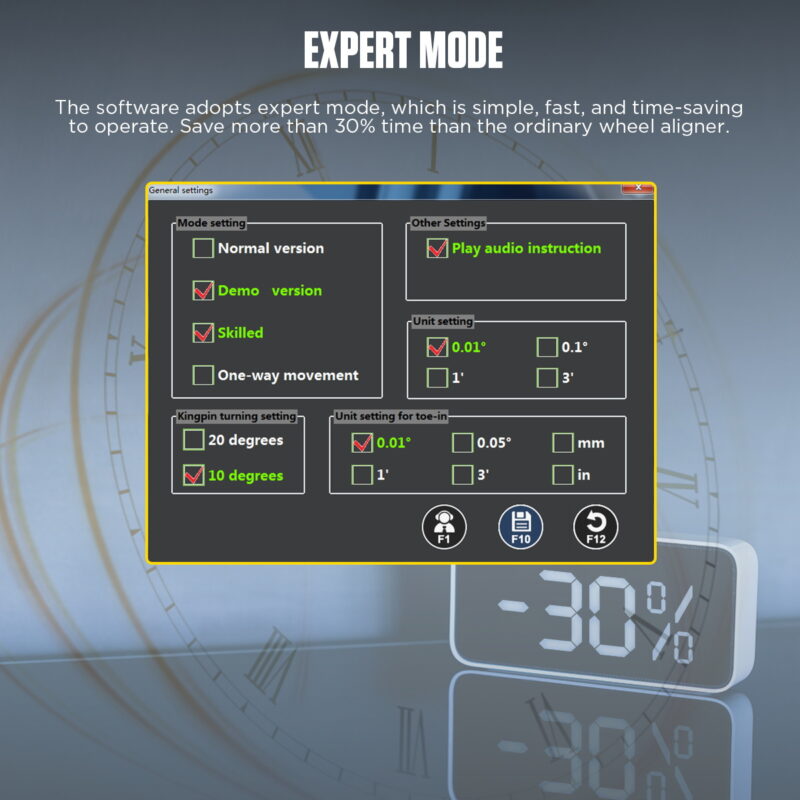

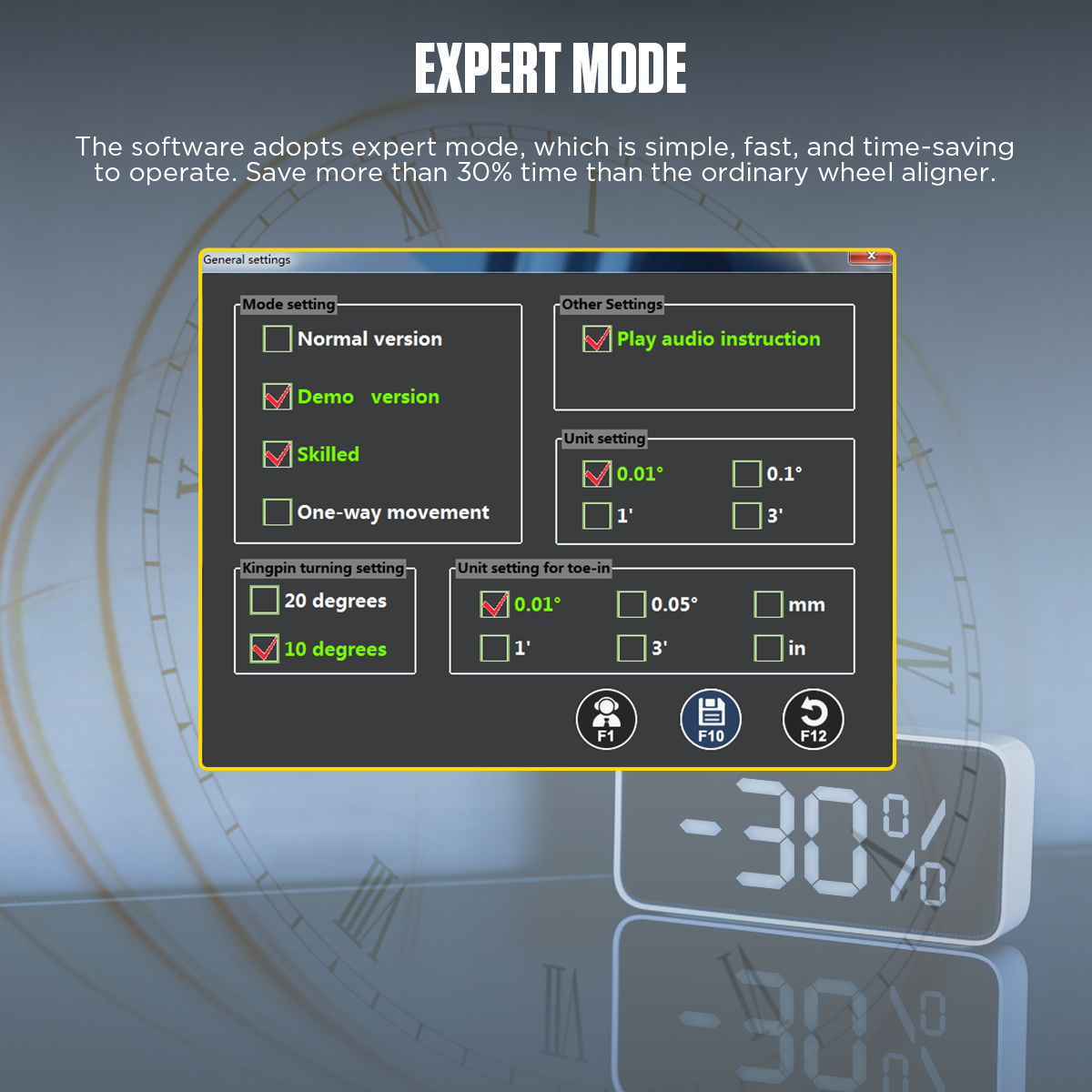

• Expert Mode: The advanced aligner software with built-in expert mode simplifies operation, saving more than 30% of the time compared to traditional methods. This feature enhances productivity and efficiency, particularly in busy workshop environments.

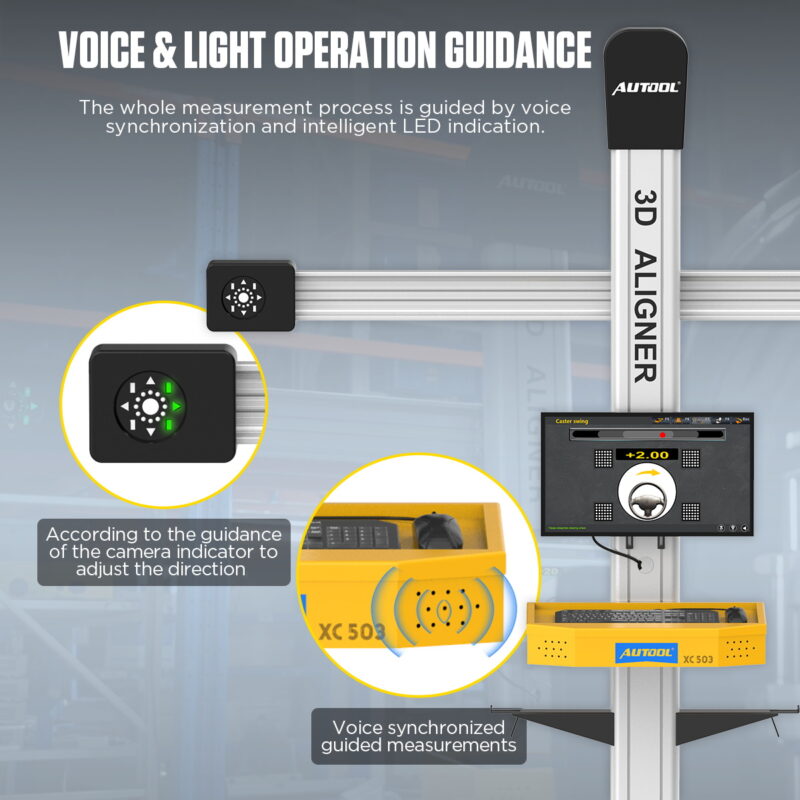

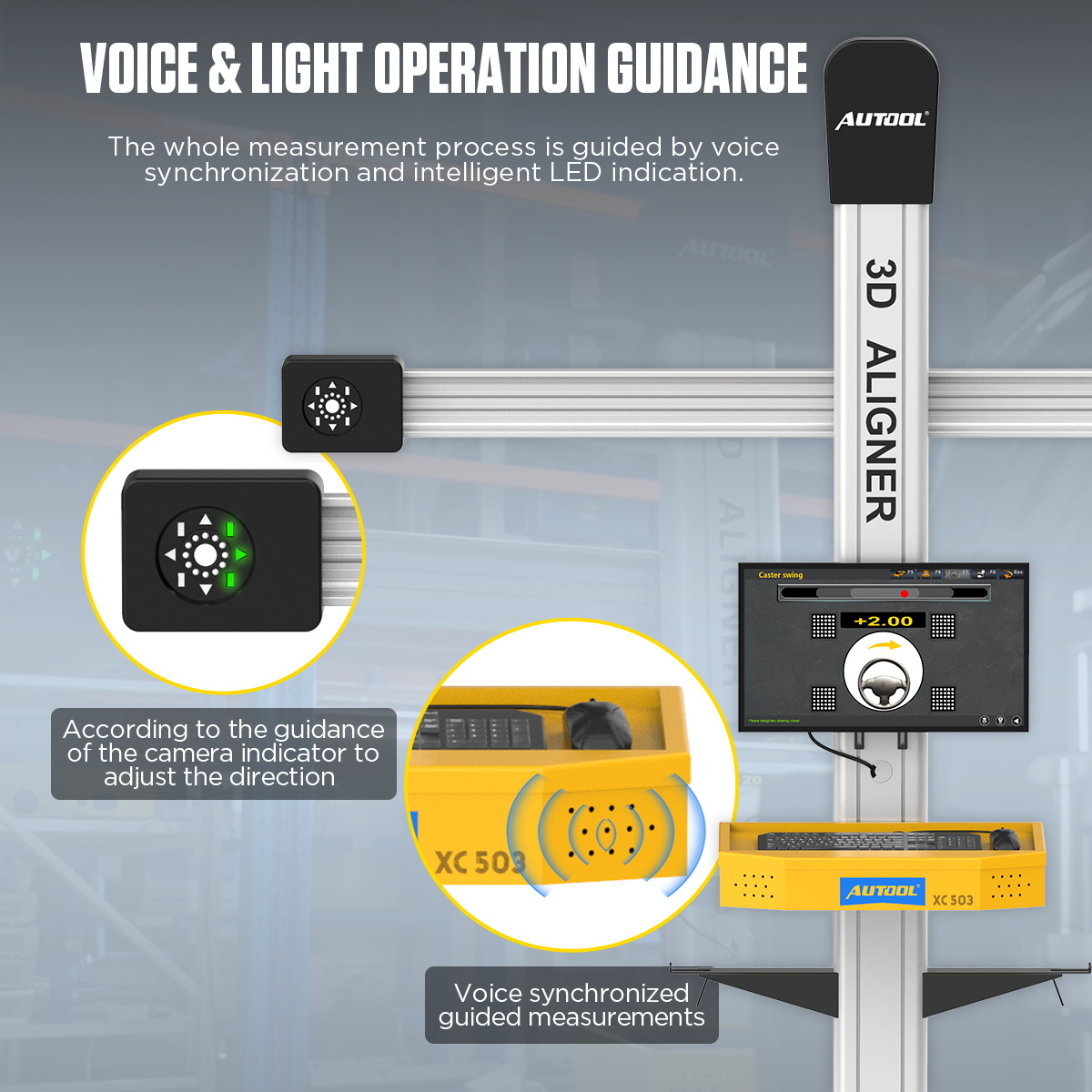

• Voice and Light Operation Guidance: The entire alignment process is guided by synchronized voice instructions and LED indicators, allowing the operator to complete tasks accurately without needing to monitor the computer screen constantly.

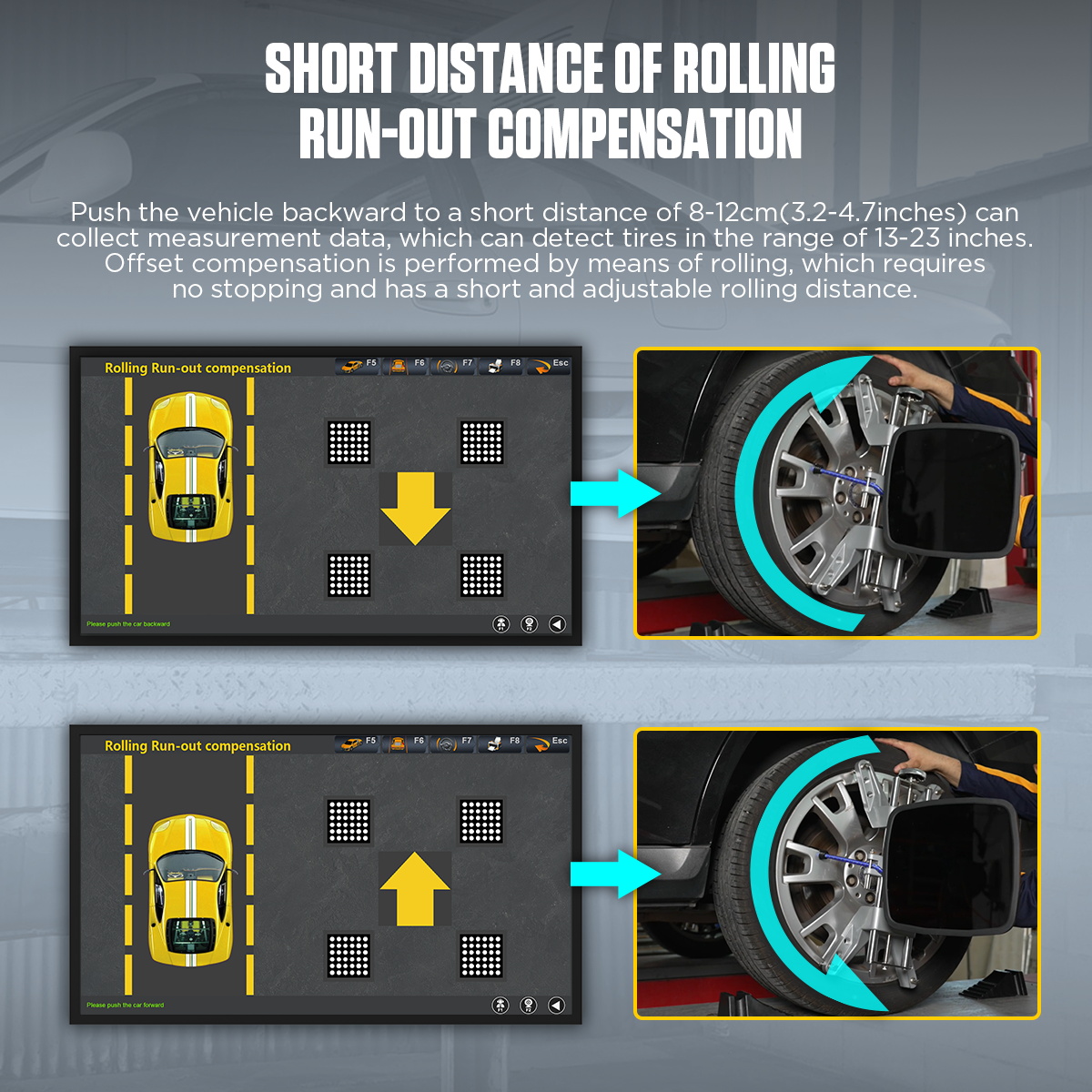

• Short-Distance Rolling Run-Out Compensation: The XC503 enables measurements over a short rolling distance of 8-12 cm, which is ideal for detecting tire sizes ranging from 13 to 23.5 inches. This method eliminates the need to stop, reducing the time required for alignment.

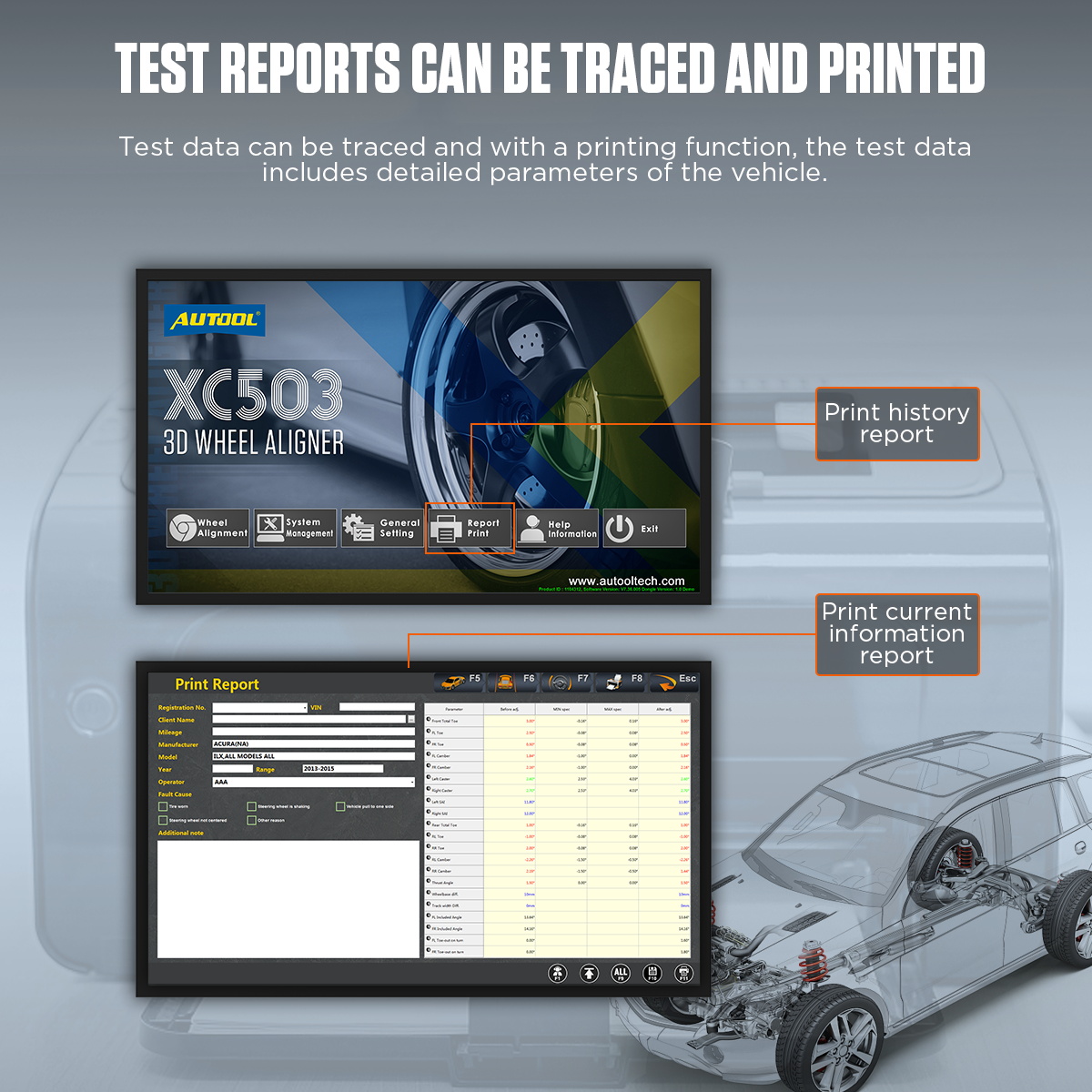

• Traceable and Printable Test Data: The XC503 provides detailed, traceable test data, and its printing function allows for the documentation of both historical and current reports, ensuring transparency and professionalism in service records.
• Support for Multiple Languages: The XC503 supports multiple languages, including Chinese, English, Spanish, Russian, Arabic, Thai, Portuguese, and others, making it accessible and user-friendly for a global audience.
• Cost-Effective and Low Maintenance: With a simplified system structure and fewer components, the XC503 has a lower failure rate. It requires only one calibration after installation and no periodic recalibration, significantly reducing maintenance and operating costs.

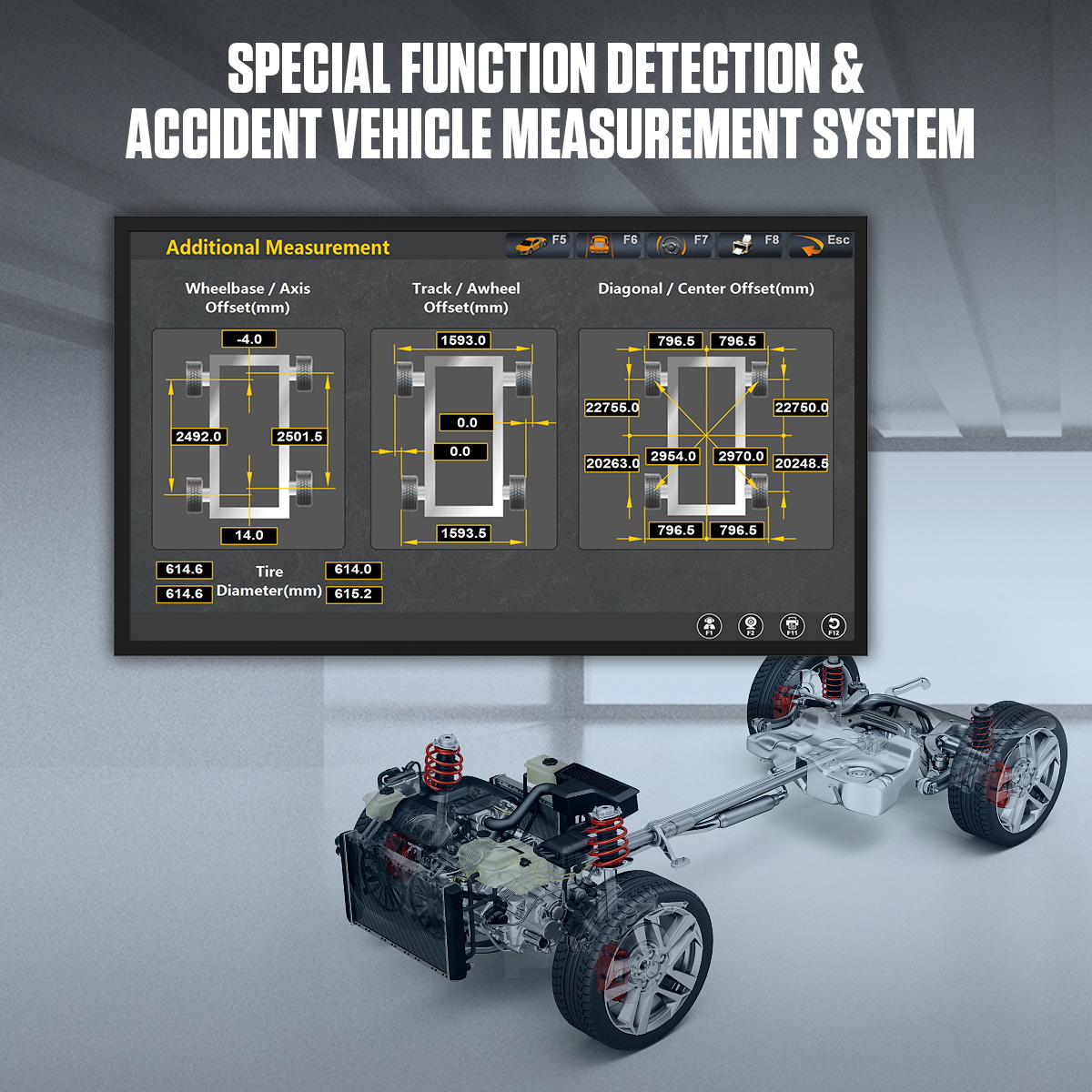

• Special Function Detection and Accident Vehicle Measurement: The XC503 supports additional measurements related to body and chassis, providing detailed data for accident vehicle assessments.
• Full Voice Guidance and LED Indicators: Provides full guidance throughout the measurement process using voice synchronization and LED indicators, enhancing user experience and optimizing working efficiency.
• Three-Year Warranty: AUTOOL offers a three-year warranty for damages caused by non-human factors. Our dedicated support team is available 24/7 to assist with any queries, ensuring a seamless user experience.

Important Usage Notes and Warm Tips:

1. Power Supply Requirements: The 3D wheel aligner uses AC mains power 1PH AC220V±10% 50Hz or 1PH AC110V±10% 60Hz. Regularly check the power connection and ensure it is reliable and undamaged. If the power supply voltage is unstable, use an AC voltage stabilizer.
2. Check Bolts and Components: After vehicle maintenance is completed, ensure all bolts and components are tightened as required to maintain safety.
3. Avoid Obstruction of Light Path: The 3D wheel aligner uses computer vision technology to detect the target on the wheel. Avoid blocking the light path between the target and the camera during operation.

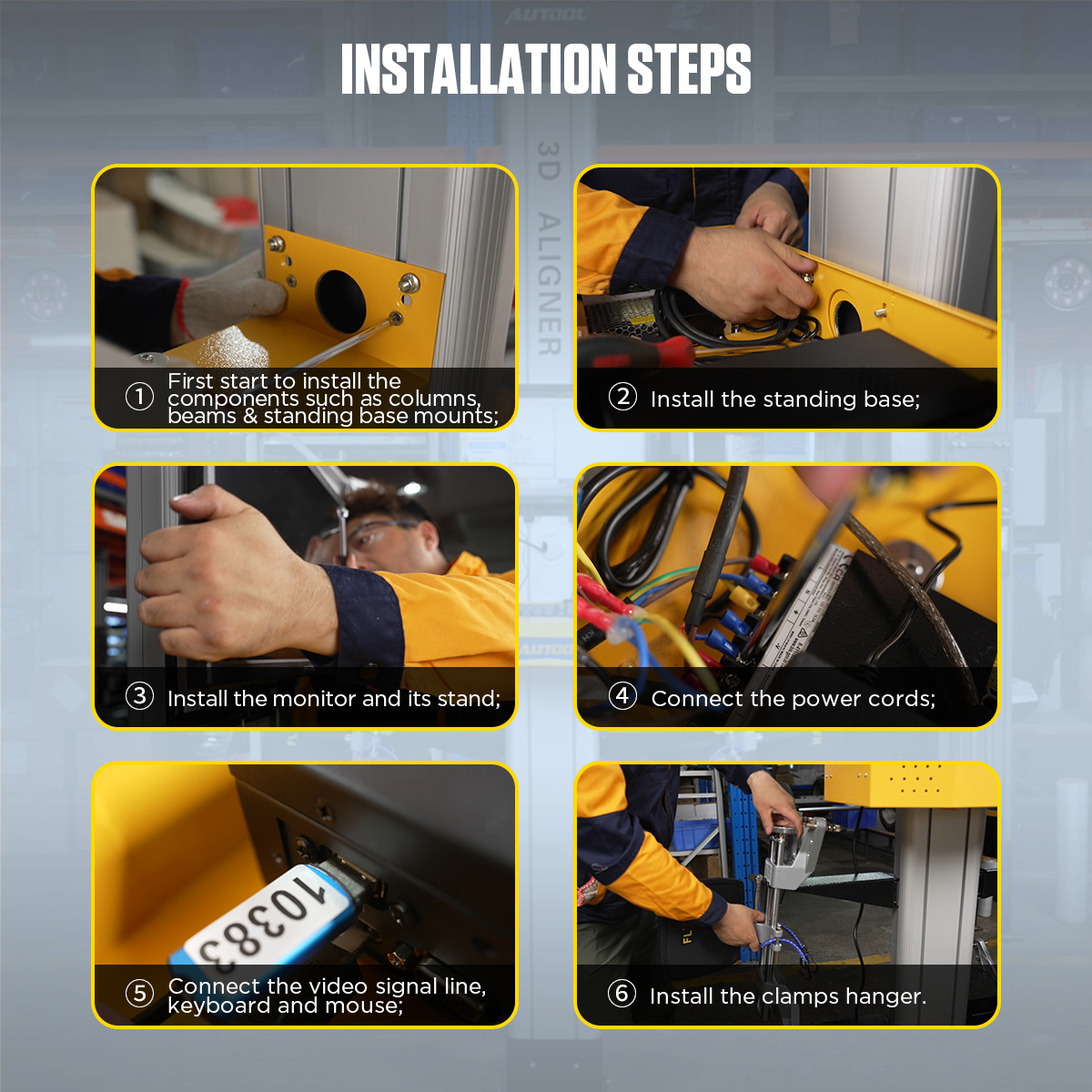

4. Installation Restrictions: Do not install the aligner on a vibrating object or inclined surface. Protect the system from direct sunlight and moisture for optimal performance.
5. Target Handling: The target is a key component of the aligner. Avoid damaging its structure and keep the surface clean. If stained, wipe with a soft cloth and neutral detergent or absolute alcohol.
6. Cable Handling: The wires in the column and camera beam are tightly connected. Do not touch the wires after initial installation to prevent damage.
7. Camera Calibration: The camera is accurately calibrated before leaving the factory. Do not open or adjust the camera at any time to avoid affecting detection accuracy.
8. Unauthorized Disassembly Prohibited: Do not disassemble columns, beams, or targets without manufacturer authorization to avoid damage and invalidating the warranty.
9. Proper Wheel Clamp Installation: Select the installation method based on the rim condition. Apply even force and check the clamp’s stability to prevent inaccuracies.
10. Maintain Clean Camera Filter: Keep the camera filter surface clean. Gently wipe with lens paper if stained.
11. Knob Operation: Apply even force when using each knob and avoid over-tightening to prevent damage to the locking mechanism.
12. Power Off After Use: Always disconnect the power supply after use to prevent electrical hazards.
13. Fire Safety Measures: Do not operate the aligner in flammable or explosive environments. Ensure the equipment is away from combustible materials and sources of fire.
14. No Flammable Materials Near Equipment: If any flammable materials are stored in the vehicle, keep the equipment away from fire sources to prevent accidents.

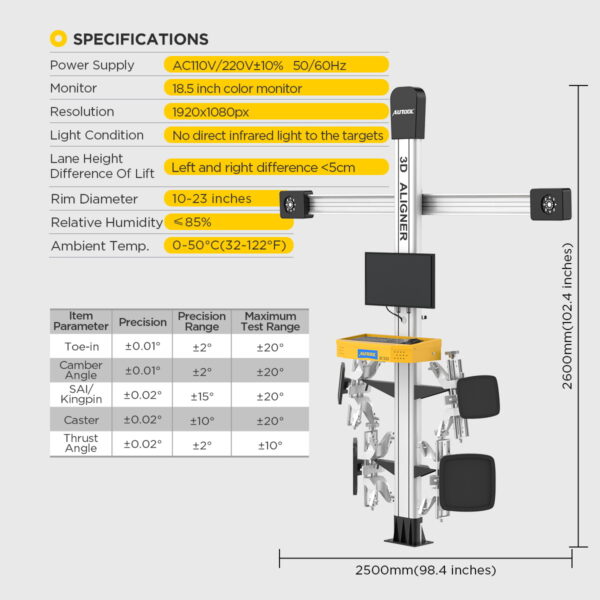

Specifications:

• Power Supply: AC110V/220V ±10%, 50/60Hz
• Monitor: 18.5″ color LCD display
• Resolution: 1920 x 1080 pixels
• Light Condition: No direct infrared light to the targets
• Lane Height Difference of Lift: Left and right < 5 cm
• Measurable Rim Size: 10″ – 23 inches
• Ambient Temperature: 0-50°C (32-122°F)
• Relative Humidity: ≤85%

Measurement Parameters:

• Toe-in Precision: ±0.01°, Precision Range ±2°, Maximum Test Range ±20°
• Camber Angle Precision: ±0.01°, Precision Range ±2°, Maximum Test Range ±20°
• SAI/Kingpin Precision: ±0.02°, Precision Range ±15°, Maximum Test Range ±20°
• Caster Precision: ±0.02°, Precision Range ±10°, Maximum Test Range ±20°
• Thrust Angle Precision: ±0.02°, Precision Range ±2°, Maximum Test Range ±10°

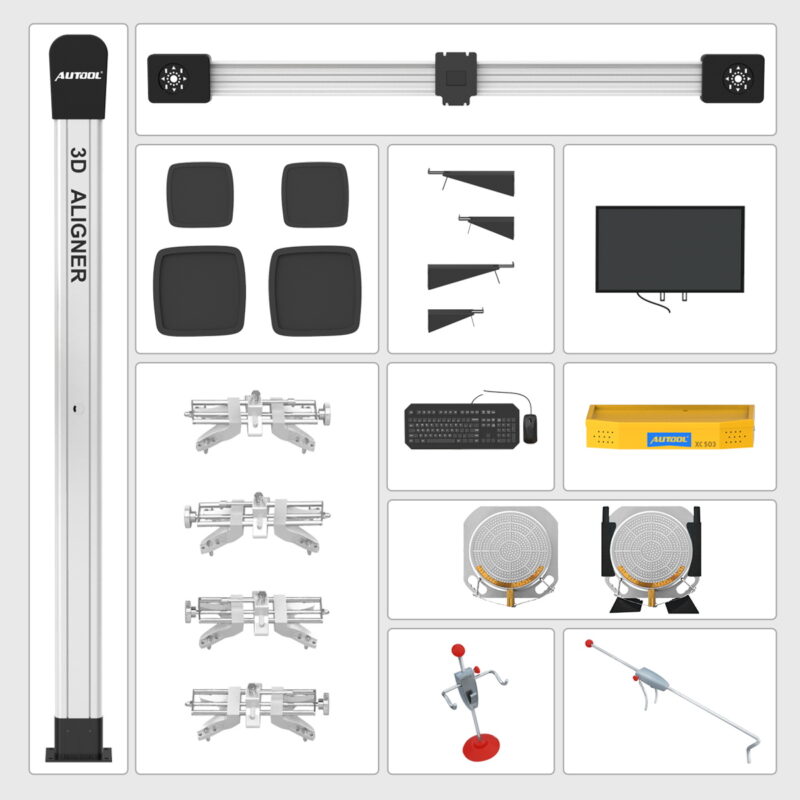

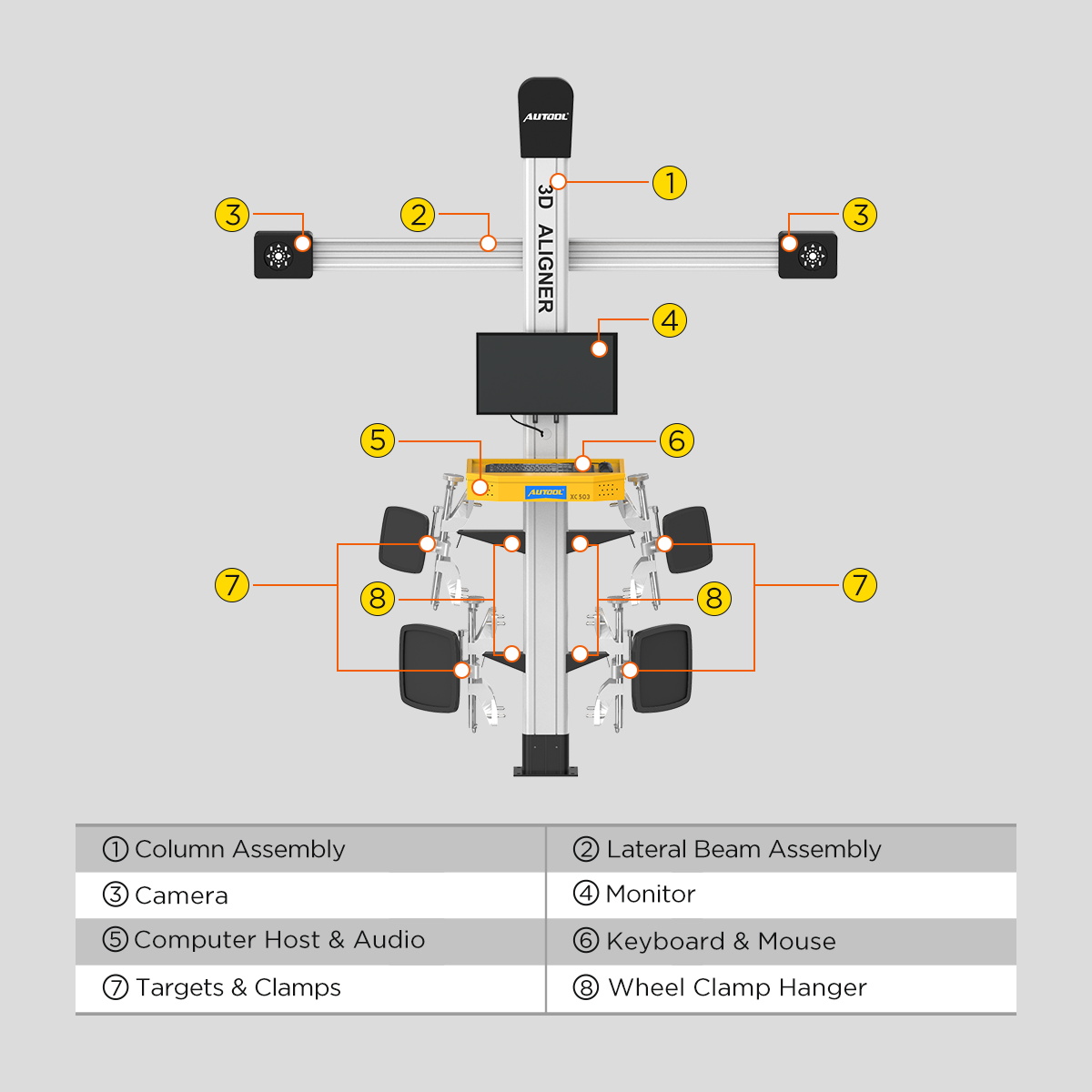

Packing List:

• 1 x Stand Column
• 1 x Beam Assembly
• 1 x Steering Wheel Holder
• 1 x Brake Pedal Depressor
• 4 x Bolts
• 1 x Computer
• 1 x Column Cap
• 1 x Encryption Lock
• 4 x Wheel Clamps
• 1 x Operating Board
• 4 x Rack
• 2 x Turntable
• 4 x Targets

The AUTOOL XC503 3D Wheel Aligner is an essential tool for any professional workshop seeking high-precision, reliable, and efficient wheel alignment solutions. With its advanced features and easy operation, it ensures accuracy and convenience, making it the ideal choice for automotive service professionals. Experience unmatched value with the AUTOOL XC503 and elevate your service quality to the next level.
