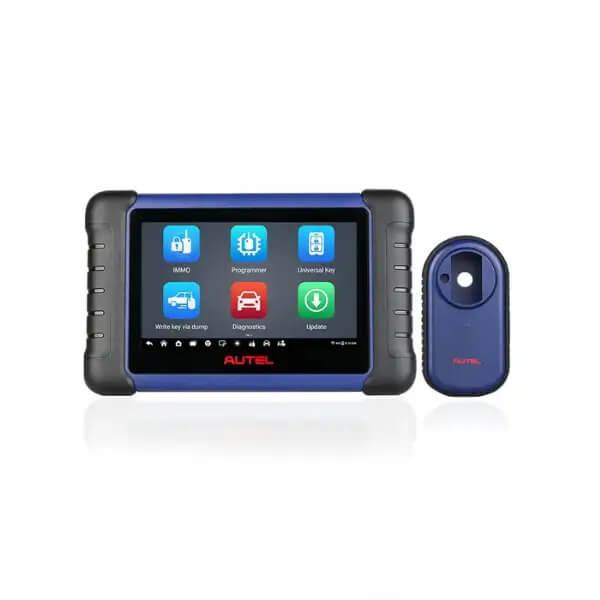

Autel MaxiIM IM508S | IMMO & Key Coding / Programming & Diagnostic Scanner | Free Gbox 2 | 2 Years Software

Original price was: R29,900.00.Current price is: R26,900.00. incl. VAT
Original price was: R26,000.00.Current price is: R23,391.30. excl. VAT

Availability: In stock

Available 'Buy Now Pay Later' Options

Buy Now Pay Later from as little as
R1,113.36 x 36 payments

Available 'Buy Now Pay Later' Options

Buy Now Pay Later from as little as
R1,113.36 x 36 payments
Delivery anywhere is SA

Once we receive payment for your order, delivery updates will be sent via email to keep you updated.

Collection Points

Visit our offices in Cape Town or Johannesburg. Our work hours are from 8am-5pm.




  Autel MaxiIM IM508 User Manual

MaxiIM IM508 auto key programmer and diagnostic tool is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.


This machine comes with 2 Years Software Update

  • The core function of diagnostic or diagnostic/key programming is to get access to the latest IMMO and diagnostic services.
  • When you buy a diagnostic/key programming machine, one of the most important things to know is the coverage and functionality required

This will have a direct effect on the update cost (as this is directly related to the ongoing development of new coverage and improved functions)

  • That is why it is important to rather buy from a specialist diagnostic/key programming brand that will guarantee this (Autel has over 500 engineers globally continuously working on software).
  • It is also important to remember that updates are not just improvements for new models, but also updates based on improvements from data logs (the method customers give feedback when they have issues).

Depending on the brand (amount of engineers and effort towards updates), coverage, and functionality.





Main Features

  • Advanced Key Programming
  • PIN / CS Reading (Full Lost)
  • Key Generation
  • Key Programming
  • Command Introduction
  • Backup / Repair IMMO Data
  • IMMO ECU Reset / Adaptation
  • IMMO ECU Regeneration / Coding
  • BMW FEM / BDC Key
  • Programming and ECU Adaptation
  • VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Copy, Full Lost, A6 Full Lost and More

AKL (All keys lost function) for MQB will be charged at $30 per use

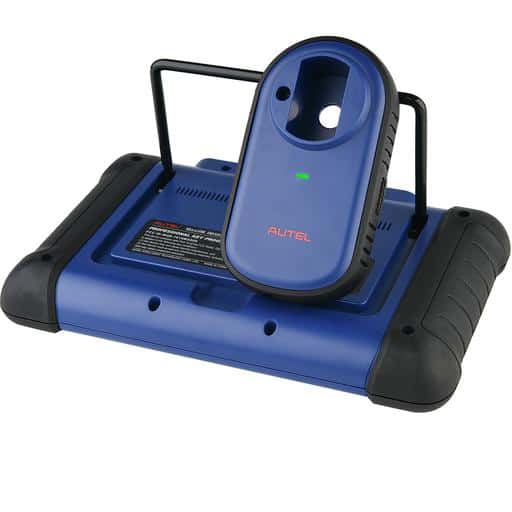

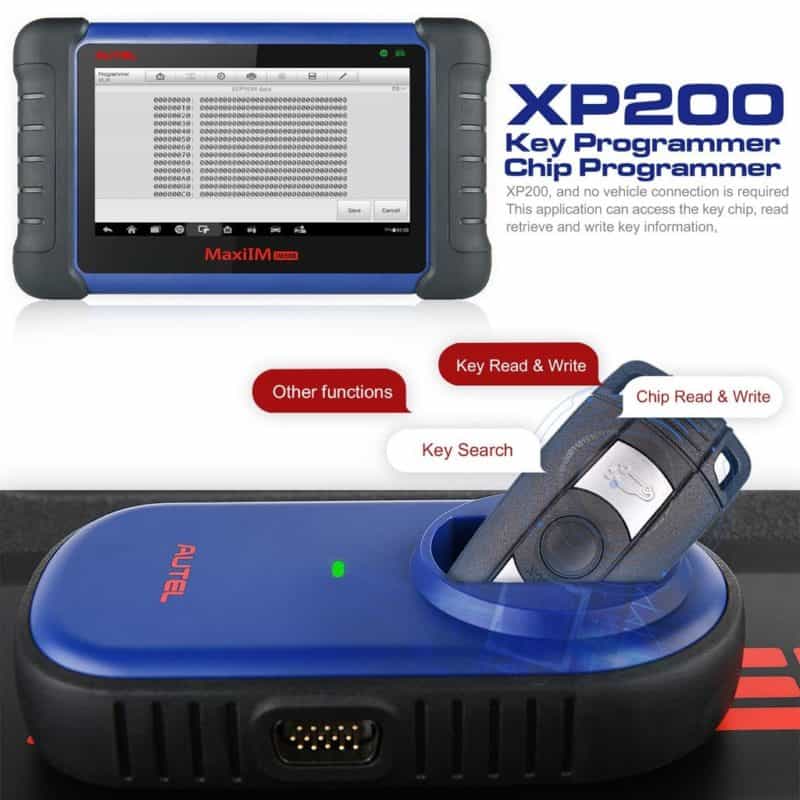

XP200 Key & Chip Programmer

  • Key Read / Write
  • EEPROM / MCU Read / Write

Diagnostic Function of More Than 80 Vehicles at Advanced Level

  • All System Diagnostics
  • Auto Search / VIN Finding
  • Reading / Deleting Error Code
  • Viewing the Live Data Stream
  • Viewing Records of Failure History
  • Store and Data Manager Applications

Autel MaxiIM IM508 Advanced Service Functions:

  • EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Re-Programming

Autel MaxiIM IM508 Parameter:

  • 7-inch LCD Touch Screen
  • 32GB Memory
  • Android Kit Floor
  • Wi-Fi
  • ENGLISH LANGUAGE
  • 5000mAh Li-polymer Battery

Specifications

  • Operating System: AndroidTM 4.4.4
  • Processor: Cortex-A9 processor (1.6 GHz)
  • Memory: 32GB
  • Display: 7-inch LCD capacitive touchscreen with 1024×600 resolution

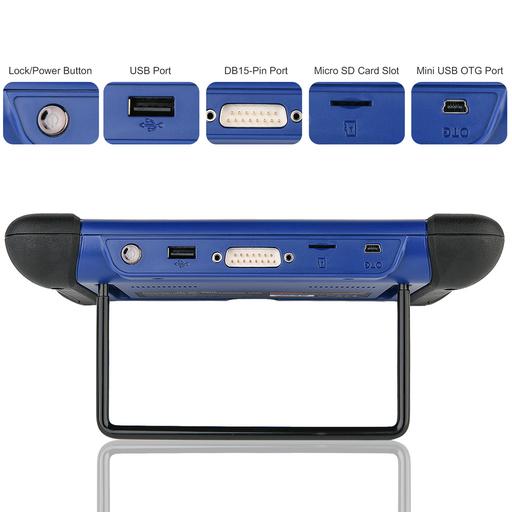

  • Connectivity: Mini USB 2.0; USB 2.0; Wi-Fi; Micro SD card (supports up to 32GB)
  • Sensors: Ambient light sensor for brightness auto changing
  • Audio Input / Output: Input: N/A
  • Output: buzzer
  • Power and Battery: 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
  • Tested Battery Life: Around 4.5 hours of continuous use
  • Battery Charging Input: 5 V/1.5 A
  • Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
  • Operating Temp.: 0 to 50°C (32 to 122°F)
  • Storage Temp.: -20 to 60°C (-4 to 140°F)
  • Operating Humidity: 5% – 95% non-condensing
  • Net Weight: 788 g (2.42 lb.)
  • Supported Automotive Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Low-speed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Autel MaxiIM IM508 Package Includes:

  • MaxiIM IM508 Tablet
  • XP200 Key Programmer
  • Connection Cables
  • USB Adapter
  • Carrying Case

Click here to view MaxiIM IM608





Specifications:

Operating System Android 11
Processor Rockchip RK3566 Quad core Processor: 4x 1.8GHz(A55)
Memory 64GB
Display 7-inch LCD capacitive touchscreen with 1024×600 resolution
Connectivity Mini USB 2.0
USB2.0
Wi-Fi
Micro SD card slot(supports up to 64GB)
Sensors Ambient light sensor for brightness auto changing
Power and Battery 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery Life Around 4.5 hours of continuous use
Battery Charging Input 5V/1.5A
Power Consumption 500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V
Operating Temp 0 to 50°C (32 to 122°F)
Storage Temp -20 to 60°C (-4 to 140°F)
Operating Humidity 5%-95% non-condensing
Net Weight 885g(2.31|b.)
Supported Automotive Protocols ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed, and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
Weight 5.06 kg
Dimensions 51.5 × 14.5 × 39.5 cm
