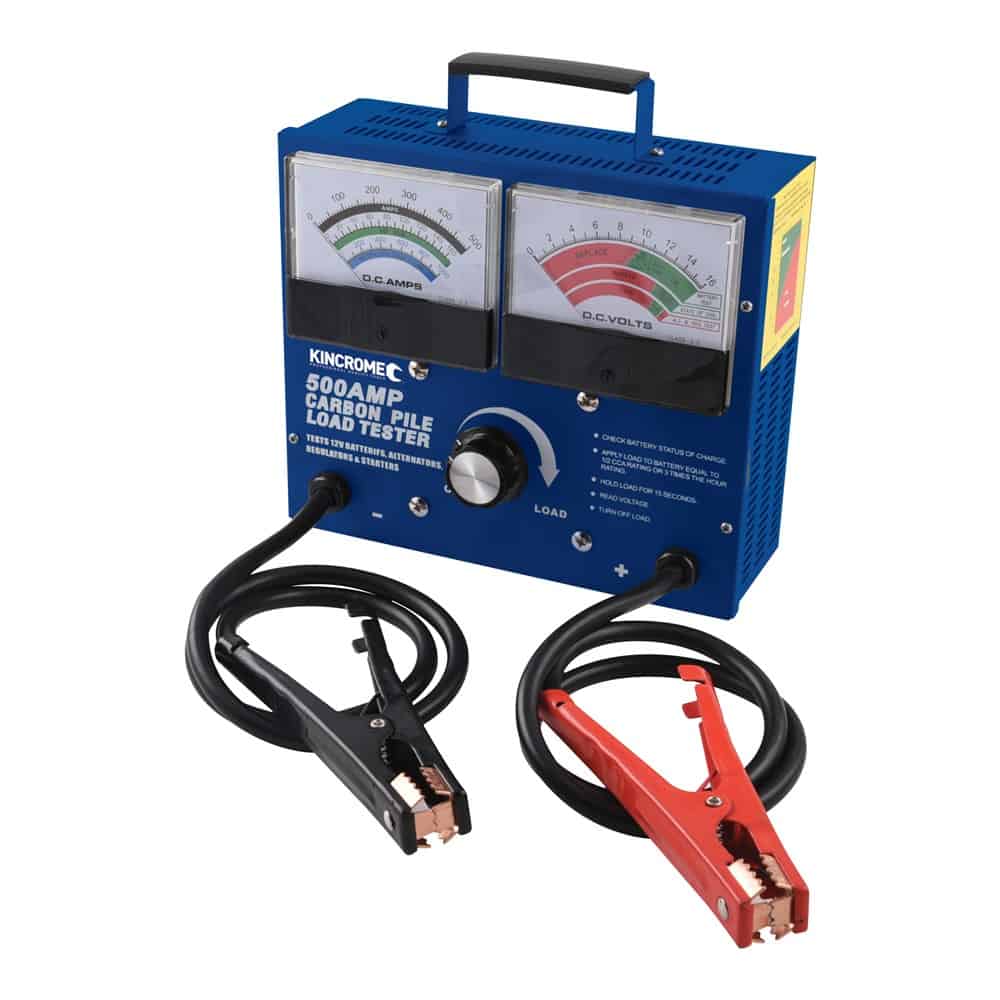

Twin analogy gauge carbon pile load tester is used in conventional testing of all types of batteries. Loading the battery to the Cold Cranking Amps for a time period will allow us to determine if and cells are faulty and the battery can deliver.

Features:

• Simple but efficient battery testing equipment which also has the ability to test alternators, regulators and starters.
• 500AMP Carbon Pile Battery Load Tester
• Colour-coded, Temperature compensation pass fail bands on the voltmeter insure concise battery load test results.
• Separate voltmeter and ammeter provide easy to monitor battery load tests.
• Tests batteries up to 1,000CCA.
• Tests 12V batteries, alternators, regulators & starters.
• Built with warning beeper.
• Meets UL standards.

Specifications:

• Tests – Volts (0–16VDC), 12V lead acid batteries, 12V charging systems (alternators & regulators)
• Battery Range – Up to 1000CCA (160Ah)
• Test Load – Adjustable carbon pile 0 – 500 Amps
• Max Cool Down Time – 20 Seconds
• Recommended Cool Down Time – 2 Minutes
• Test Time Alert – Buzzer sounds after 15 seconds
• Cable Length – 1000mm
• Size – 267mm x 230mm x 92mm
• Weight – 3.5kg
