Main Features:
1.Support trucks , trailers. 2, 6, 8, 10, 12, 16, 18, 20, 22 wheels support.

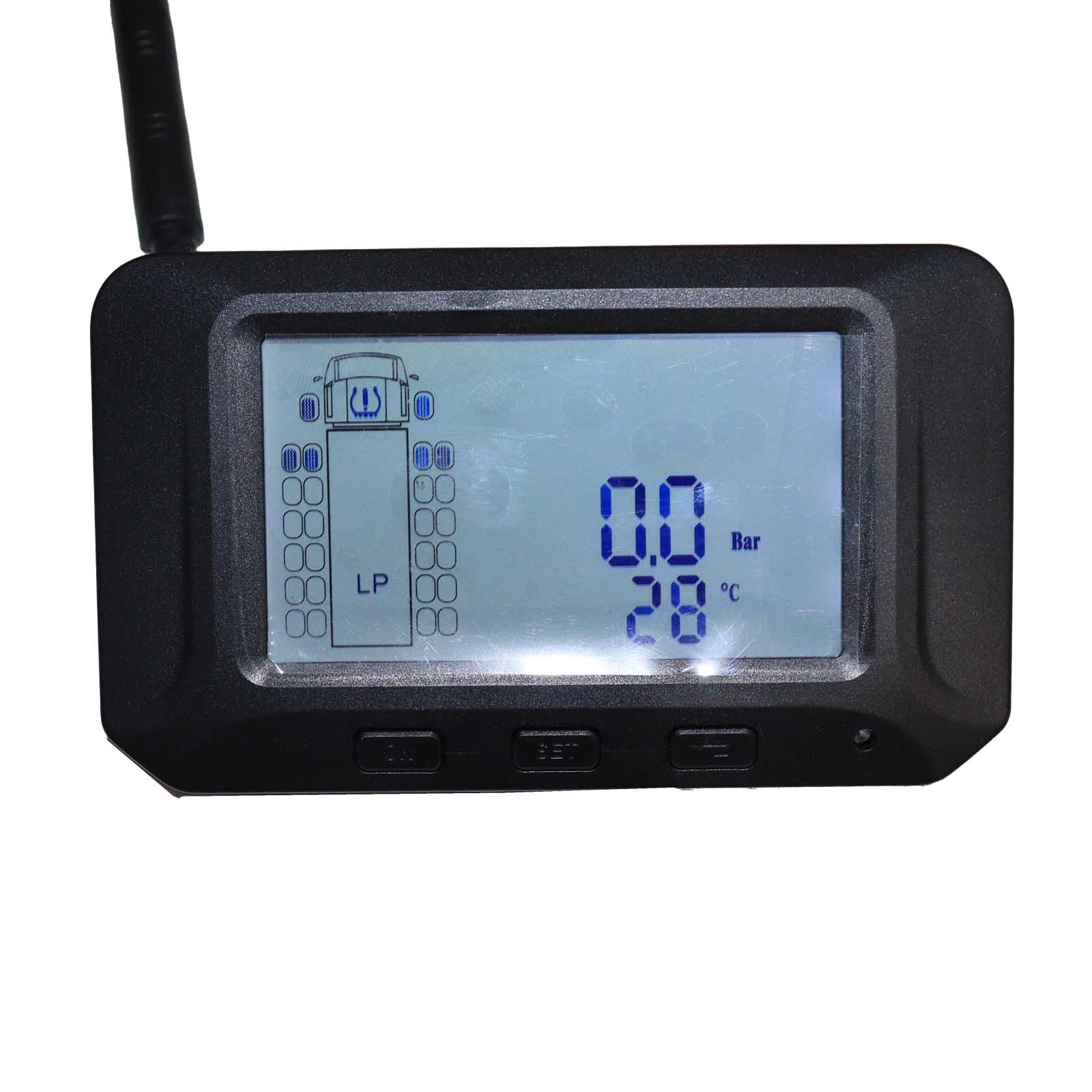

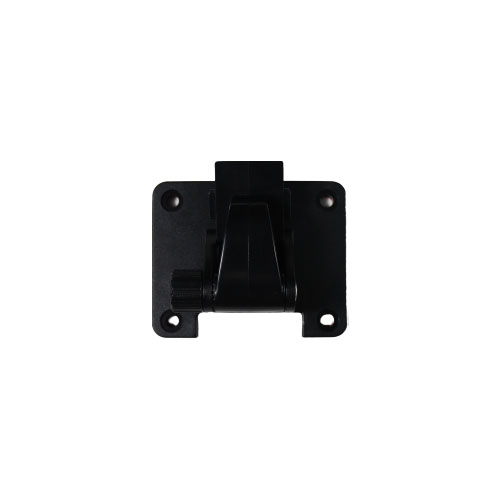

2.LCD display with backlight, suction cup holder.
3. High temperature, low temperature, high pressure, low pressure alarm.
4. Max pressure is 15bar, 219psi.
5.Support ” PSI” ” BAR”.
6.RF wireless technology, can auto-alarm, when tire pressure and temperature is abnormal.
7.Sensor waterproof grade: IP67.
Quick Details:
Type: Digital
Certification: ce
Voltage: 3V DC
Model Number: YBT60
Working temperature: -30~+125°C
RF Emission frequency: 433.92MHz±28KHz
Display: LCD Colour display, backlight
Working Pressure: 0-219psi
Solar Panel Capacity: 400mA
Default Pressure: 87PSI-174PSI (Adjustable)
Max Pressure: 219psi
Specifications:

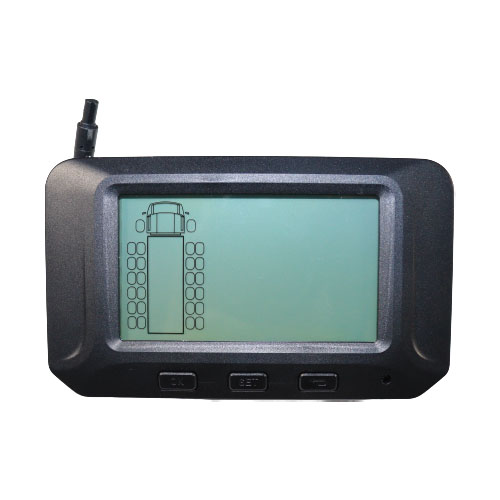

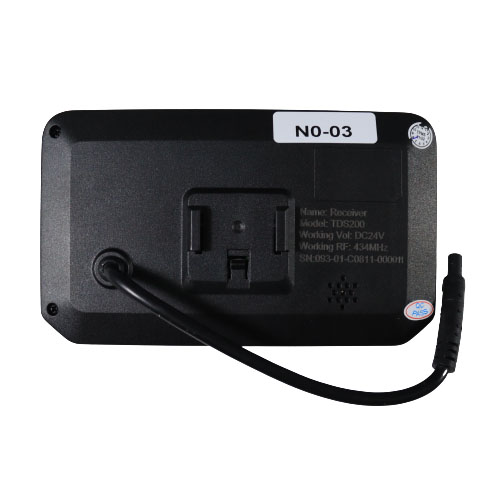

Monitor Specification | |
1.Operating Voltage | 12v |
2.Storage Temperature | -30℃-125℃ |
3.Working Temperature | -30℃-125℃ |
4.RF Emission Frequency | 433.92MHZ |
5.Monitor Mode | LCD Colour Display with backlight |
6.Working Pressure | 0-219PSI |
7.Bright Operating Current | ≤6mA |
8.Black Operating Current | ≤4mA |
9.Size | 125*85*25MM |
10.Chip | Infineon chip (Import from Germany) |
11. High Pressure Alarm | 174PSI(12BAR) |
12. Low Pressure Alarm | 87PSI ( 6BAR) |
 | |

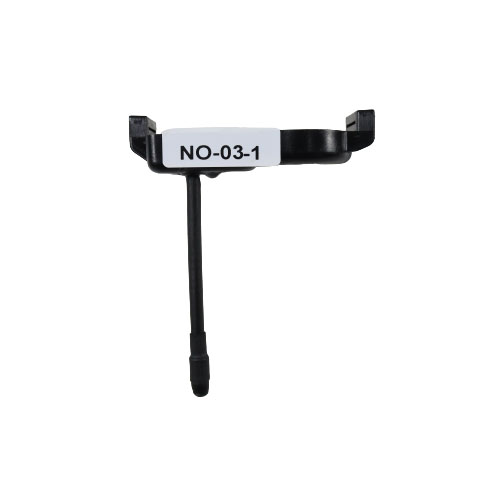

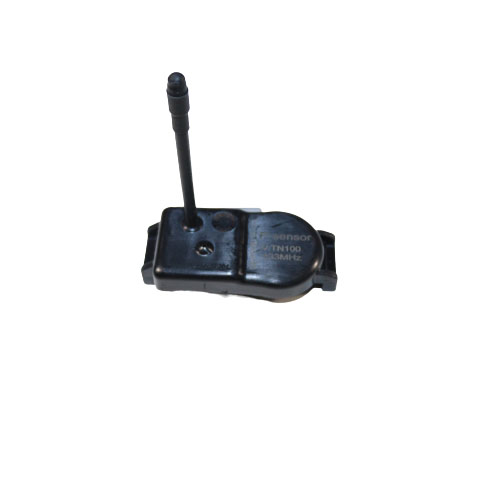

Internal Sensor Specification | |
1. Battery Life | 1-3years |
2.Operating Voltage | 3v |
3.Storage Temperature | -30℃-90℃ |
4.Working Temperature | -30℃-85℃ |
5.Temperature Resolution | +/-2℃(25℃) |
6.Pressure Range | 0-15.0Bar ( 0-219psi ) |
7.Waterproof Grade | IP67 |
8.Transmitted Power | ≤10dBm |
9.Transmitted Frequency | 433.92MHZ |
11.Wheels support | 2 ,6 ,8 ,10 ,12, 16,18 ,20 ,22,26 |
12.Lithium Battery | CR1632 |
Certification | CE ROHS |
Aging test | full 72hours |
QC Test | 100% full inspection before shipping out |
HS Code | 9026209090 |
