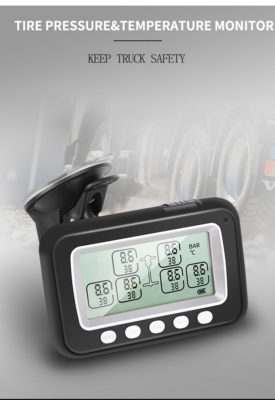

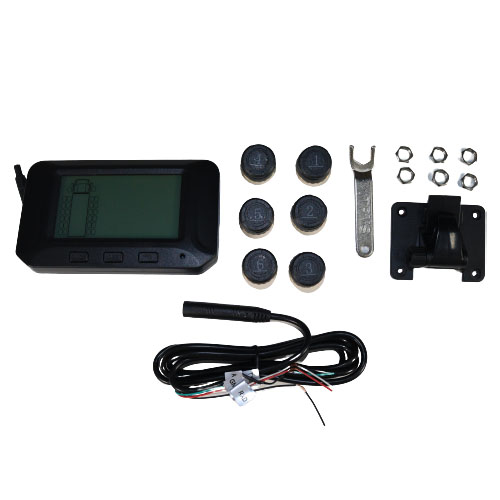

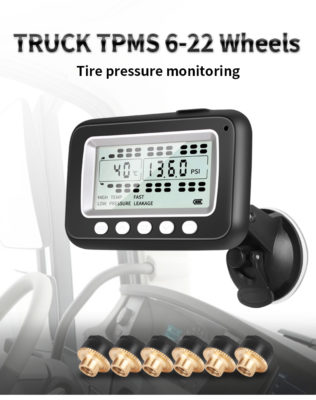

autosupply Wireless Truck, Car & Trailer Tpms (Tyre Pressure Monitoring System) 6 Piece External Sensors (Add Up To 24 Sensors)

Main Features:

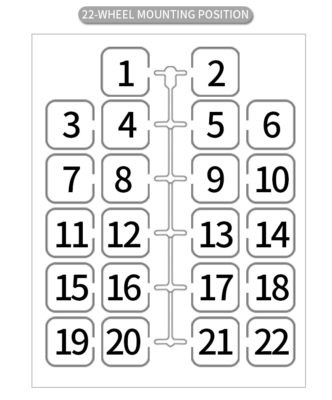

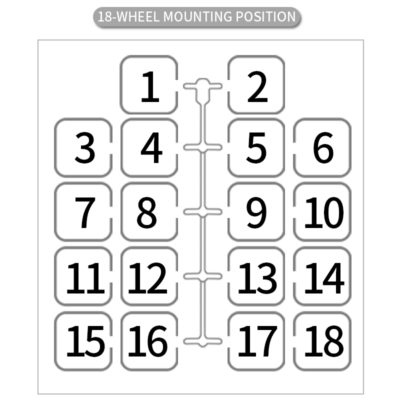

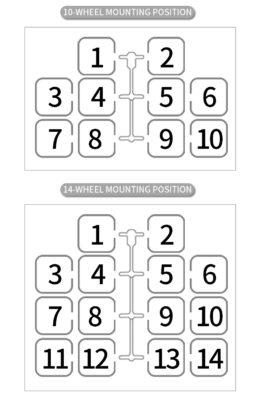

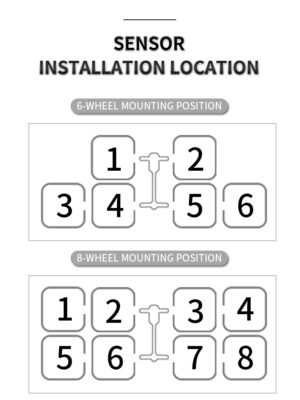

1.Support trucks , trailers. 2, 6, 8, 10, 12, 16, 18, 20, 22 wheels support.

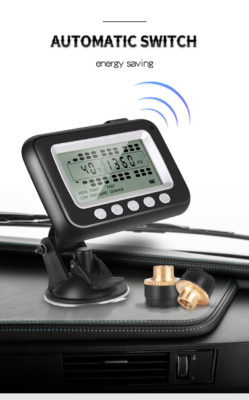

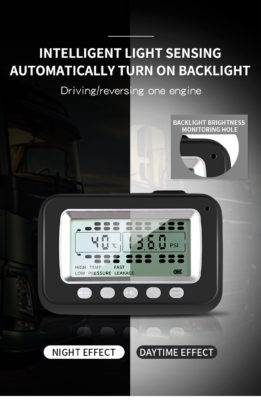

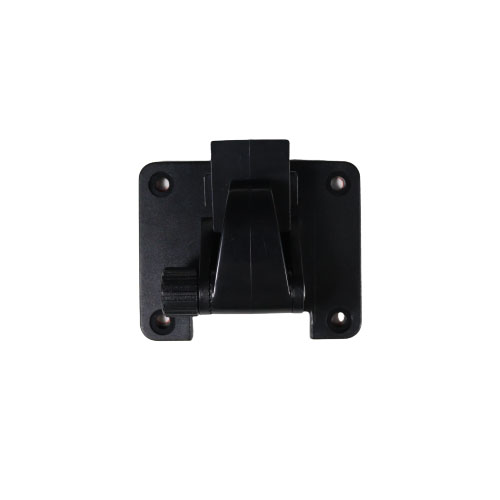

2.LCD display with backlight, suction cup holder.

3. High temperature, low temperature, high pressure, low pressure alarm.

4. Max pressure is 15bar, 219psi.

5.Support ” PSI” ” BAR”.

6.RF wireless technology, can auto-alarm, when tire pressure and temperature is abnormal.

7.Sensor waterproof grade: IP67.

Quick Details:

Type: Digital
Certification: ce
Voltage: 3V DC
Model Number: YBT60
Working temperature: -30~+125°C
RF Emission frequency: 433.92MHz±28KHz
Display: LCD Colour display, backlight
Working Pressure: 0-219psi
Solar Panel Capacity: 400mA
Default Pressure: 87PSI-174PSI (Adjustable)
Max Pressure: 219psi

Specifications:

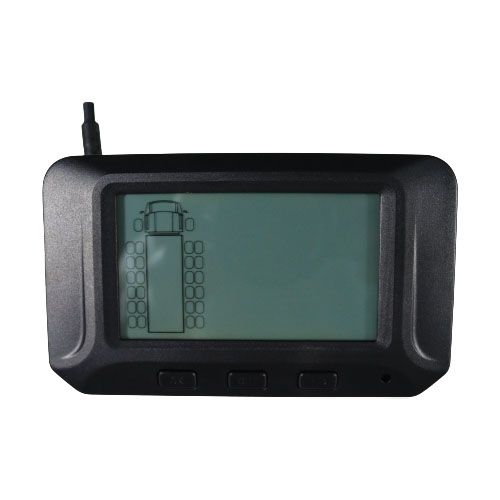

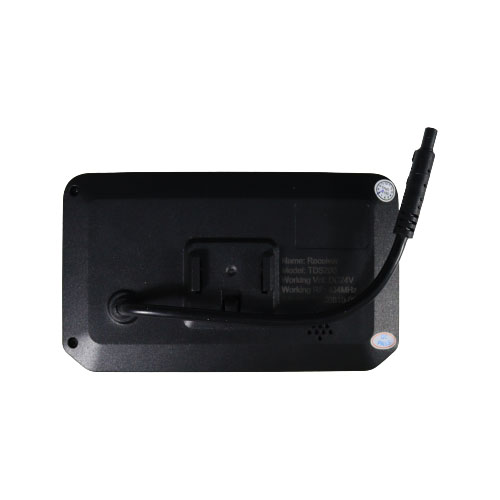

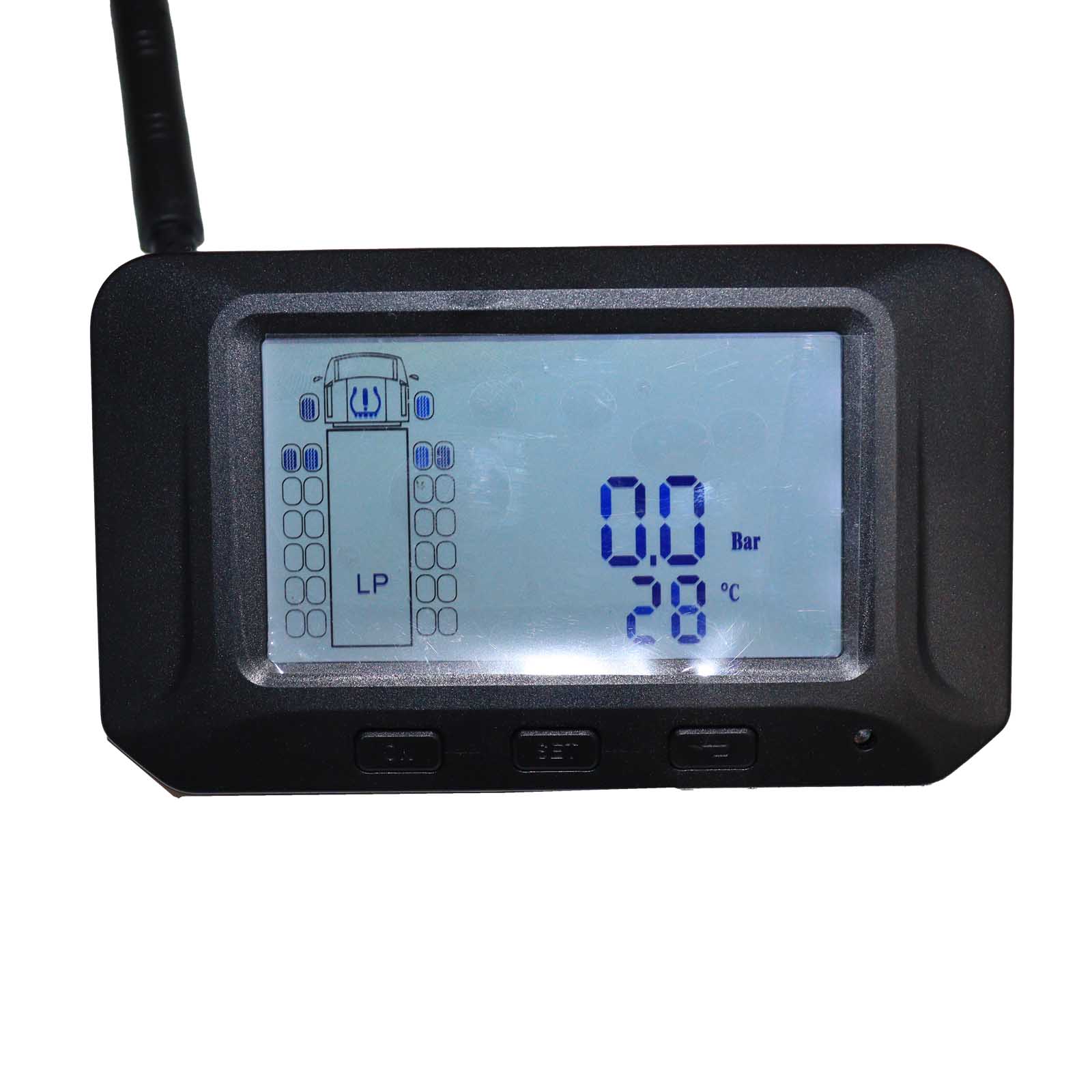

Monitor Specification
1.Operating Voltage	12v
2.Storage Temperature	-30℃-125℃
3.Working Temperature	-30℃-125℃
4.RF Emission Frequency	433.92MHZ
5.Monitor Mode	LCD Colour Display with backlight
6.Working Pressure	0-219PSI
7.Bright Operating Current	≤6mA
8.Black Operating Current	≤4mA
9.Size	1258525MM
10.Chip	Infineon chip (Import from Germany)
11. High Pressure Alarm	174PSI(12BAR)
12. Low Pressure Alarm	87PSI ( 6BAR)

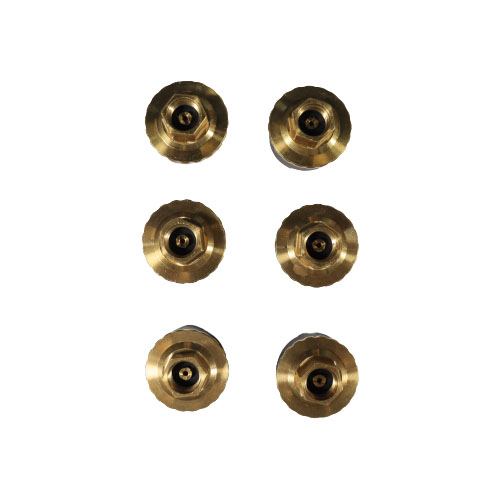

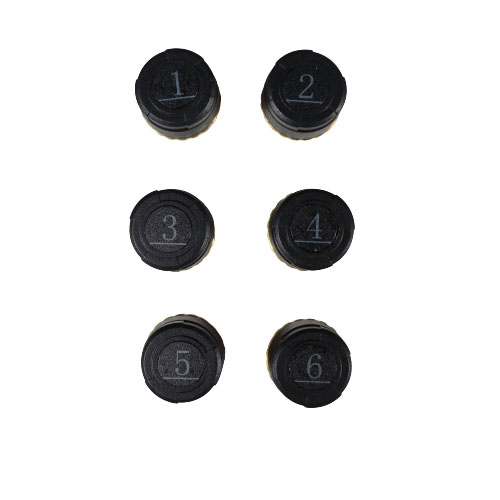

External Sensor Specification
1. Battery Life	1-3years
2.Operating Voltage	3v
3.Storage Temperature	-30℃-90℃
4.Working Temperature	-30℃-85℃
5.Temperature Resolution	+/-2℃(25℃)
6.Pressure Range	0-15.0Bar ( 0-219psi )

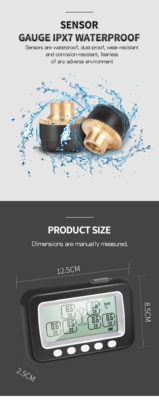

7.Waterproof Grade	IP67
8.Transmitted Power	≤10dBm
9.Transmitted Frequency	433.92MHZ
11.Wheels support	2 ,6 ,8 ,10 ,12, 16,18 ,20 ,22,26
12.Lithium Battery	CR1632
Certification	CE ROHS
Aging test	full 72hours
QC Test	100% full inspection before shipping out
HS Code	9026209090
