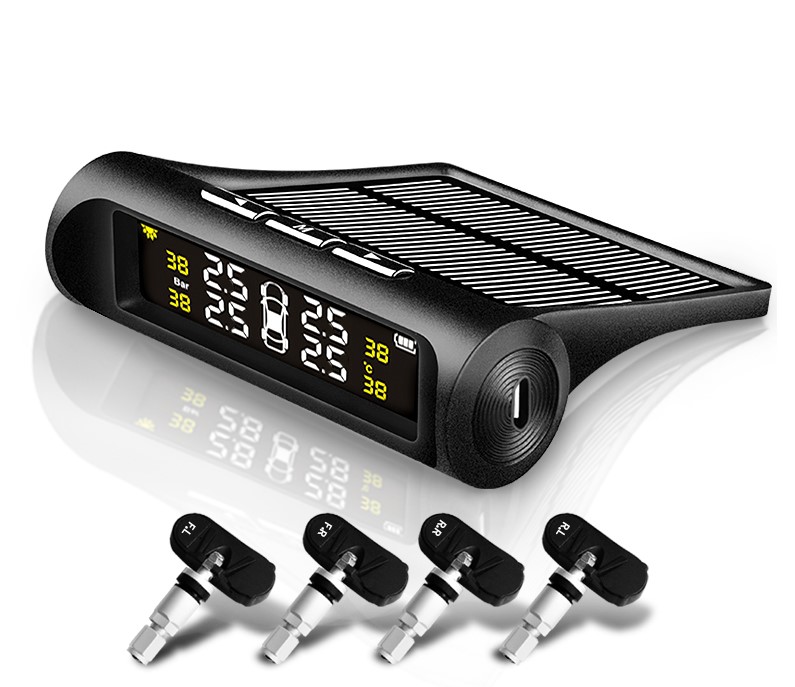

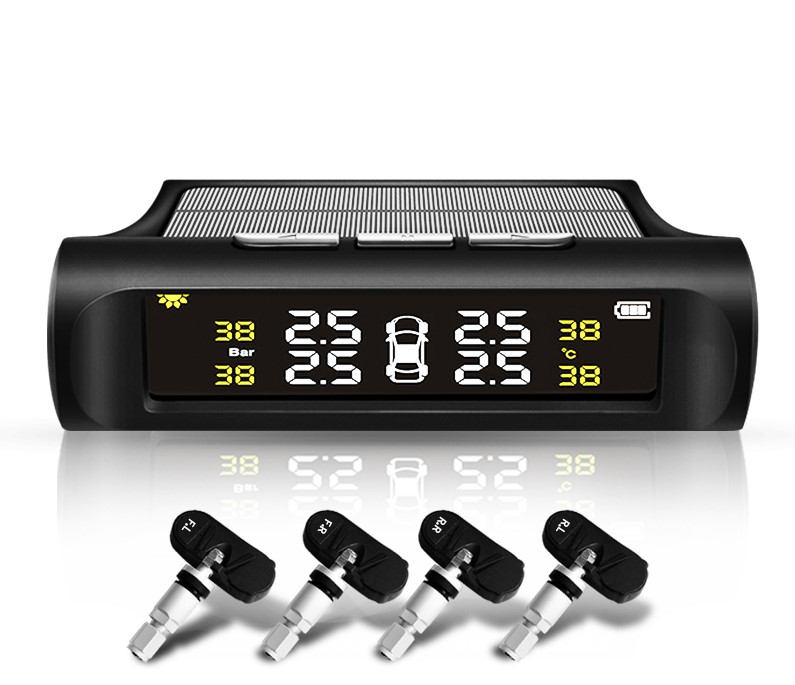

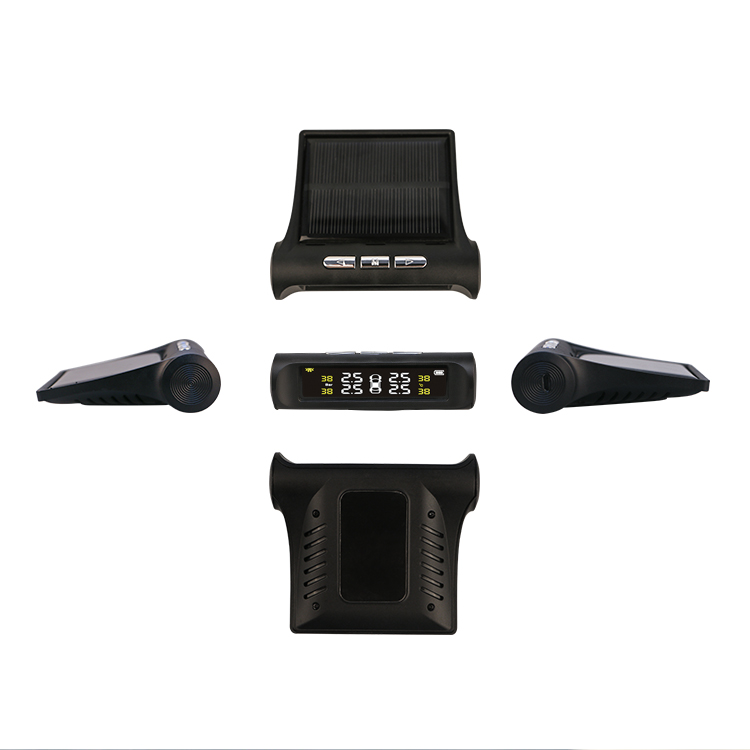

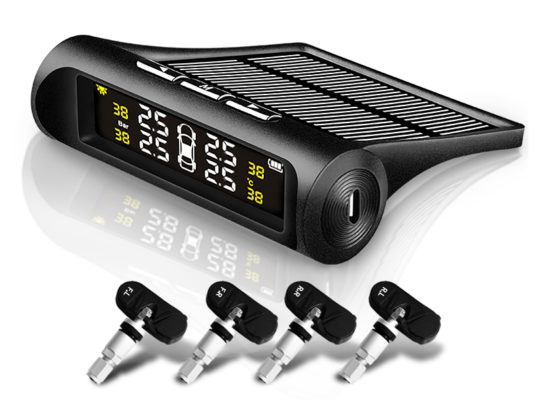

Wireless Car TPMS (Tyre Pressure Monitoring System) - Internal Sensors (Solar Powered)

R790.00 incl. VAT
R686.96 excl. VAT

Out of stock

SKU tpms-yb068-in Categories ,
Need expert advice?

Our experts have in-depth knowledge of our full range of automotive products.

Delivery anywhere is SA

Once we receive payment for your order, delivery updates will be sent via email to keep you updated.

Collection Points

Visit our offices in Cape Town or Johannesburg. Our work hours are from 8am-5pm.

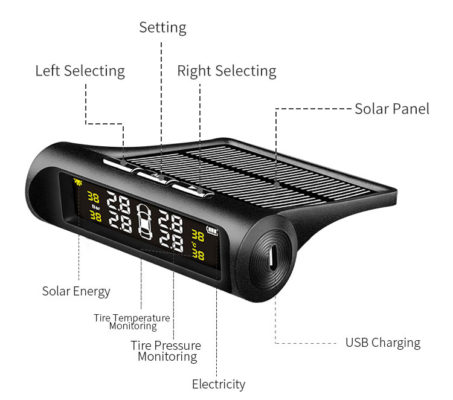

Main Features:

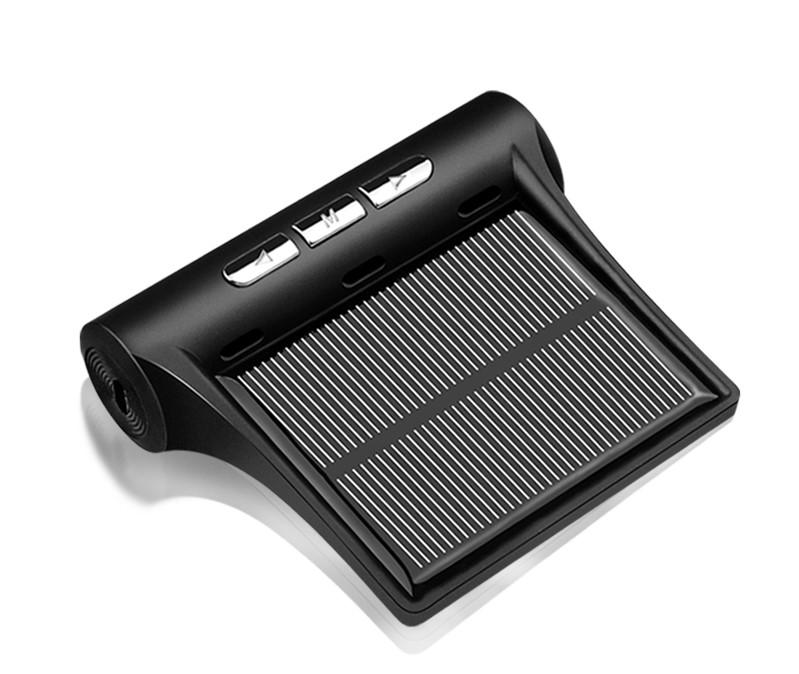

1.Use solar energy to get electricity, with 4 internal or external sensors.

2.LCD panel, with extra Micro USB port for charging.

3.Light weight design for sensor, no need to adjust to be balance when the tire moving.

4.Real-time Monitor the temperature and pressure with high degree accuracy

5.Save fuel, foresee air leakage, reduce tire wear out, balance tire pressure, ensure safety driving.

6.RF wireless technology, can auto-alarm, when tire pressure and temperature is abnormal.

7.With two pressure unit “PSI, BAR ” and two temperature unit”℃,℉” for option.

8.Support tire position exchange function.

9.Sensor waterproof grade: IP67.

10.With Infineon Chip and RENATA anti-explosion battery.

11.Anti – Lost Valve Sensor Wireless 433.2MHZ Frequency TPMS Tire Pressure


Quick Details:

Type: Digital
Certification: ce
Voltage: 3V DC
Model Number: YB168
Operating voltage: 3.7V-5V
Chip: Infineon (Import from Germany) Freescale (USA)
Working temperature: -30°C-85°C
RF Emission frequency: 433.92MHz±50KHz
Display: LCD Colour display
Working Pressure: 0-72PSI (Infineon)
Working pressure: 0-102si (Freescale)
Solar Panel Capacity: 400mA
Default Pressure: 26PSI-46PSI (Adjustable)


Specifications:

Monitor Specification
1.Operating Voltage 3.7-5v
2.Storage Temperature -30℃-90℃
3.Working Temperature -30℃-85℃
4.RF Emission Frequency 433.92MHZ+/-50MHZ
5.Monitor Mode LCD Color Display
6.Working Pressure 0-116PSI(Freescale) 0-9PSI(Infineon)
7.Bright Operating Current ≤6mA
8.Black Operating Current ≤4mA

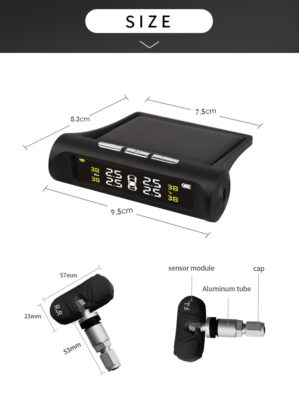

9.Size 95*83*75MM
10.Chip Infineon (Import Germany)Freescale(USA)
11. Use time/cycle 10-15days after get full charged
12.Factory Default Pressure 26-46 PSI
13.Solar Panel Battery Capacity 400 ma
10.NW 0.4KG
11.GW 0.45KG

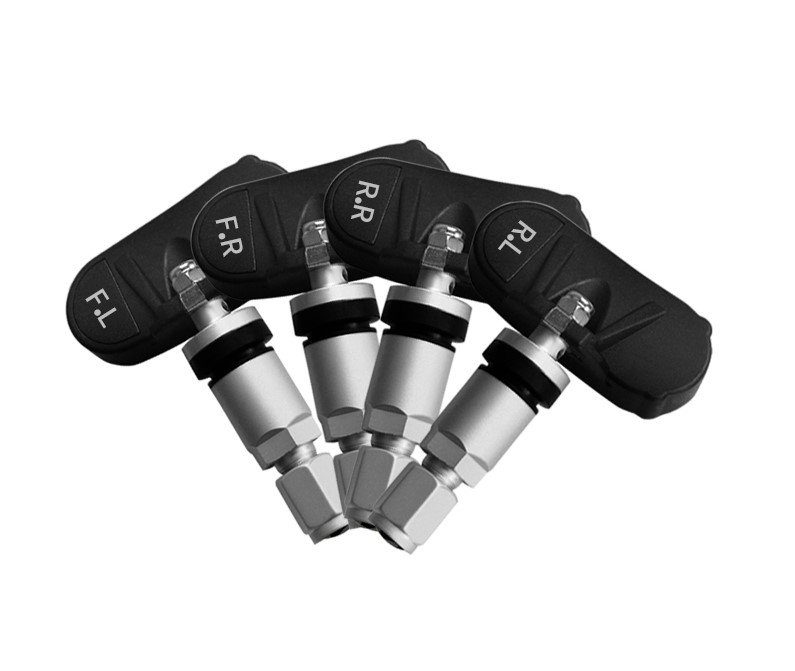

Internal Sensor Specification
1. Battery Life 3-5 years
2.Operating Voltage 3v
3.Storage Temperature -30℃-90℃
4.Working Temperature -30℃-85℃
5.Temperature Resolution +/-2℃(25℃)
6.Pressure Range 0-7.0Bar
7.Waterproof Grade IP67
8.Transmitted Power ≤10dBm
9.Transmitted Frequency 433.92MHZ
10.Size 21*17mm
11.Weight 16g*4pcs
12.Lithium Battery CR1632
Certification CE ROHS
Aging test full 72hours aging test
QC testing 100% full inspection before shipping out

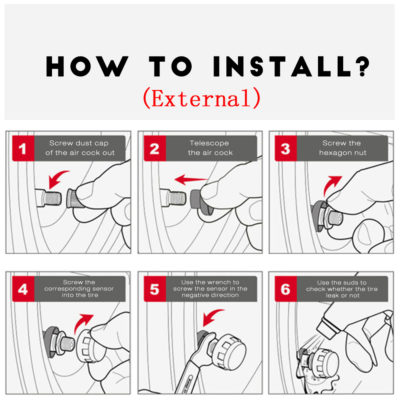

How To Install:

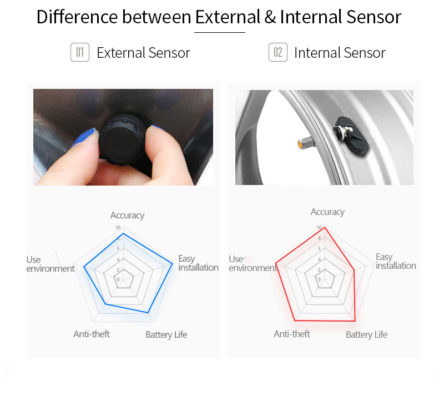

Differences Between An External & Internal Sensor:

Weight 0.334 kg
Dimensions 18 × 13 × 4.5 cm
