WE-TM105 Semi Automatic Tyre Changer with Easy Operable Tower Assist Arm
R25,875.00 incl. VAT
R22,500.00 excl. VAT
Available 'Buy Now Pay Later' Options
R1,070.94 x 36 payments
Available 'Buy Now Pay Later' Options
R1,070.94 x 36 payments
Delivery anywhere is SA
Once we receive payment for your order, delivery updates will be sent via email to keep you updated.
Collection Points
Visit our offices in Isando, Kempton Park.
Our work hours are from 8am-5pm.

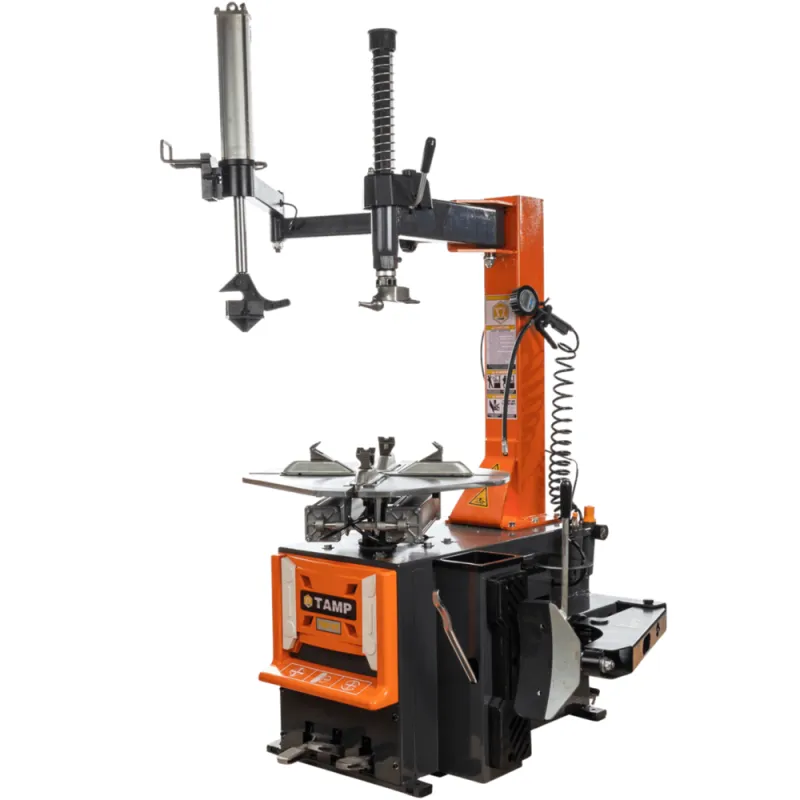

WE-TM105 Semi Automatic Tyre Changer with Tower Assist Arm
The WE-TM105 Tyre Changer is designed to enhance the efficiency of tyre service tasks. Equipped with a sturdy tower assist arm and an ergonomic drawer pedal assembly, this model facilitates after-sales service with ease. Its reverse switch with a silver contractor ensures a longer lift lifespan. A digital inflator gauge and inflator gauge provide precise inflation monitoring. The mounting head crafted from 2Dr13 offers high strength and precision casting for reliable performance. Additionally, the wheel rotating device is included as a standard accessory, enhancing versatility.
The WE-TM105 also includes several advanced features: self-centering jaws with double pneumatic cylinders for secure clamping, clockwise and anticlockwise turntable rotation via electric motor, and a protection kit for bead breaker shoe, demounting head, and clamping jaw. This tyre changer is complete with a lubrication filter and pressure regulator for consistent performance.

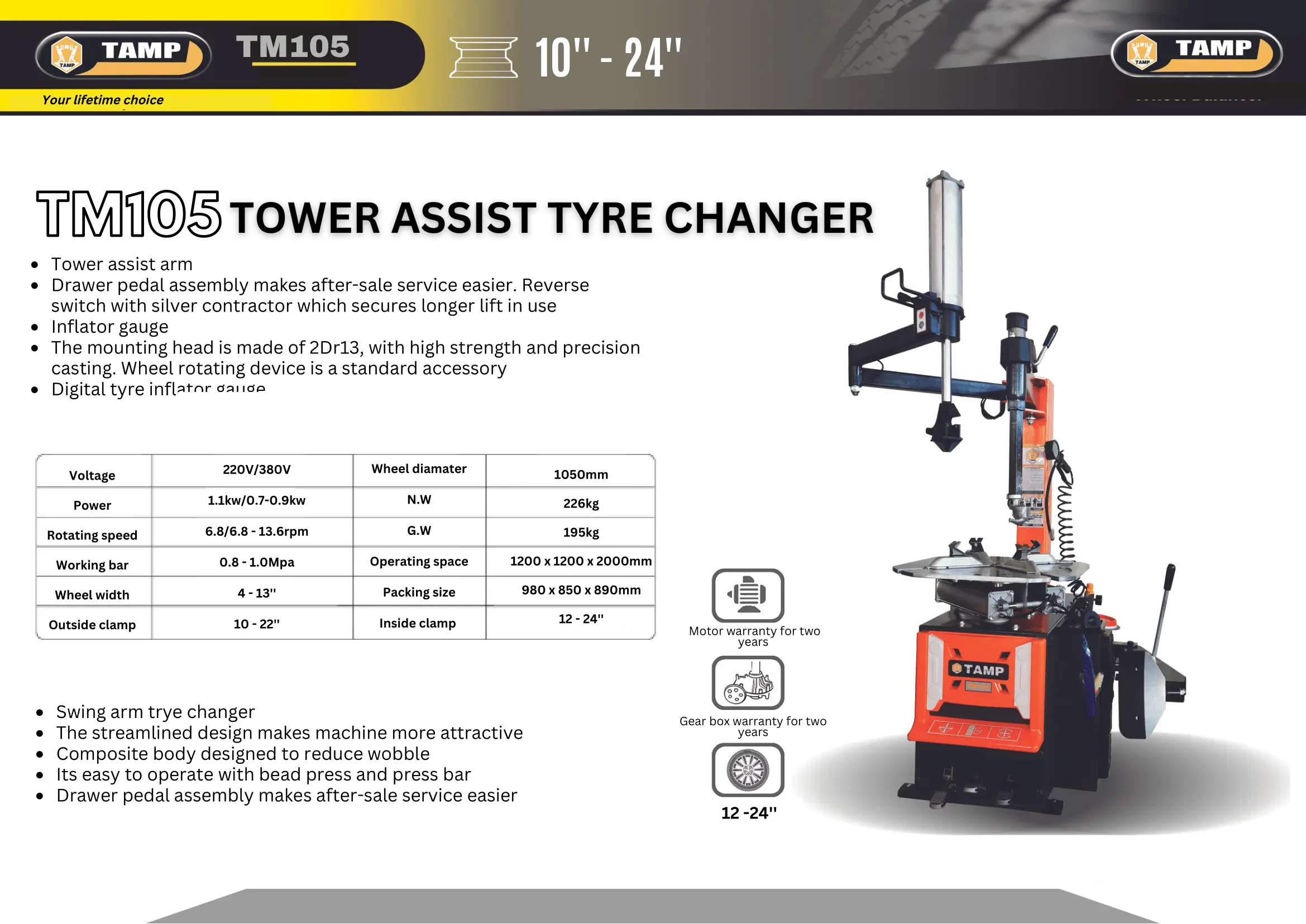

Specifications:
| Feature | Specification |
|---|---|
| Voltage | 220V |
| Power | 1.1kW |
| Rotating Speed | 6.8 – 13.6 rpm |
| Working BAR | 0.8 – 1.0 Mpa |
| Inside Clamp | 12” – 24” |
| Outside Clamp | 10” – 22” |
| Wheel Diameter | 1050 mm |
| Wheel Width | 4” – 13” |
| Net Weight (NW) | 226 kg |
| Gross Weight (GW) | 195 kg |
| Operating Space | 1200 x 1200 x 2000 mm |
| Packing Size | 980 x 850 x 890 mm |
Key Features:
- Digital Inflation Gauge for accurate readings.
- Mechanical Locking & Vertical Adjustment of the mounting arm.
- High-grade Tool Head with interchangeable inserts for rim protection.
- Uniform Clamping Pressure from powerful clamping cylinders.
| Weight | 226 kg |
|---|---|
| Dimensions | 98 × 85 × 89 cm |
