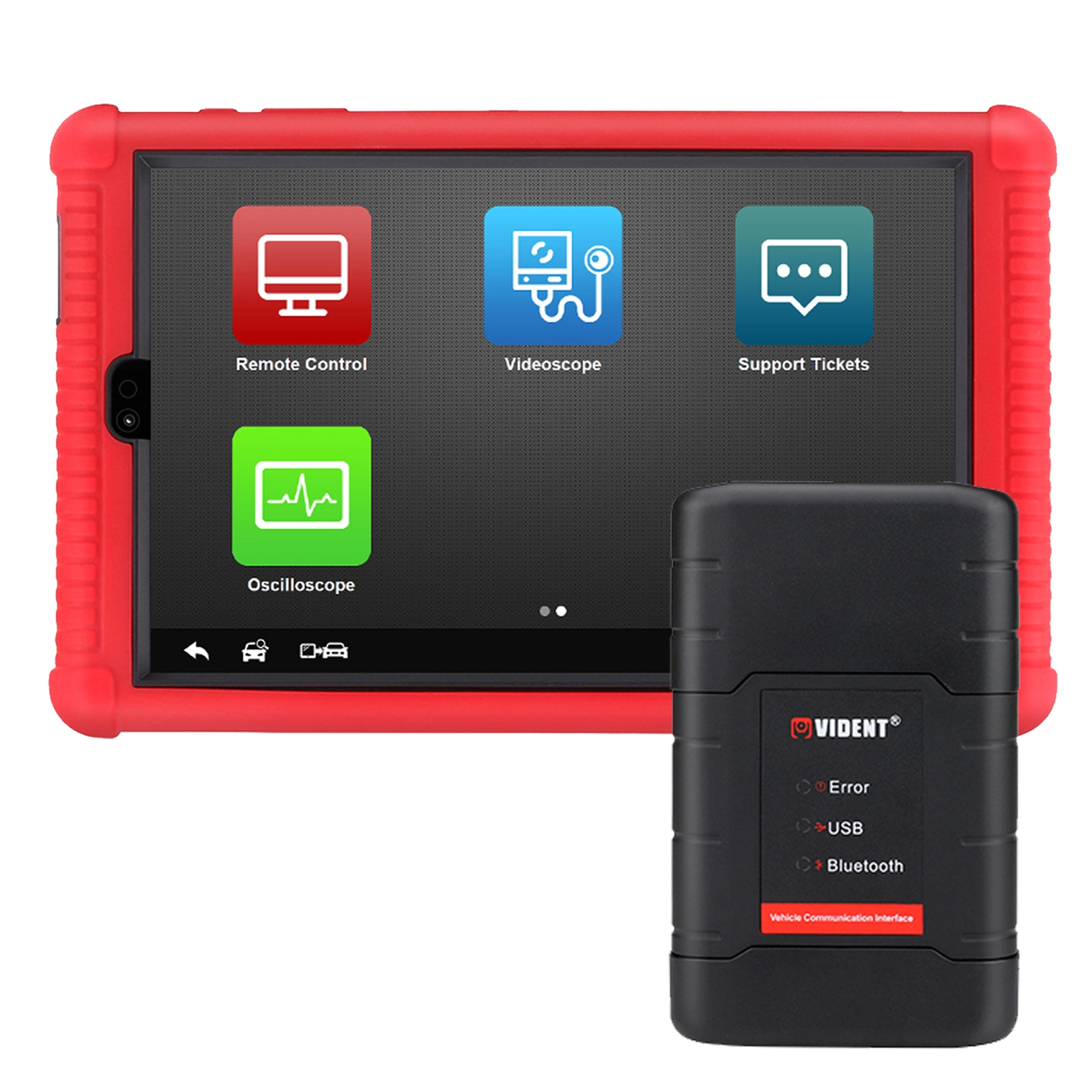

iSmart800 Automotive Diagnostic & Analysis System:
The Vident iSmart800 is a Windows tablet-based scan tool with an intuitive user interface, sophisticated diagnosis, wide vehicle coverage, advanced graphing, bi-directional component testing, component calibration, and module coding and programming. It utilizes an 8“high-resolution IPS LCD touch screen (1280 x 800), a secure, solid-state 32GB hard drive, and an Intel Quad-core processor that delivers boot-up in less than 30 seconds. The multitask-capable windows 10 Operating System offers you the best intuitive user interface and user-customizable configuration. With an unusual combination of sophistication and simple operation, iSmart800 is suited to any technician – from rookies to seasoned diagnostic specialists.
iSmart Series Automotive Diagnostic System User Manual V.1.00.pdf
Quick Details:
- Compatible with OBDI & OBDII vehicles
- 70+ Vehicle Brands
- Professional diagnostics + Service Reset + Coding
- 8″ high-resolution IPS Rated tablet
- 32GB hard drive and Intel Quad-core processor
- 3 years free updates
Software Features:
- Coverage – covers over 78 American, European and Asian makes from 1994 to 2019
- Diagnostics – complete capabilities for codes, live data, freeze frame, functional tests, ECU information, adaptation, matching, and coding for dozens of vehicle systems
- Service Functions – performs variety of most common service functions including oil service and mileage interval reset, EPB, ABS & SRS, BCM/SIR resetting, DPF regeneration, throttle body alignment, steering angle sensor calibration, battery configuration, etc
- Fast Diagnostics– Automatic and manual VIN identification for easy ECU accessibility. One-touch Auto scan with read and quick erase-codes options and automatic vehicle-specific system detection, meaning you won’t have to waste time scanning through data that is not relevant

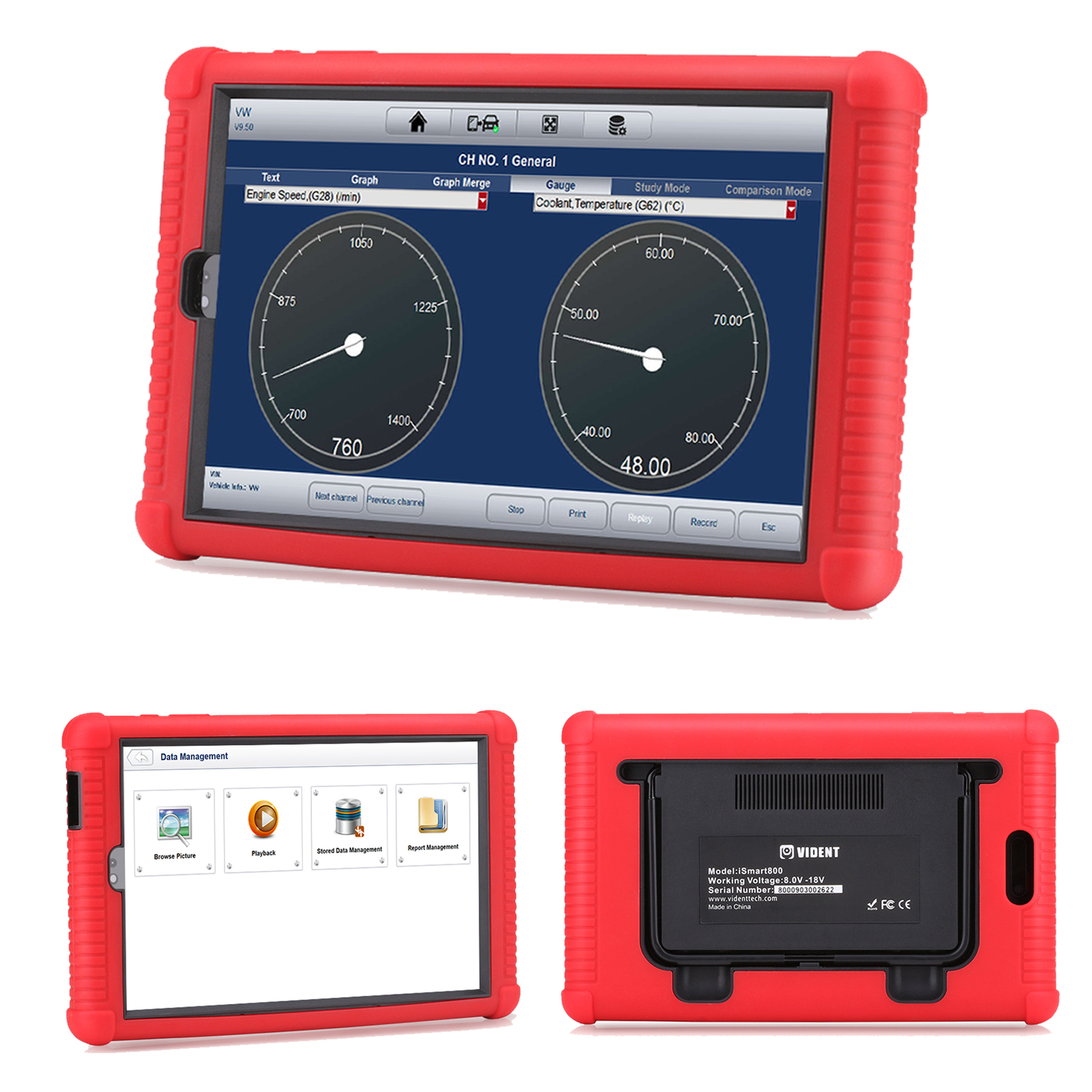

- Live Data – Customised text and graph live data with ability to record all available live data parameters and graph any four on screen at once
- Study and compare mode of Live data – real-time data can be compared against known good measurements
- Data Manager – Comprehensive data manager that can store thousands of vehicle records, customer data, vehicle IDs, fault codes, repair notes and diagnostic results
- Data Logging – Interactive Data Logging sessions and remove control enable direct contact with Vident Technical
- Windows System – High compatibility windows operation system for more applications such as oscilloscope, video scope, OE technical data and more
- Updates – 3 Years free software update
Hardware Features:
- 8″ high-resolutions 1200*800 capacitive touch screen
- Front 2 MP camera to save and share photos for your repair records
- Wireless Bluetooth® communication with vehicles
- Dual band WIFI to access your favourite web resources
- Built-in rechargeable Li-polymer battery for up to 6 hours of continuous operation
- USB, audio, HDMI and auxiliary ports make it easy to connect accessories
- Secure, solid-state 32GB hard and Intel Quad-core processor
- TF card slot for extensive memory
Overall Features:
Specifications:
Operating System | Windows 10 | |||||
Processor | intel Z8350 | |||||
Memory | 2 GB RAM & 32 GB ROM | |||||
Display | 8.0″ 1280*800 IPS LCD touch screen | |||||
Connectivity | high-performance 802.11b/g/n+B/T/N; 2.4G+5.8G dual band WIFI, Bluetooth 4.0, | |||||
USB Interface: USB 2.0* | ||||||
HDMI: micro HDMI×1 | ||||||
SD/TF interface | TF | |||||
Headset | 3.5MM×1 | |||||
Horn | Double horn | |||||
Storage Extend | 128GB SD/TF | |||||
Charging interface | DC2.5MM | |||||
Touch screen | support | |||||
G-sensor | support | |||||
Camera | Front:2.0MP, with indicator light | |||||
Audio Output/Input | ∮3.5mm standard earphone jack; output resistance2.2kΩ | |||||
Power and Battery | 3.7V/4500mAh polymer li-ion battery | |||||
Input Voltage | DC/12 V (9-35 V) | |||||
Operating Temperature | -10 to 50°C (14 to 131°F) | |||||
Storage Temperature | -30 to 70°C (-4 to 158°F) | |||||
Dimensions (W x H x D) | 226mm(8.89”)*155mm(6.1”) *16.5mm(0.65”) | |||||
Weight of Kit | 2.9kg (basic ) 6 kg (enhanced) |
Vident iSmart Diagnostic Scan Tools Comparison Table:
iSmart800 basic |
iSmart900 basic |
iSmart900 enhanced |
iSmart910 enhanced |
|
|
|
|
|
|
|
|
|
|
|
Hardware / Software | ||||
Vehicle Connection |
Bluetooth VCI |
Bluetooth VCI |
Bluetooth VCI |
Bluetooth VCI |
Display |
8.0” 800*1280 IPS LCD |
8.0” 800*1280 IPS LCD |
8.0” 800*1280 IPS LCD |
10.1” 800*1280 IPS LCD |
Processor |
Intel Z8350, 1.44Ghz-1.92GHz |
Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
Memory Storage ROM |
32GB |
32GB |
32GB |
32GB |
Battery |
3.7V/4500mAh |
3.7V/6000mAh |
3.7V/6000mAh |
3.7V/6000mAh |
Full Adapter Kit |
Benz/BMW |
Benz/BMW |
☑️ |
☑️ |
Operating System |
Windows 10 |
Windows 10 |
Windows 10 |
Windows 10 |
Rear Camera |
– |
5.0MP |
5.0MP |
5.0MP |
Front Camera |
2.0MP |
2.0MP |
2.0MP |
2.0MP |
Diagnostics Functions | ||||
All SYS DTC Scan |
☑️ |
☑️ |
☑️ |
☑️ |
Service Functions |
☑️ |
☑️ |
☑️ |
☑️ |
Bi-Directional Control |
☑️ |
☑️ |
☑️ |
☑️ |
Auto VIN Technology |
☑️ |
☑️ |
☑️ |
☑️ |
ECU Coding |
☑️ |
☑️ |
☑️ |
☑️ |
J2534 ECU Programming |
– |
– |
– |
– |
70+ Brand Coverage |
☑️ |
☑️ |
☑️ |
☑️ |
Data Manager |
☑️ |
☑️ |
☑️ |
☑️ |
Shop Manager |
☑️ |
☑️ |
☑️ |
☑️ |
Remote Support |
☑️ |
☑️ |
☑️ |
☑️ |
Optional AddOns | ||||
TPMS |
– |
– |
– |
– |
Oscilloscope |
☑️ |
☑️ |
☑️ |
☑️ |
Inspection Camera |
☑️ |
☑️ |
☑️ |
☑️ |
Software Update |
3 Yrs |
3 Yrs |
3 Yrs |
3 Yrs |

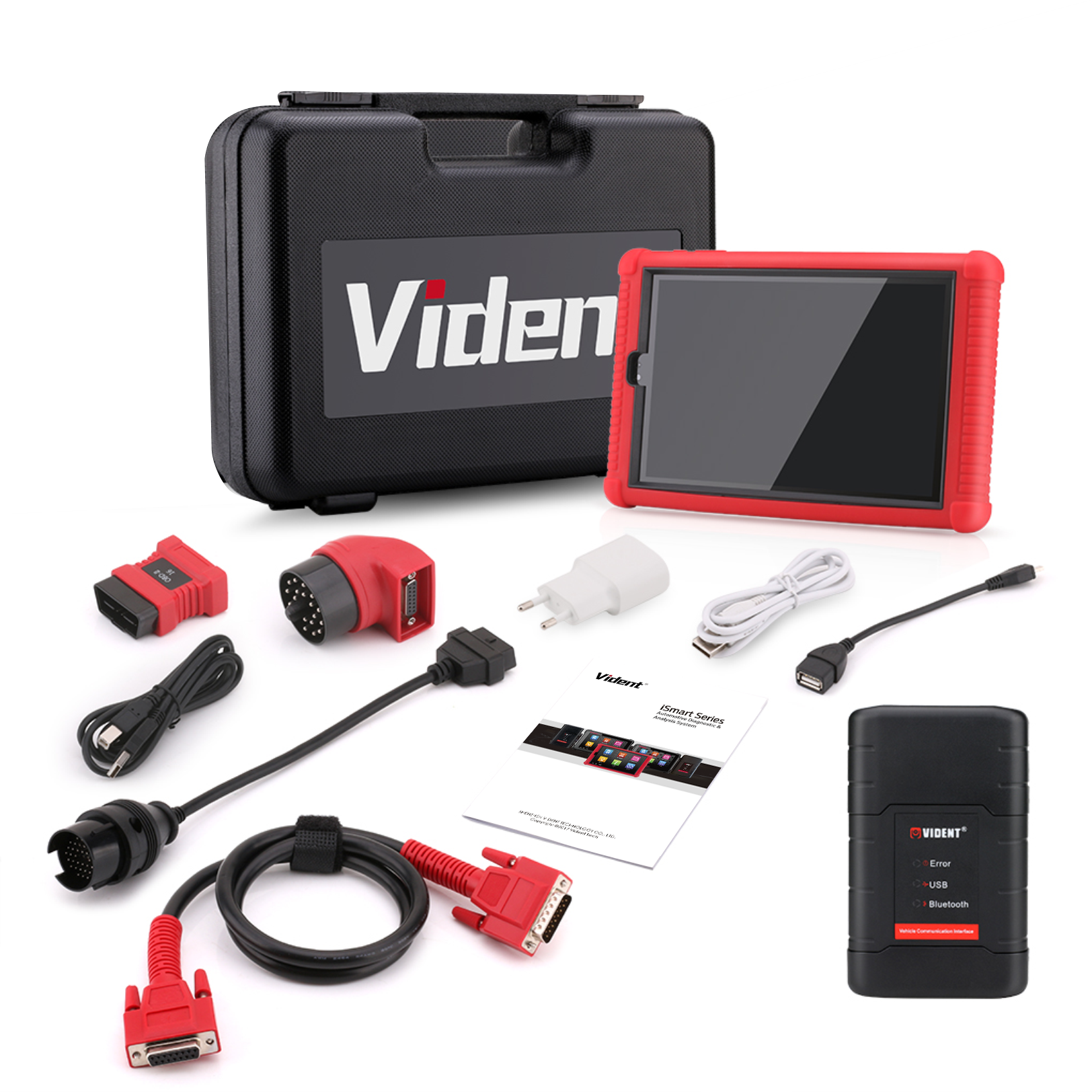

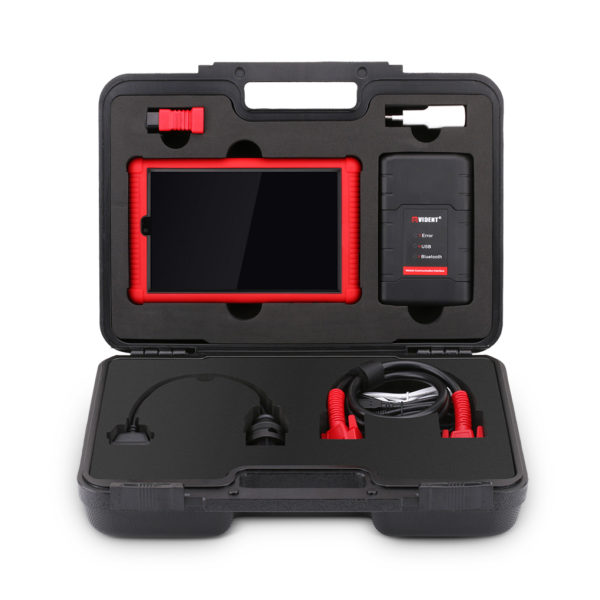

Kit Includes:
iSmart800 Basic Kit Includes | ||
Mercedes Benz 38pin Adapter | ||
BMW 20pin Adapter | ||
AC/DC Adapter | ||
OBDII Adapter | ||
Diagnostic Cable | ||
User Manual | ||
CD | ||
Carrying case |
