VAG – 1.6/ 2.0L TD – Engine Timing Tool Set (10 Piece)

Timing Tool Set for VW Golf Audi VAG 1.6 2.0 TDI CR:

SATRA S-X1620 is a timing tool set for 1.6 and 2.0 TDI common rail VAG engines to lock the camshaft and crankshaft during repair of the timing belt. For 5th generation Common Rail diesel engines (Blue Motion). Sit has been designed to fit the newest Common Rail CR diesel engines which are significantly different from the older PD engines. Includes camshaft pulley puller. Supplied in carry-case.

Makes & Models:

• Volkswagen/ VW – Golf 5, 6, 6 Plus, Eos, Polo 5, Jetta 5 and 6, Scirocco 3, Beetle 2, Caddy 2, Passat B6, B7 and CC Touran 2, Tiguan, Sharan 2, Transporter T5, Amarock
• Audi – A1, A3 (8P), A4 (B8), A5, A6 (C6 and C7), TT (8J), Q3, Q5
• Skoda – Fabia II, Roomster, practice, Octavia II, Suberb II, Yeti
• Seat – Ibiza (6J), Leon III, Exeo, Altea, Alhambra II

Engine Codes:

• CAAA, CAAB, CAAC, CAGA, CAGB, CAGC, CAHA, CAHB, CAVA, CAYB, CAYC, CBAA, CBAB, CBAC, CBBB, CBDA, CBDC, CBDD, CCHA, CFFB, FCA.

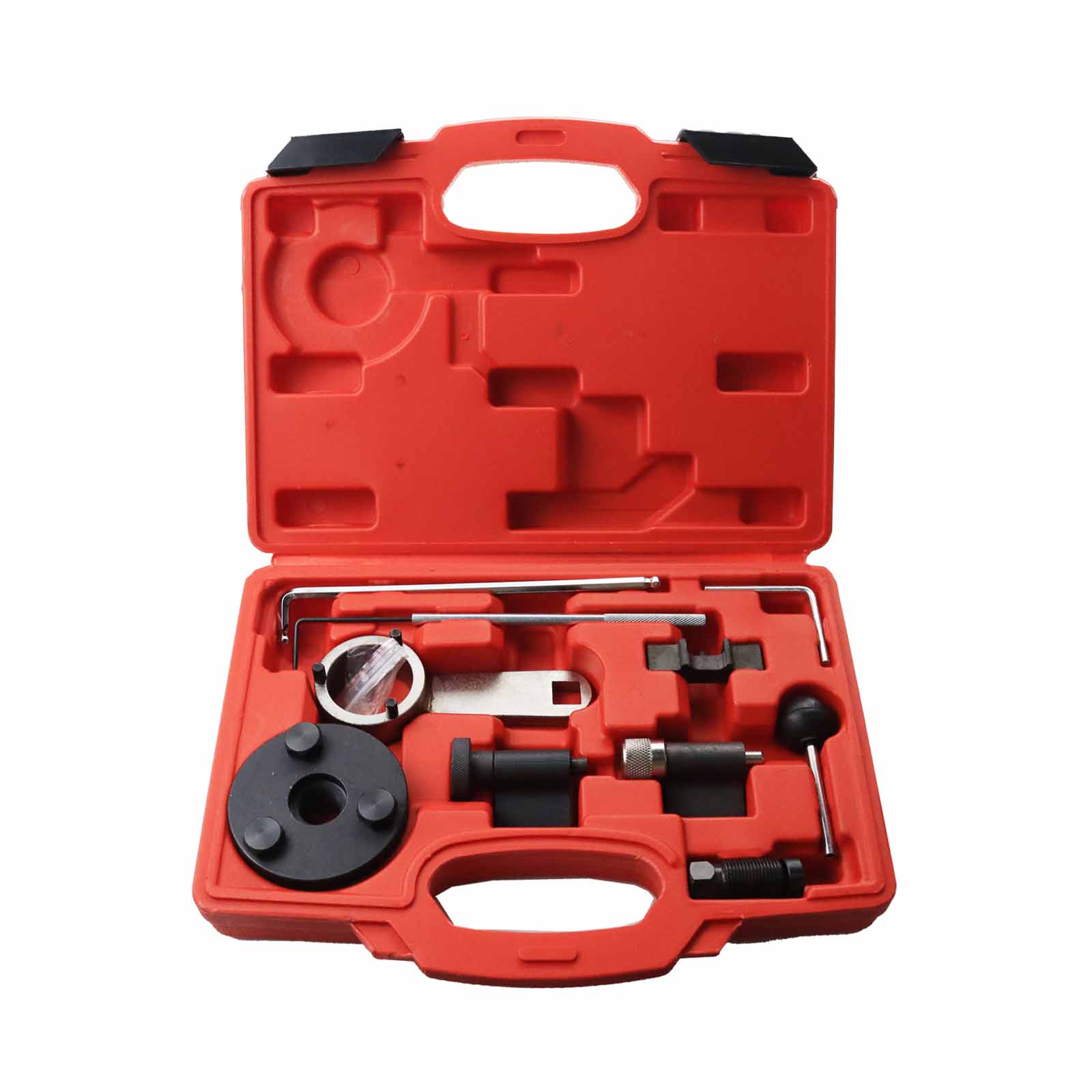

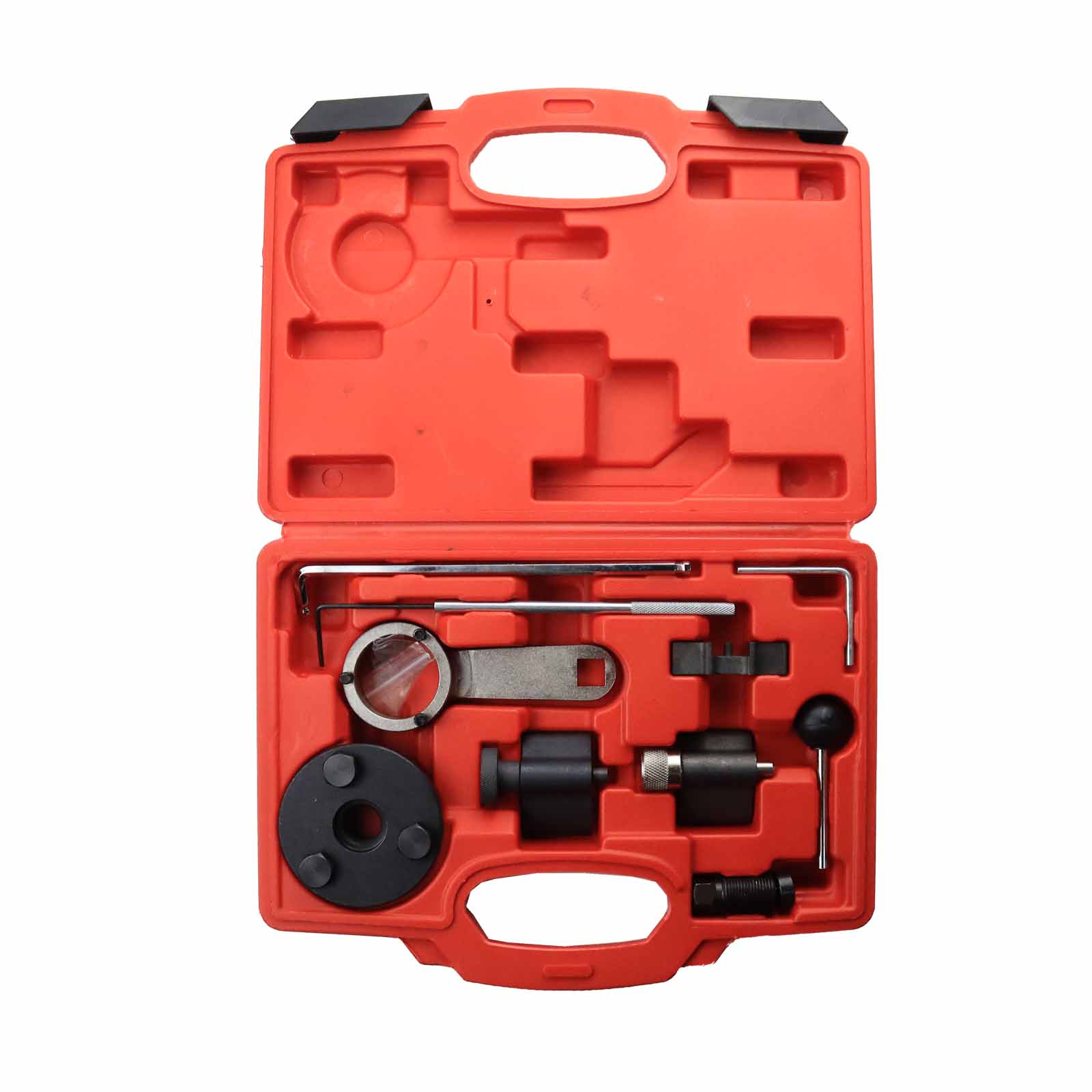

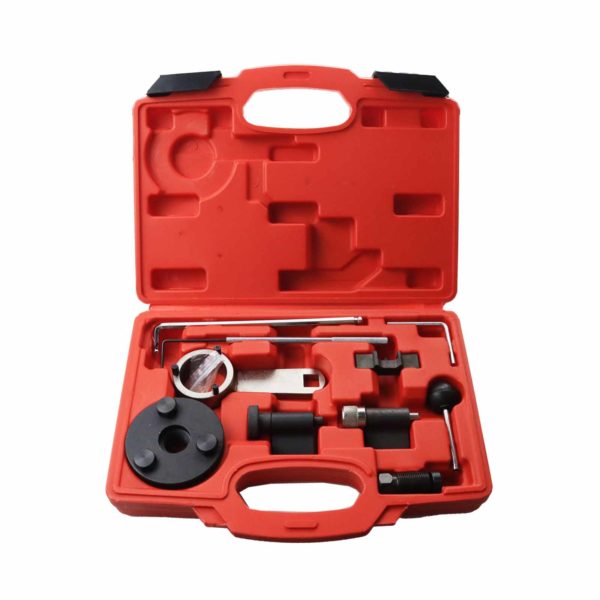

Set Includes:

• Ball end hex key 6 mm
• 2.5 mm tensioner pulley locking pin
• 3.9 mm tensioner pulley locking pin
• Crankshaft pulley locking tool 1.6
• Crankshaft pulley locking tool 2.0
• Sprocket holding tool
• Cam sprocket hub puller
• Oil pump/ balancer shaft alignment
• Injection pump/ camshaft alignment pin

OEM: T10264, T10265, T40098, T10050, T10100, T10051, T10052, T10255, T20102
