TAMP TM4R Tyre Changer – Fully Automatic Operation with Anti-Clamp Shovel and Help Mount
R57,442.50 incl. VAT
R49,950.00 excl. VAT
Available 'Buy Now Pay Later' Options
R2,377.48 x 36 payments
Available 'Buy Now Pay Later' Options
R2,377.48 x 36 payments
Delivery anywhere is SA
Once we receive payment for your order, delivery updates will be sent via email to keep you updated.
Collection Points
Visit our offices in Isando, Kempton Park.
Our work hours are from 8am-5pm.

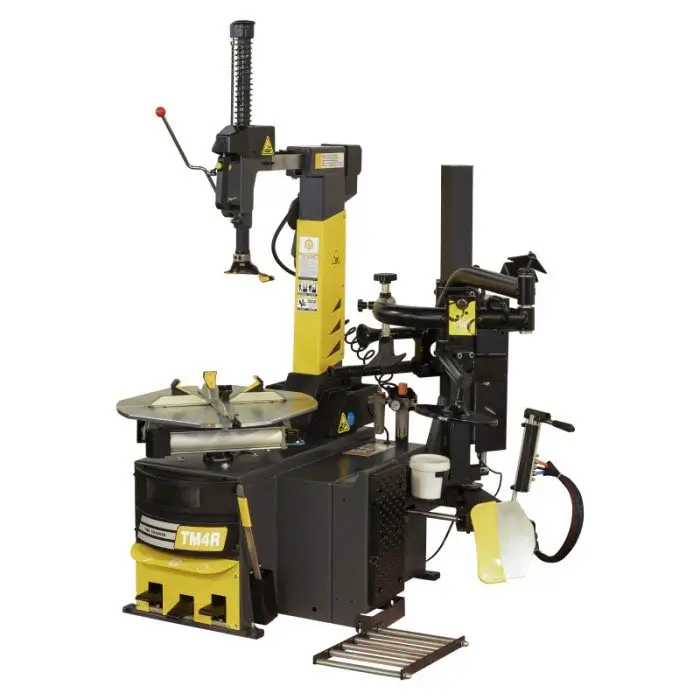

The TAMP TM4R is a fully automatic tyre changer designed to handle a variety of tyre sizes with precision and durability. It features a sturdy and robust chassis and a high-grade switch and motor, ensuring reliability and long-lasting performance. With a hand-controlled bead breaker and anti-clamp shovel, this model provides ease of use, especially for delicate operations. The standard help mount supports work with run-flat and low-profile tyres, making it versatile for a wide range of service needs.
This tyre changer supports rim diameters from 12” to 24” and handles wheel widths of up to 15”. It includes embedded plastic rim protectors in the clamping jaws and an aluminum bead breaker with 200mm travel for effective tyre handling.

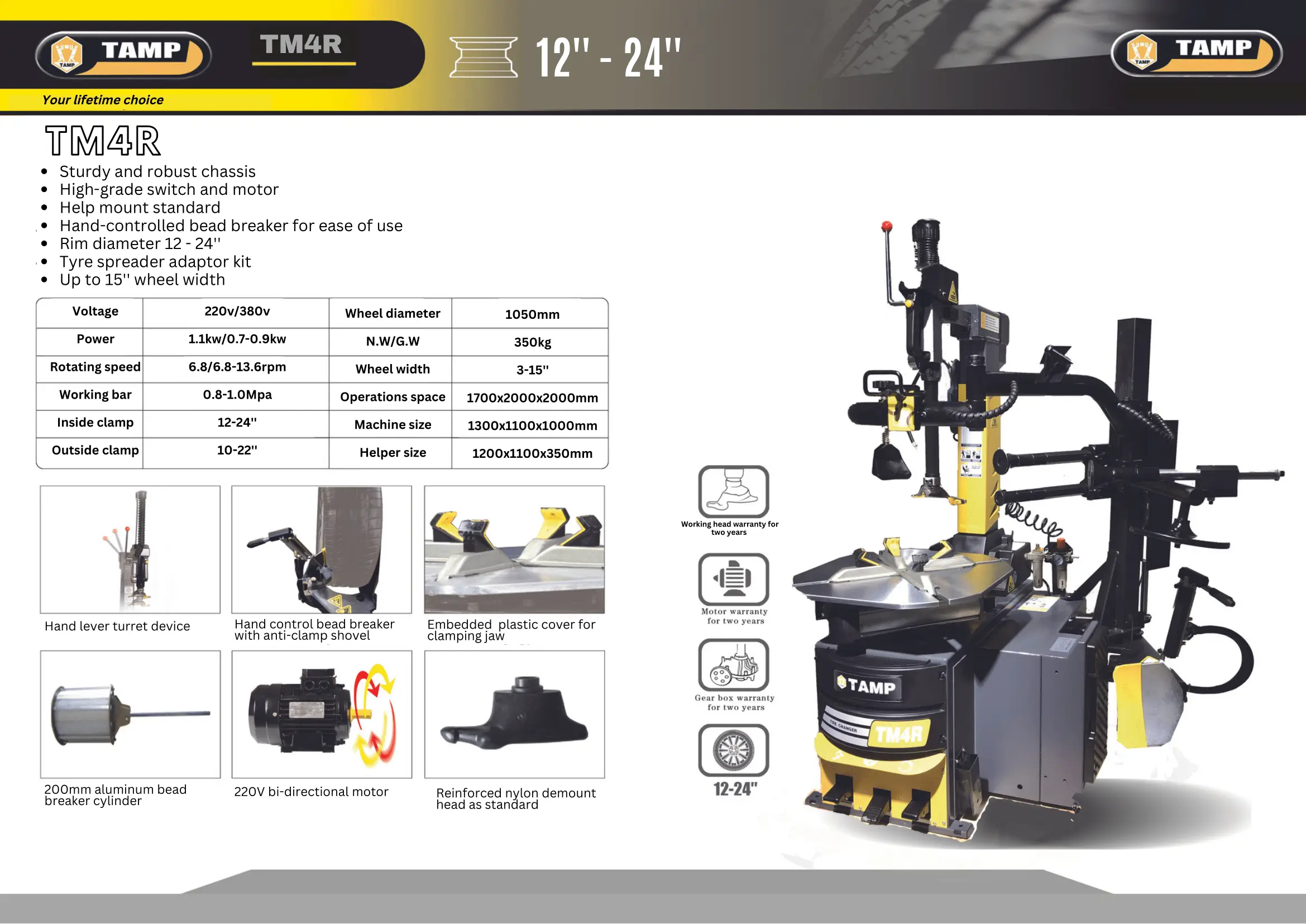

Specifications:
| Feature | Specification |
|---|---|
| Voltage | 220V / 380V |
| Power | 1.1kW / 0.7-0.9kW |
| Rotating Speed | 6.8 / 6.8-13.6 rpm |
| Working Bar | 0.8 – 1.0 Mpa |
| Inside Clamp | 12” – 24” |
| Outside Clamp | 10” – 22” |
| Wheel Diameter | 1050 mm |
| Net Weight (NW) | 350 kg |
| Wheel Width | 3” – 15” |
| Operating Space | 1700 x 2000 x 2000 mm |
| Machine Size | 1300 x 1100 x 1000 mm |
| Help Arm Size | 1200 x 1100 x 350 mm |

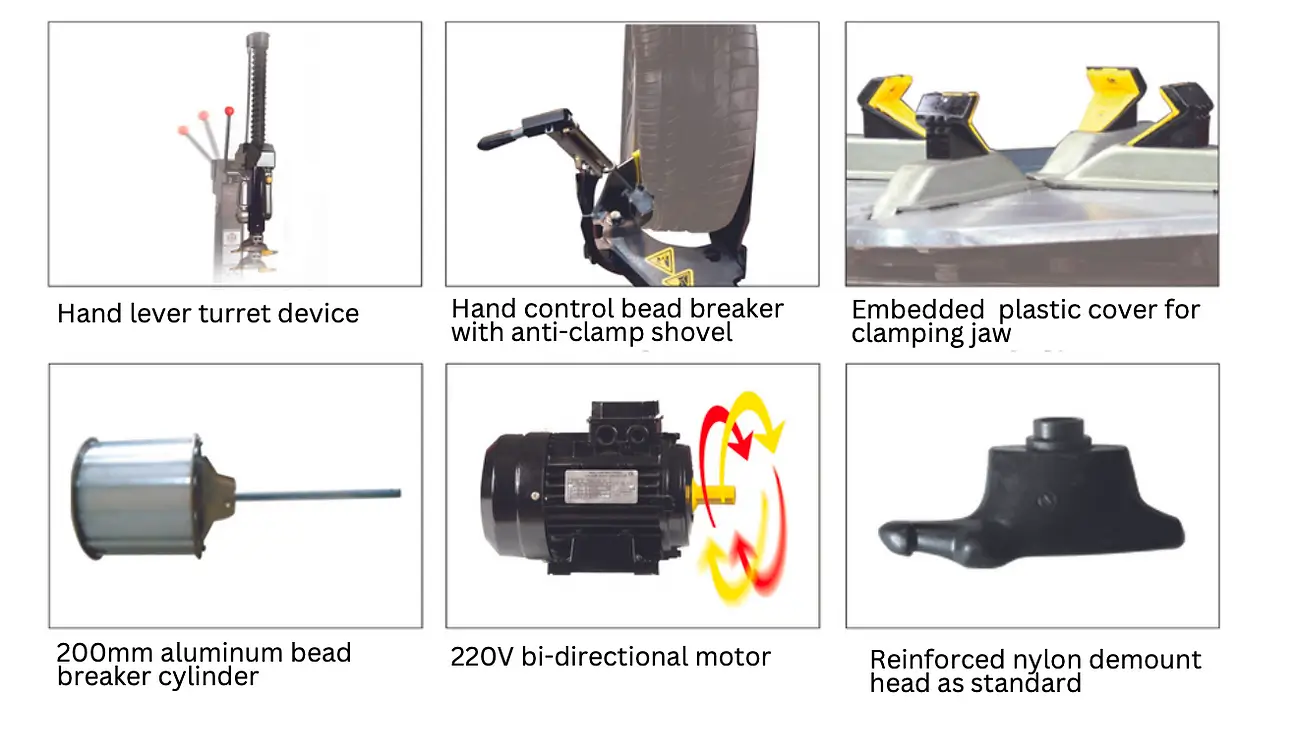

Key Features:
- Sturdy and Robust Chassis for reliable operation.
- High-Grade Switch and Motor designed for longevity.
- Standard Help Mount for run-flat and low-profile tyres.
- Hand-Controlled Bead Breaker with an anti-clamp shovel for ease of use.
- Tyre Spreader Adapter Kit included for versatile functionality.
- Embedded Plastic Rim Protectors in clamping jaws.
- 200mm Aluminum Bead Breaker Cylinder for smooth tyre handling.
- 220V Bi-Directional Motor for consistent performance.
- Reinforced Nylon Demount Head for added durability.
| Weight | 350 kg |
|---|---|
| Dimensions | 130 × 110 × 135 cm |
