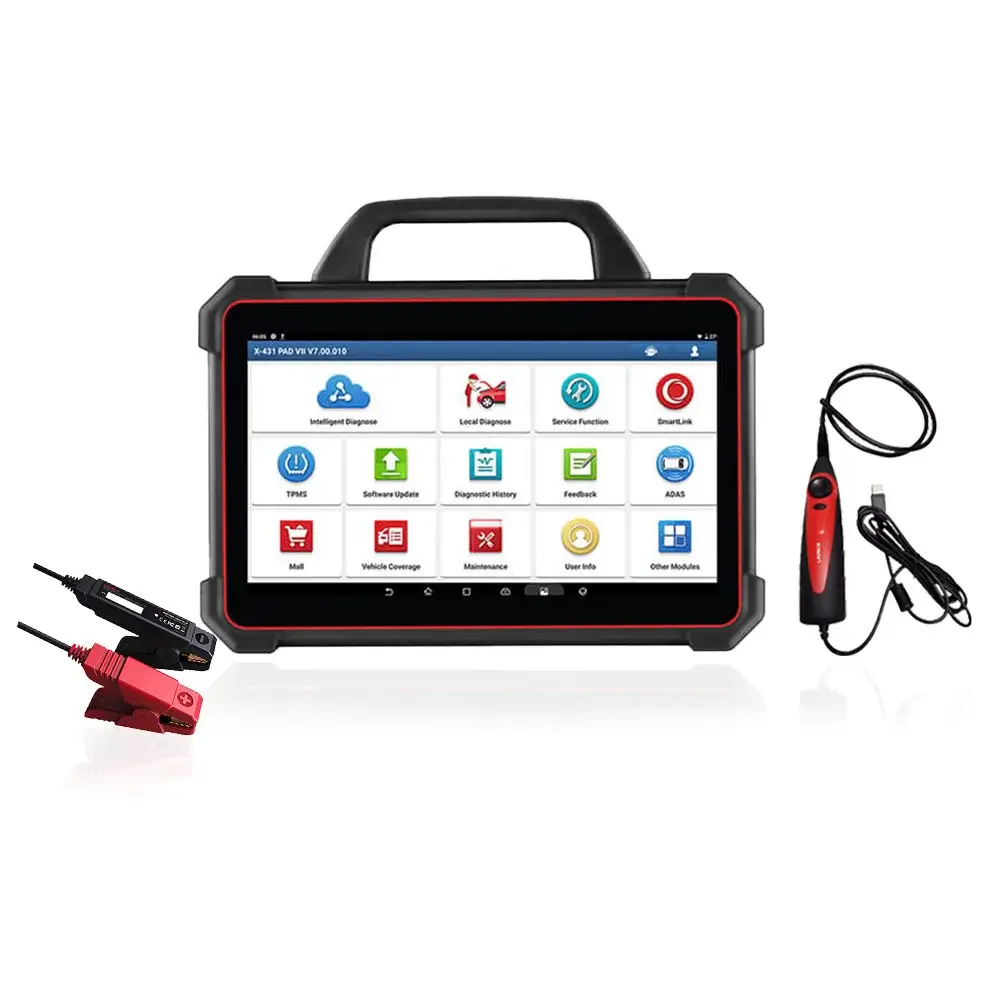

The X-431 PAD VII is a high-end diagnostic tool from LAUNCH, that comes with the ADAS calibration function, 26 service functions, and TPMS service. New Smartlink C VCI powers technicians to a new diagnostic level without the limitation of diagnostic functions, tools, and vehicle types. The X431 PAD VII supports 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer, and battery tester. With these extended modules, technicians are available to solve high-level faults with ease, to make those extended modules, you need to buy extended adapters.
Free Gifts – T’s & C’s Apply
BST360, suitable for technicians and on-the-go consumers, is safe to use with its anti-heat characteristics and prevention against backfire electrical sparks that can occur during electrical system diagnosis.
VSP600 videoscope helps technicians to check issues on an unreachable area in a vehicle. With 6 levels of light strength, technicians can easily adjust the brightness according to the environment. It will work with LAUNCH X-431 scanners or any Android device and stream live video on it. Technicians can view, record, and save images and videos.
Features

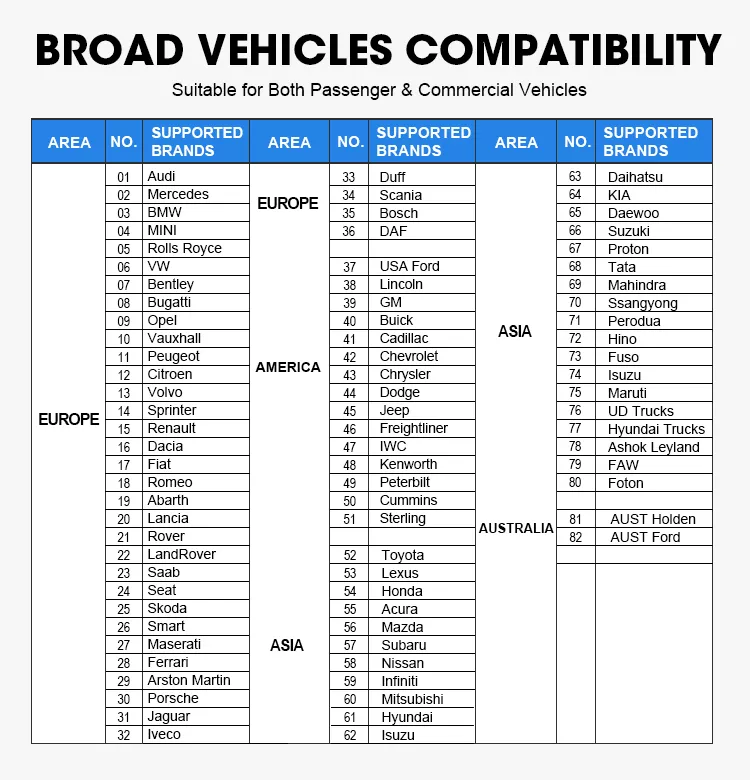

- Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is continually updated
- Upgrade and expand the X-431 PAD VII with more software and service via the new module ‘MALL’ as demanded
- Real-time voltage display helps the technician to monitor the voltage condition of the vehicle during the diagnosis
- Topology mapping gives a visual checking on DTCs and all systems communication status
- Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210
- Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin is damaged or not
- Intelligent diagnostic enable identify VIN automatically and access the system quickly
- Guided function for VW and AUDI
- Optional ADAS calibration function increases revenue
- Advanced coding and programming function
- An extended solution to support TPMS service
- 2.4GHz & 5GHz dual-band communication ensures a quick and stable connection
- Empower technicians to diagnose light, medium & heavy-duty vehicles with Smartlink C
- The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
- Build-in repair information and training video modules help to track and fix issues fast
X-431 PAD VII Information Video
 Â
Software Coverage
- Nissan (Diesel)
- Mitsubishi (Diesel)
- USA Ford Diesel, Kenworth
- Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
- Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
- Iveco Heavy Duty, JAC Heavy Duty, Mack, MAN, OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
- WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
- Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vehicle, Detroit Engine
- Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
- Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
- HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
- IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
- Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine
Special Functions
- Service Lamp Reset
- Electronic Throttle
- Brake Reset
- Immobilizer Reset
- Battery Reset
- Injector Coding
- SAS Reset
- TPMS Reset
- ABS Bleeding
- Gear Learning
- DPF Regeneration
- Gearbox Reset
- Headlamp Reset
- Sunroof Initialization
- SUS Reset
- EGR Adaption
- A/F Reset
- AdBlue Reset
- Nox Sensor Reset
- Stop/Start settings
- Transport Mode
- Coolant Bleed
- Windows Calibrations
- Seat Calibrations
- Tyre Reset
- Language Change
More Product Information
- ECU Programming & Coding: LAUNCH X431 PAD VII car diagnostic scanner with J2534 can perform ECU coding & programming to get the car to work correctly after module replacement. It supports multiple protocols: J2534 (diagnose vehicles with OEM software and VCI), RP1210/D-PDU (diagnose heavy trucks (the diagnostic software and a non-standard 16PIN connector sold separately), Do-IP (diagnose E and F Chassis BMWs and new cars from Land Rover/Jaguar), CAN FD (diagnose new vehicles from GM).
- Intelligent Diagnose & Guided Functions: LAUNCH X431 PAD VII scan tool aims at freeing mechanics from tedious work. Intelligent Diagnose can easily get the VIN information of the car, guide you to the vehicle information page without step-by-step selection, and display all diagnostic records. Guided Function (for V.A.G) enables you to follow the on-screen prompts, simple & convenient. Pin Detection allows you to detect the voltage of DLC pins and supported protocol types to troubleshoot the DLC.
- LAUNCH X431 PAD VII, 50+ Services & Topology Map: LAUNCH X431 PAD VII bidirectional scan tool has 50+ maintenance functions, including but not limited to oil reset/ABS Bleeding/Injector Coding/AdBlue reset, helping you win more business. With topology map function, you can check the DTCs and all systems communication status visually in the LAUNCH X431 PAD VII top obd2 scanner. The actuation test enables the tablet to output commands to the ECU to determine the integrity of systems or parts.

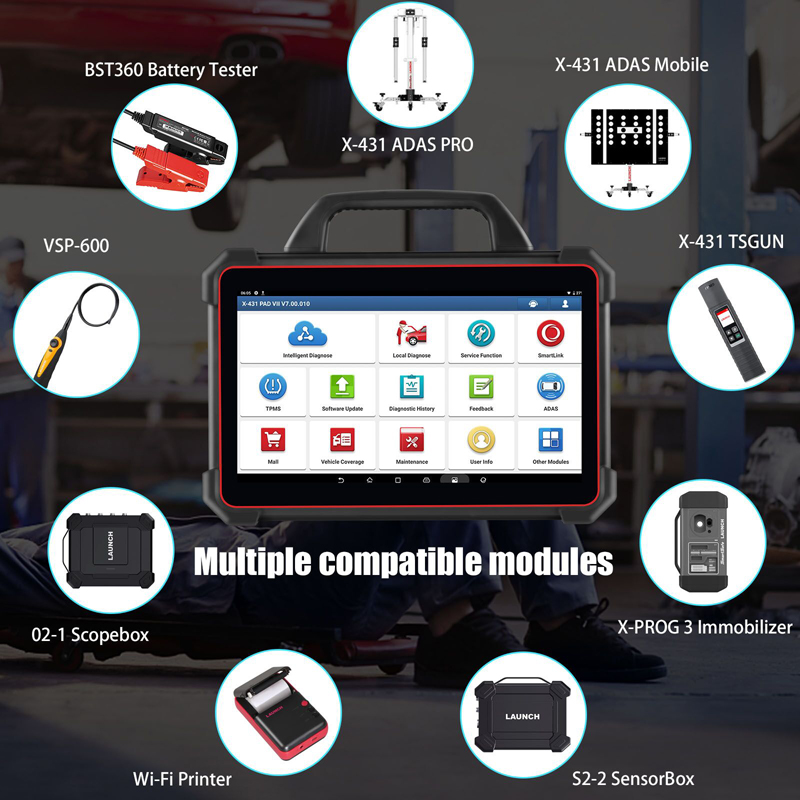

- All-in-One Tool for Diagnoses and Inspections: LAUNCH X431 PAD VII supports add-on modules (sold separately) to carry out more in-depth inspections and calibrations: oscillograph, sensor, battery test, endoscope, Wi-Fi printer, TSGUN, Immobilizer, etc. With 60+ advanced functions: guided functions, component matching, power balance, online parameterization, and online calibration, LAUNCH X431 PAD VII’s high-end comprehensive diagnostic scan tool turns you into a pro auto mechanic.

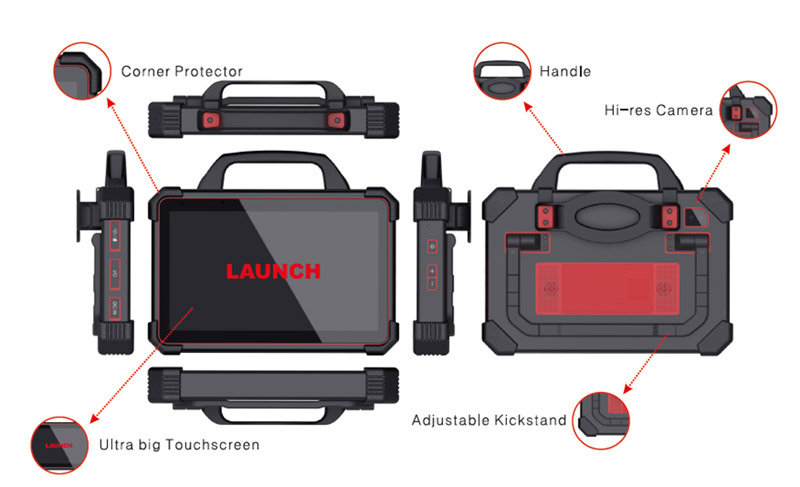

- 2022 LAUNCH X431 PAD VII, Highest Configuration: LAUNCH X431 PAD VII stands out also because of its configurations. Android 9.0 OS is smarter and faster. 2.0GHz Octa-core processor makes your operation smoother. The corner protectors prevent knocks. The tablet stand can be adjusted from 0-180°. 2.4G/5GHz Wi-Fi & Wireless programming makes communication faster and more stable. 8GB RAM + 256G ROM, 13.3-inch large touchscreen, and waterproof IP65 protection offer you a wonderful experience.
- LAUNCH X431 PAD VII, Focus on the Customers: LAUNCH X431 PAD VII features diagnostic feedback which allows you to send problems to us for analysis. It also offers many repair guidance options including operation tips/relevant cases for your reference.Â
User Manual
Specifications

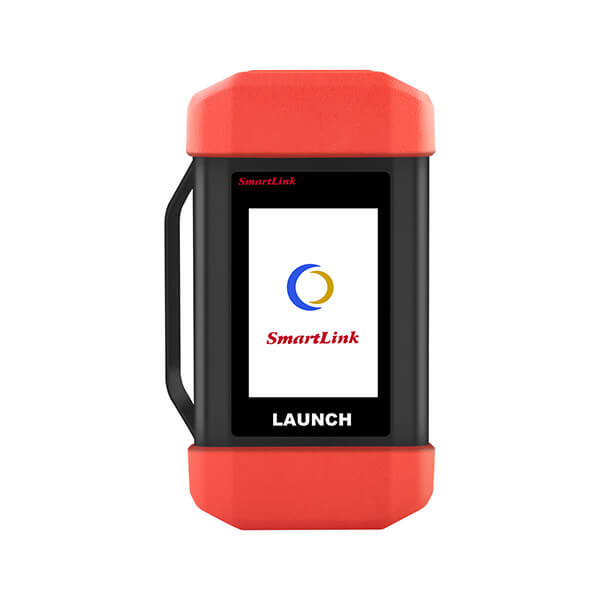

X-431 PAD VII | Smartlink | |
Operation System | Android 9.0 | N/A |
CPU | 2.0GHz Octa-core | N/A |
Display | 13.3′ touch screen 1920*1080 | 3.5′ touch screen 320*480 |
Memory | 8GB | 256M |
Storage | 256GB | 8GB |
Camera | Rear 13MP, Front 8MP | N/A |
WiFi | Dual Band 2.4 & 5GHz | Dual Band 2.4 & 5GHz |
Diagnostic Communication | WiFi | WiFi & BT & USB |
Working Temperature | 0℃~50℃ | 0℃~50℃ |

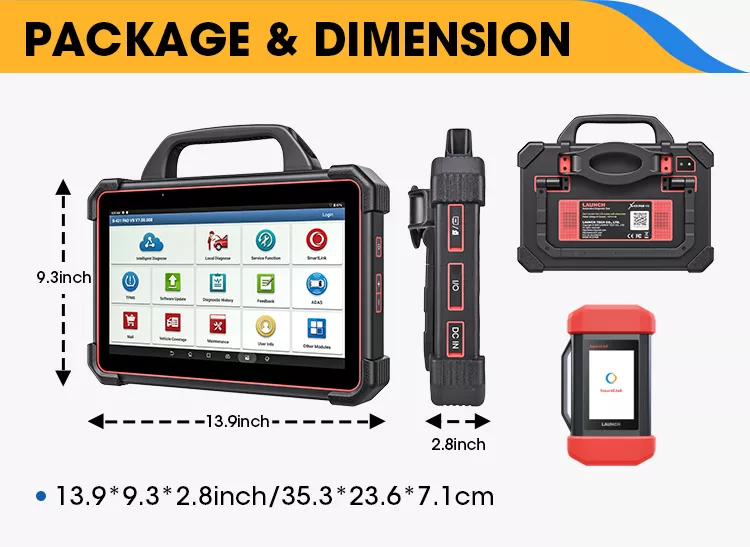

Dimension | 353*236*71 mm | 204*110*45 mm |
