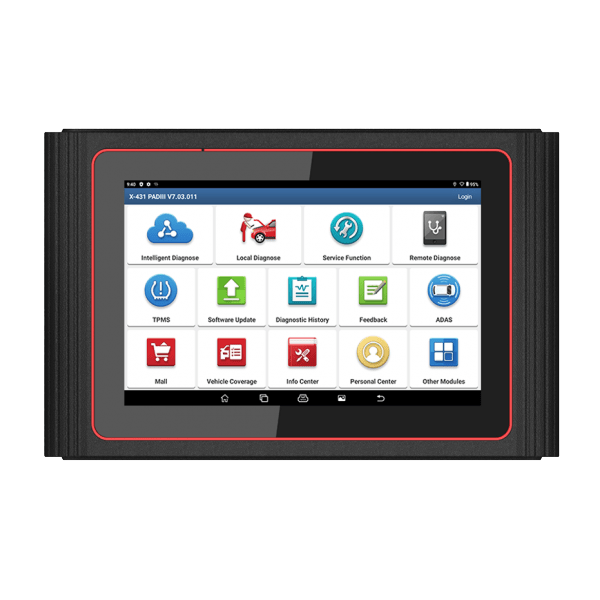

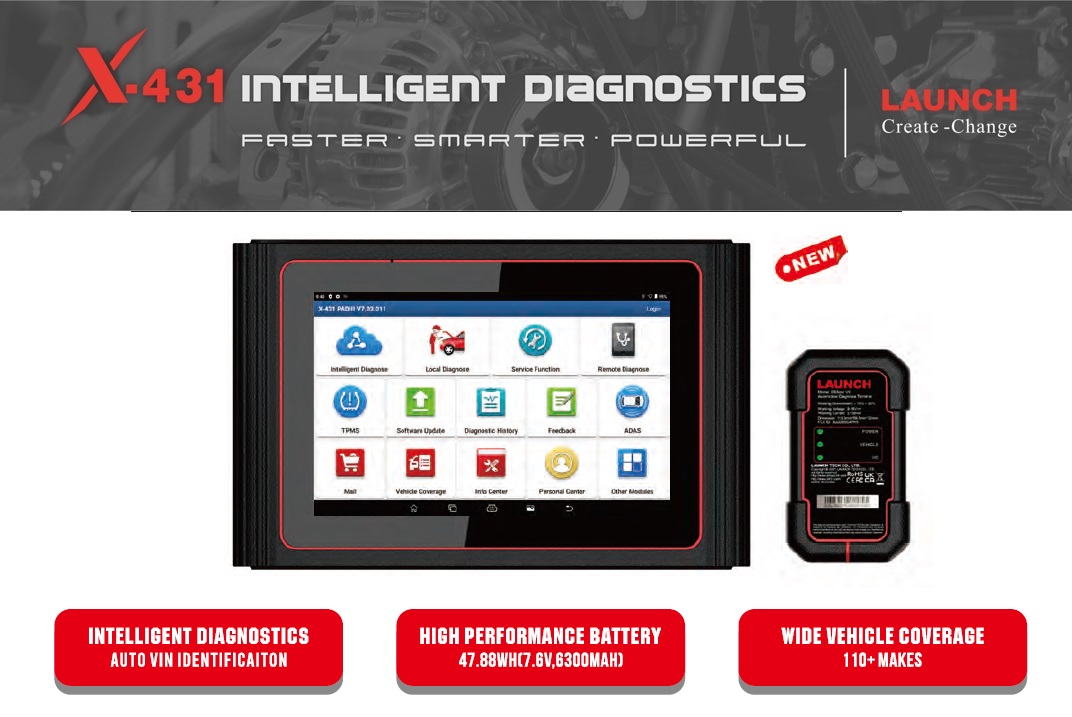

Launch X431 PAD III V3.0 | Advanced Diagnostic Scanner with Coding and Reprogramming (3 years free software updates)

Description

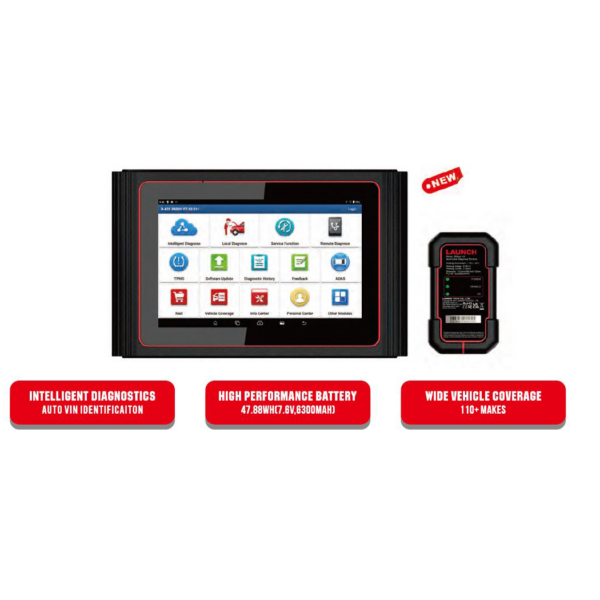

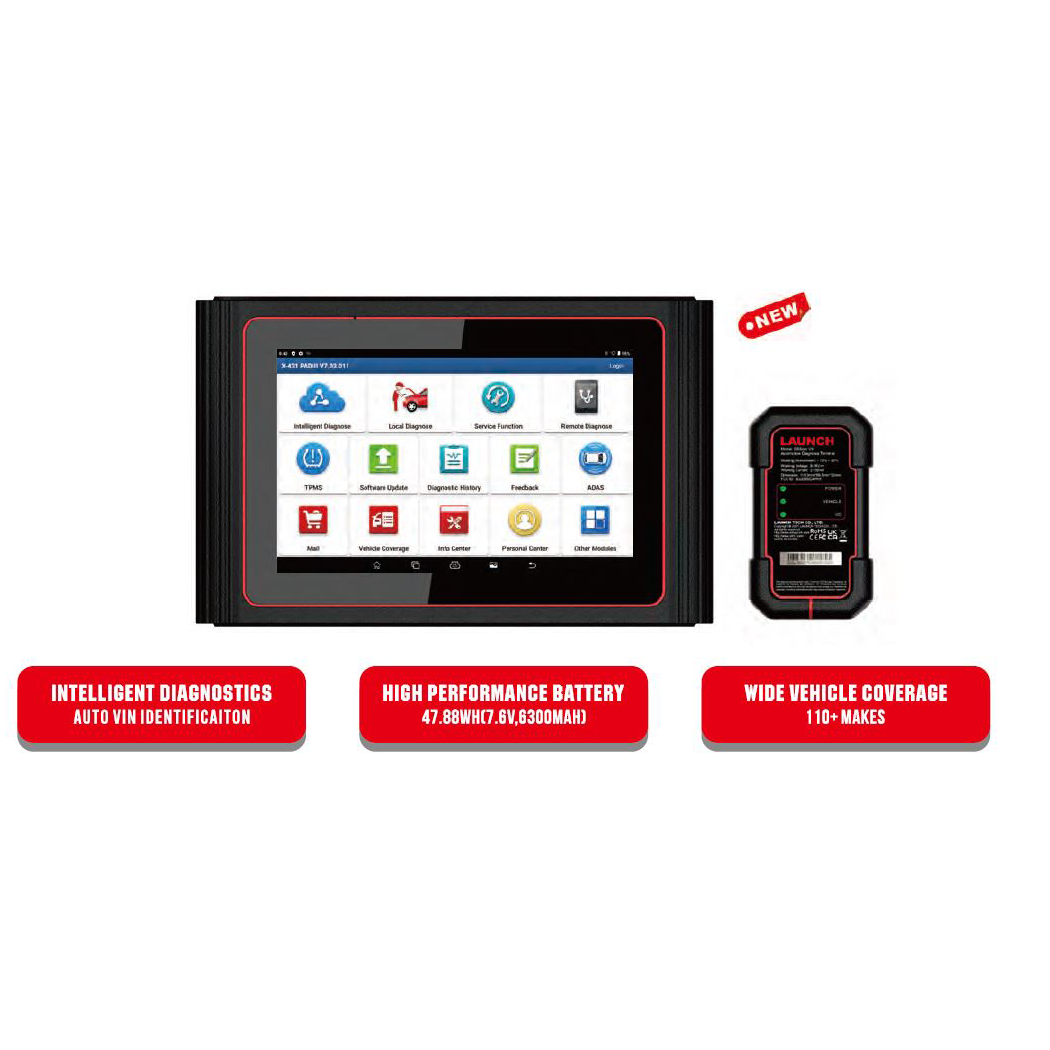

Introducing the Launch X431 PAD III V3.0 – an advanced and powerful scanner with upgraded features for faster and more stable diagnosis. Equipped with an Android 10.0 operating system, 4GB memory, and 64GB storage, it offers an enhanced user experience. With the brand-new DBScar VII VCI, this scanner supports an even wider range of communication protocols, including CAN, CAN FD, DoIP*, and more (*additional DoIP cable required).

The Launch X431 PAD III V3.0 offers full system OE-Level diagnostics on 1996 and newer U.S., European, and Asian vehicles. Its intelligent diagnostic functionality includes comprehensive OBD II diagnostics, read/clear DTCs, bi-directional control, remote diagnosis, live data streaming, and coding, among others. With 37 advanced service functions, it satisfies a wide range of diagnostic demands.

The scanner’s intelligent diagnostic feature enables automatic VIN identity, which helps to access systems quickly. It also includes a guided function for Volkswagen and Audi. The Launch X431 PAD III V3.0 also offers optional ADAS calibration capability for calibrating LDW, RCW, AVM, NV, BSD, and ACC systems with the X-431 ADAS calibration tools. With its expanded diagnostic coverage via “Mall,” it offers an extended solution to support TPMS service.

This scanner comes with built-in repair information and training videos, which help to track and fix issues fast. With its exceptional features and powerful functionality, the Launch X431 PAD III V3.0 is the ultimate diagnostic tool for professionals.

Main Functions

• Read fault codes & provides a description
• Clear fault codes & warning lights (e.g. airbag, ABS, engine light etc)
• Service functions – interval light / oil reset light / EPB / injectors etc
• Access to live data streams (oxygen sensor rich/lean indication, coolant temperature, mass air flow etc)
• Actuation / Component testing(activate specific systems to test working condition)
• Offline Coding (Injectors, spare keys, radios and even starters are now coming out ‘coded’. This function is indispensable if you need to change those vehicle parts)
• Online Coding / Reprogramming (updating ECU’s, changing parameters or parts, J2534 pass-through flashing capabilities)
  • This model has full online programming like the launch PAD7

Features

• Upgraded Android 10.0 operation system, 4GB memory and 64GB storage ensure faster and stable diagnosis.
•  Enhanced DBScar VII VCI supports even more communication protocols, e.g. CAN, CAN FD, DoIP*, etc. (*Need an extra DoIP cable)
•  Full system OE-Level diagnostics on 1996 and newer U.S., European and Asian vehicles
•  Intelligent diagnostic functionality includes comprehensive OBD II diagnostics, read/clear DTCs, bi-directional control, remote diagnosis, live data streaming, coding, etc.
•  37 advanced service functions satisfy more diagnostic demands.
•  Intelligent diagnostic enables automatic VIN identity to automatically access systems quickly.
•  Guided function for Volkswagen and Audi.
•  Optional ADAS calibration capability for calibrating LDW, RCW, AVM, NV, BSD and ACC system with the X-431 ADAS calibration tools.
•  Expand diagnostic coverage via “Mall”.
•  An extended solution to support TPMS service.
•  Built-in repair information and training videos help to track and fix issues fast

37 SERVICE FUNCTIONS

Oil Maintenance Reset
Electric Throttle Relearn
Brake Reset
Immobilizer Reset
Battery Matching
Injector Coding
Steering Angle Reset
AC System Relearn/ Initialization
Engine Power Balance Monitoring
IMMO Program
Crank Position Sensor Adaptive Learning
DPF Regen
Gearbox Relearn
Adaptive Front Lighting
Sunroof Reset
Air Level Calibration
EGR Adaption
Gas Particulate Filter Regeneration
Intelligent Cruise Control System
Language Change
Nox Sensor Reset
Stop/Start Reset
Transport Mode
Coolant Bleed
Windows Calibration
Seat Occupancy Calibration
Tire Reset
Motor Angle Calibration
High-Voltage Battery Diagnostics
ABS Bleeding
TPMS Reset Database
Air Fuel
AdBlue Reset
Turbocharging Matching
ECU Rest
FRM Reset
Cluth Matching

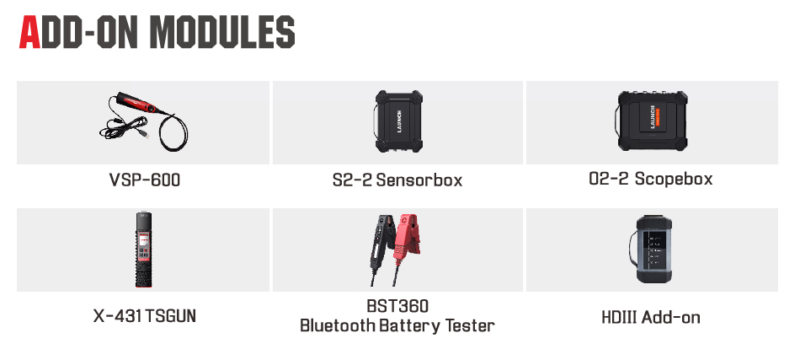

Extended Modules (Optional Extras):

• VSP-600 (Videoscope)
• X-Prog 3 (immobilizer programmer)
• BST360 (Bluetooth battery tester)
• X-431 TSGUN (TPMS sensor programmer)
• Launch O2-1 Scopebox 4 Channel Oscilloscope
• Launch S2-2 Sensorbox

Specifications:

Package Includes

• 1 x Launch X431 PAD III V3.0
• 3 Year Free software updates
