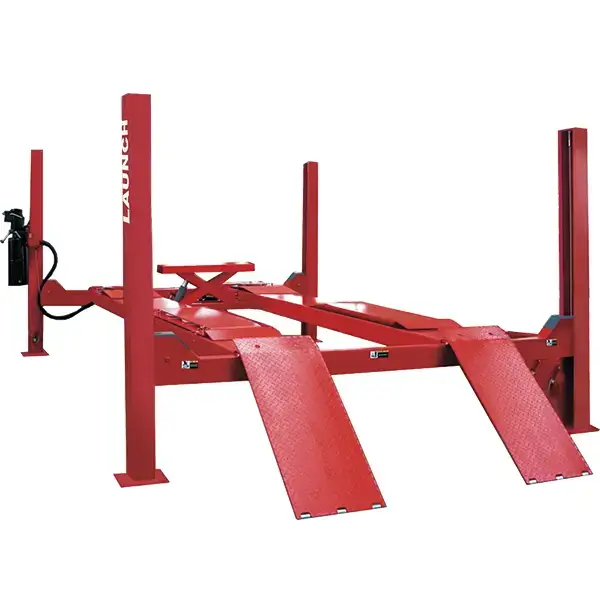

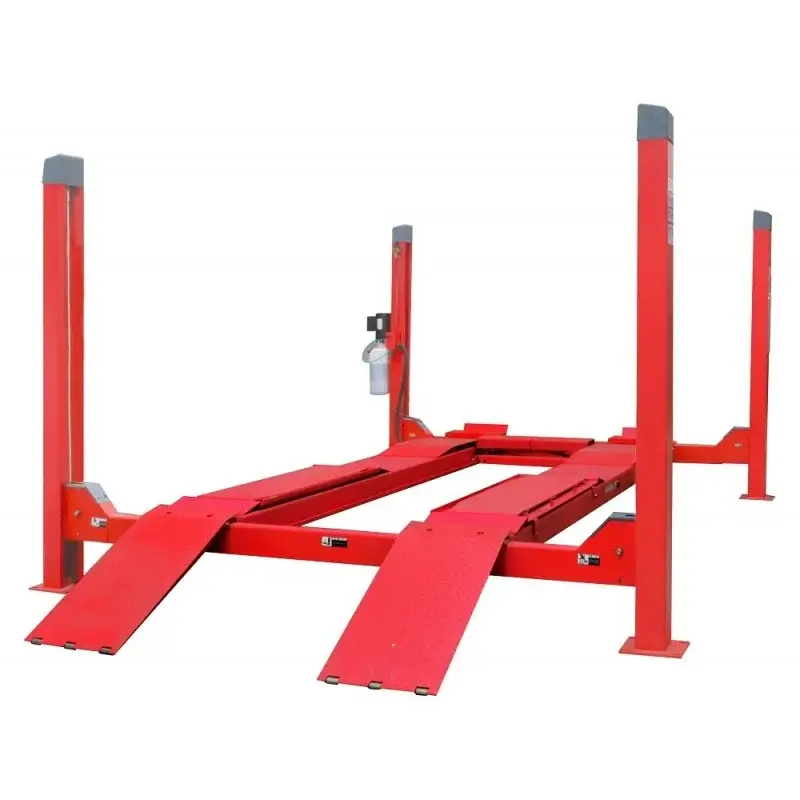

Launch TLT455W Four Post Alignment Lift – 5500kg Capacity
The Launch TLT455W is a top-tier four-post alignment lift, perfect for full-service workshops, tyre shops, and high-end alignment centers. With a substantial 5500kg lifting capacity, it handles small to extra-large passenger vehicles and light commercial vehicles with ease. Designed for precise alignment work, the TLT455W is compatible with Launch 3D wheel aligners and includes features that enhance stability and safety during operation.
Additionally, the Lifting Jack (lifting capacity 2 t), sliding plates, and turntable for wheel alignment are already included in the scope of delivery. With a total height of 2.172 mm and a lifting capacity of 5500kg, heavier SUVs and vans can be lifted here compared to the TLT-440 W lift.
Key Features:
- Adjustable Front Wheel Turn Plates: Easily adjusted to fit various vehicle sizes, providing enhanced flexibility for different alignment needs.
- Scissor Lifting Jack (2 Ton Capacity): A built-in scissor jack enables hydraulic lifting for the front or rear of the vehicle, supporting tire changes and alignment adjustments.
- Rear Wheel Sliding Plate: Extended to accommodate different vehicle types.
- Hydraulic Cylinder with Pneumatic Locking: Driven by a hydraulic cylinder with full-scope mechanical safety locks, ensuring secure and stable lifting.
- Cable Rupture Safety System: Protects against accidental tilting, ensuring synchronized movement and preventing vehicle sloping.
- Two-Layer Concealed Plate Structure: Offers exceptional synchronizing performance with horizontal precision within 1mm, ensuring balanced and accurate lifting.
- Distance Between the Rails: Can be changed in 3 positions: 1.445 – 1.595 mm for added flexibility.
- Cylinder Travel Limit Device: Extends the lifespan of the cylinder by preventing overextension.
- CE Certified: Complies with European safety standards, guaranteeing reliable and safe performance.
- Scratch-Resistant Powder Coating: Provides durability and protects the lift from wear.
- Positioning Levels Accuracy Adjustable: Ensures precise and customizable positioning for alignment.
- Wheel Base in Certain Scope is Adjustable: Adapts to vehicles with varying wheelbases, ensuring a perfect fit.
- Overloading Protection, Overvoltage Protection, and Protection Against Line Breakage: Provides additional safety measures to protect the system.
- Safety Lock in Working Position: Ensures secure lifting while in use.
- Safety Valve Against Burst Hoses and Foot Protection: Prevents accidents related to hydraulic failures or movement.
- Level Compensation of the Four Lift Trucks: Managed via rope control to ensure balance and stability during operation.
- Electromechanical Height Limitation: Prevents overextension, enhancing safety.
- Slack Rope Prevention: Helps maintain proper tension and safe operation.

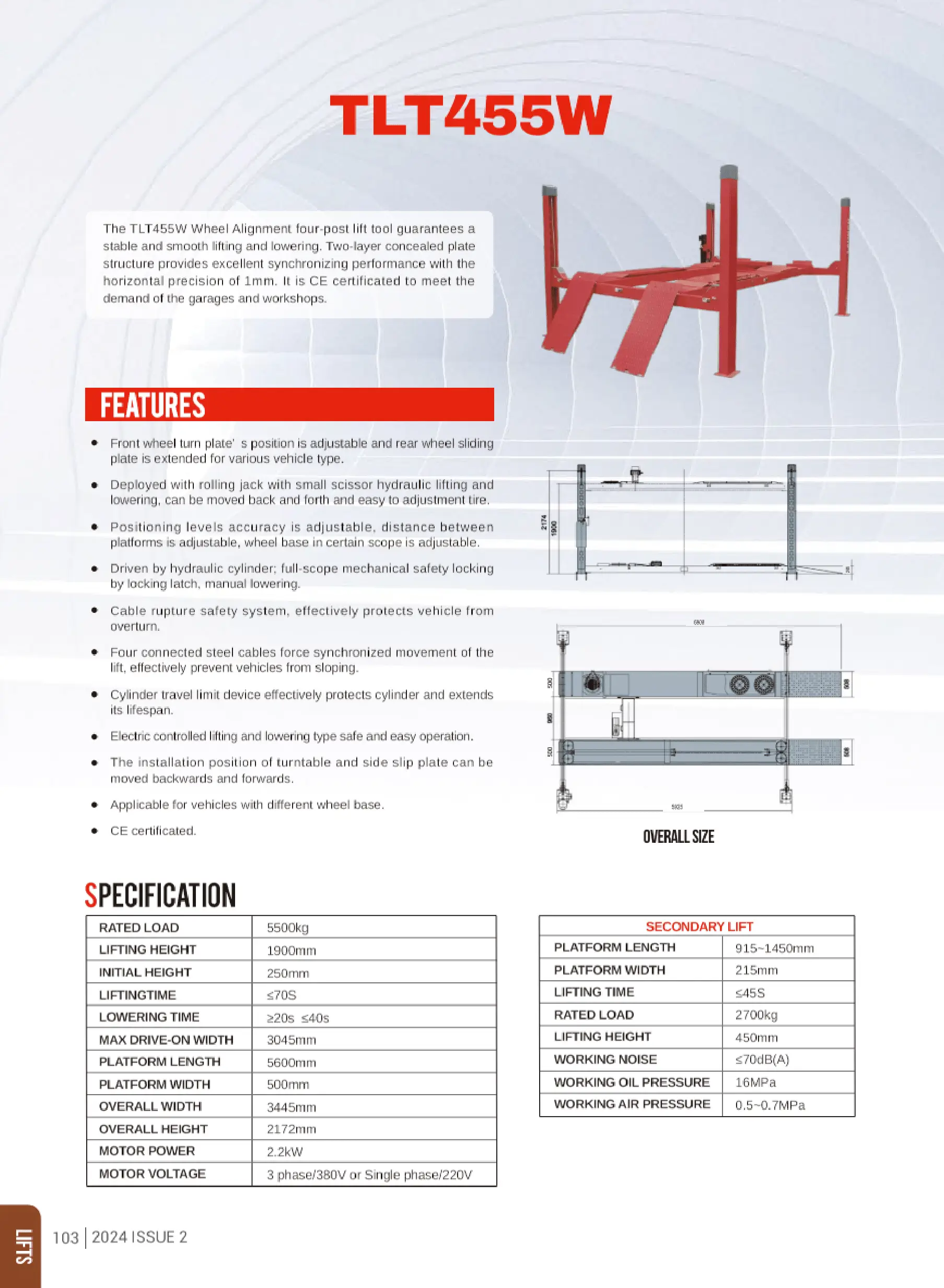

Technical Specifications:
Specification | Details |
---|---|
Rated Load | 5500KG |
Lifting Height | 1900mm |
Initial Height | 250mm |
Lifting Time | ≤70 seconds |
Lowering Time | ≥20s, ≤40 seconds |

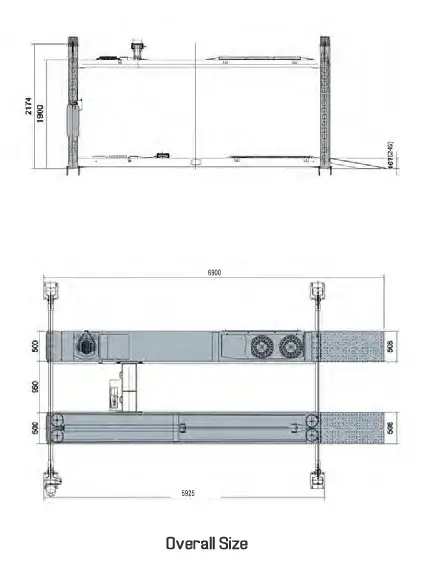

Max Drive-On Width | 3045mm |
Platform Length | 5600mm |
Platform Width | 550mm |
Overall Width | 3445mm |
Overall Height | 2172mm |
Motor Power | 2.2KW |
Motor Voltage | 3 phase / 380V |
Scissor Jack Load Capacity | 2000KG |
Scissor Jack Lifting Height | 450mm |
Working Noise | ≤70dB(A) |
Working Oil Pressure | 16 MPa |
Working Air Pressure | 0.5~0.7 MPa |
Benefits:
- Ideal for Precision Alignments: Equipped with adjustable turn plates and rear slip plates, the TLT455W is optimized for high-precision alignment tasks.
- Robust Capacity for Heavy Vehicles: With a 5.5-ton lifting capacity and adjustable platform widths, it’s suitable for a wide range of vehicles, from small cars to light commercial vehicles.
- Enhanced Safety Features: The cable rupture safety system, safety lock in working position, and safety valve against burst hoses ensure secure and stable lifting, while overloading protection, electromechanical height limitation, and level compensation further enhance safety for both the operator and the vehicle.
- Durable Design: The two-layer plate structure and scratch-resistant powder coating ensure long-lasting durability, even in demanding service environments.
- Comprehensive Vehicle Compatibility: Adjustable positioning levels, wheelbase, and platform distances make this lift adaptable to vehicles of all sizes, ensuring maximum versatility.
