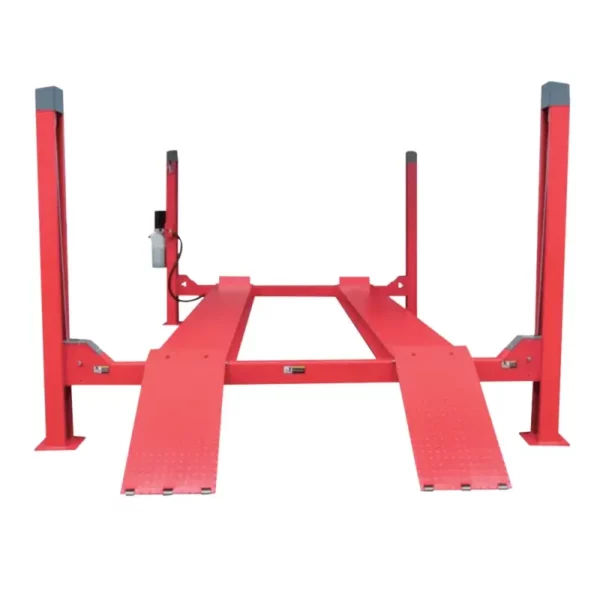

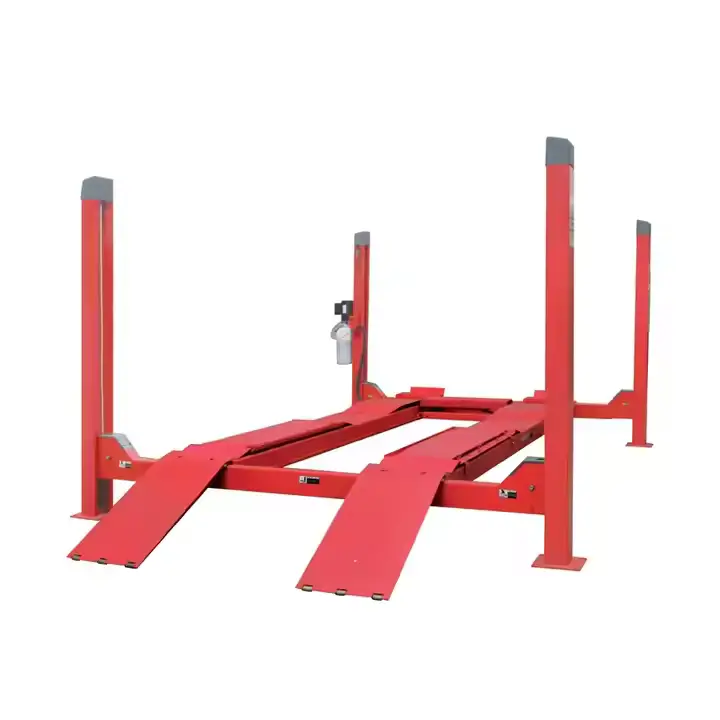

Launch TLT440 Four Post Service Lift – 4000KG Capacity
The Launch TLT440 is a professional-grade four-post service lift, designed for a wide range of vehicle maintenance tasks in service centers, tyre shops, exhaust shops, and vehicle storage facilities. With a 4000KG load capacity, this hydraulic lift offers smooth and stable performance for SUVs, bakkies, and other vehicles, making it an ideal solution for any automotive workshop.
Key Features:
- Hydraulic Cylinder & Steel Cable Synchronization: The combination of hydraulic cylinders and steel cables ensures stable and synchronized lifting and lowering of vehicles, preventing tilting or imbalance.
- Two-Layer Concealed Plate Structure: This design provides exceptional synchronizing performance with horizontal precision within 1mm, ensuring a balanced lift.
- Mechanical Safety Latches: Full-range mechanical safety protection with latches prevents accidental lowering during operation.
- Cable Rupture Safety System: Effectively prevents one side of the lift from dropping in case of cable failure, providing maximum safety for both the operator and the vehicle.
- Electric Lifting & Manual Lowering Operation: Offers easy electric-powered lifting while allowing for manual lowering via a lever for better control.
- Adjustable Platform Distance: The distance between platforms can be adjusted to accommodate vehicles of different sizes, making it versatile for narrow and wide vehicles.
- Cylinder Travel Limit Device: Protects the cylinder from overextension, prolonging its operational life.
- Passed National Standards & CE Certified: Complies with strict safety standards, ensuring reliability and safety in the workplace.

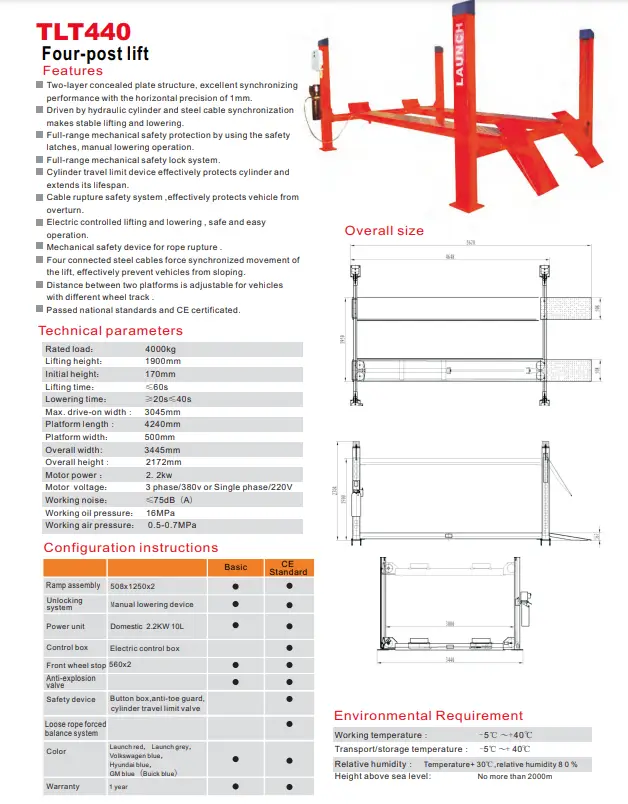

Technical Specifications:
Specification | Details |
---|---|
Rated Load | 4000KG |
Lifting Height | 1850mm |
Initial Height | 170mm |
Lifting Time | ≤80 seconds |
Lowering Time | ≥20s, ≤40 seconds |
Max Drive-On Width | 3045mm |
Platform Length | 4240mm |
Platform Width | 500mm |
Overall Width | 3445mm |
Overall Height | 2172mm |
Motor Power | 2.2KW |
Motor Voltage | 3 phase / 380V or Single phase / 220V |
Working Noise | ≤70dB(A) |
Working Oil Pressure | 18 MPa |
Working Air Pressure | 0.5~0.7 MPa |
Benefits:
- Ideal for Larger Vehicles: The 4000KG capacity allows the lift to accommodate a wide range of vehicles, from SUVs and bakkies to other larger vehicles, making it versatile for any workshop.
- Maximum Safety: With mechanical safety latches, a cable rupture safety system, and cylinder travel limit protection, the TLT440 ensures that both the operator and the vehicle are safe during lifting operations.
- Adjustability for Various Vehicle Sizes: The adjustable platform distance allows the lift to be tailored to vehicles with different wheel tracks, enhancing its versatility.
- Durability and Strength: The quality powder-coated design offers protection from harsh environments, ensuring long-lasting durability.
Warranty:
- One-Year Warranty: Comes with a one-year warranty for additional peace of mind, guaranteeing reliability and customer support.
