Launch TLT260AT Two Post Car Lift – 6000KG Capacity
The Launch TLT260AT is an industry-leading two-post lift, designed specifically for heavy-duty automotive repair and maintenance. Engineered for professional workshops and automotive services, this lift boasts a 6000KG load capacity, making it ideal for larger vehicles such as trucks and SUVs. Combining advanced technology, robust materials, and exceptional performance, the TLT260AT is a must-have for any automotive repair shop.
Key Features:
- 6000KG Lifting Capacity: Built to safely lift heavy-duty vehicles like light commercial trucks and bakkies, ensuring a secure and stable work environment.
- Overhead Design: The overhead structure ensures a clear floor workspace without obstructions, which is ideal for working underneath vehicles and moving tools or equipment.
- Double Hydraulic Cylinders: Ensures stable and smooth lifting and lowering operations, even with large vehicles.
- Synchronous Carriage Movement: Utilizes two steel cables for equalization, ensuring the carriages move synchronously to prevent vehicle tilting.
- Top Limit Switch: This switch prevents vehicle collisions with the overhead beam by automatically stopping the lift when it reaches its maximum height.
- Low Lifting Pad Height: Starting at 110mm, this feature allows the lift to easily accommodate low-clearance vehicles.
- CE Certified: Complies with European safety standards, having passed 115% dynamic loading and 150% static loading tests.
- Heavy-Duty Installation: Ideal for light commercial vehicles, trucks, and modified vehicles requiring secure lifting for repairs.
Additional Features:
- Working Temperature Range: -5°C to +40°C, ensuring reliable performance in a variety of environmental conditions.
- Quiet Operation: Produces 75dB of working noise, providing a quieter work environment.
- High-Pressure System: Operates at a working oil pressure of 24MPa for maximum lifting power.
- Arm Length: 3350mm arms to accommodate large vehicles.
- Single Phase Motor: Powered by a 3kW motor, the lift operates on 220V for versatility in different workshop environments.
- Relative Humidity Temperature: Functions optimally at 30°C with 80% relative humidity, ensuring reliable performance under high moisture conditions.
- Transport/Storage Temperature: Can be safely transported and stored in temperatures ranging from -25°C to +55°C.
- Height Above Sea Level: Designed to function effectively at altitudes up to 2000 meters above sea level.

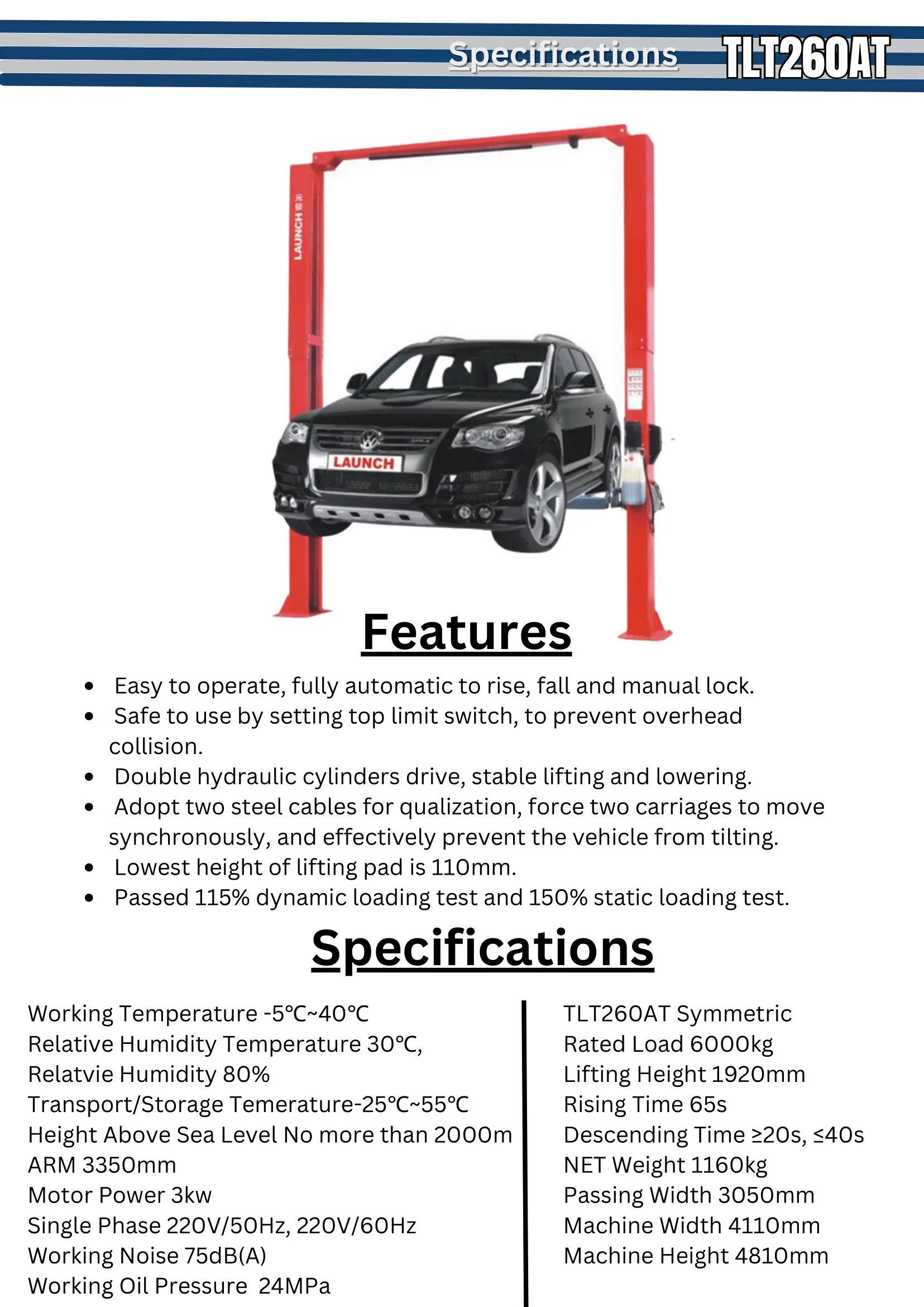

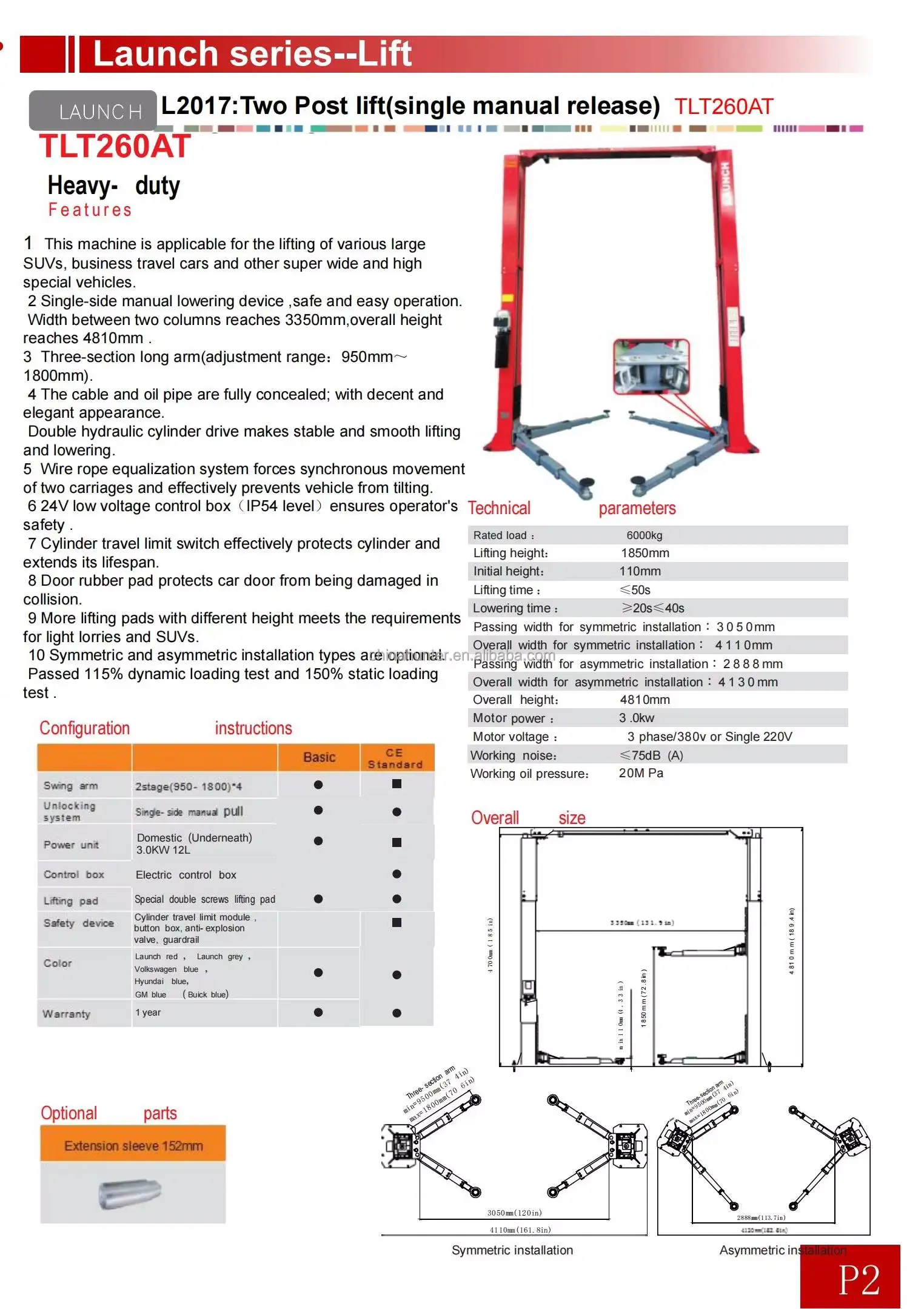

Technical Specifications:
Specification | Symmetric Installation | Asymmetric Installation |
---|---|---|
Rated Load | 6000KG | 6000KG |
Lifting Height | 1920mm | 1920mm |
Lifting Time | ≤65 seconds | ≤65 seconds |
Lowering Time | ≥20s, ≤40 seconds | ≥20s, ≤40 seconds |
Net Weight | 1160KG | 1160KG |
Passing Width | 3050mm | 2888mm |
Overall Width | 4110mm | 4130mm |
Overall Height | 4810mm | 4810mm |
Motor Power | 3kW | 3kW |
Voltage | Single phase/220V | Single phase/220V |
Working Noise | 75dB(A) | 75dB(A) |
Working Oil Pressure | 24 MPa | 24 MPa |
Benefits:
- Perfect for Large Vehicles: The 6000KG lifting capacity and spacious dimensions make it perfect for handling heavy vehicles like trucks and bakkies.
- Maximum Safety: With the top limit switch, synchronous carriage movement, and CE certification, the TLT260AT is designed with safety as a priority.
- Overhead Design for Clear Floor Workspace: The overhead structure keeps cables and components off the floor, providing a clear workspace for ease of movement and tool access.
- Durability and Performance: Constructed with top-quality materials, it ensures long-lasting reliability for high-performance automotive workshops.
- Easy Operation and Installation: Designed for ease of use, it includes a fully automated lifting system, and the installation process is simple and efficient.
Warranty:
- Two-Year Warranty: Comes with a two-year warranty for added peace of mind, ensuring long-term reliability and support.
