Launch CNC603A Injector Tool

R13,090.00 incl. VAT
R11,382.61 excl. VAT

Out of stock

Available 'Buy Now Pay Later' Options

Buy Now Pay Later from as little as
R541.78 x 36 payments

Available 'Buy Now Pay Later' Options

Buy Now Pay Later from as little as
R541.78 x 36 payments
Don’t take our word for it

See for yourself:

Delivery anywhere is SA

Once we receive payment for your order, delivery updates will be sent via email to keep you updated.

Collection Points

Visit our offices in Cape Town or Johannesburg. Our work hours are from 8am-5pm.

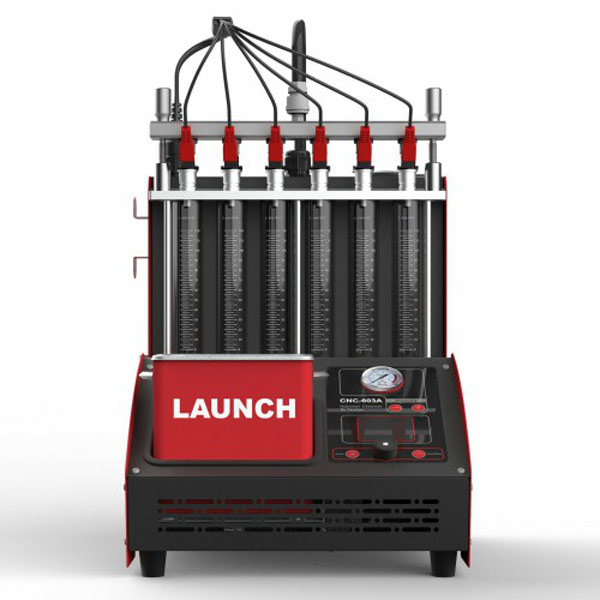

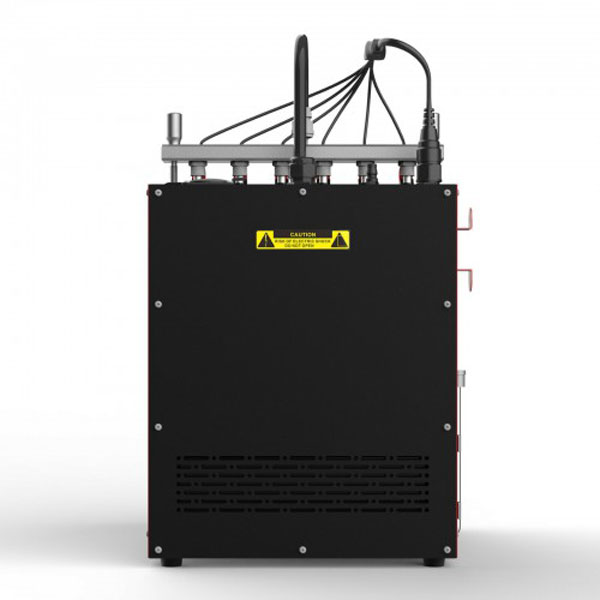

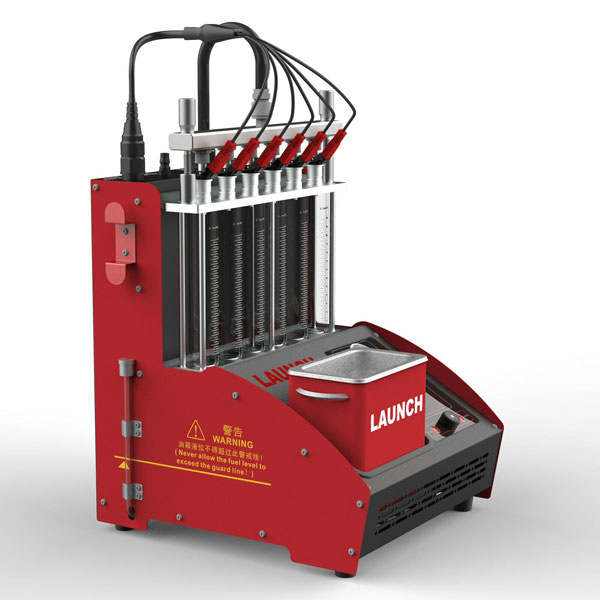

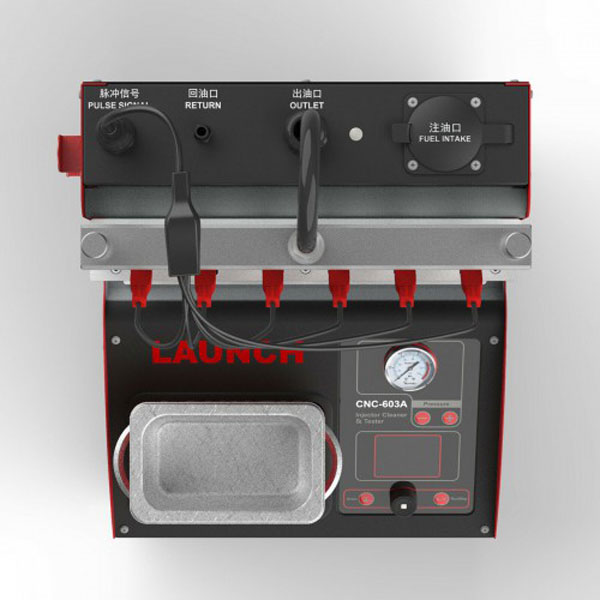

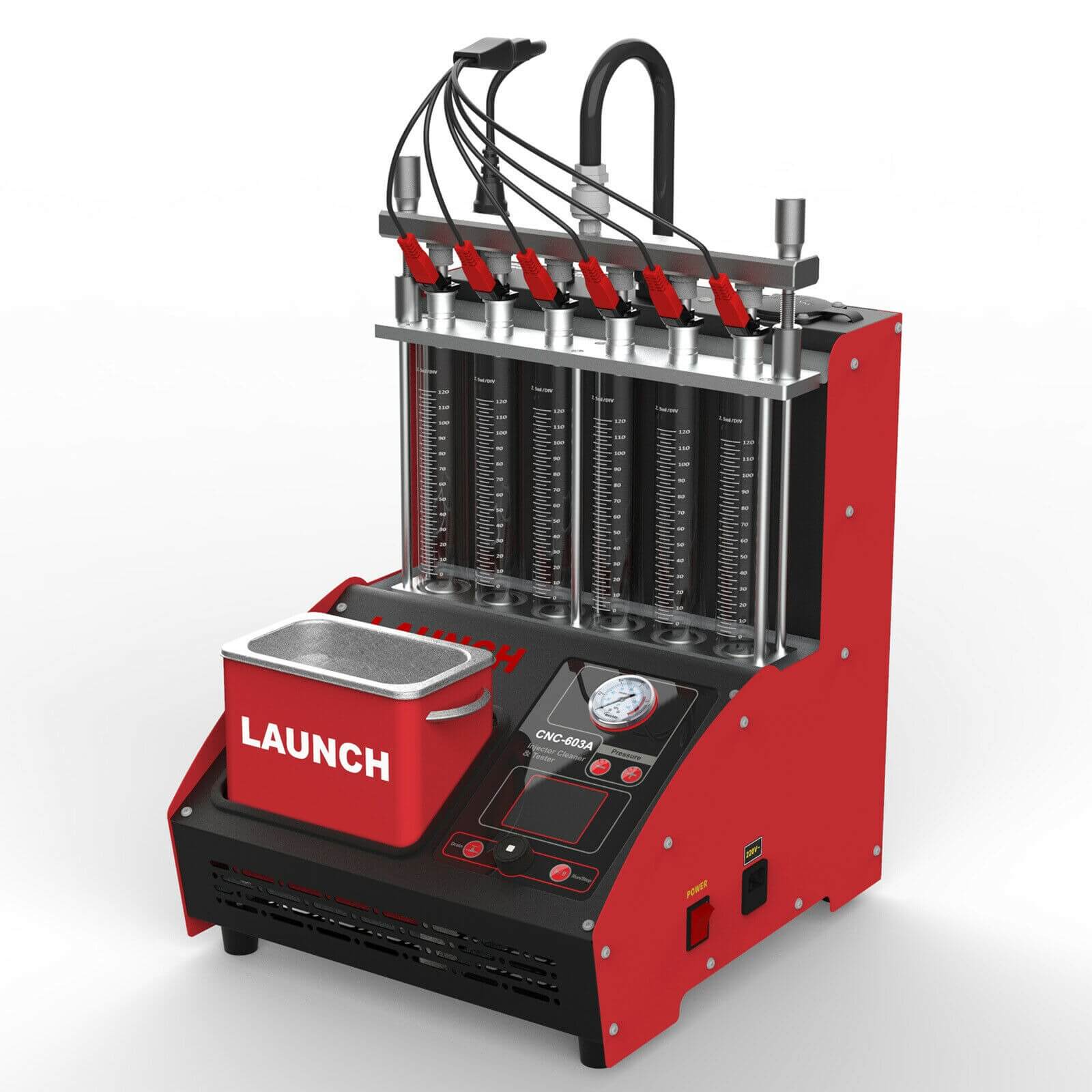

Launch CNC603A (Metal) Fuel Injector Cleaner is the best Ultrasonic Automotive Injector Cleaner & Tester from LAUNCH. The product combines ultrasonic cleaning technology with microprocessor hydraulic control cleaning detection technology. Moreover, it can also clean and inspect the car fuel injectors and fuel supply system. The shell design as been upgraded to sheet metal in this latest generation machine for more durable and reliable usage.

Features

1. The sheet metal shell design is good for durable and reliable usage

2. 2-in-1 design for more space-saving, the cleaner can be separated from the device

3. Glass tube is resistant to high and low temperature

4. User-friendly design of the fuel intake and drain pipe for convenient oil filling and discharge

5. The seamless design of the key mask for better oil resistance

6. Apply the ultrasonic cleaning technology, support on-vehicle cleaning

7. Variety test includes uniformity and atomization detection, sealing test, fuel injection quantity detection, automatic cleaning detection

8. Automatic injector cleaning inspection

9. Automatic control of cleaning and detection process

10. Support both automatic and manual oil draining

11. Monitor the main parameters in real-time.

12. The main machine integrates with the ultrasonic cleaning box, ultrasonic cleaning, and free disassembly.

13. Uniformity / spray-ability detection.

14. Leakage detection / injecting flow detection.

15. Microprocessor pressure control, stable pressure, widely adjustable range.

16. Discharge oil during the detection process automatically via the program, and also drain oil manually via the control panel after the test finishes.



User Manual

CNC-603A (Metal) User Manual.pdf

Specifications



Power Supply AC110V-127V, 50Hz/60Hz, 3Amax; AC220V-230V, 50Hz/60Hz, 1.5Amax
Input Power 300W
Cleaning Power 100W
Range of Rotation 10~9990rpm (step length: 10rpm)
Time limit 1~9999s
Pulse Width Range 0.5~25ms (step length: 0.1ms)
Environment Temperature 0℃~45℃
Relative Humidity 85%
Strength of External Magnetic Field 400A/m
Operating Volume 3000ml
Weight 16.5 kg
Dimensions 45.8 × 43.3 × 53.7 cm
