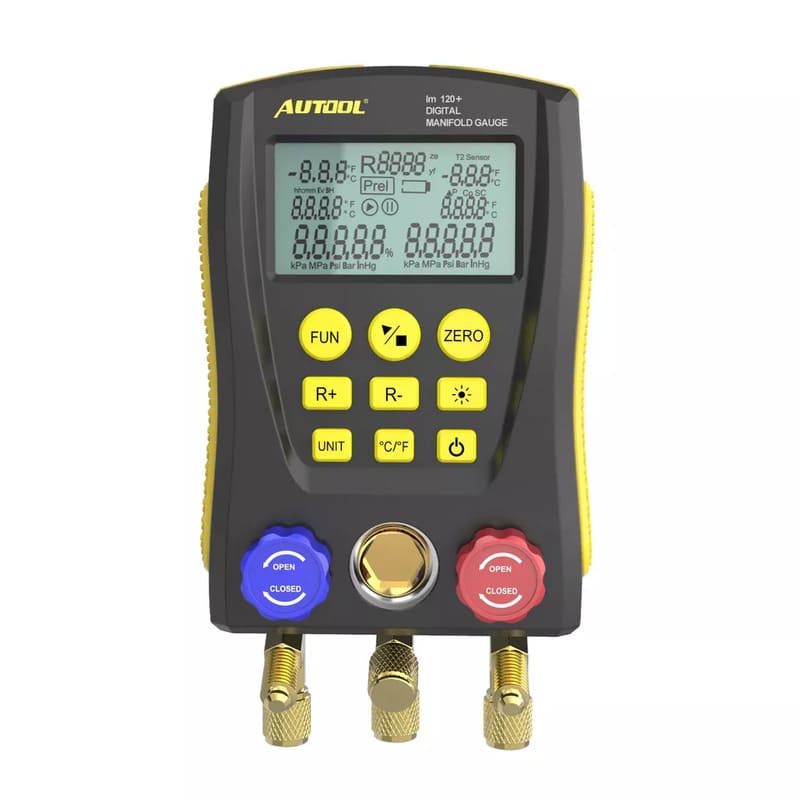

Autool LM120 Digital Manifold Gauge | Built-In Refrigerant Database
Original price was: R4,399.00.R3,900.00Current price is: R3,900.00. incl. VAT
Original price was: R3,825.22.R3,391.30Current price is: R3,391.30. excl. VAT
Availability: Only 2 left in stock
Available 'Buy Now Pay Later' Options
R325.00 x 12 months
Available 'Buy Now Pay Later' Options
R325.00 x 12 months
Delivery anywhere is SA
Once we receive payment for your order, delivery updates will be sent via email to keep you updated.
Collection Points
Visit our offices in Isando, Kempton Park.
Our work hours are from 8am-5pm.
Description
The Autool LM120 is specially designed for the installation, testing and maintenance of refrigeration equipment such as air conditioners and cold storage. This high-quality gauge has a double pressure test, dual temperature test, digital readout, multi-unit converting, multi-mode function and built-in refrigerant database.

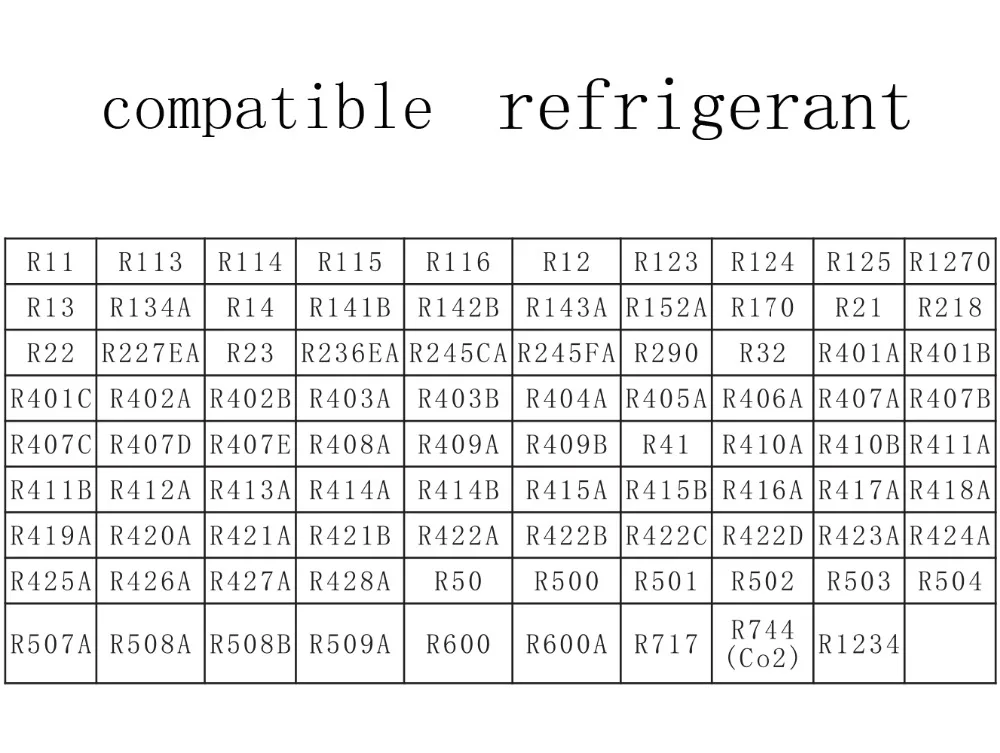

- Advanced Measuring Meter – With a smart digital display and 32-bit digital processing unit, the Autool LM120 can conduct double pressure and dual temperature measurements. The tool has a built-in multi-unit pressure and temperature converter, as well as a comprehensive refrigerant database with 89 refrigerant agents already stored in the meter. The meter can also test for pressure leakages.
- Quality, Durable Design – The device is designed with durable engineering plastics and flexible non-slip silicone. A smart, LCD backlight screen displays data clearly and a long-life valve switch ensures durability and longevity.

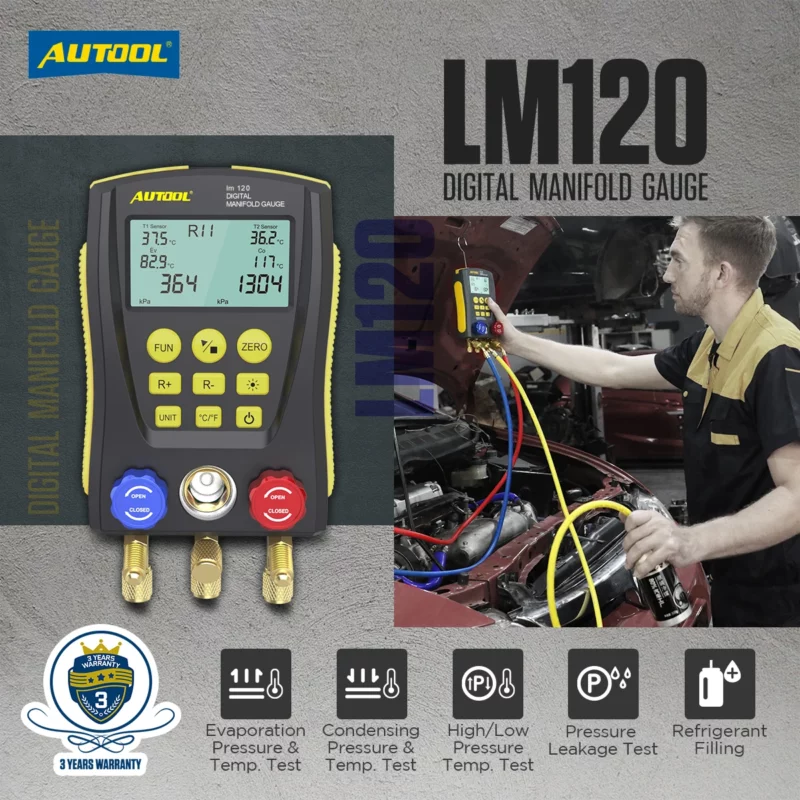

- High-capability – The LM120 Manifold Gauge can quickly perform a number of technical tests, such as the double pressure test, dual temperature test and pressure leakage test. Technicians can also observe and monitor the refrigerant volume through the refrigerant observation window.
Features/Functions
|
|
Specifications
| Item Type | Refrigerant Manifold Gauge |
| Brand Name | Autool |
| Model | LM120 |
| Power | 4×1.5V |
| Display | LCD |
| Pressure Test Range | 0 Kpa~6000 Kpa |
| Pressure Test Resolution | 1 Kpa |
| Pressure Test Accuracy | +/- 0.5 %(FS)+ 5dgt |
| Pressure Overload Limit | 10000 Kpa |
| Vacuum Test Range | -101 Kpa~0 Kpa |
| Vacuum Test Resolution | 1 Kpa |
| Temperature Test Range | -40°C~50°C |
| Temperature Test Resolution | 0.1°C (-40°C~99.9°C |
| Temperature Test Accuracy | +/- 0.5 °C + 2dgt |
| Style | Digital |
| Dimension | 12×6.5x21cm |
| Weight | 0.95kg |
| Language | Multi-language Support |
Package Includes

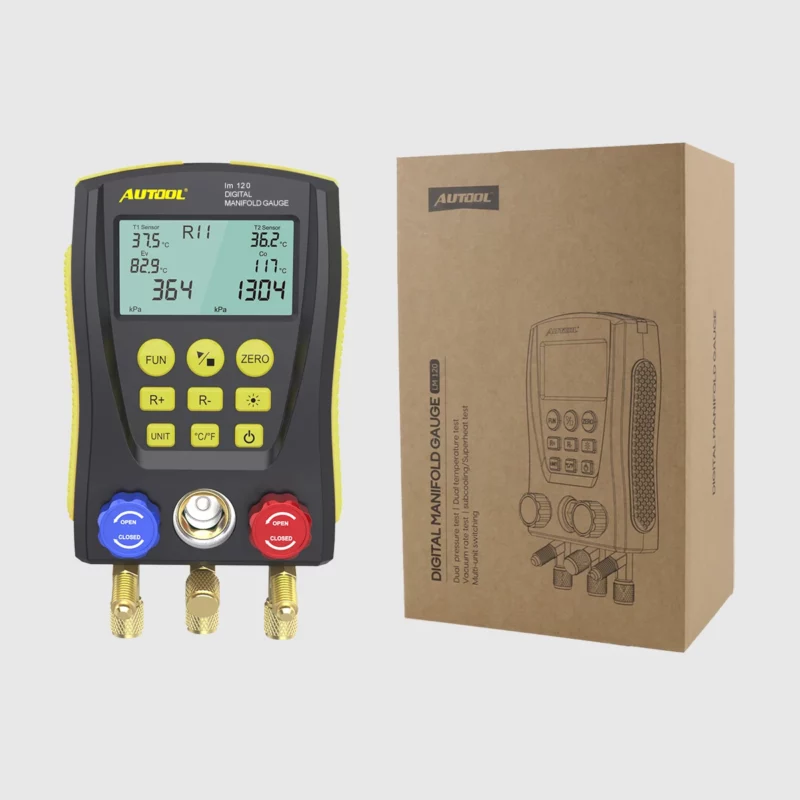

- 1x Refrigeration Digital Manifold Gauge main unit
- 1x User manual
（Battery not included , Clips and tubes are not included for this version. If you need them please get the LM120+
| Weight | 0.95 kg |
|---|---|
| Dimensions | 12 × 6.5 × 21 cm |
