Description

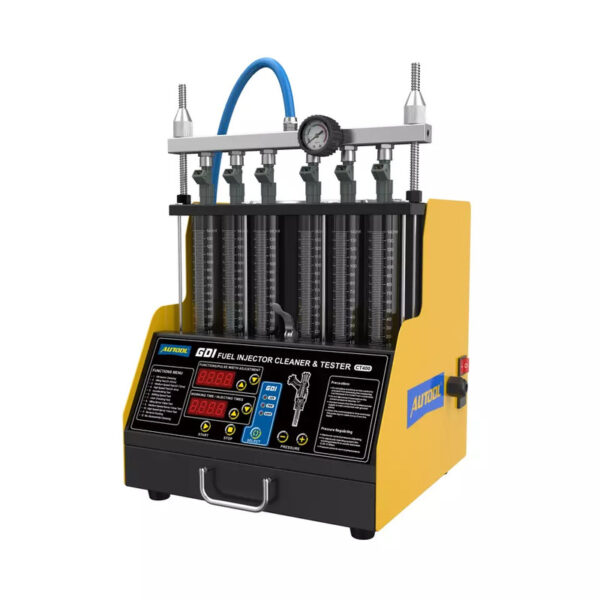

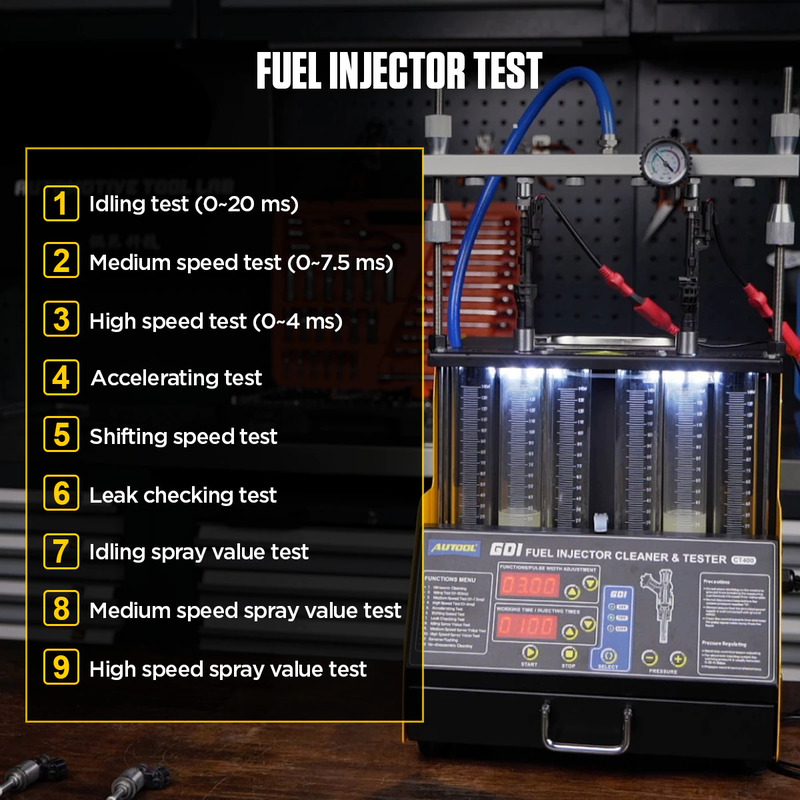

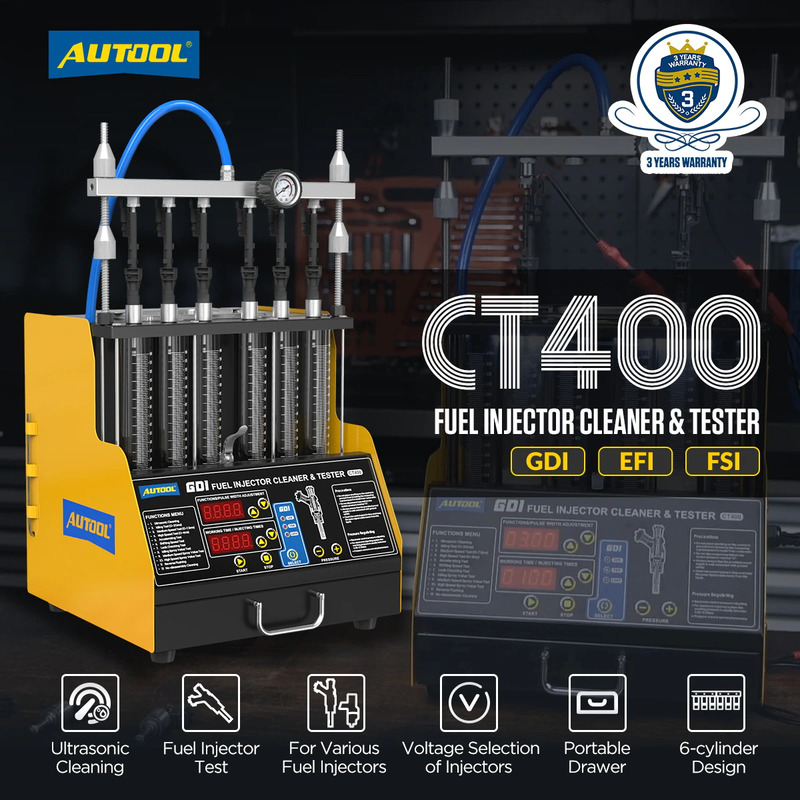

The newly designed Autool CT400 6-Cylinder Fuel Injector Cleaner and Tester adopts the latest ultrasonic technology to clean and inspect standard car fuel injectors, as well as EFI, FSI and GDI injectors. Featuring a multi-voltage function, thermal protection and 9 different injector testing modes, technicians can safely and efficiently test and clean various fuel injectors simultaneously.

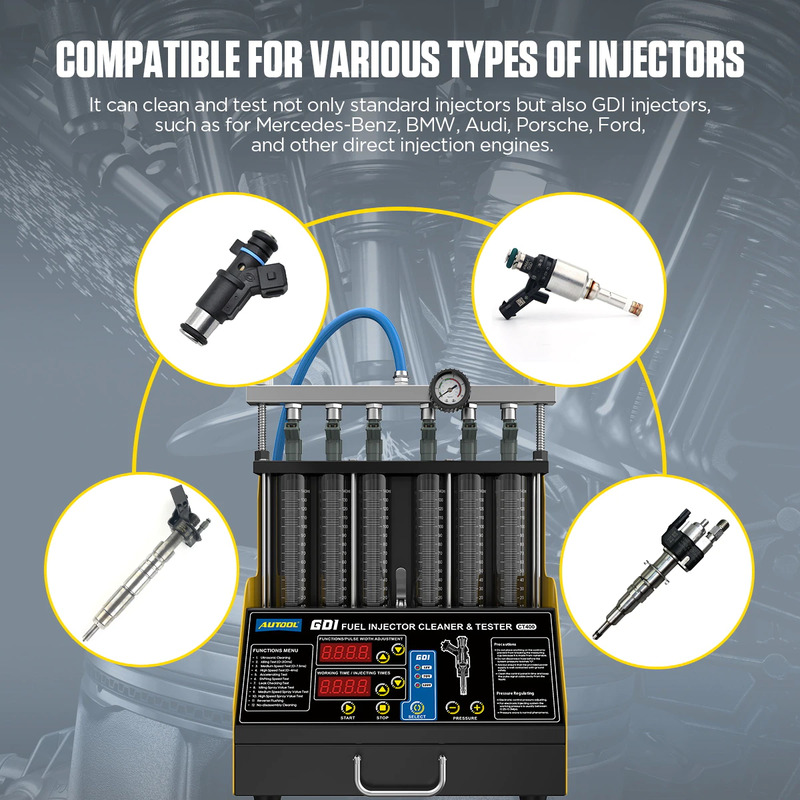

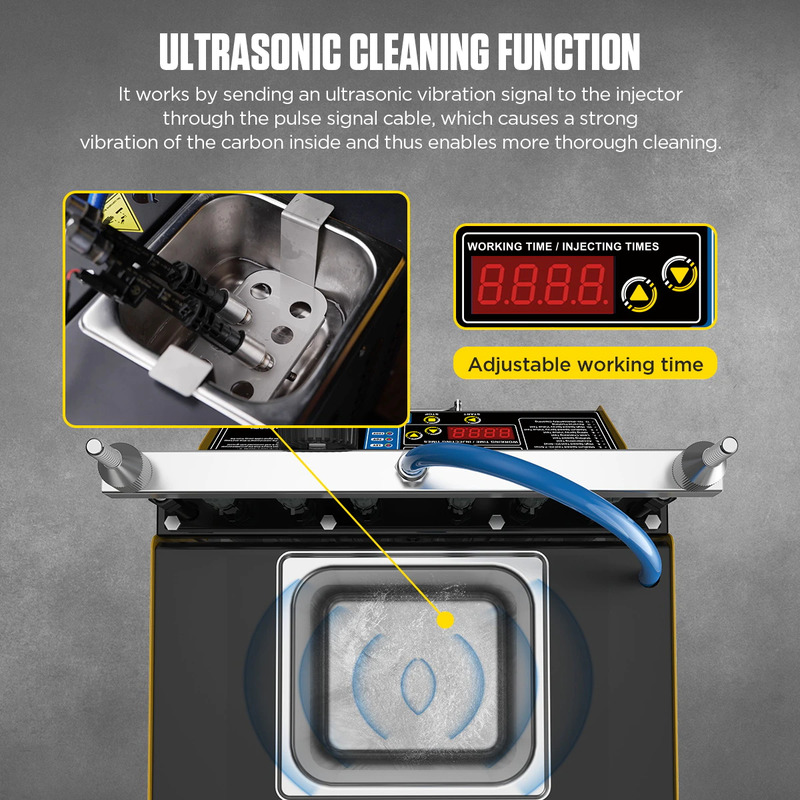

- Leading Technology– The professional Autool CT400 can clean and test standard fuel injectors, as well as GDI injectors found in Mercedes-Benz, BMW, Audi, Porsche, Ford, and other direct injection engines. The Autool CT400 is also designed with smart ultrasonic cleaning technology that thoroughly cleans injectors with ultrasonic vibration signals.

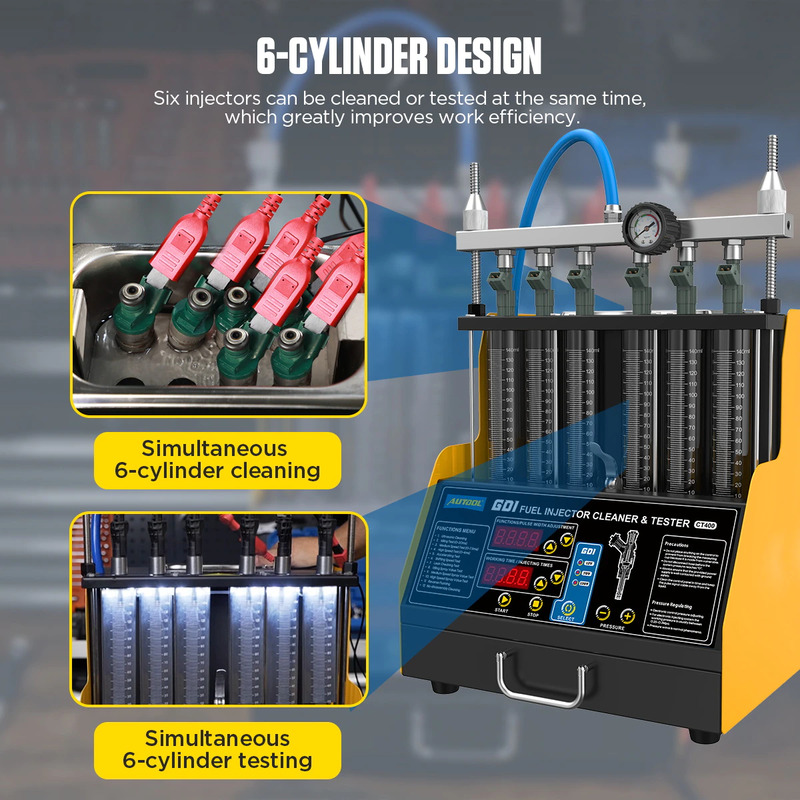

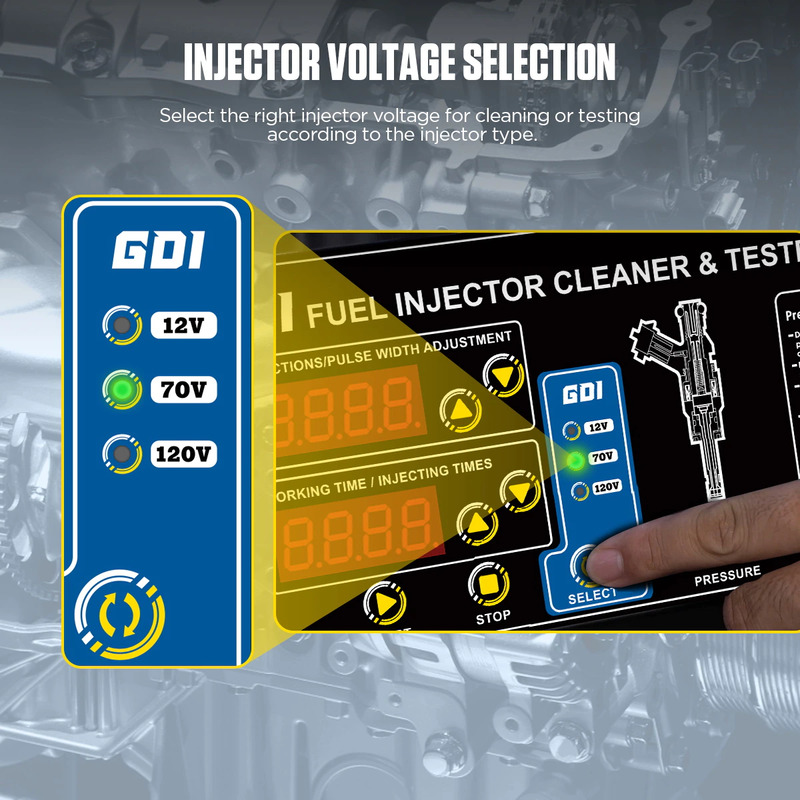

- Superior Fuel Injector Tester & Cleaner– The Autool CT400 offers a multi-voltage function (12V, 70V & 120V) and a convenient 6-cylinder design for efficient fuel injector maintenance. Additionally, the product has two control valves for detergent draining and test liquid recovery.

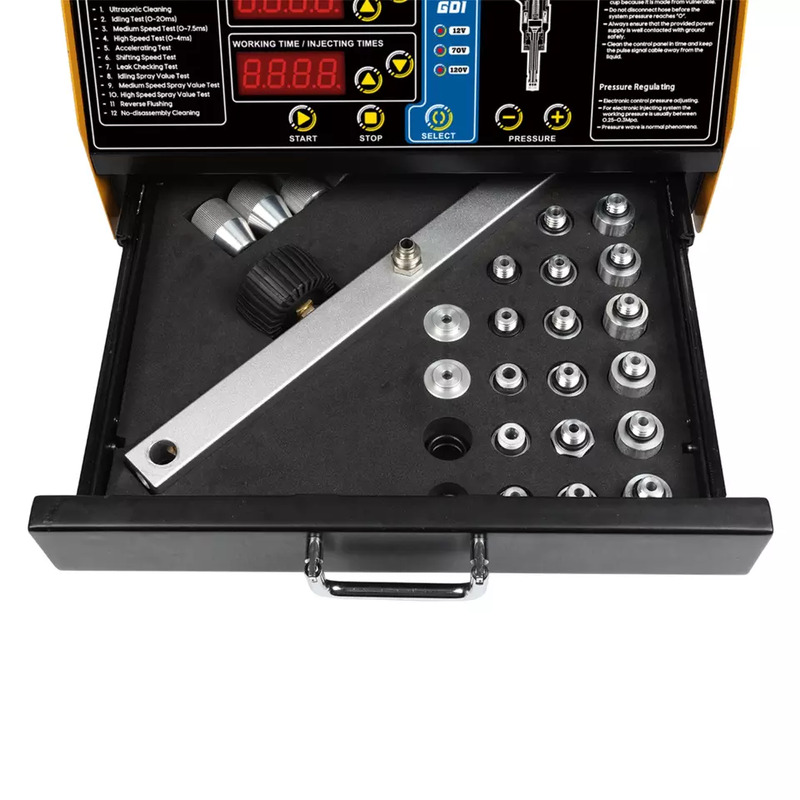

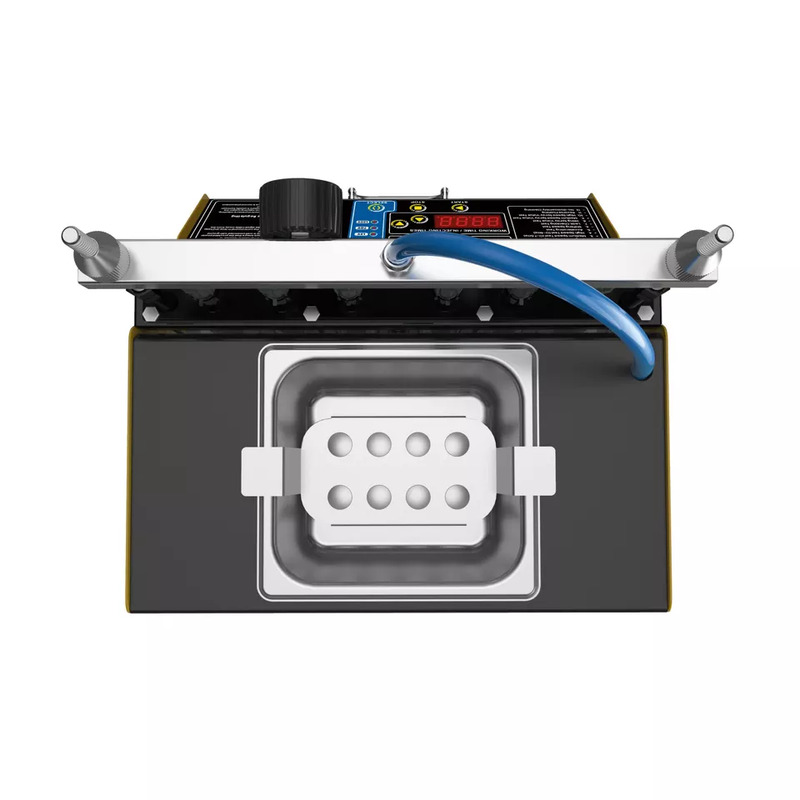

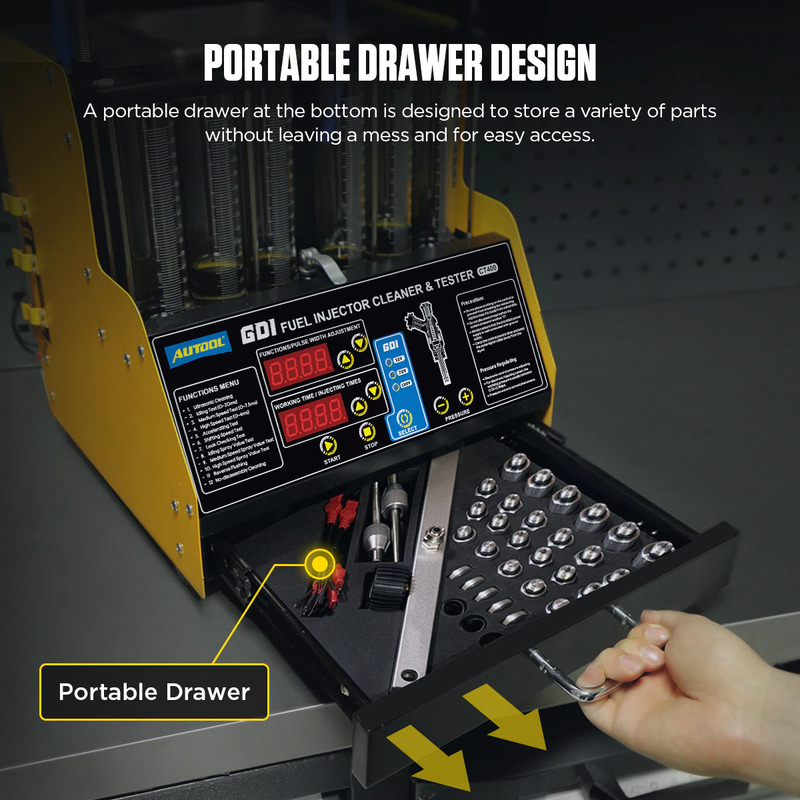

- Professional Design – This newly designed machine has a built-in cooling fan and thermal protection for safe testing and cleaning. The new and improved fuel injector tester has a cleaning power of 60w, greatly enhancing the ultrasonic cleaning capacity, as well as a portable built-in drawer and large 1500ml cleaning tank.
Features/Functions
|
|
Specifications
Item Type | Car Fuel Injector Tester & Cleaner |
Brand | Autool |
Model Number | CT160 |
Power Supply | 110V/220V |
Frequency | 50-60HZ ± 0.5 |
Relative Humidity | <85% |
Environment Temperature | 0°C~40°C |
External Magnetic Field Strength | <400A/m |
Tank Capacity | 1500ml |
Test Tube Capacity | 140ml |
RMP Range | 0~7500r/min |
Pulse Width Modulation | 0~20.0ms |
Time | 0~20min (Adjustable) |
Cleaning Frequency | 40KHz |
Cylinder Volume | 100ml |
Injection Times | 0~9900 times, step 100ms |
System Pressure | 0~0.55Mpa (Adjustable) |
Ultrasonic Cleaning Power | 60W |
Ultrasonic Cleaning Frequency | 28KHZ±0.5KHZ |
Color | Yellow & Black |

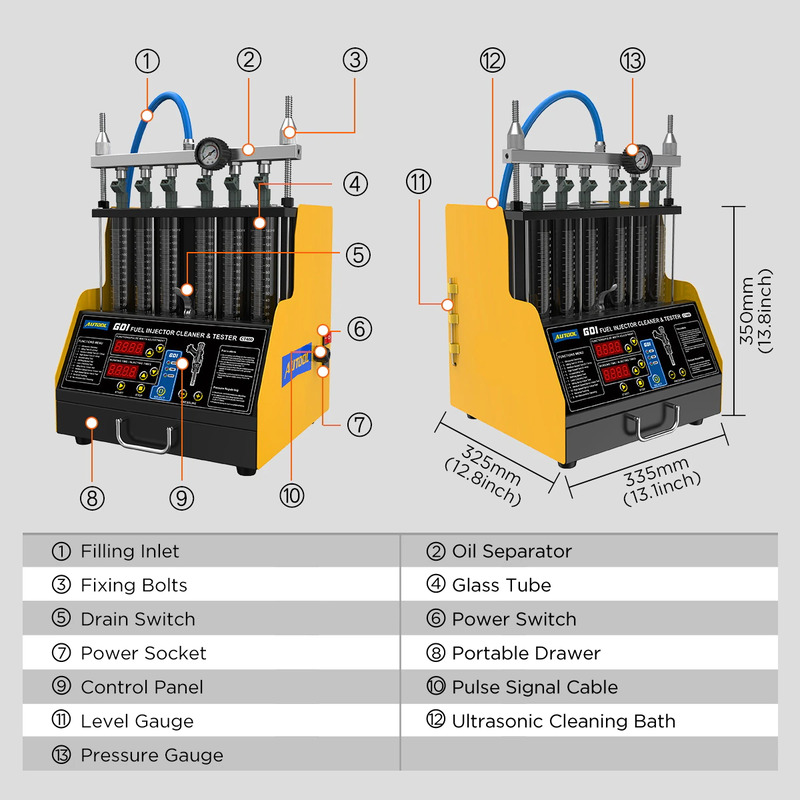

Product Dimensions | 3.35×3.25×3.5 cm |
Weight | 16.6 kg |
Warranty | 3 Years |

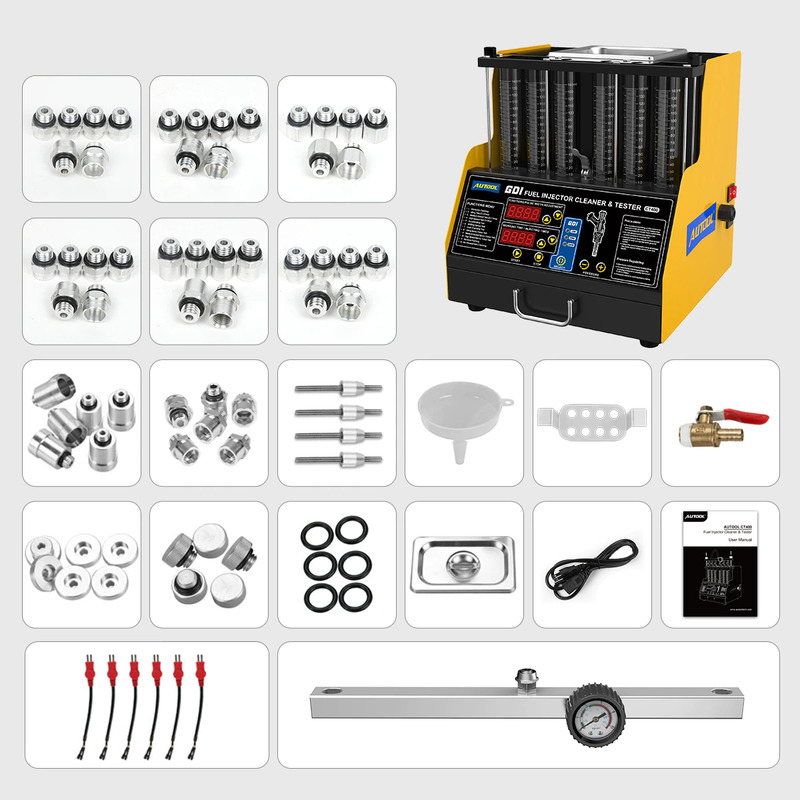

Package Includes
- 1x Autool CT400 GDI Fuel Injector Cleaner & Tester main unit
- 6x Taper adapter φ10.5-13.6φ
- 6x BMW special adapters
- 1x Special nozzle pad
- 5x Plugs for oil rail
- 1x Ultrasonic bath cover
- 6x 16mm adapters
- 6x Nozzle pads
- 1x Oil rail
- 1x Ultrasonic cleaning bracket
- 1x Filling funnel
- 1x Outlet valve
- 6x 11mm adapters
- 6x 12mm adapters
- 6x 12.5mm adapters
- 6x 13mm adapters
- 6x 14mm adapters
- 6x 15mm adapters
- 1x User manual
