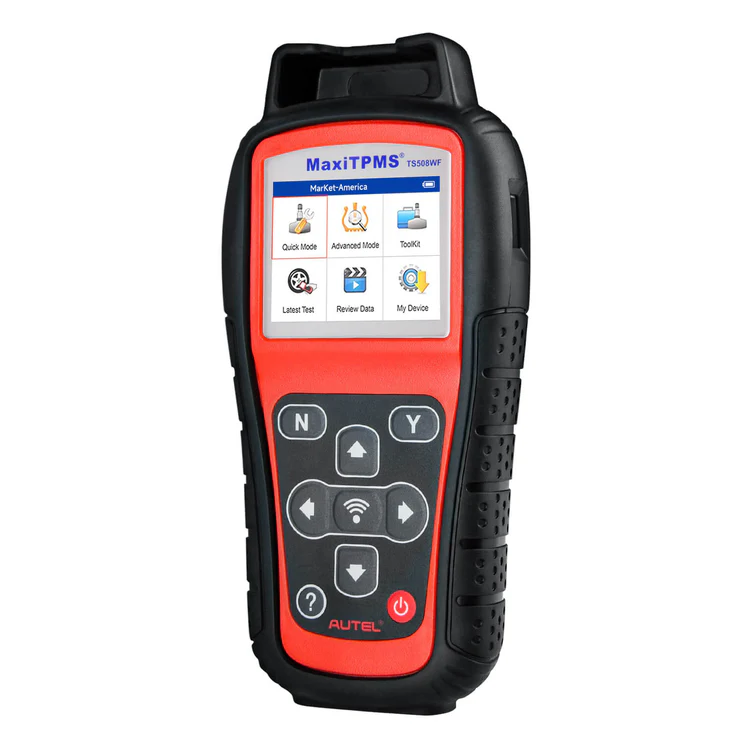

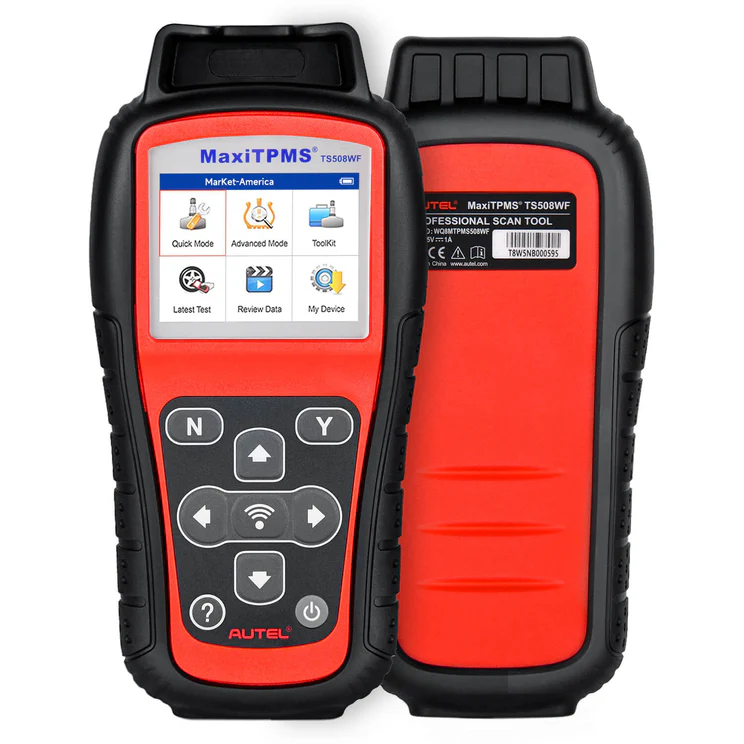

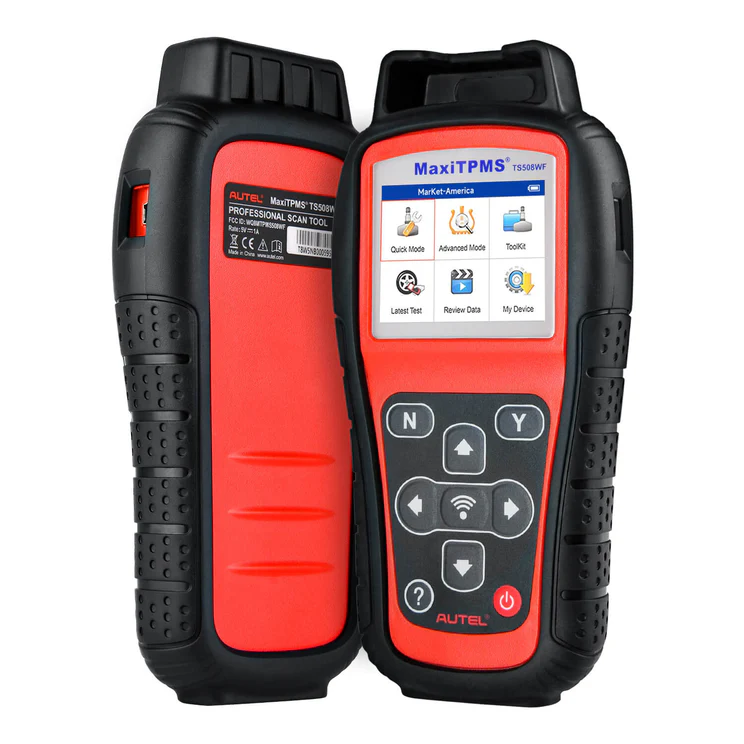

Autel MaxiTPMSWF TS508 Diagnostic and Service Tool WiFi Version
The MaxiTPMS® TS508WF is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. The Update by Wi-Fi function helps the update experience more convenient. It can be your right choice to experience AUTEL TPMS lines.
Highlights
1. This TS508WF supports for WiFi. Support Both Wi-Fi & USB Updates, No Fussy Steps Anymore
2. Lifetime Free Update Online on Autel Official website
3. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work.
4. Multi-language: English, Traditional Chinese, French, German, Spanish, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian, Hungarian, Czech,Portuguese(1.Send the SN on the back of the machine. 2.Download PC suit and update the software on the official website.)
5. Upgrade of TS508, TS501, TS408, TS401
6. Activate/ Relearn TPMS Sensors
7. Program Autel MX-Sensors
Autel TS508WF Main Features:
The TS508WF provides two methods for updating: Update by Wi-Fi and Update by USB. The two methods bring customers faster and more convenient updating experience, disencumbering the worries that update must be done with computer. From now on, you only need to be in a Wi-Fi environment. Autel TS508 Tire Sensor Programmer comes with LIFETIME FREE software updates for continuously fast-growing vehicle coverage.
The TS508WF is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.
TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;
TPMS Advanced Mode: complete TPMS functions to perform sensor check , TPMS diagnose, MX-Sensor program and sensor position relearn.
Quick Mode Service:
- Activate All Known TPMS Sensors
- Read Sensor ID, Temperature, Pressure
- Read Sensor Battery Condition
- On-Tool OE Sensor Information
- Program MX-Sensor With 3 Programming Options
- Batch Program 1-16 MX-Sensors
Advanced Mode Service:
- Same TPMS Features as Quick Mode
- TPMS Status Screen – View System Faults
- Read & Clear TPMS DTCs
- On-Tool DTCs Description
- Program MX-Sensors by Copying ECU Sensor IDs
- On-Tool Relearn Procedure Guide
- Widest Vehicle Coverage For OBD Relearn
- Tire Pressure Placard Value Reset
Autel MaxiTPMS TS508WF Wifi TPMS Programming Tool can program all Autel MX-sensors, both 315MHz and 433MHz to replace the broken sensors. TS508WF comes with 4 modes to program Autel MX-sensors:
- Copy By Activation: Requires activate the original sensors first.
- Copy By Manual Input: You can manually input the original ID.
- Auto Create 1-16: The sensors makes it possible to program up to 16 sensors simultaneously.
- Copy By OBD: You should connect OBD cable to retrieve the sensor ID from the ECU.
Note: Autel TS508WF can program Autel MX-Sensors (315/433MHz) only, does NOT program OEM sensors.
[Activate/Reset All Known TPMS Sensors & Read/Clear TPMS DTCs]
- Activate/Reset All Known TPMS Sensors: Autel TS508WF has TPMS diagnose function. It is used to find out TPMS related problems. You can check sensor-related problems, deflation in the tires and the rotation of wheels.
- TPMS Status Screen is Also Excellent, main Feature also Reflects 4 points:Read ECU sensor ID; Check sensor ID and ECU ID matching condition; Read DTCs from ECU and erase DTCs; View DTCs detail description.
Exclusive TPMS Status Screen
1.Read ECU sensor ID;
2.Check sensor ID and ECU ID matching condition;
3.Read DTCs from ECU and erase DTCs;
4.View DTCs detail description;
- Read/Clear TPMS DTCs: TS508WF can read or clear TPMS DTCs,on-screen DTC description to perform DTC Lookup. It can help you find out problems with TPMS system faster.
[Relearn All Sensors]
Autel TS508WF TPMS Relearn Tool can relearn all known sensors (both OEM and aftermarket) on TPMS enabled vehicles(American, European and Asian) to the vehicle’s ECU. It can perform 3 ways of TPMS sensors relearning:
- Stationary Relearn: Requires the vehicle be placed in the “Learn Mode”.
- Automatic Relearn: For some vehicles, can be completed by driving.
- OBD Relearn: Directly writes TPMS sensor IDs to the TPMS module via the OBD connector.
Other Functions:
Turn OFF MIL:
Autel TS508WF has TPMS diagnose function. It is used to find out TPMS related problems. You can check sensor-related problems, deflation in the tires and the rotation of wheels.
TS508WF can read or clear TPMS DTCs,on-screen DTC description to perform DTC Lookup. It can help you find out problems with TPMS system faster.
Print Data Function:
Autel TS508WF TPMS diagnose Tool has Print Data function allows printing of TPMS DTC recorded data.Connect the tool and the computer with the supplied USB cable.Saved and viewTPMS DTCs, tire type and pressure information and print it out via PC for further analysis. This function can help users analyze and save data more conveniently.
Key Fob Testing:
When your remote key starts to fail or stop working, you can directly use the TS508WF in the tool library to test the signal strength of the remote key through WIIF or USB link, which is simple to use but quickly obtains results. Save your time by not having to go to the auto repair shop.
Specifications
Display: TFT color display (320 x 240 dpi)
Power: 3.7 V Li-polymer battery; 3200 mAh
Operating Temp: 0°C to 50°C (32°F to 122°F)
Storage Temp: -20°C to 70°C (-4°F to 158°F)
Autel MS906 Pro TS vs TS508WF vs TS508 vs TS601 vs TS501 vs TS408 vs TS401 vs TS608
Product model | TS508WF |
Display | 320×240dpi TFT color display |
Diagnostic method | Wired |
Upgrade Method | Wi-Fi |
Battery capacity | 3200mAh lithium polymer battery |
Start time | 3 seconds |
Dimensions | Height 215mm x Width 105mm x Thickness 37mm |
Learning method | Yes |
Screen resolution | 320×240 |
Power | 3.7V |
working temperature | 0°C to 50°C |
Storage temperature | -20°C to 70°C |
Screen size | 2.8 inches |
Weight | 0.39 kg (0.86 lb) |

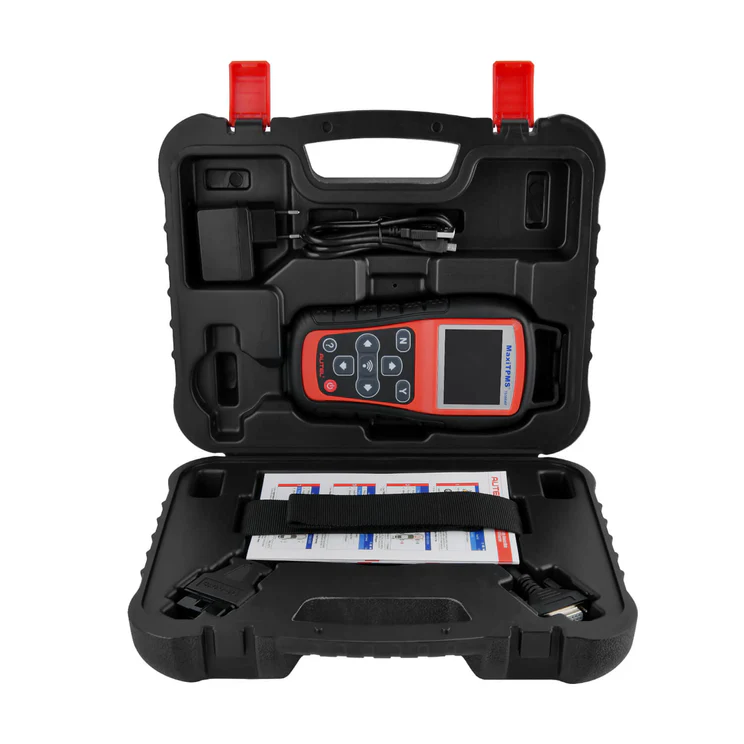

1pc x OBD II cable
1pc x Carry case
1pc x USB cable
You can buy Autel MX-Sensors (315/433MHz) together.

Autel MaxiTPMS TS508 User Manual |
The MaxiTPMS® TS508 is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors, and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. TS508K, the starting TPMS kit with one tool and 8 sensors, can be your right choice to experience AUTEL TPMS lines.
Main features
- Activate & Relearn All Known Sensors.
- Read Sensor ID, Temperature & Pressure
- Read Battery Power Level Condition
- Read & Clear DTCs from ECU
- Connect to TPMS module via OBDII Port to Relearn Sensor IDs
What’s the Advantages of TS508:
1. Two TPMS Service Modes
The TS508 is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.
2. Quick Mode/ Advanced Mode Comparison
TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;
* TPMS Advanced Mode:
1) Complete TPMS Functions to Perform Sensor Check ,
2) TPMS Diagnose,
3) MX-Sensor Program
4) Sensor Position Relearn.
3. Exclusive TPMS Status Screen
1) Read ECU sensor ID;
2) Check sensor ID and ECU ID matching condition;
3) Read DTCs from ECU and erase DTCs;
4) View DTCs detail description;
4. Four MX-Sensor Programming Options
1) Copy By Activation;
2) Copy By Manual Input;
3) Auto Create 1-16;
4) Copy By OBD;
TWO TPMS SERVICE MODES
The TS508 is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.

QUICK MODE / ADVANCED MODE COMPARISON
TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly.
TPMS Advanced Mode: complete TPMS functions to perform sensor check, TPMS diagnose, MX-Sensor program and sensor position relearn.
EXCLUSIVE TPMS STATUS SCREEN
- Read ECU sensor ID
- Check sensor ID and ECU ID matching condition
- Read DTCs from ECU and erase DTCs
- View DTCs detail description

TPMS functions | TS408 | TS508 | TS608 | TPMS PAD | MS906 TS |
---|---|---|---|---|---|
Quick Mode & Advance Mode | ✔ | ||||
Activate TPMS sensors | ✔ | ✔ | ✔ | ✔ | ✔ |
Read sensor data | ✔ | ✔ | ✔ | ✔ | ✔ |
TPMS diagnose, one step for complete TPMS health check | ✔ | ✔ | ✔ | ||
Read/clear TPMS DTCs; on-screen DTC description | ✔ | ✔ | ✔ | ||
Scan TPMS sensor ID and copy ID into MX-Sensor | ✔ | ✔ | ✔ | ✔ | ✔ |
Manual input OE ID into MX-sensor | ✔ | ✔ | ✔ | ✔ | ✔ |
Program MX-Sensor by auto creating sensor ID | ✔ | ✔ | ✔ | ✔ | ✔ |
Read Sensor ID by OBD and copy ID into MX-Sensor | ✔ | ✔ | ✔ | ||
Relearn by OBD function | ✔ | ✔ | ✔ | ||
Relearn procedure guide on the tool | ✔ | ✔ | ✔ | ✔ | |
Check Key FOB | ✔ | ✔ | ✔ | ||
TPMS Toolkit – special TPMS functions | ✔ | ||||
Diagnostic functions | |||||
Basic OBDII code reader | ✔ | ✔ | |||
Read/clear codes for all electronic systems | ✔ | ✔ | |||
Support all 10 test modes of the latest J1979 OBDII test specs | ✔ | ✔ | |||
Enhanced OBDII Mode 6 | ✔ | ✔ | |||
Display live data in text, graph & analog for easy data review | ✔ | ✔ | |||
Relearn parking brake pad after replacement; | ✔ | ✔ | |||
Reset Steering Angle Sensor (SAS); | ✔ | ✔ | |||
Reset service mileage and service intervals; | ✔ | ✔ | |||
Forced regeneration and adjusting injectors; | ✔ | ||||
Support battery registration and reset | ✔ | ✔ | |||
Support IMMO functions | ✔ | ✔ | |||
Complete diagnostic function | ✔ | ||||
Tool features | |||||
Built-in rechargeable li-ion battery | ✔ | ✔ | ✔ | ✔ | |
Strong housing with protective rubber boot | ✔ | ✔ | ✔ | ✔ | |
Print TPMS sensor data via PC | ✔ | ✔ | ✔ | ✔ | |
Internet updatable | USB | USB | WIFI | USB | WIFI |
Multilingual support | ✔ | ✔ | ✔ | ✔ | ✔ |
Historical test records | ✔ | ✔ | ✔ | ||
Limited one year warranty | ✔ | ✔ | ✔ | ✔ | ✔ |

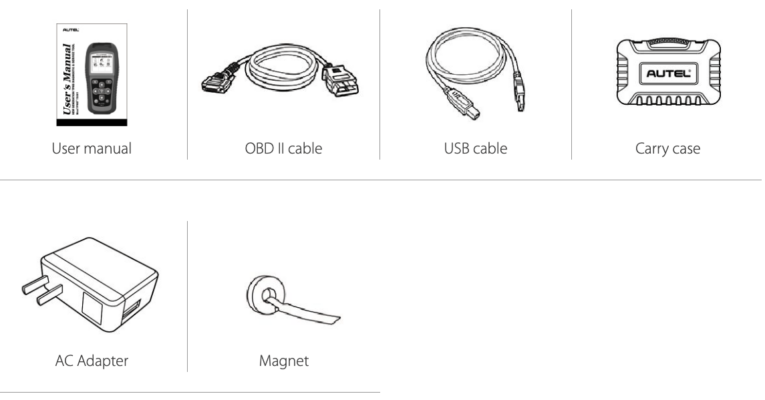

Accessories
- Autel TS508 Main Unit
- OBDII Cable
- USB Cable
- Magnet
- User’s Manual
Specifications
- Display TFT color display (320 x 240 dpi)
- Power 3.7 V Li-polymer battery; 3200 mAh
- Operating Temp. 0°C to 50°C (32°F to 122°F)
- Storage Temp. -20°C to 70°C (-4°F to 158°F)
