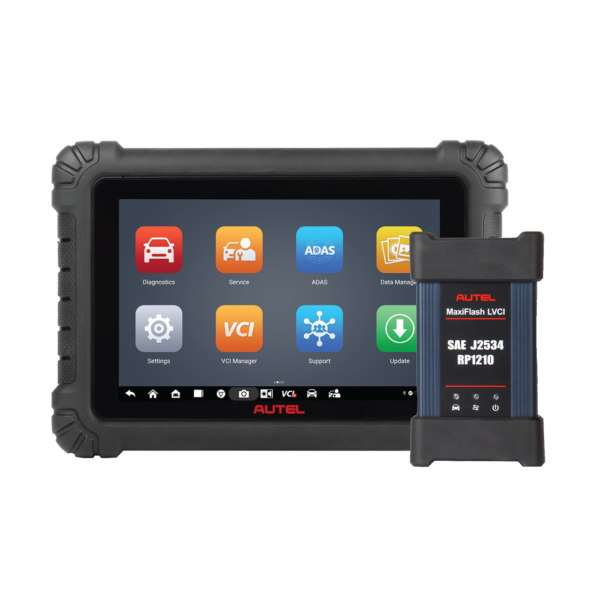

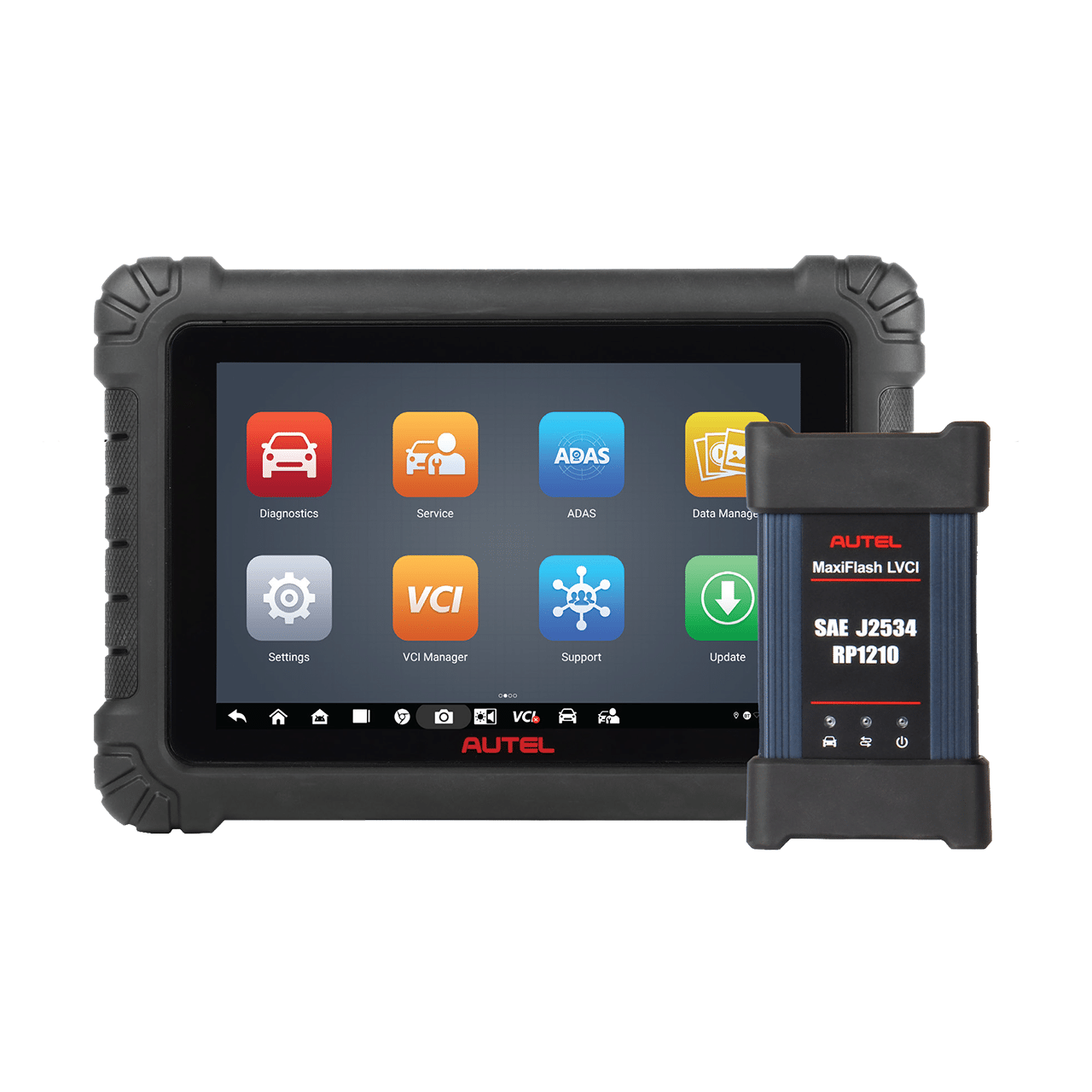

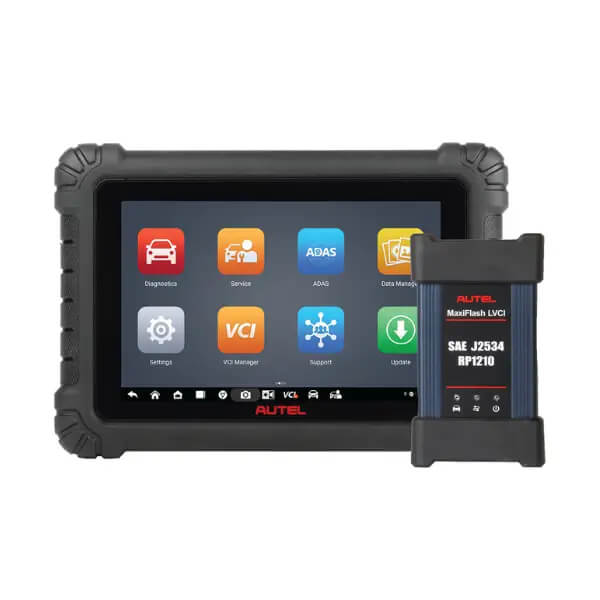

Autel MaxiSYS MS908S3 | OEM-level Diagnostic Scanner‎ with J2534 with Coding and Reprogramming | 2 Years Software Updates

Original price was: R49,900.00.Current price is: R44,900.00. incl. VAT
Original price was: R43,391.30.Current price is: R39,043.48. excl. VAT

Availability: In stock (can be backordered)

Available 'Buy Now Pay Later' Options

Buy Now Pay Later from as little as
R1,858.36 x 36 payments
SKU cdi-ms908s3-s Categories , Tags , ,

Available 'Buy Now Pay Later' Options

Buy Now Pay Later from as little as
R1,858.36 x 36 payments
Delivery anywhere is SA

Once we receive payment for your order, delivery updates will be sent via email to keep you updated.

Collection Points

Visit our offices in Cape Town or Johannesburg. Our work hours are from 8am-5pm.

Why buy from

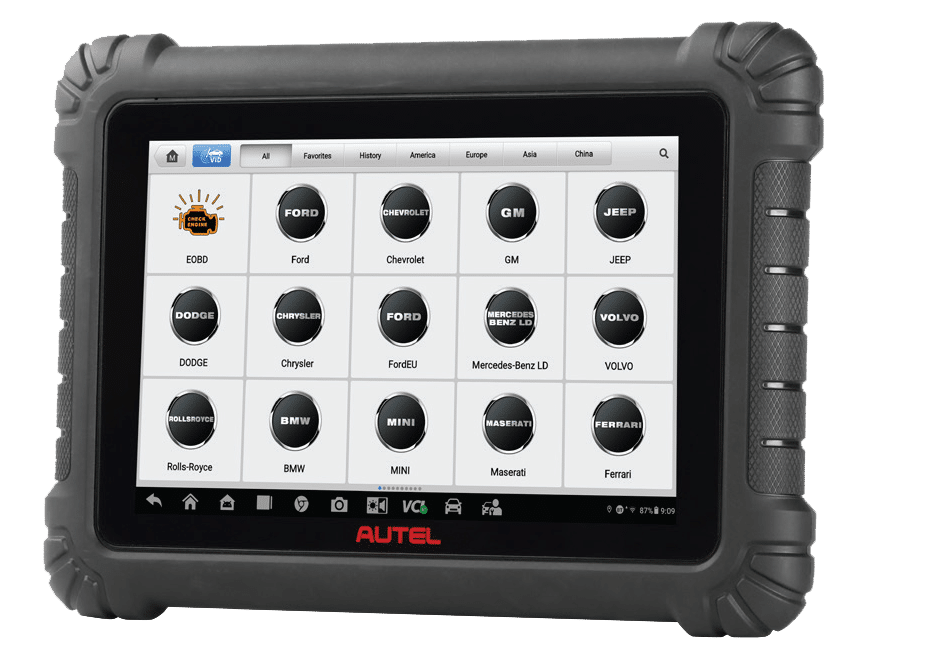

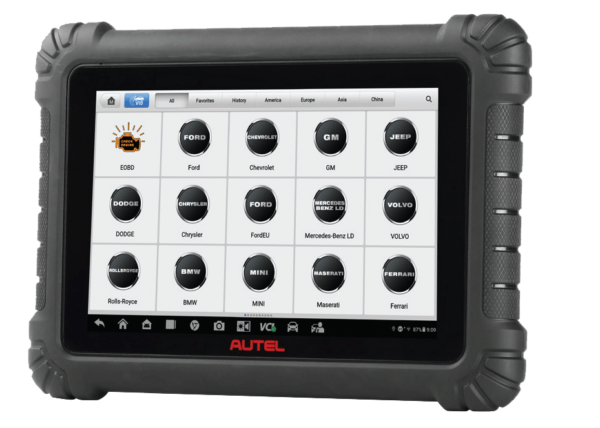

The Autel MaxiSYS MS908S3 is a state-of-the-art diagnostic tool designed for professional automotive technicians. It offers comprehensive diagnostic capabilities for over 80 vehicle brands, featuring an advanced J2534 ECU programming device. The tool is known for its intuitive interface, high-resolution display, and includes two years of free software updates. With its powerful processing capabilities and extended battery life, the MS908S3 stands out as a top-tier solution for extensive vehicle diagnostics and programming tasks.

Autel MS908S3 quick guide
Autel MS908S3 user manual


Main Features

  • Read fault codes & provides a description
  • Clear fault codes & warning lights (e.g. airbag, ABS, engine light, etc)
  • Service functions – interval light / oil reset light / EPB / injectors etc
  • Access to live data streams (oxygen sensor rich/lean indication, coolant temperature, mass air flow, etc)
  • Actuation / Component testing(activate specific systems to test working conditions)
  • Offline Coding (Injectors, spare keys, radios, and even starters are now coming out ‘coded’. This function is indispensable if you need to change those vehicle parts)
  • Online Coding / Reprogramming (updating ECUs, changing parameters or parts, J2534 pass-through flashing capabilities) (you must be within updates to access online coding)
    • Autel has its own online server for Mercedes Benz, BMW, VAG (VW, Audi, Seat, Skoda), Porsche, Nissan & Infiniti
    • For other OEM you can use the J2534 interface with the PC/Laptop

New! VIN/ Odometer Check
Adds “VIN/ Odometer Check” feature, which supports reading the mileage and Vehicle Identification Number (VIN) values stored in various control units of the vehicle. By comparing the values, it serves as reference information for the maintenance history of the vehicle module.

New! Live Data Fusion
Adds “Live Data Fusion” feature, which enables the integration of live data from different systems onto a single interface, facilitating dynamic display.
Widely applied in maintenance scenarios requiring simultaneous monitoring of live data from multiple systems, such as addressing U-code, ABS malfunctions, aftertreatment, and more.



Comparison between Autel MS906Pro, MS909 & MS908S3

Function Vehicle Brands MaxiSys MS909 MaxiSys MS908S3
MaxiSys MS906PRO
Hardware CPU Octa-core Octa-core Octa-core
Operating system
Android 10.0 Android 10.0 Android 10.0
RAM 4G 4G 4GB
ROM 128GB 128GB 128GB
Screen 9.7 inches 10.1 inches 8.0 inches
Wi-Fi Wi-Fi (802.11 a/b/g/n/ac) Wi-Fi (802.11 a/b/g/n/ac)
Wi-Fi (802.11b/g/n/a/ac)
BT BT 5.0 (BR/EDR + BLE) BT 5.0 (BR/EDR + BLE)
support Bluetooth headsets connection
BT V5.0 + BR/EDR
USB USB 2.0 (Two USB Host Type A, one Mini USB) USB 2.0 (Two USB Host Type A, one Mini USB)
USB 2.0:(1 USB HOST Type A, 1 USB mini device)
HDMI HDMI 2.0 No HDMI 2.0
SD Card SD Card (Support up to 256 GB) SD Card (Support up to 256 GB)
SD Card (support up to 64 GB)
DB16 DLC No No No
Microphone port
1MIC 1MIC 1MIC
Speaker port 2 2 2
Light-sensitive Yes Yes Yes
Battery 3.8V 15000 mAh 3.85V 11600 mAh
3.7V 11600 mAh
Camera Front: 16 Megapixel
Rear: 16 Megapixel, Autofocus with Flashlight
Rear:13 Megapixel
Front:16 Megapixel
Rear: 16 Megapixel
VCI MaxiFlash VCI MaxiFlash LVCI V200
Connection WIFI/BT/USB BT/USB BT/USB
Software Auto VIN All Yes Yes Yes
Read/clear code All Yes Yes Yes
Live data All Yes Yes Yes
Freeze frame All Yes Yes Yes
ECU information All Yes Yes Yes
Active test All Yes Yes Yes
Service functions All Yes (40+kinds) Yes(40+kinds) Yes (40+kinds)
Special functions All Yes Yes Yes
Online ECU Coding Nissan Yes Yes Yes
Infiniti Yes Yes Yes
NissanGT-R Yes Yes Yes
Renault Yes Yes Yes
Benz Yes Yes No
Maybach Yes Yes No
Hyundai Yes Yes Yes
Kia Yes Yes Yes
Audi Yes Yes Yes
VW Yes Yes Yes
VW_Brazil Yes Yes Yes
BMW Yes Yes Yes
MINI Yes Yes Yes
Peugeot Yes Yes Yes
Citroen Yes Yes Yes
DS_EU Yes Yes Yes
Porsche Yes Yes Yes
SGMW Yes Yes Yes
Offline ECU Coding Nissan Yes Yes Yes
Infiniti Yes Yes Yes
NissanGT-R Yes Yes Yes
Toyota Yes Yes Yes
Lexus Yes Yes Yes
Scion Yes Yes Yes
Daihatsu Yes Yes Yes
Benz Yes Yes Yes
Maybach Yes Yes Yes
LandRover Yes Yes Yes
Jaguar Yes Yes Yes
Subaru Yes Yes Yes
Ford Yes Yes Yes
FordAU Yes Yes Yes
FordEU Yes Yes Yes
Mazda Yes Yes Yes
Hyundai Yes Yes Yes
Kia Yes Yes Yes
Chrysler Yes Yes Yes
Audi Yes Yes Yes
VW Yes Yes Yes
Skoda Yes Yes Yes
VW_Brazil Yes Yes Yes
Bentley Yes Yes Yes
Bugatti Yes Yes Yes
Lamborghini Yes Yes Yes
LT3 Yes Yes Yes
Seat Yes Yes Yes
VW_CV Yes Yes Yes
Man_LD Yes Yes Yes
Peugeot Yes Yes Yes
Citroen Yes Yes Yes
DS_EU Yes Yes Yes
Opel Yes Yes Yes
Vauxhall Yes Yes Yes
Porsche Yes Yes Yes
Mitsubishi Yes Yes Yes
Hidden Function Nissan Yes Yes Yes
Infiniti Yes Yes Yes
NissanGT-R Yes Yes Yes
Benz Yes Yes No
Audi Yes Yes Yes
VW Yes Yes Yes
VW_Brazil Yes Yes Yes
Skoda Yes Yes Yes
BMW Yes Yes Yes
MINI Yes Yes Yes
Toyota Yes Yes Yes
Lexus Yes Yes Yes
Scion Yes Yes Yes
Guided Function Benz Yes Yes No
Audi Yes Yes Yes
VW Yes Yes Yes
VW_Brazil Yes Yes Yes
Skoda Yes Yes Yes
Bentley Yes Yes Yes
Seat Yes Yes Yes
VW_CV Yes Yes Yes
Man_LD Yes Yes Yes
MINI Yes Yes No
BMW Yes Yes No
Programmable Module Installation Ford Yes Yes Yes
FordAU Yes Yes Yes
FordEU Yes Yes Yes
Mazda Yes Yes Yes
Program Personalization LandRover Yes Yes Yes
Jaguar Yes Yes Yes
ECU Programming Nissan Yes(Only for White List) Yes(Only for White List) No
Infiniti Yes(Only for White List) Yes(Only for White List) No
NissanGT-R Yes(Only for White List) Yes(Only for White List) No
Hyundai Yes(Only for White List) Yes(Only for White List) No
Kia Yes(Only for White List) Yes(Only for White List) No
Subaru Yes(Only for White List) Yes(Only for White List) No
Benz Yes Yes No
Maybach Yes Yes No
LandRover Yes(Only for White List) Yes(Only for White List) No
Jaguar Yes(Only for White List) Yes(Only for White List) No
Audi Yes(Only for White List) Yes(Only for White List) No
VW Yes(Only for White List) Yes(Only for White List) No
Skoda Yes(Only for White List) Yes(Only for White List) No
GM-China Yes Yes No
MINI Yes Yes No
BMW Yes Yes No
Porsche Yes(Only for White List) Yes(Only for White List) No
SAIC Roewe Yes Yes No
SAIC MG Yes Yes No
GAC Trumpchi Yes Yes No
Greatwall Yes Yes No
Intelligent diagnostics Topology Yes V1.0 (Only for White List)
Yes (Only for IMEA/South America/Asia-Pacific)
TSB,repair assist,repair tips, etc. Yes No No
Cloud service Remote expert Yes Yes (support Bluetooth headsets connection)
Yes (CN and White List)
Report management Yes Yes Yes
Others McLaren Diagnostics Yes Yes No
Tesla Diagnostics Yes No No
Pre&Post Scan Yes Yes Yes
SCAN VIN Yes Yes Yes
SCAN License Yes Yes Yes
Remote Desk Yes Yes Yes
D-PDU/
RP1210
Yes Support J2534、RP1210 No
DoIP Yes Yes Yes
CANFD Yes Yes Yes
Extended functions
TPMS integrated function
(such as sensor programming, sensor activation, etc.)
No No No
Oscilloscope Yes (optional) Yes (optional) Yes (optional)
Videoscope Yes (optional) Yes (optional) Yes (optional)
Wheel alignment
Yes (optional) Yes (optional) Yes (optional)
ADAS Yes (optional) Yes (optional) Yes (optional)
Battery test Yes (optional) Yes (optional) Yes (optional)
Wi-Fi print Yes Yes Yes

J2534 Pass-thru device

This can perform flashing/reprogramming via its J2534 interface – newer vehicles have more onboard computers (ECM & TCM) that are programmed with thousands of parameters (control spark, fuel, idle etc).

  • Updating this software normally requires the car to be sent to dealers
  • Replacing new parts or changing existing parameters on many of the new vehicles requires flash reprogramming
  • Autel provides their own server for BMW & BENZ software (free as long as you are active on updates). All other OEM flashing software can be purchased separately and used with the MS908P VCI device.
  • J2534 pass-through flashing capabilities (i.e You can use this device with any OEM software subscription you purchase separately)
  • Please check out the Flashing / Reprogramming guide


Chrysler, Jeep, Dodge: https://www.techauthority.com/

Ford, Lincoln, Mercury: https://www.motorcraft.com/

Land Rover: https://www.landrovertechinfo.com/

Volvo: https://www.volvotechinfo.com/

Cadillac, Chevrolet,Daewoo, GM, GEO,Pontiac, Buick,Saturn, SAAB, : https://www.gmtechinfo.com/

Acura, Honda: https://www.serviceexpress.honda.com/

Isuzu: https://www.isuzutechinfo.com/

Mazda: https://www.mazdaserviceinfo.com/

Mercedes: https://www.startekinfo.com/

Mitsubishi:
https://www.mitsubishitechinfo.com/

Nissan: https://www.nissan-techinfo.com/

Toyota, Lexus, Scion: http://techinfo.toyota.com/

Volkswagen: https://www.erwin.volkswagen.de/erWinVW/

Audi: http://erwin.audi.de/erWinAudi/

NOTE: When reprogramming onboard, always make sure the vehicle battery is fully charged and in good working condition. During reprogramming, there is a risk of having an operation failure if the voltage falls below the proper operating voltage. Sometimes a failed operation can be recovered, but there is a chance that failed reprogramming could ruin the control module. We recommend connecting an external battery charger to the vehicle to ensure a successful operation.

Autel MaxiSYS MS908S3 Specifications

Operating   System Android 10.0
Processor Octa-core Processor
Memory 4GB RAM &128GB On-board Memory
Display 10.1-inch LCD capacitive   touchscreen with 1920 x 1200 resolution
Connectivity Wi-Fi (802.11   a/b/g/n/ac)
USB     2.0 (2 USB TYPE-A ports and a Mini USB port)
BT   5.0 (BR/EDR + BLE)
SD   Card (Support up to 64GB)
Camera   (rear) 13 Megapixel
Sensors Gravity Accelerometer,   Ambient Light Sensor (ALS)
Audio   Input/Output Microphone
Dual   Speakers
3-band   or 4-band 3.5 mm Headset Jack
Power and   Battery 11600 mAh 3.85 V lithium-polymer battery
Charging   via 12 V DC power supply
Input   Voltage 12 V/3 A Adapter
Operating   Temp 0 to 50°C (32 to 122°F)
Storage   Temp  -10 to 60°C (14 to 140°F)
Dimensions(WXHX   D) 311.1 mm (12.25”) x   216.0 mm (8.50”) x 39.9 mm (1.57”)
Weight NW: 1.71 kg (3.77 lbs)
Protocols DoIP, CAN FD, PLC J2497,   ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN),   ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230,   SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAEJ2740   (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW   DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAEJ1850 PWM (Ford SCP),   SAE-J1850 VPW (GM Class2)





Weight 7.3 kg
Dimensions 51 × 14.5 × 46 cm
