Autel MaxiSys M906BT User Manual

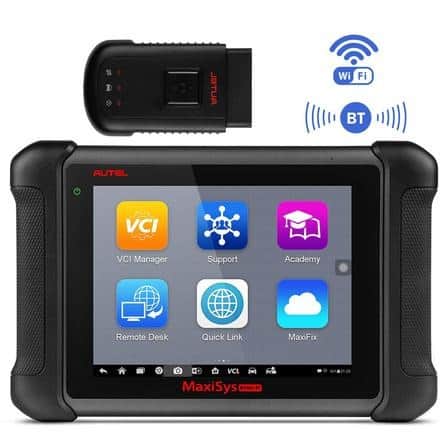

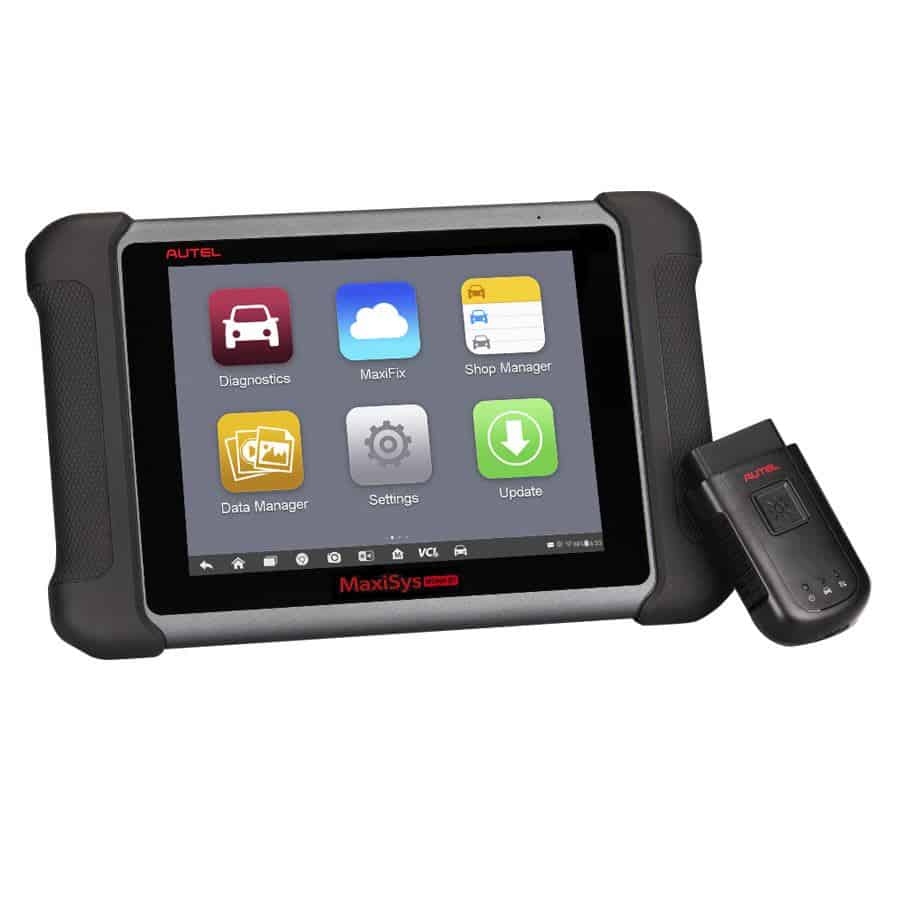

MS906BT is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices. It is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906BT efficiently provides comprehensive vehicle diagnostics and analysis.

---

Why autosupply?

• 7-day Money-Back Guarantee // Local Warranty & Support // FREE updates
• Official African Autel Dealer
• Please be aware that Autel has IP blocks for grey imported units, they will not work locally!

Local Support & Warranty

• If you have any issues – Immediate service/replacement units (we don’t leave you with downtime)
• Dedicated support staff to assist you with any technical issues (direct contact with Autel engineers)
• “Autel Africa WhatsApp Group” with all our support staff & over 200 other users throughout Africa.

2-Year Free Updates (Promotion)

Globally Autel only provides 1 year of free updates in other countries…

[accordion]

[accordion-item title=”Why is it important for most of our customers to keep their software updated?”]

• The core function of a diagnostic machine is to test certain makes & models to help reveal problems
• When you buy a diagnostic machine, one of the most important things to know is the coverage and functionality required

This will have a direct effect on the update cost (as this is directly related to the ongoing development of new coverage and improved functions)

• That is why it is important to rather buy from a specialist diagnostic brand that will guarantee this (Autel has over 500 engineers globally continuously working on software).
• It is also important to remember that updates are not just improvements for new models, but also updates based on improvements from data logs (the method customers give feedback when they have issues).

[/accordion-item]
[accordion-item title=”Why are some update fee’s more expensive than others?”]

Depending on the brand (amount of engineers and effort towards updates), coverage and functionality.

• Autel MX808 = R2500 update fee
• Autel DS808 = R5500 update fee
• Autel MS906BT = R9800 update fee
• Autel MS909/MS919/Ultra = R18 000 update fee

[/accordion-item]
[accordion-item title=”The 2-year free software update promotion”]

• Globally Autel provides 1 year of free updates to all their dealers in other countries…
• autosupply has negotiated to make this 2 years for FREE (only to clients located in Africa)

For example: After 2 years, you could still use the machine for an additional 1 or 2 year period and then consider updating (or never update again – depends on your need for the latest models and functions)

There will be no penalty or catchup fees like other diagnostic brands

• As an example -> Even after 5 years with no updates, when you pay for your update you get caught up to all the latest software.

[/accordion-item]

[/accordion]

---

Main functions

• Read fault codes & provides a description
• Clear fault codes & warning lights (e.g. airbag, ABS, engine light etc)
• Service functions – interval light / oil reset light / EPB / injectors etc
• Access to live data streams (oxygen sensor rich/lean indication, coolant temperature, mass air flow etc)
• Actuation / Component testing(activate specific systems to test working condition)
• Coding (Injectors, spare keys, radios and even starters are now coming out ‘coded’. This function is indispensable if you need to change those vehicle parts)

---

Features

• Unique ergonomic design with rubberized outer protection and a rugged internal housing
• Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation

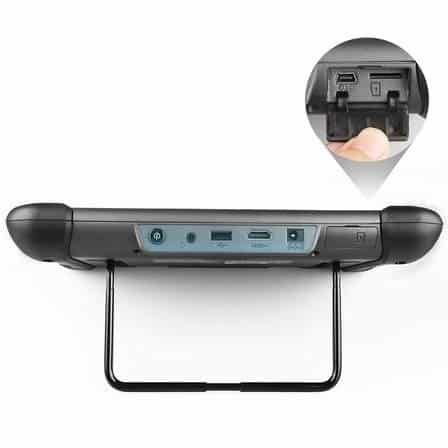

• USB, audio and auxiliary ports make it easy to connect accessories
• Open source Android Operating System for fast boot-up and multitasking
• Easy and intuitive navigation makes finding what you need simple and fast
• Exceptional OE-Level functionality from comprehensive OBD II diagnostics & services to advanced ECU coding
• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
• Smart Auto VIN technology for identifying vehicle easily
• Automatic system and software updates with real-time push message notifications via the internet
• Instant remote control tech support anytime, anywhere
• Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
• Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
• Convenient data management system for managing internal program applications and reviewing data

---

Wireless Connection:

• Maxisys MS906BT wireless diagnostic interface supports both BT and USB. The BT pairing is recommended as the first choice, and the working range for BT communication is about 164 feet (about 50m). Due to this advantage, you can perform vehicle diagnosis freely around the workshop with greater convenience.

---

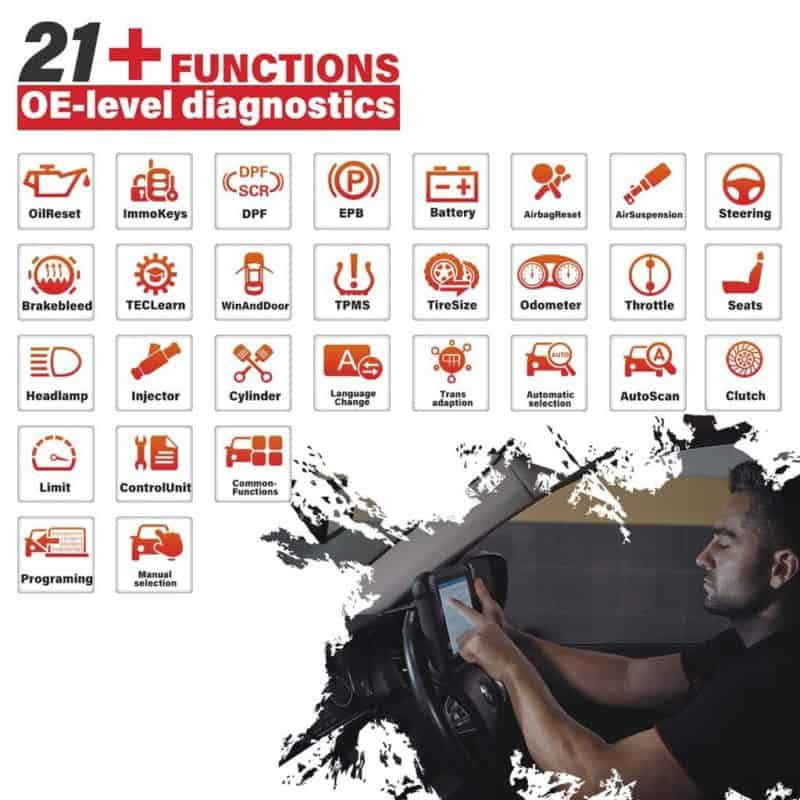

Service Functions

• Doing regular and routine maintenance on a modern car is impossible without a diagnostic system. Even the simplest procedures require the participation of an auto scanner. That’s why Autel engineers have been working on them and making them as user-friendly as possible in the new MaxiSys MS906BT. Now you can easily do functions like:

1. Reset and install service intervals
2. Oil Reset: Reset the oil change calculator in the engine and automatic transmission
3. EPB: Replacement of brake pads on vehicles with an electric parking brake
4. SAS: Adaptation of the sensor to the angular position of the steering wheel
5. DPF: Regeneration of diesel particulate filter
6. Brake Bleed: ABS Brake Bleeding
7. ​​BMS: Battery registration and reset
8. Seats, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlam

---

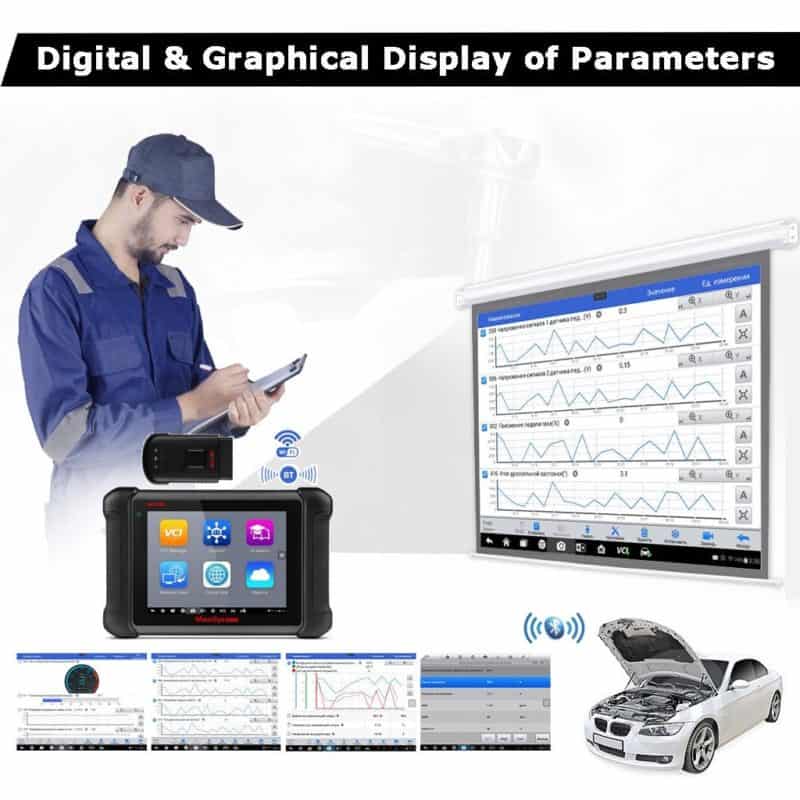

Autel MS906BT Digital & Graphical Display of Parameters

• Using MaxiSys MS906BT you can display the parameters of the system conveniently. So my parameters are more likely to be monitored in analog form, for example, pressure. Some parameters are more conveniently viewed in graphical form, by observing their change in time (potentiometer, oxygen sensor). Some parameters must be displayed in the graph to observe changes relative to each other (for example, air mass flow and engine speed). Only in Maxisys, all these ways of displaying are available for all parameters and all components, regardless of the makes and models of the car.

Autel Maxisys MS906BT Bi-directional Control

• Component Test service enables bi-directional control of the ECM so that the ms906bt diagnostic tool is able to transmit control commands to operate the vehicle systems. This function is useful in determining whether the ECM responds to command well.

Autel Maxisys MS906BT ECU Coding

• Coding functions are usually used by advanced specialists. Coding is conditionally divided into two types:

1. The first is MS906BT computer coding during replacement, commissioning, used to install a new computer in the car. When performing the procedure, the computer is informed of vehicle’s VIN, the configuration and other information necessary for correct operation.
2. The second is the coding of the computer for tuning the body electronics to the user, usually the BCM. The procedure will allow you to offer the customer individual customization of the car for him, locking the doors, setting alarms, the function “lead to home”, setting the salon and outdoor lighting, etc

Autel Maxisys MS906BT Adaptation & Initialization

• After replacement, for repair or cleaning of some sensors and many actuators of electronic systems, an adaptation or initialization procedure is required. When performing this procedure, the basic values of their work, the reference point, are established. In a modern car, there are many such elements that require similar procedures, which makes these functions vital for the service. In MaxiSys systems, these procedures are presented at the dealer level.

Autel MS906BT Add-ons：

• Maxisys MS906BT is a diagnostic scanner with various interfaces that can access to more Add-on like Inspection Camera, HDMI Projector, Phone, PC, USB Memory Stock, Headset, Oscilloscope, Extend SD Card etc.

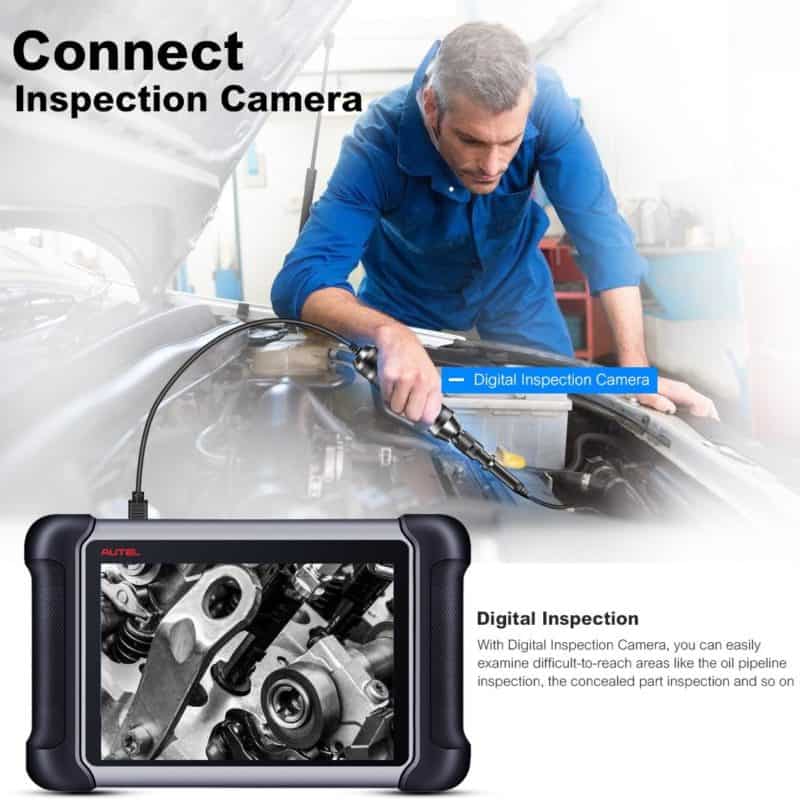

1. MS906BT connects to an MV108 inspection camera and turns into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

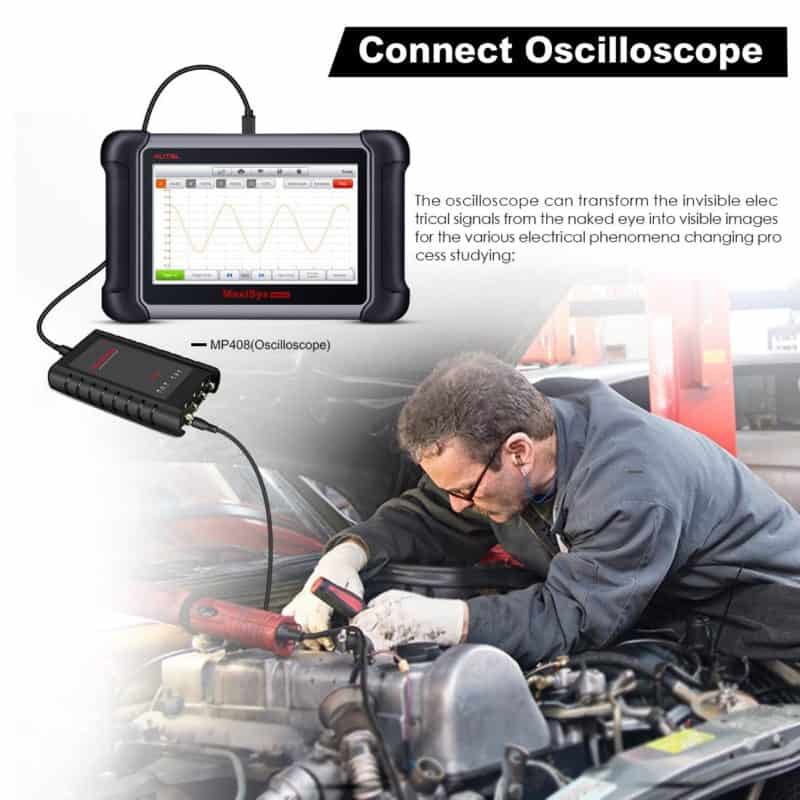

2. MS906BT works with MP408 oscilloscope providing you an insight to the inner workings of a vehicle’s electronic circuits. Featuring the user-friendly UI design combined with the unrivaled hardware specs is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles.

Vehicle Coverage and Function?

This unit will cover nearly all manufactures in the South African market.

For detailed info, please see click here

• Select the tool, such as “MS906 BT”, and click the search button.

Autel DS808 vs Autel MS906BT vs Autel MS909/MS919/Ultra

The main difference between the MS906BT and the DS808 (R16500exVAT)

• MS906BT communicates with the car via Bluetooth communication (DS808 is hardline)
• MS906BT comes with a full kit of OBDI cables for the older models
• MS906BT gets software updates (specifically coding updates) earlier than DS808.
• The software of the DS808 and MS906BT is very similar. So the DS808 is a great value for money option, but if you want all the bells and whistles, the Autel MS906BT is the way to go.

The main difference between the MS906BT and the MS909/MS919/Ultra

• Online Coding / Reprogramming (updating ECU’s, changing parameters or parts, J2534 pass-through flashing capabilities) (you must be within updates to access online coding)
  • • Autel has its own online server for Mercedes Benz, BMW, VAG (VW, Audi, Seat, Skoda), Porsche, Nissan & Infiniti
    • For other OEM’s you can use the J2534 interface with the PC/Laptop

---

*NOTE – We do not stock the  MS906*

---

Specification:

• Operating System: Android™ 4.4.2, KitKat
• Processor: Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
• Memory: 2 GB RAM & 64 GB ROM
• Display: 8.0″ LED capacitive touch screen with 1024x768P resolution
• Connectivity: Wi-Fi (802.11 b/g/n), USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a, SD Card (support up to 32 GB)

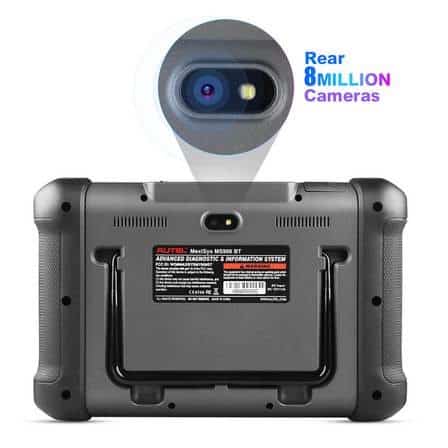

• Camera (rear): Rear-facing, 8.0 Megapixel, AF with Flashlight
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio Input/Output: Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
• Power and Battery: 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
• Input Voltage: 12 V (9-35 V)
• Power Consumption: 5 W
• Operating Temp.: -10 to 55°C (14 to 131°F)
• Storage Temp.: -20 to 70°C (-4 to 158°F)
• Dimensions: (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
• Weight: NW: 1.05 kg (2.3lb.)

---

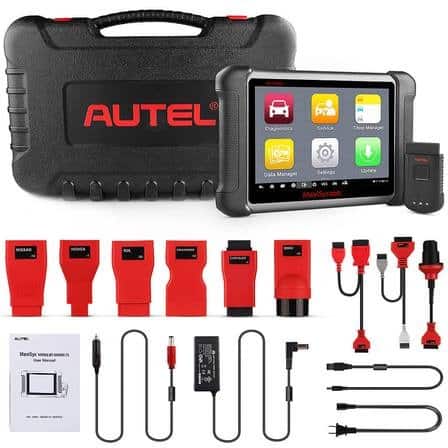

 Package List:

• Maxisys MS906BT main unit
• AC/DC Adapter (12V)
• Adapter for GM/Daewoo-12
• Adapter for Benz-38
• Adapter for Mitsubishi/Hyundai-12+16
• Adapter for Honda-3
• Adapter for BMW-20
• Adapter for Kia-20
• Adapter for Nissan-14
• Adapter for VW/AUDI-2+2
• Cigarette Lighter

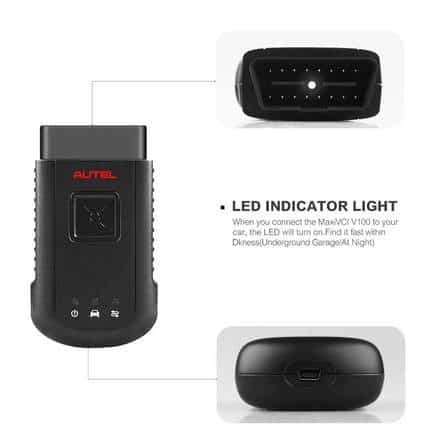

• MaxiVCI V100
• Lighter Fuse
• Soft Cloth
• Mini USB Cable
• User Manual
• Packing List
• Carrying Case
• Quick Reference Guide

---
