Autel MaxiScope MP408 4 Channel Automotive Oscilloscope (Discontinued)

R13,090.00 incl. VAT
R11,382.61 excl. VAT

Discontinued

Available 'Buy Now Pay Later' Options

Buy Now Pay Later from as little as
R541.78 x 36 payments
SKU osc-mp408 Categories , Tag

Available 'Buy Now Pay Later' Options

Buy Now Pay Later from as little as
R541.78 x 36 payments
Don’t take our word for it

See for yourself:

Delivery anywhere is SA

Once we receive payment for your order, delivery updates will be sent via email to keep you updated.

Collection Points

Visit our offices in Cape Town or Johannesburg. Our work hours are from 8am-5pm.

This product comes with a 7day refund policy

  Autel MaxiScope MP408 Oscilloscope User Manual

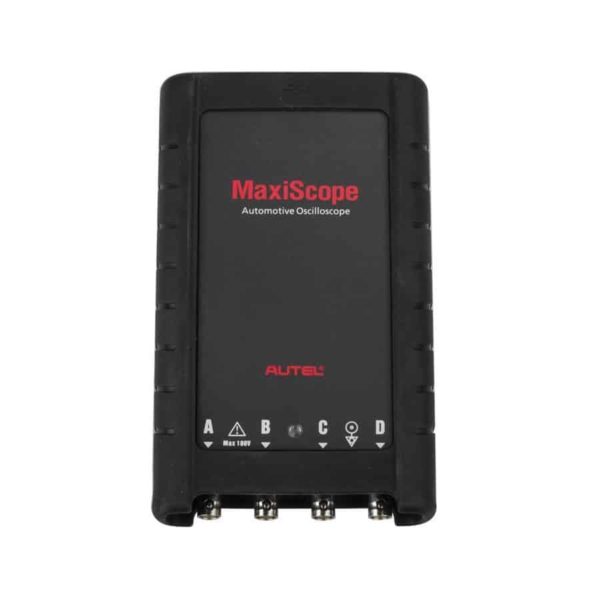

The Autel MaxiScope MP408 is a PC based 4-channel automotive oscilloscope. It works in combination with your PC or MaxiSys Tablet, which turns into a powerful diagnostic tool, providing you with an insight into the inner workings of a vehicle’s electronic circuits.

Featuring the user-friendly UI design combined with the unrivaled hardware specs, the MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles. Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use.

The MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles.

Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use.

MP408 can work with the following tools: IM608, IM508, MS906BT, MS906TS, MaxiSYS, MaxiSYS PRO, MaxiSYS Elite, and Maxisys mini.



Features

  • Features one-click auto-setup of voltage scale and time base
  • Works on all makes and models of modern vehicles
  • Compatible with LIN, CAN, and FlexRay data bus standards
  • Reads and displays electrical signals in high-resolution waveforms
  • Allows manual editing of measurement parameter display
  • Records and plays back waveform data
  • Features color-coded 4-channel control panel
  • Intuitive UI design features easy trigger point adjustment and real time scale info display
  • Direct power supply through a USB connection
  • Free online software update through the Internet
  • Portable design with strong housing and protective rubber boot

Oscilloscope Specifications:

  • Vertical resolution:12 bits
  • Channels:4
  • Bandwidth:20MHz
  • Accuracy:1%
  • Sensitivity:10mV/div to 20V/div
  • PC Interface: USB 2.0 – Cable supplied
  • Power Requirements: Powered from the USB port
  • Input Ranges (full scale):±v50mV to ±100V in 11 ranges
  • Input Impedance:1MΩ in parallel with 22pF
  • Input Type: Single-ended, BNC connector
  • Input Coupling: Software selectable AC/DC
  • Overload Protection:±200V on a single input
  • Buffer Memory:32M samples shared among active channels
  • Waveform Buffer: Up to 1000 waveforms
  • Timebase Ranges:100ns/div to 1000s/div
  • Operating Temperature Range:0°C to 50°C (15°C to 40°C for quoted accuracy)
  • Storage Temperature Range:-20°C to +60°C
  • Storage Humidity Range:5% to 95%RH, Non-condensing
  • Maximum Sampling Rate (Single Shot):
  •  -1 or 2 channels in use:80MS/s
  •  -3 or 4 channels in use:20MS/s

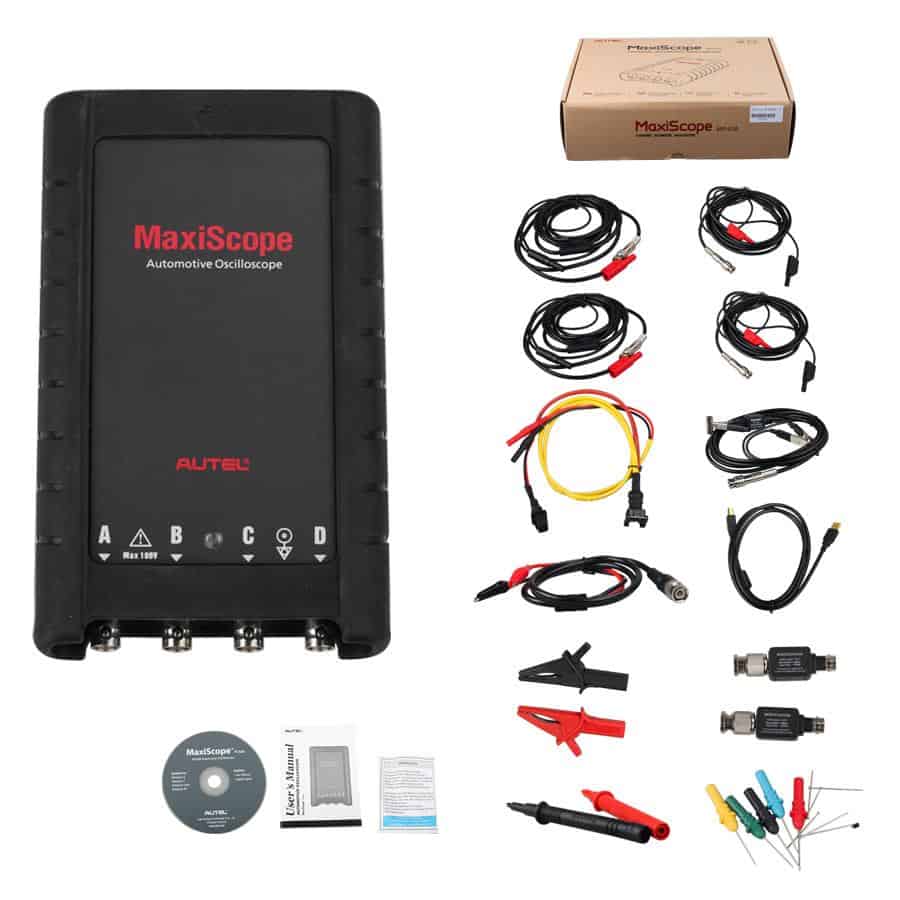

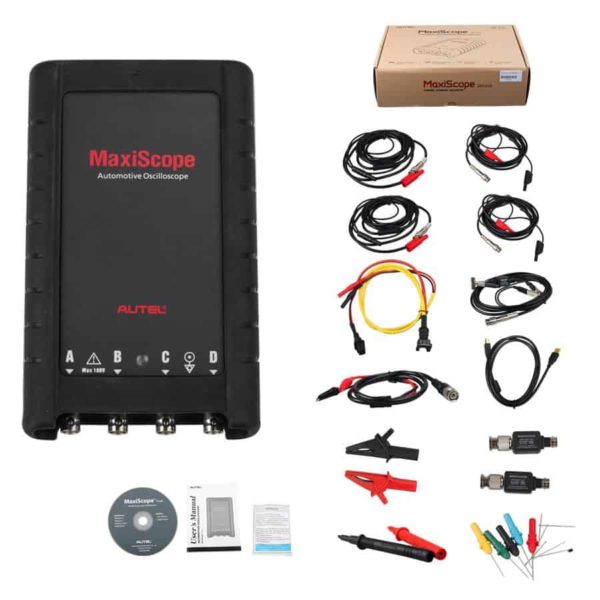

Package Includes:

1pcs x Autel MaxiScope MP408 Interface
1pcs x Compact Disc (CD)
1pcs x 1.5m USB Cable
4pcs x 3m (10ft) Screened Test Leads
1pcs x Secondary Ignition Pickup
1pcs x 2-pin Breakout Lead
2pcs x Attenuators 20:1
1pcs x Large Crocodile Clip Set
1pcs x Small Crocodile Clip Set
1pcs x Acupuncture Probe Set
1pcs x Multimeter Probes

Weight 1.945 kg
Dimensions 31 × 9 × 24 cm
