Product Overview

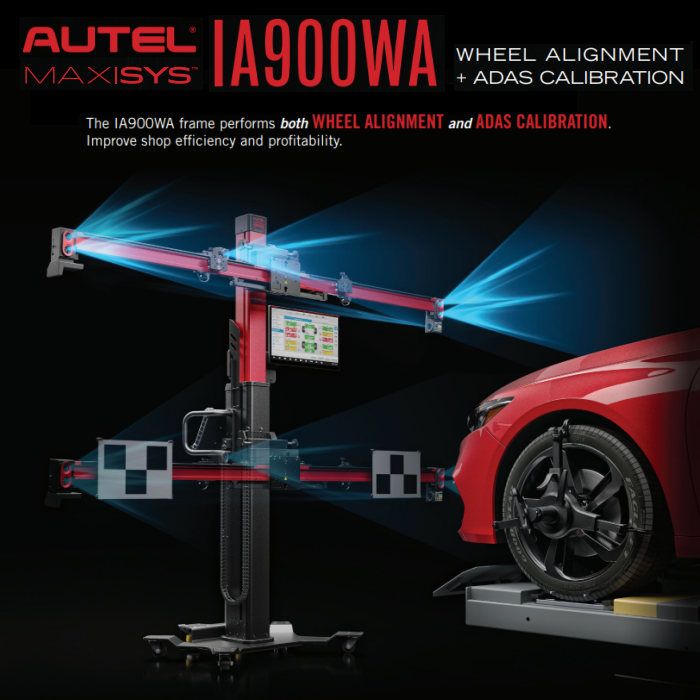

The Autel IA900AS is the pinnacle of automotive service technology, expertly combining precise wheel alignment with comprehensive ADAS calibration capabilities. This integrated system is designed to meet the complex demands of modern vehicle maintenance, offering a seamless solution for both alignment and ADAS calibration, including cameras, radar, LIDAR, and Night Vision units.
Key Features
- Dual Functionality: The IA900AS is designed to perform both four-wheel alignment and ADAS calibration, integrating these essential services into one efficient system.
- High-Resolution Self-Calibrating Cameras: Equipped with six high-resolution cameras, this system ensures precise optical measurements and automatic vehicle height tracking on the lift, maintaining calibration accuracy at all times.

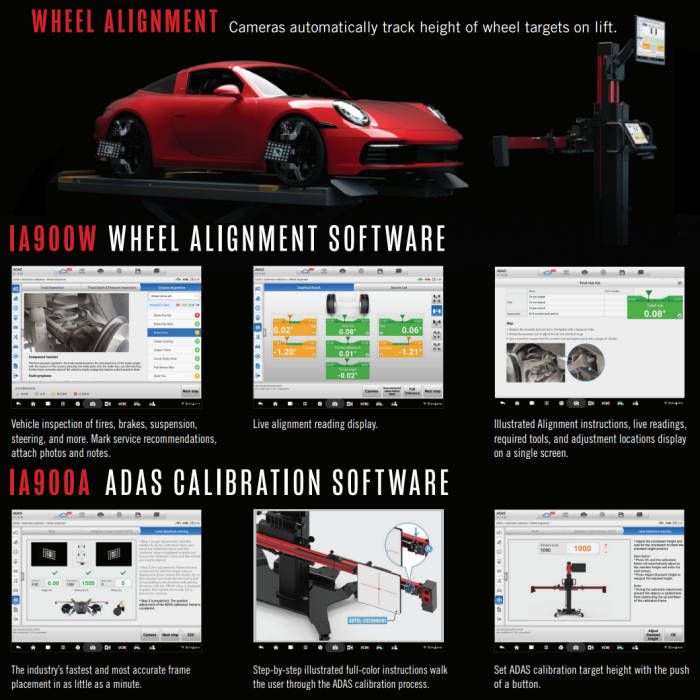

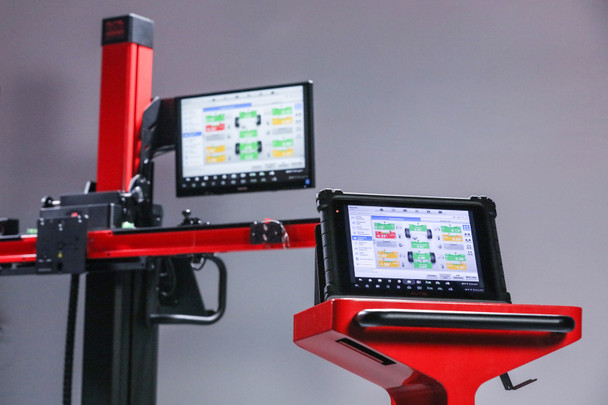

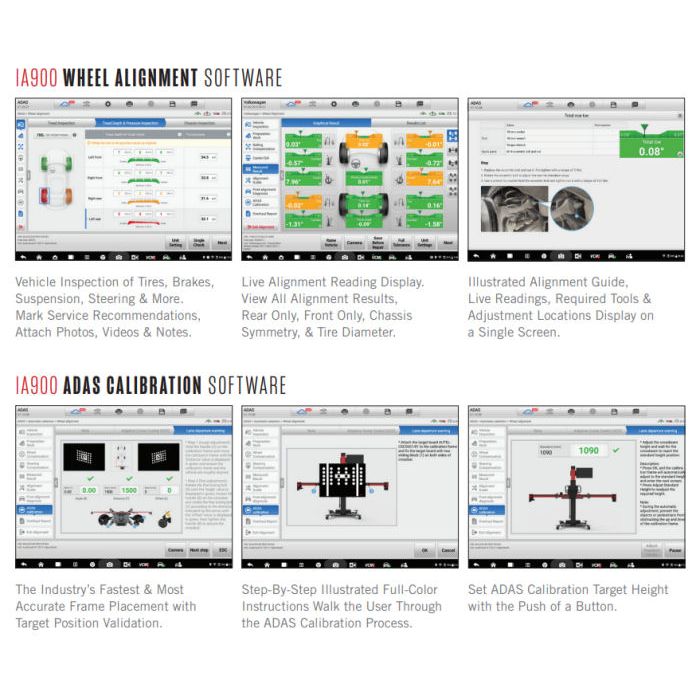

- 24” Touchscreen Interface: The large, interactive touchscreen provides an intuitive control panel for managing diagnostics, alignment, and calibration processes, displaying live readings, illustrated instructions, and necessary tools on a single screen.

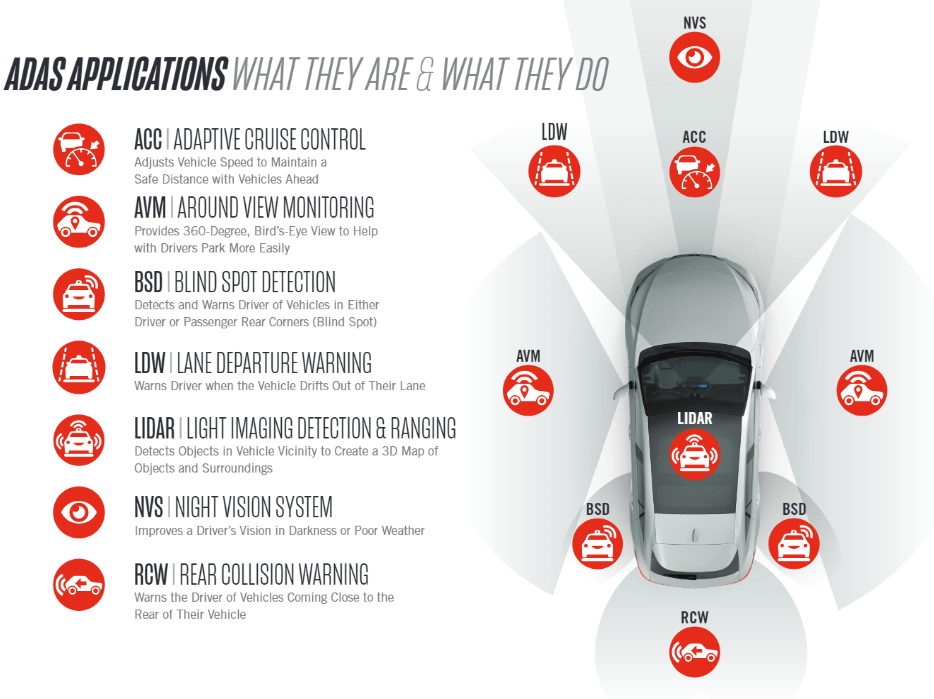

- Comprehensive All-Systems Calibration: Includes targets, patterns, and calibration components for a wide range of ADAS features including Lane Departure Warning (LDW), Around View Monitoring (AVM), Blind Spot Detection (BSD), Adaptive Cruise Control (ACC), LIDAR, Night Vision, and Rear Collision Warning (RCW).
- Robotic Frame Movement: Ensures optimal accuracy with robotic precision, delivering alignment reading accuracy down to 0.02 degrees.
- Automatic Vehicle Height Tracking: The system’s cameras automatically track the vehicle’s height on the lift, ensuring that targets remain in view throughout the alignment and calibration process.

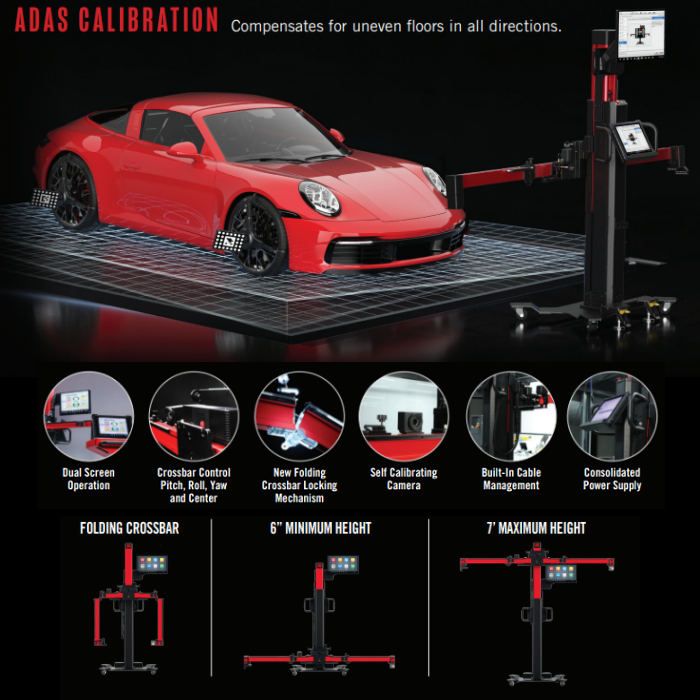

- Floor Compensation: The IA900AS compensates for uneven floors, ensuring consistent and accurate calibrations in any shop environment.
- Comprehensive Vehicle Coverage: Suitable for U.S., Asian, and European vehicles from 1996 onwards, the IA900AS offers extensive compatibility with a wide range of vehicles.
- Built-In Cable Management and Power Supply: Keeps your workspace organized and efficient with integrated cable management and a consolidated power supply system.

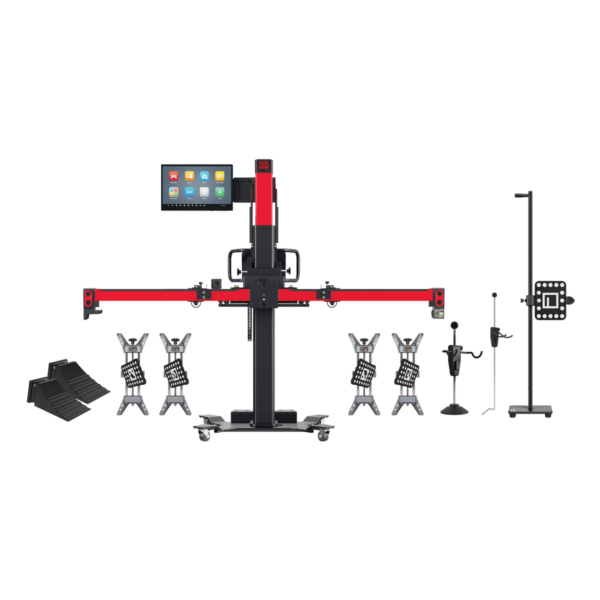

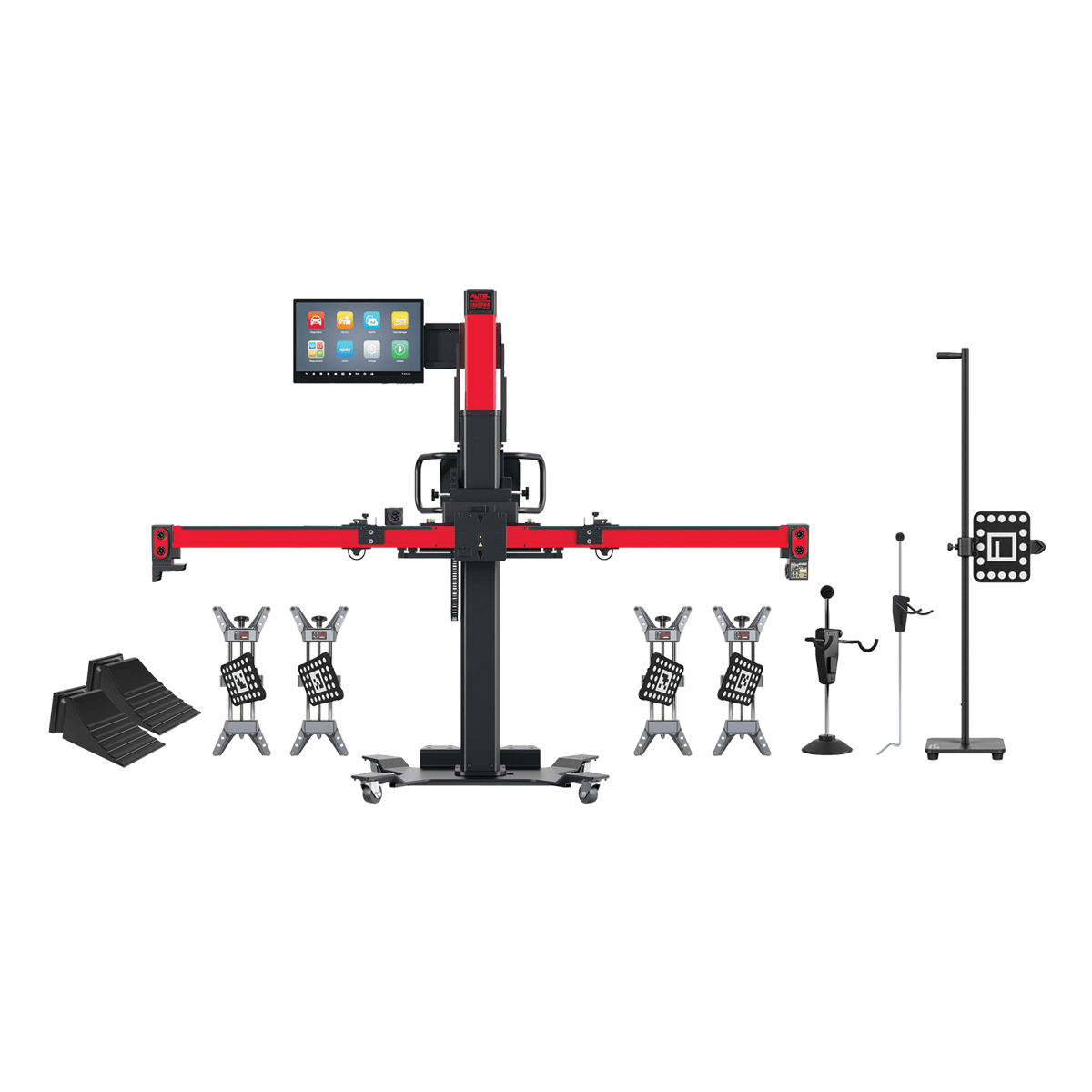

Package Contents

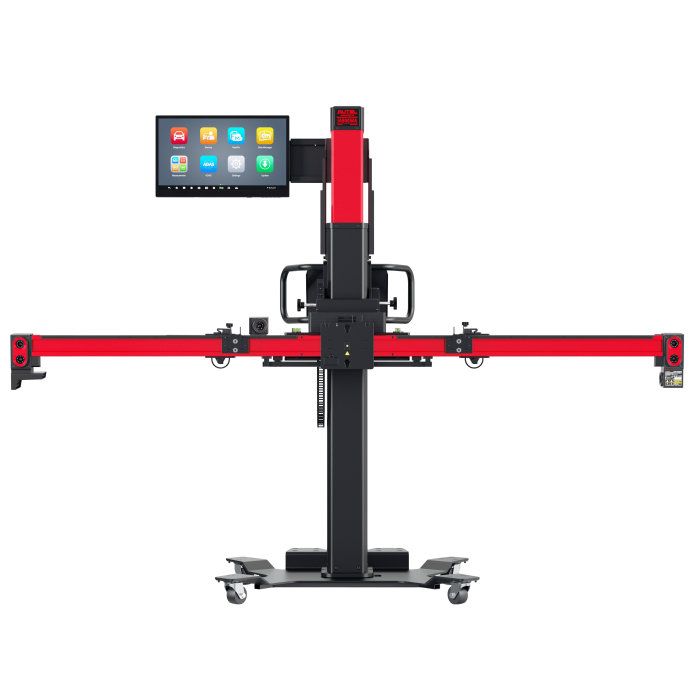

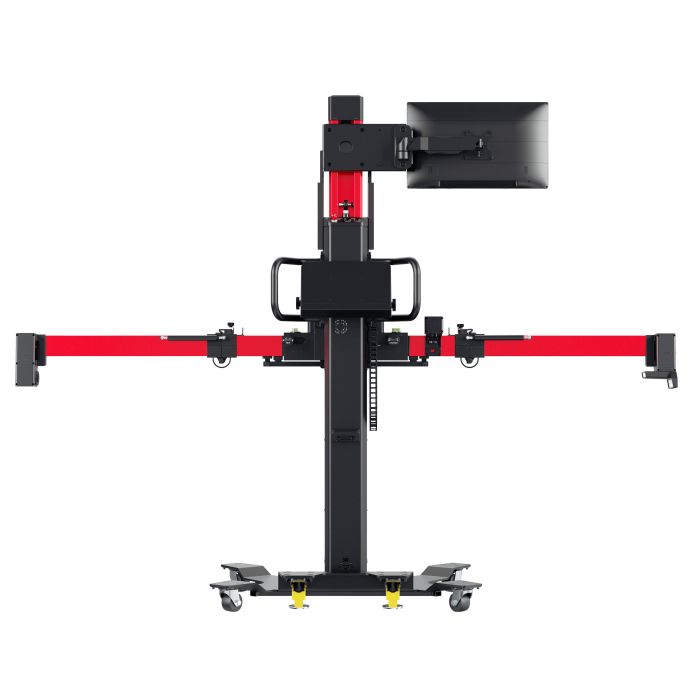

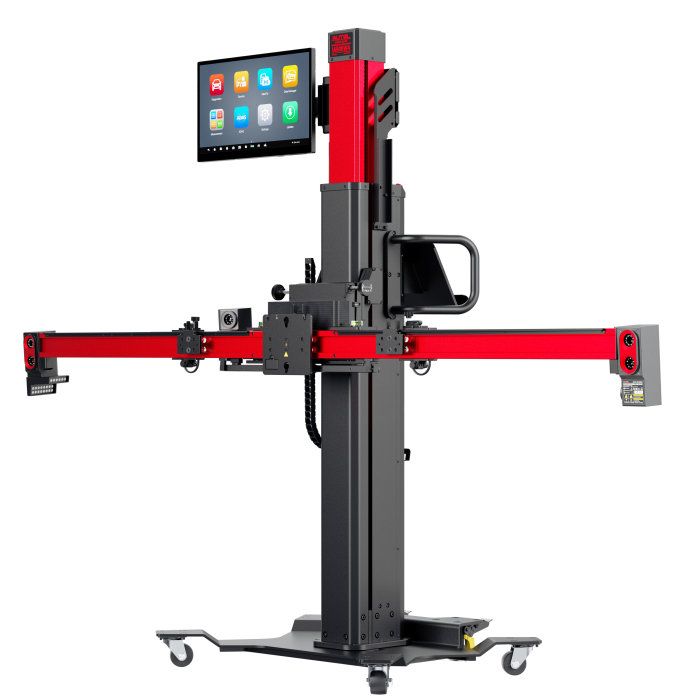

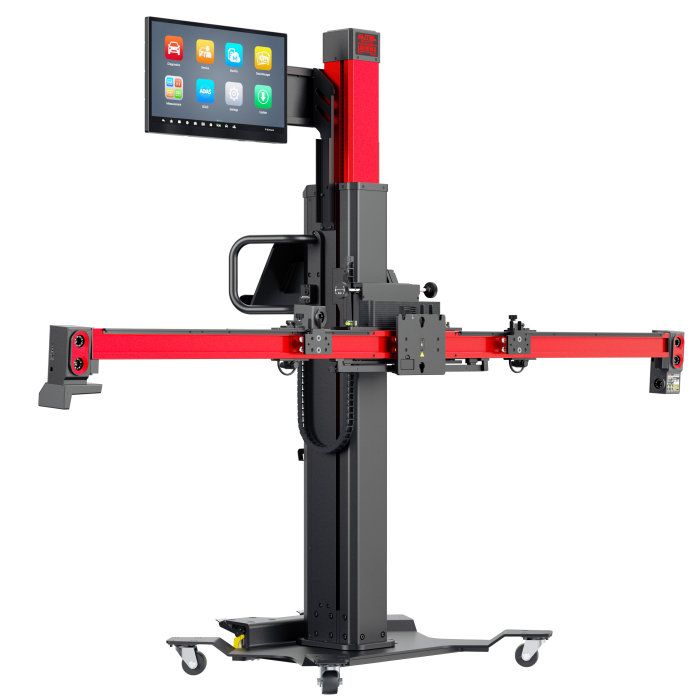

- IA900WA Frame System: The core of the system, enabling both wheel alignment and comprehensive ADAS calibration.

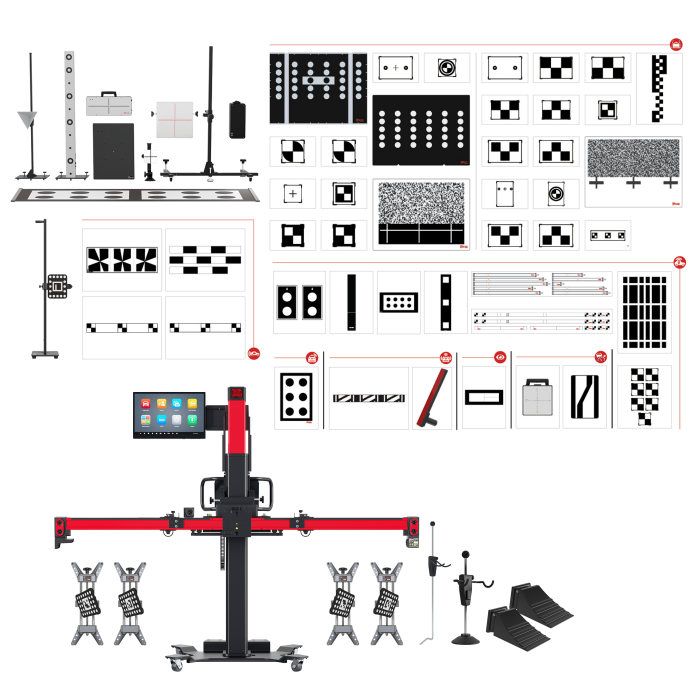

- All-Systems ADAS Calibration Components: Includes targets, patterns, and other calibration tools for cameras, radar, LIDAR, Night Vision units, AVM and more.
- 24” Touchscreen Display: Attaches directly to the frame unit, providing a clear, intuitive interface for managing all diagnostic and calibration tasks.

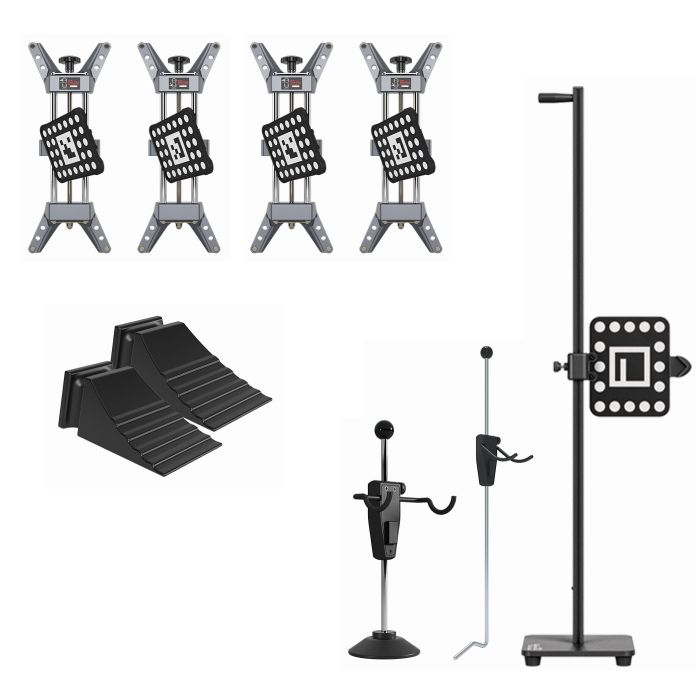

- Four-Wheel Clamps with Camera Targets: Ensures accurate wheel alignment with easy-to-use clamps and integrated camera targets.
- Steering Wheel Lock and Wheel Chocks: Included for secure vehicle stabilization during alignment and calibration procedures.
- One-Year Limited Warranty: Guarantees reliable performance and support for your investment.

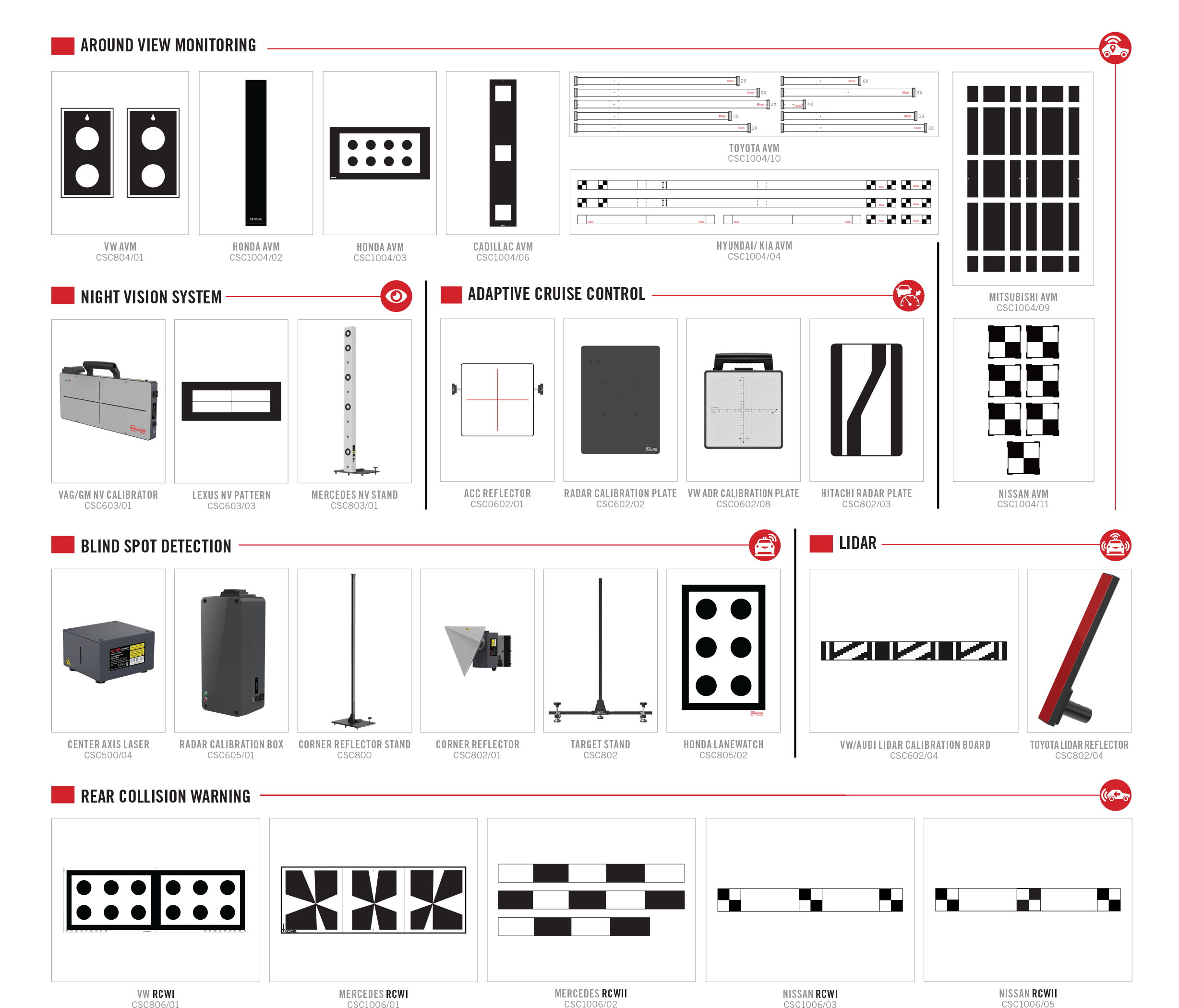

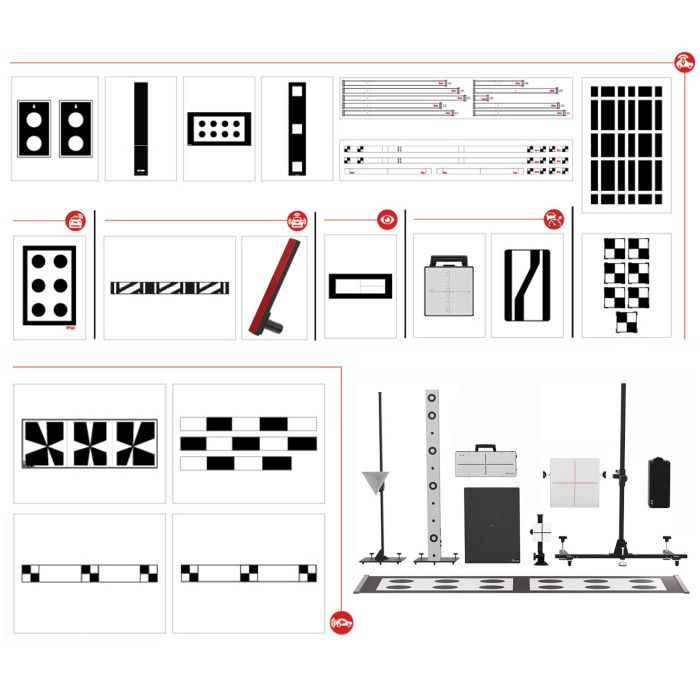

List of Boards Included:

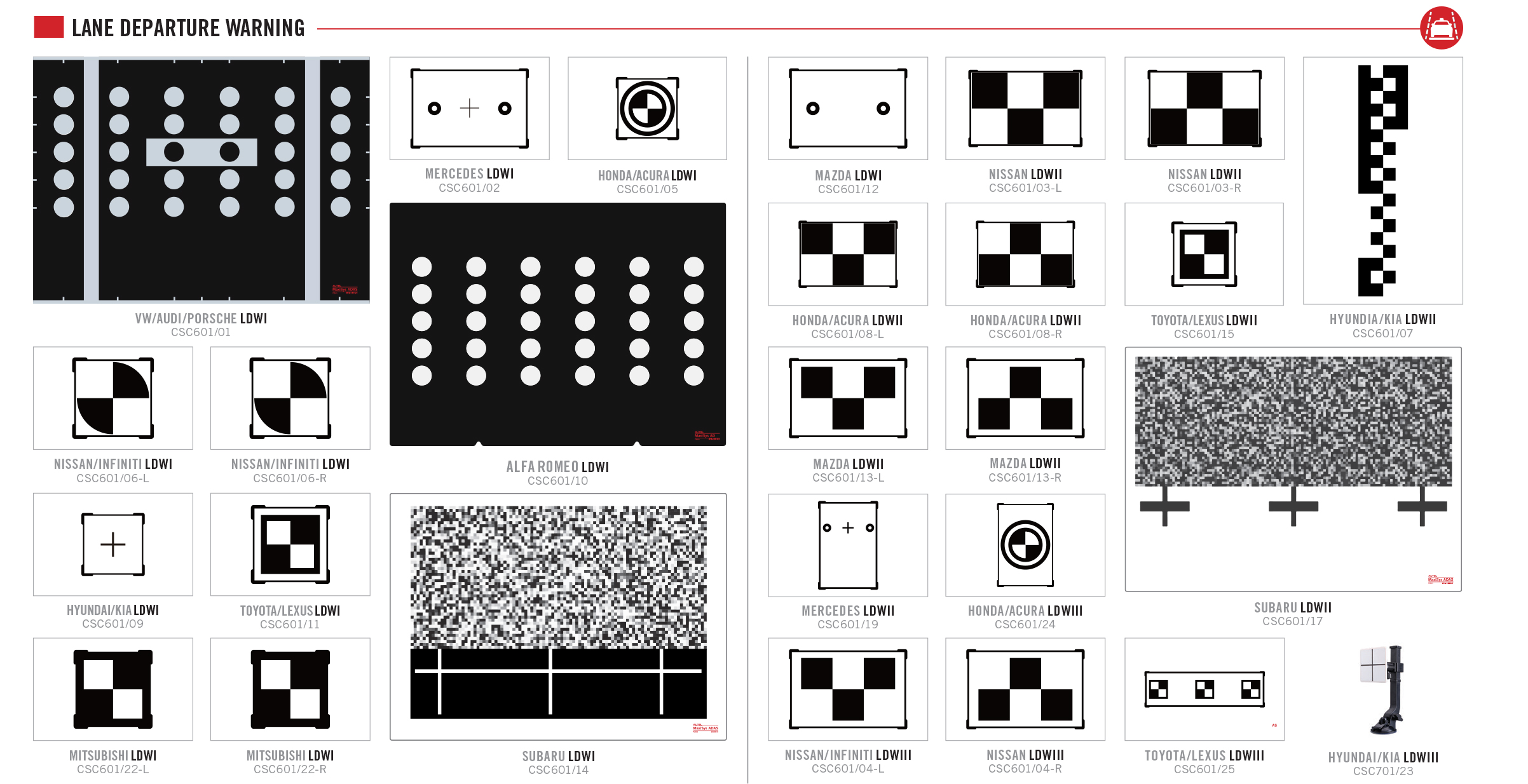

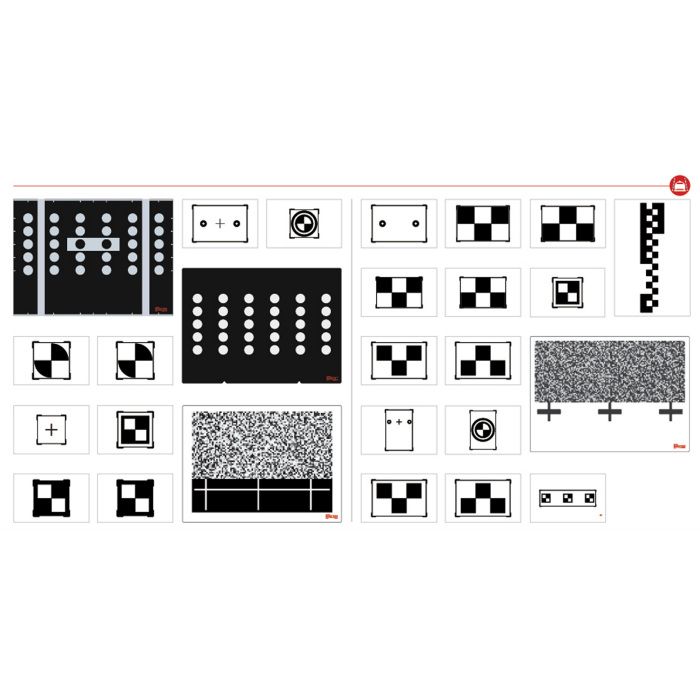

Lane Departure Warning:
VW/Audi/Porsche LDW I – CSC601/01 | Honda/Acura LDW II – CSC601/08-R | Mazda LDW II – CSC601/13-R |
Mercedes LDW I – CSC601/02 | Toyota/Lexus LDW I – CSC601/11 | Mercedes LDW II – CSC601/19 |
Honda/Acura LDW I – CSC601/05 | Hyundai/Kia LDW I – CSC601/09 | Honda/Acura LDW III – CSC601/24 |
Mazda LDW I – CSC601/12 | Mitsubishi LDW I – CSC601/22-L | Subaru LDW II – CSC601/17 |
Nissan/Infiniti LDW I – CSC601/06-L | Mitsubishi LDW I – CSC601/22-R | Toyota/Lexus LDW II – CSC601/15 |
Nissan/Infiniti LDW I – CSC601/06-R | Alfa Romeo LDW I – CSC601/10 | Toyota/Lexus LDW III – CSC601/25 |
Nissan LDW II – CSC601/03-L | Subaru LDW I – CSC601/14 | Nissan LDW III – CSC601/04-L |
Nissan LDW II – CSC601/03-R | Hyundai/Kia LDW II – CSC601/07 | Nissan LDW III – CSC601/04-R |
Honda/Acura LDW II – CSC601/08-L | Mazda LDW II – CSC601/13-L | Hyundai/Kia LDW III – CSC707/23 |
Around View Monitoring:
VW AVM – CSC804/01 | Hyundai/Kia AVM – CSC1004/04 |
Honda AVM – CSC1004/02 | Toyota AVM – CSC1004/10 |
Honda AVM – CSC1004/03 | Mitsubishi AVM – CSC1004/09 |
Cadillac AVM – CSC1004/06 | Nissan AVM – CSC1004/11 |
Night Vision System:
VAG/GM NV Calibrator – CSC603/01 |
Lexus NV Pattern – CSC603/03 |
Mercedes NV Stand – CSC803/01 |
Adaptive Cruise Control:
ACC Reflector – CSC0602/01 | VW ADR Calibration Plate – CSC0602/08 |
Radar Calibration Plate – CSC0602/02 | Hitachi Radar Plate – CSC0602/03 |
Blind Spot Detection:
Center Axis Laser – CSC500/04 | Corner Reflector – CSC0802/01 |
Radar Calibration Box – CSC605/01 | Target Stand – CSC802 |
Corner Reflector Stand – CSC800 | Honda Lanewatch – CSC805/02 |
LiDAR:
VW/Audi Lidar Calibration Board – CSC602/04
|
Toyota Lidar Reflector – CSC802/04 |
Rear Collision Warning:
VW RCW I – CSC806/01 | Nissan RCW I – CSC1006/03 |
Mercedes RCW I – CSC1006/01 | Nissan RCW II – CSC1006/05 |
Mercedes RCW II – CSC1006/02 |
Additional Features
- Enhanced Safety: Includes steering wheel lock and wheel chocks to secure vehicles during alignment and calibration, ensuring a safe and stable working environment.
- Adjustable Crossbar: Features a folding crossbar with a locking mechanism, allowing for easy setup and adjustment, with a height range from 6 inches to 7 feet.
- New Folding Crossbar Locking Mechanism: Enhances stability and reliability during use, with an adjustable height range from 6 inches to 7 feet.
Why Choose the IA900AS?
- Comprehensive Solution: The IA900AS integrates essential services such as wheel alignment and full ADAS calibration into one system, reducing the need for multiple tools and saving valuable shop space.
- Unmatched Precision: Self-calibrating cameras, robotic frame movement, and floor compensation ensure that every alignment and calibration task is performed with the highest level of accuracy.
- Enhanced Workflow: The intuitive 24” touchscreen and step-by-step calibration instructions streamline the workflow, reducing the time required for each service and allowing for more vehicles to be serviced daily.
- Versatile Vehicle Coverage: With extensive alignment and calibration capabilities for a wide range of vehicles, the IA900AS is adaptable to various automotive service needs, making it a valuable addition to any shop.
- Profitability: Faster service times and reduced dependency on third-party calibration services help boost your shop’s profitability, allowing for quicker returns on investment.
Service Profitability
Investing in the Autel IA900AS ensures that your shop is equipped to handle the latest in automotive technology. With faster service times and reduced dependency on third-party calibration services, this system can significantly boost your shop’s profitability and customer satisfaction.
When is ADAS Calibration Required?
- Windshield Replacement
- Suspension Repairs
- Wheel Alignment
- Tire Size Changes
- Sensor or Mounting Bracket Replacement
- Front Airbag Deployment (if deflected off the windshield)
- ADAS-Related TSBs/Manufacturer Position Statements
Conclusion
The Autel IA900AS Wheel Alignment and All Systems ADAS Calibration Package is the ultimate solution for modern automotive service centers. By integrating advanced alignment and ADAS calibration technologies into one robust system, the IA900AS not only improves efficiency and accuracy but also enhances your shop’s ability to meet the demands of today’s complex vehicles. Whether you’re looking to expand your service offerings or increase profitability, the IA900AS is an essential tool for achieving your goals.
