8 LED Car FHD CCD Rear View Camera 170° Wide Angle Night Vision Waterproof Backup Parking Camera

This 8 LED FHD CCD Rear View Camera offers a reliable and clear view for safe reversing and parking. Designed with 170° wide-angle lens and night vision capabilities, it provides a high-resolution image even in low-light conditions. The camera includes parking guidelines to assist with distance judgment and features IP67 waterproofing, ensuring durability in various weather conditions.

Equipped with a Color CCD image sensor and PC7070 sensor, this camera delivers sharp 720×480 resolution with 420 TV lines. It operates seamlessly with a 12V power supply and supports both NTSC and PAL video systems, with an RCA video output for easy connection to your car monitor. Installation is straightforward, making it easy to mount on your vehicle’s license plate or another suitable location.

Key Features:

• 170° Wide-Angle Lens: Expansive field of view to cover blind spots and enhance parking safety.
• 8 LED Night Vision: Provides visibility in low-light conditions for safe parking at night.
• Parking Guidelines: Assists in judging distances while reversing.

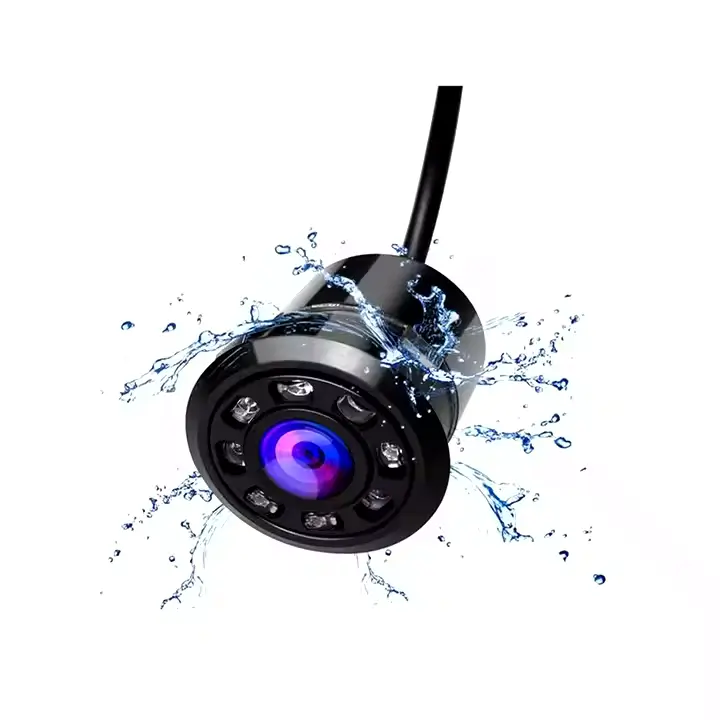

• Waterproof (IP67): Withstands rain and adverse weather, ensuring reliable performance.
• Auto White Balance: Automatically adjusts for optimal image quality.
• Universal Compatibility: Works with any 12V vehicle and supports NTSC/PAL systems.

Specifications:

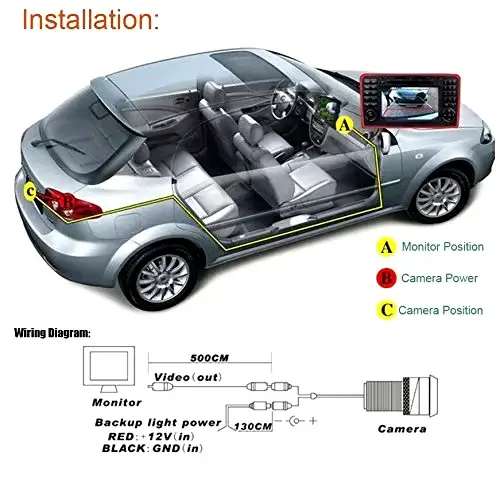

Installation Instructions:

1. Mount the Camera:

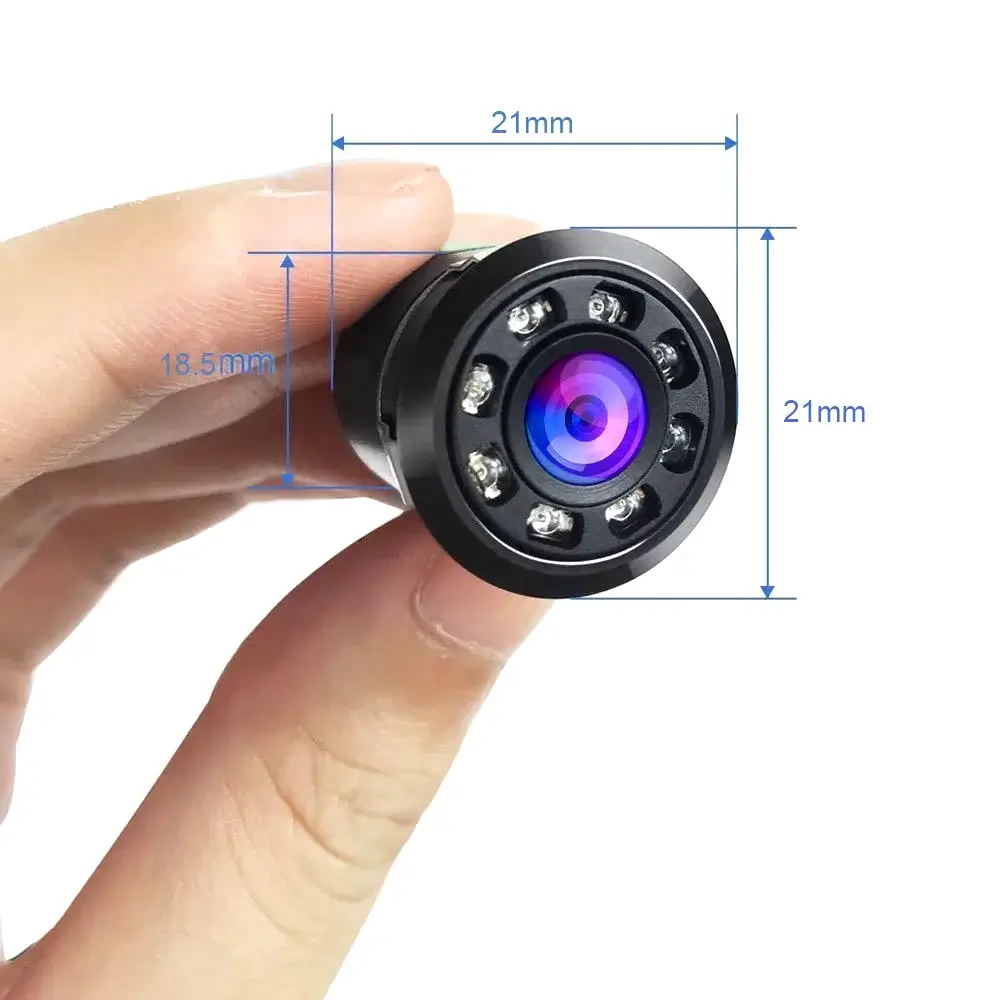

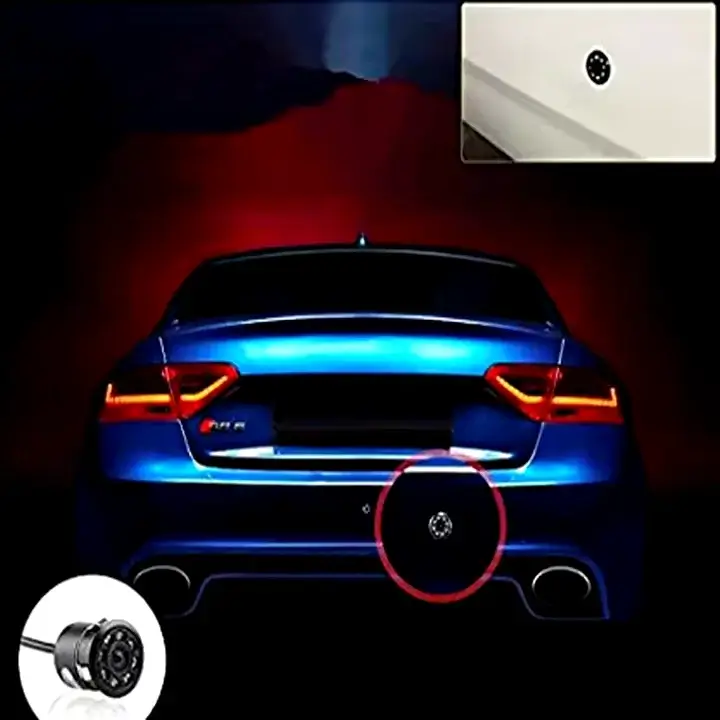

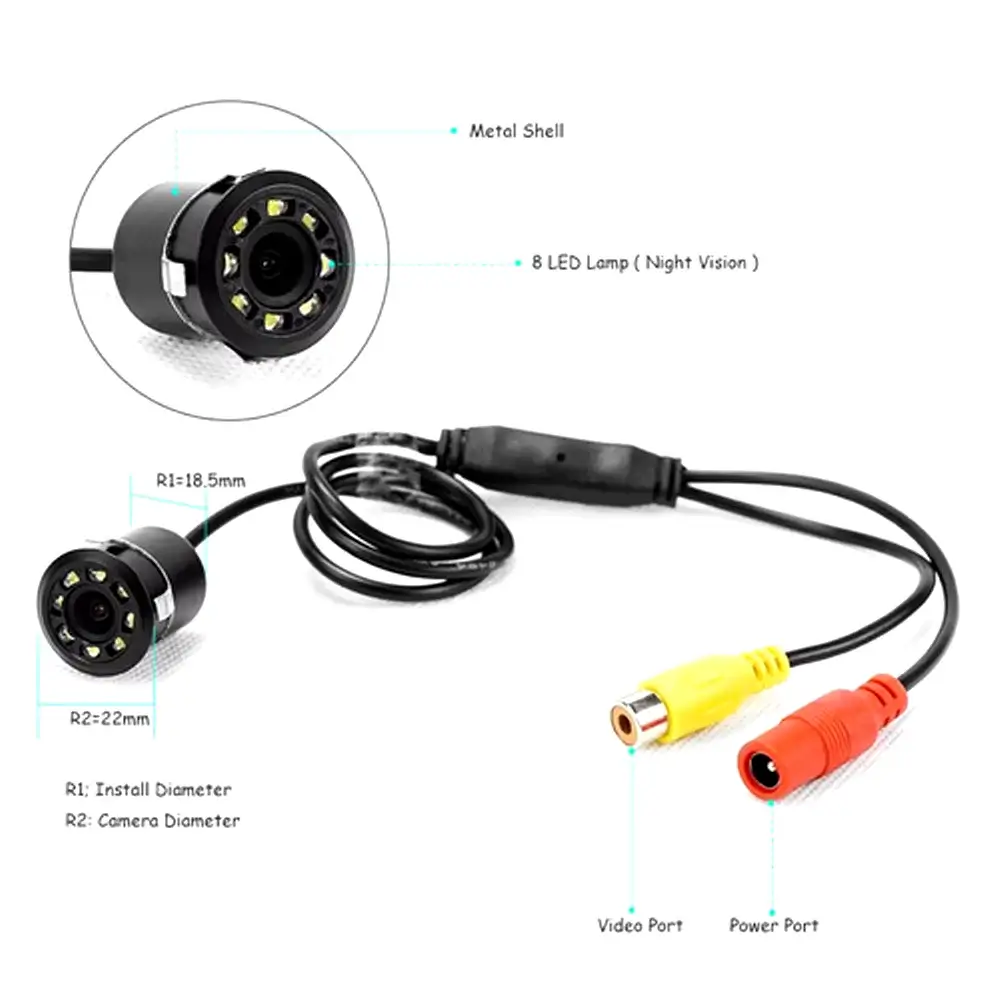

   Use the included drill bit (18.5mm) to create a mounting hole at the back of the car, such as on the license plate area, back window, or another suitable location.

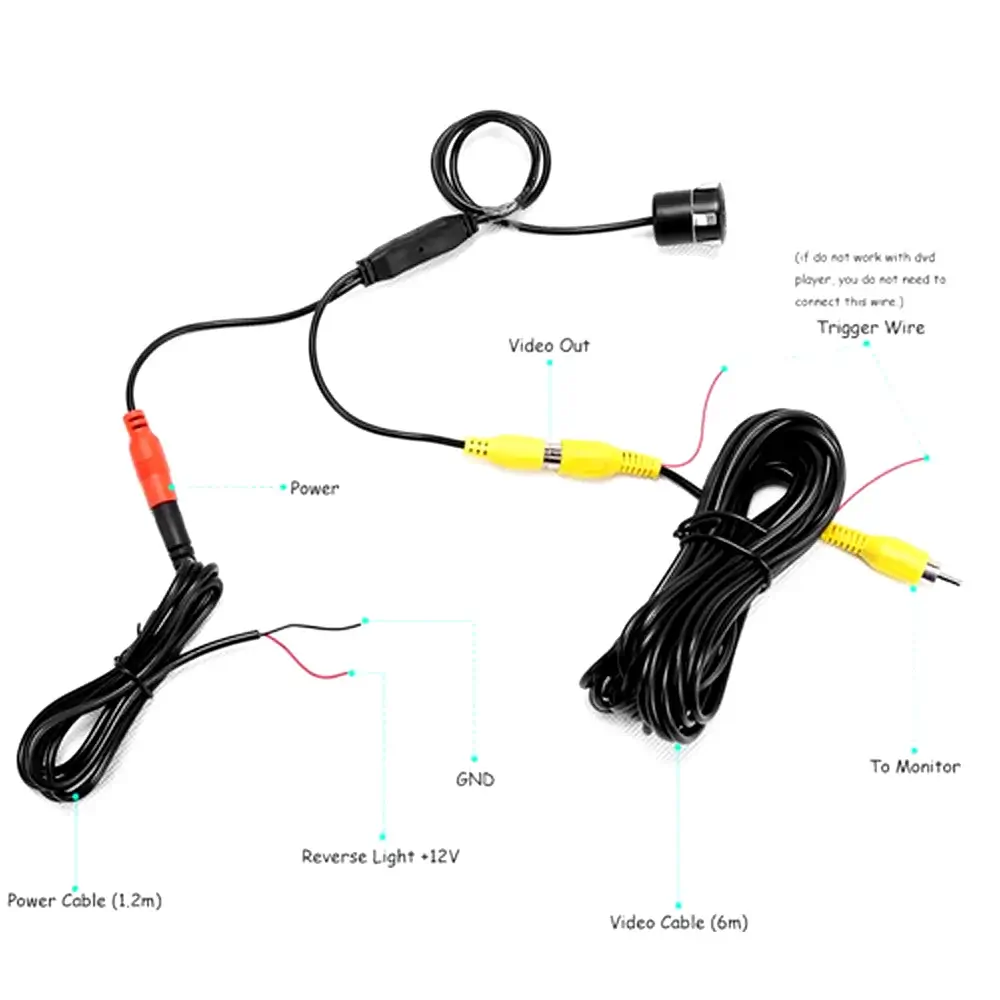

2. Connect Power:
   Attach the camera’s power wires to your vehicle’s reverse lights. Connect the red wire to the positive terminal and the black wire to the negative terminal. This setup powers the camera only when your vehicle is in reverse.
3. Connect the Video Cable:
   Plug the video cable from the camera into the provided extension cord.

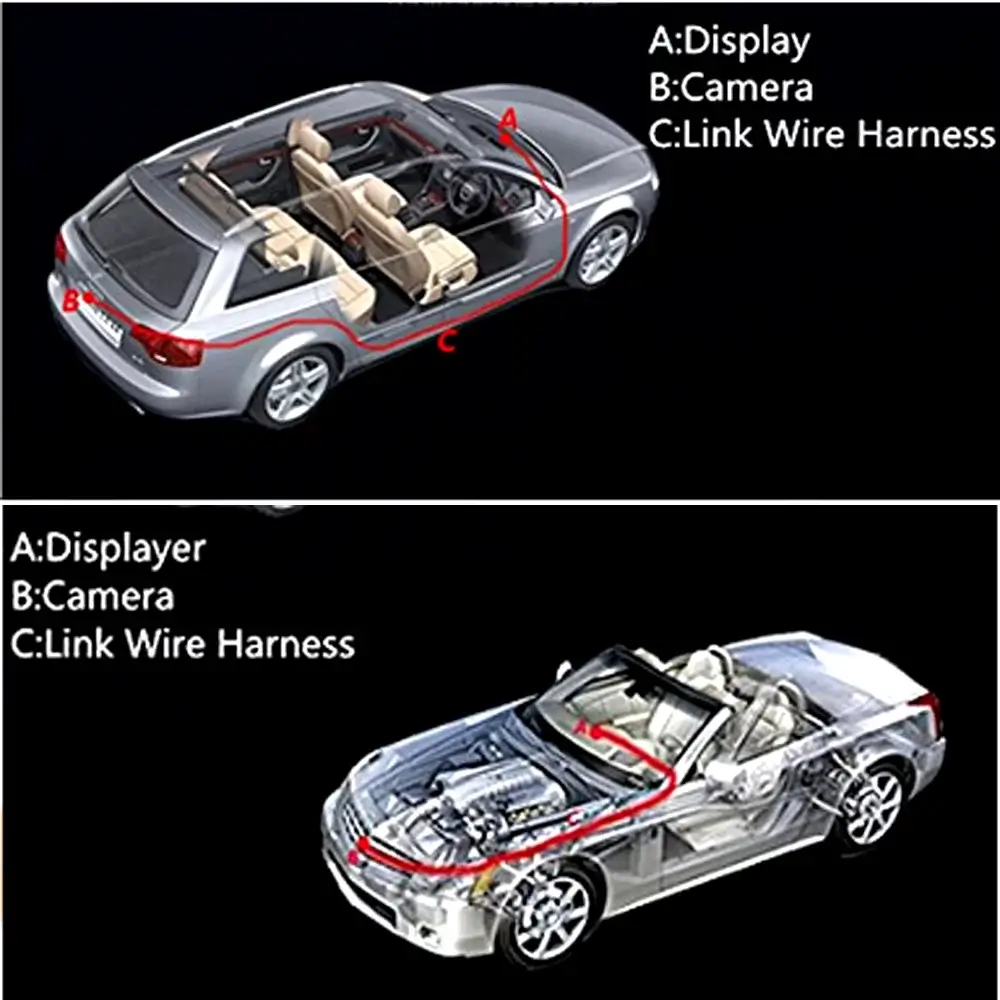

4. Link to Car Monitor:
   Connect the other end of the extension cable to the video input on your car monitor or display.
5. Test the System:
   Shift your vehicle into reverse to activate the camera. The live rear view should appear on your monitor, providing a clear view of obstacles and assisting with safe parking.

Your 8 LED Rear View Camera is now installed and ready to assist you with parking and reversing safely.

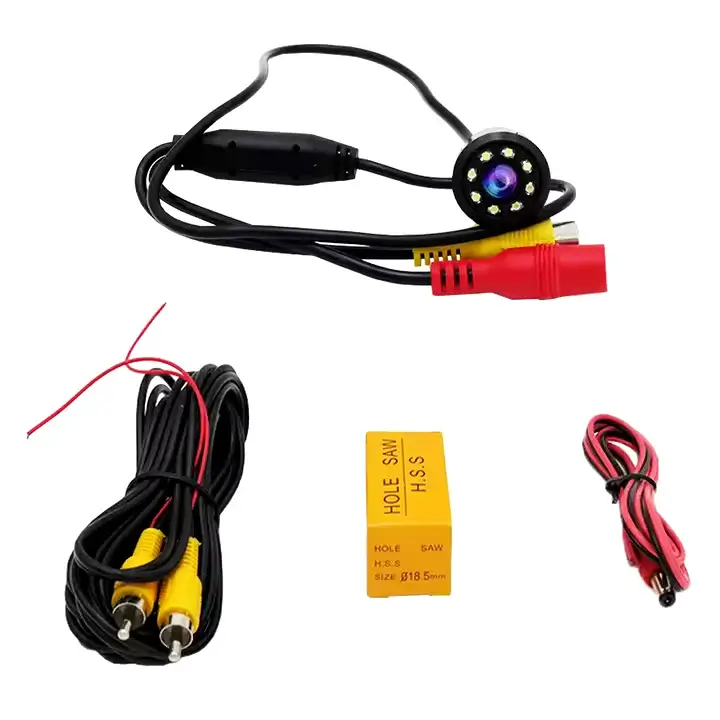

Package Includes:

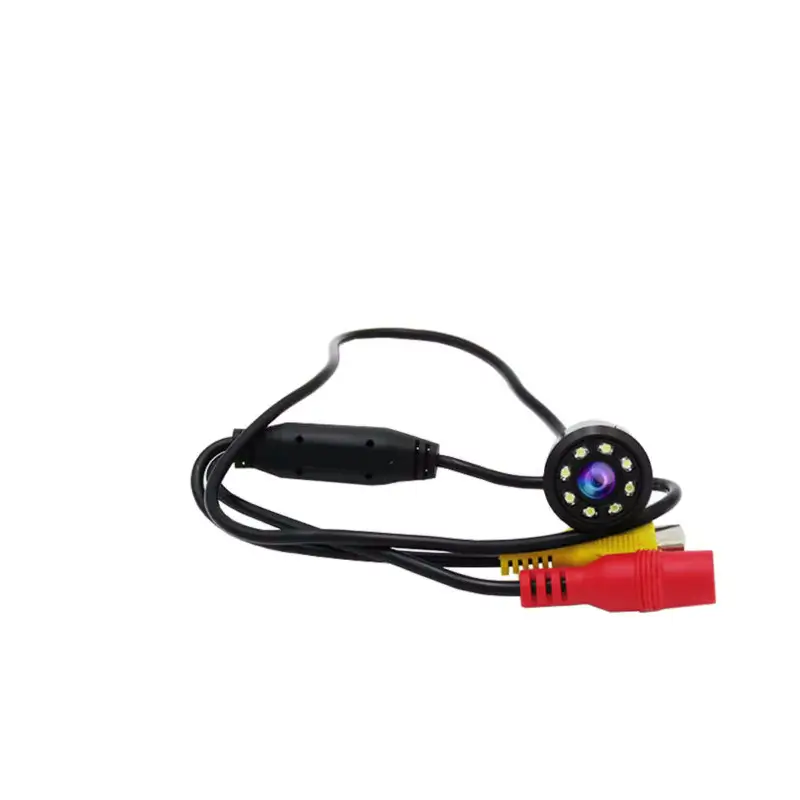

• 1 x Drill Hole Style Car Rear View Camera
• 1 x Video Cable (6m)
• 1 x Power Cable (1.5m)
• 1 x Screws

This 8 LED Car Rear View Camera offers comprehensive features for safer parking, including a clear image, night vision, and weather resistance, making it an ideal choice for drivers seeking enhanced safety and convenience.
