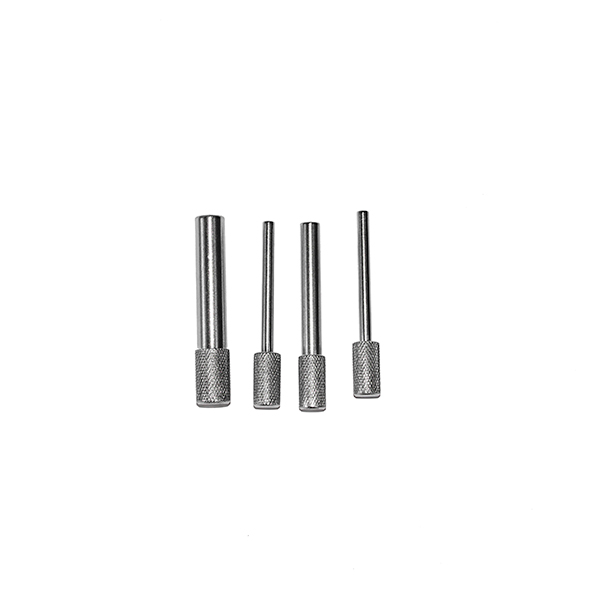

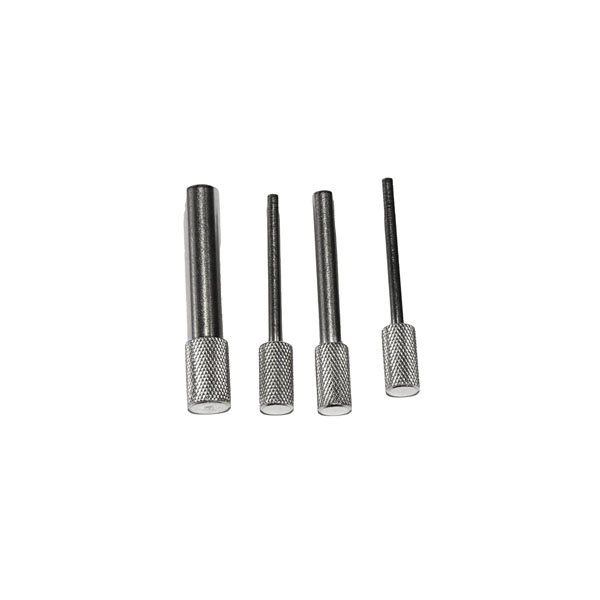

4pcs Diesel Engine Setting and Locking Tool Kit

Set of locking pins for timing belt replacement

Suitable for Ford 15, PSA 14 (DV4), and 16 (DV6) diesel engines fitted in Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota, and Volvo models.

These timing pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position

Flywheel Locking Pin:

303-734 (21-262) (Ford)

49JE02-020 (Mazda)

0194-C (PSA)

09910-05410 (Suzuki)

999-7169 (Volvo)

Camshaft/HP Fuel Pump Locking Pins:

11-0-790 (BMW)

303-735 (212-263) (Ford)

49JE02-021 (Mazda)

0194-B (PSA)

09910-05410 Suzuki

999-7122 (Volvo)

Crankshaft Locking Pin:

• • 11-0-300 (BMW)
  • 303-732 (21-260) (Ford)
  • 49JE02-018 (Mazda)
  • 0194-A (PSA)
  • 09910-05410 (Suzuki)
  • 999-7121 (Volvo)

Applications:Citroen: Berlingo I/II (05-11), Berlingo III (08-16), C1 (05-10), C2 (03-10), C3 I/II (02-10), C3 III (10-15), C3 Picasso (09-12), C3 Pluriel (04-10), DS3 (09-12), C4 (04-11), C4 II (11-16), C4 Picasso/Grand Picasso (06-13), C5 II (04-08), C5 III (07-12), DS4 (11-12), Nemo (08-10), Xsara II (04-08), Xsara Picasso (04-10)

Ford: B-Max (12-15), C-Max (07-15), Fiesta (02-15), Focus (04-15), Focus C-Max (03-07), Fusion (04-11), Grand C-Max (10-15), EcoSport (13-15), Tourneo Courier (14-15)

Mazda: 2 (02-10), 3 (04-12), 5 (10-12)

Peugeot: 107 (05-10), 1007 (05-10), 206 (01-12), 206+ (10-13), 206CC (05-07), 207 (06-13), 207CC (07-15), 208 (12-15), 2008 (12-15), 307 (01-08), 308 (07-16), 308CC (09-15), 3008 (09-15), 407 (04-11), 4008 (12-15), 508 (11-15), 5008 (09-15), Bipper (08-10), Expert (10-12), Partner I/II (05-11), Partner III (08-16)

Suzuki: Liana (04-08), SX4 (07-11)

Toyota: Aygo (05-10)

Volvo: C30 (06-13), S40 (04-12), S60 (11-15), S80 (09-15), V40 (12-15), V50 (04-12), V60 (11-15), V70 (11-15)

Engine Codes:
14D: F6JA, F6JB
14D D-4D: ZWZ-TV
14D DDiS: (DV4)8HY
14D HDi: DV4C(8HR), DV4TD(8HT), DV4TD(8HW), DV4TD(8HX), DV4TD(8HZ), DV4TED(8HS), DV4TED4(8HX), DV4TED4(8HY), DVTED4(8HV)
14D TDCi: F6JA, F6JB, F6JC, F6JD, KVJA
15D TDCi: UGJC, ENUG, UGCA
16D: Y6, MZ-CD(Y6)
16D DDiS: DV6(9HX)
16D eDrive: D4162T, D4164T
16D eHDi: DV6C(9HR)
16D HDi: DV6(9HR), DV6ATED(9HX), DV6ATED(9HY), DV6ATED4(9HX), DV6AUTED4(9HX), DV6BTED4(9HT), DV6BTED4(9HW), DV6BUTED4(9HT), DV6C(9HL), DV6C(9HR), DV6C9(HR), DV6CATED(9HX), DV6D(9HP), DV6DTED(9HJ) , DV6DTED(9HP), DV6ETED(9HN), DV6DTED(9HF), DV6TED(9HP), DV6TED4(9HV), DV6TED4(9HW), DV6TED4(9HX), DV6TED4(9HY), DV6TED4(9HZ), DV6TED4B, DV6TED4B(9HV), DV6TED4BU(9HS), DV6UTED4(9HU), DV6UTED4(9HX), DVTED4(9HV)
16D TDCi: G8DA, G8DB, G8DD, G8DE, G8DF, GPDA, GPDC, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, MTDA, NGDA, T1DA, T1DB, T3DA, T3DB, TZJA, TZJB, UBJA
16D TDCI ECOnetic: G8DD, GPDA, HHJD, TZJA, TZJB
