Description

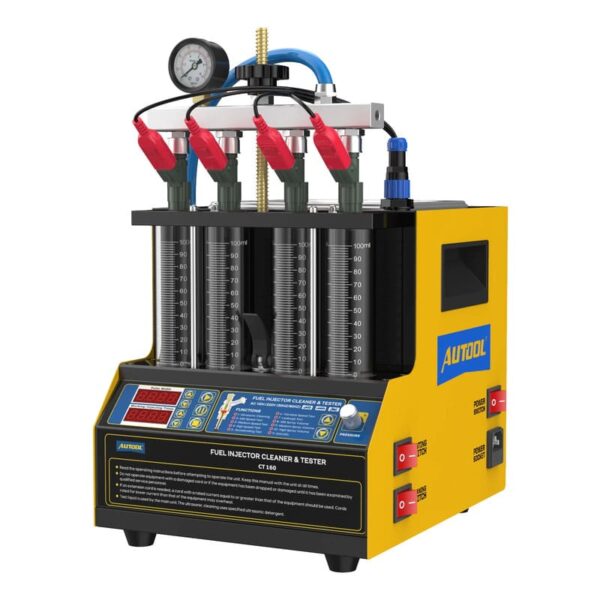

The Autool CT160 Car Fuel Injector Tester and Cleaner is a newly developed 4-cylinder fuel diagnostic and maintenance machine. The product adopts ultrasonic cleaning technology and smart testing functions to inspect and optimise fuel injector performance. The Autool CT160 is widely compatible, supporting 99% of cars and motorcycles on the market.

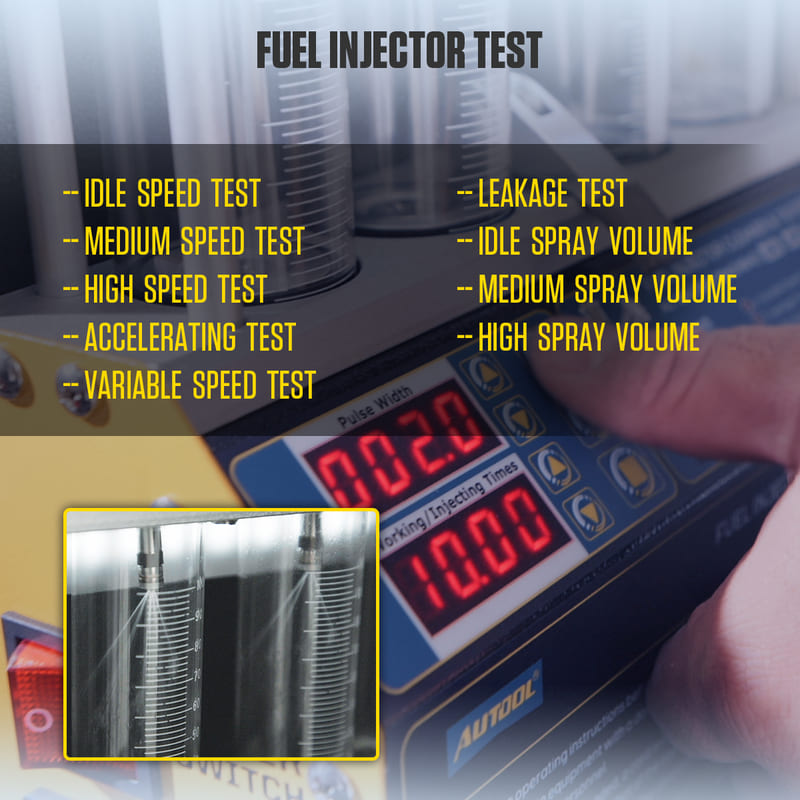

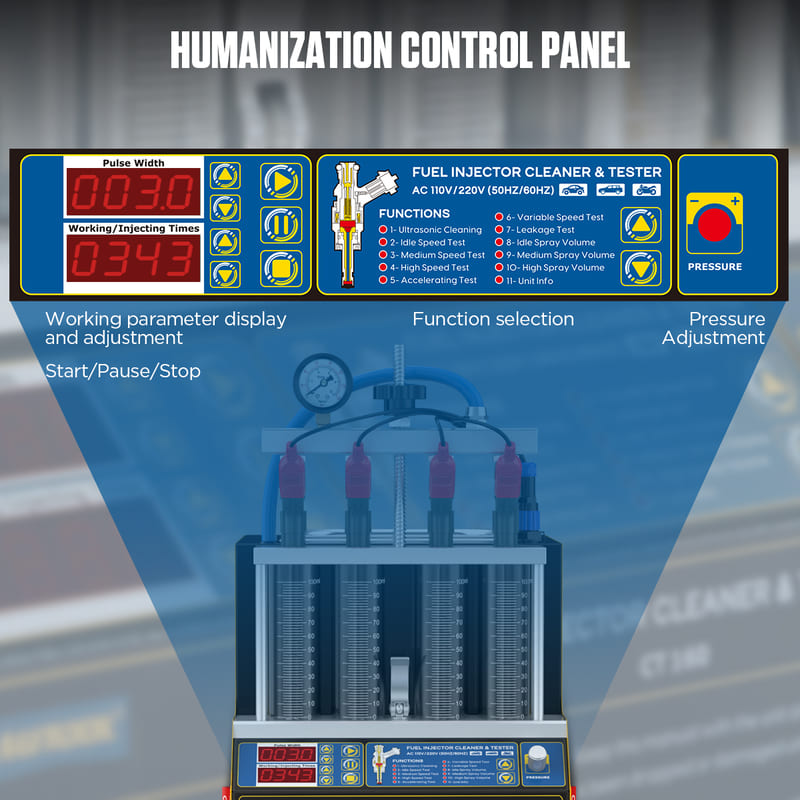

- Extensive Testing – The CT160 Fuel Injector Tester is designed with multiple testing modes, guaranteeing a thorough and accurate diagnosis. Testing options include idle speed test, medium speed test, high-speed test, accelerating test, variable speed test, leakage test, idle spray test, medium spray test, and high spray volume test.

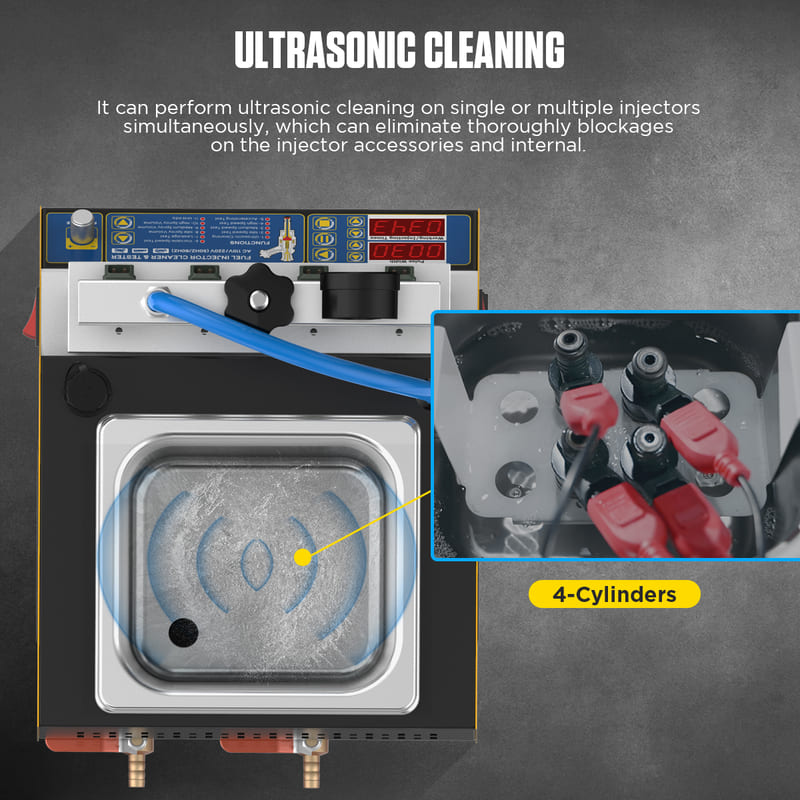

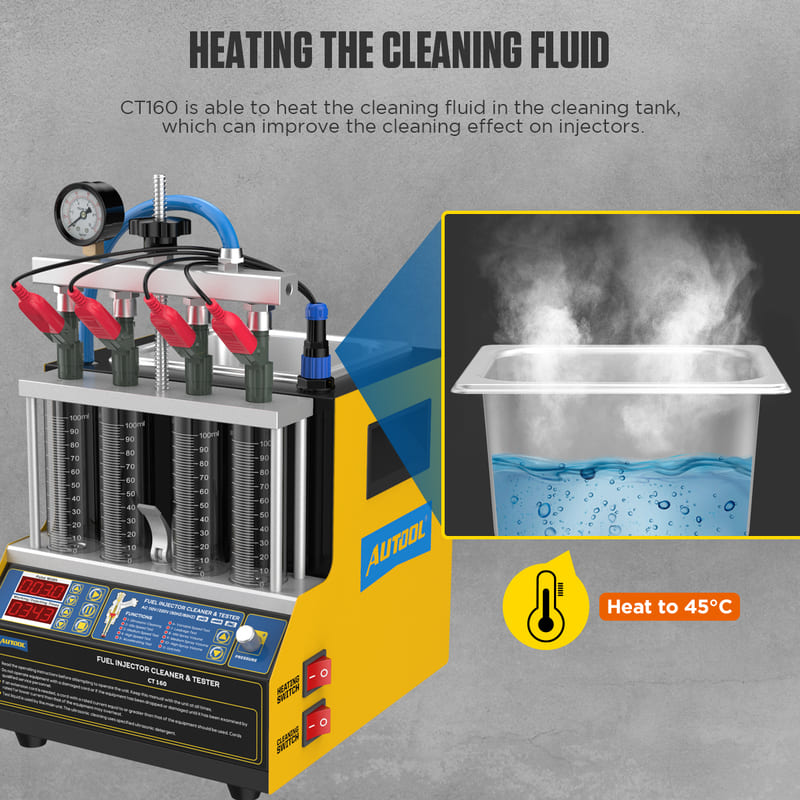

- Multi-Functional – This highly innovative machine is both a fuel injector tester and cleaner. Embracing advanced technologies, it simulates various engine conditions and can clean and inspect most cars and motorcycles. With a 4-cylinder design, ultrasonic cleaning and a detergent heating mode, technicians can clean multiple injectors simultaneously and remove serious blockages safely and efficiently.
- Excellent Compatibility: The CT160 Car Fuel Injector Tester and Cleaner supports 99% of the cars and motorcycles on the market. The machine can also be used to clean diesel fuel injectors.

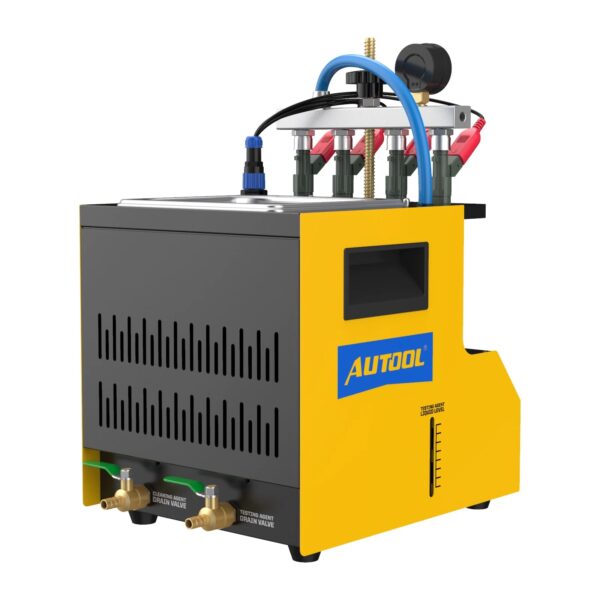

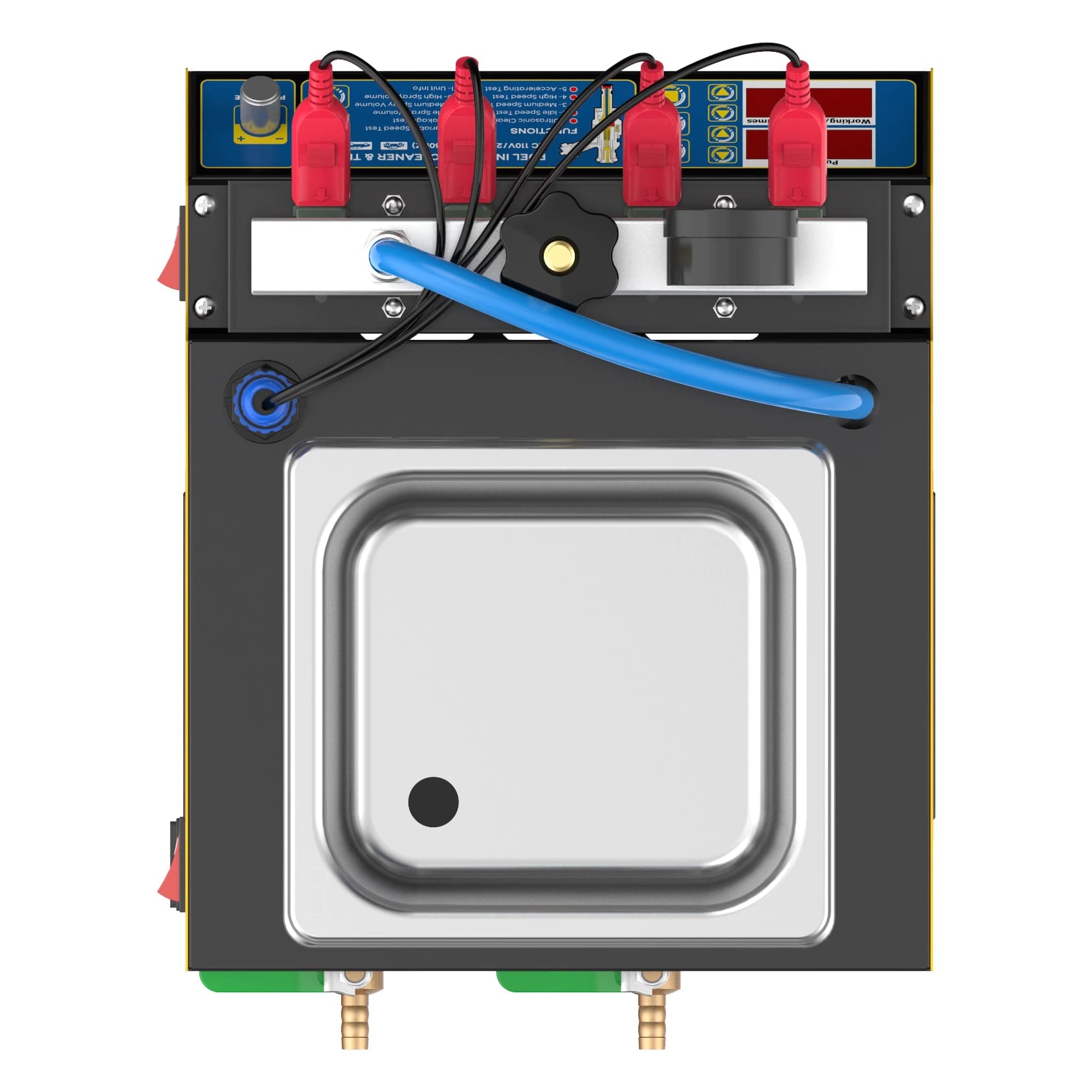

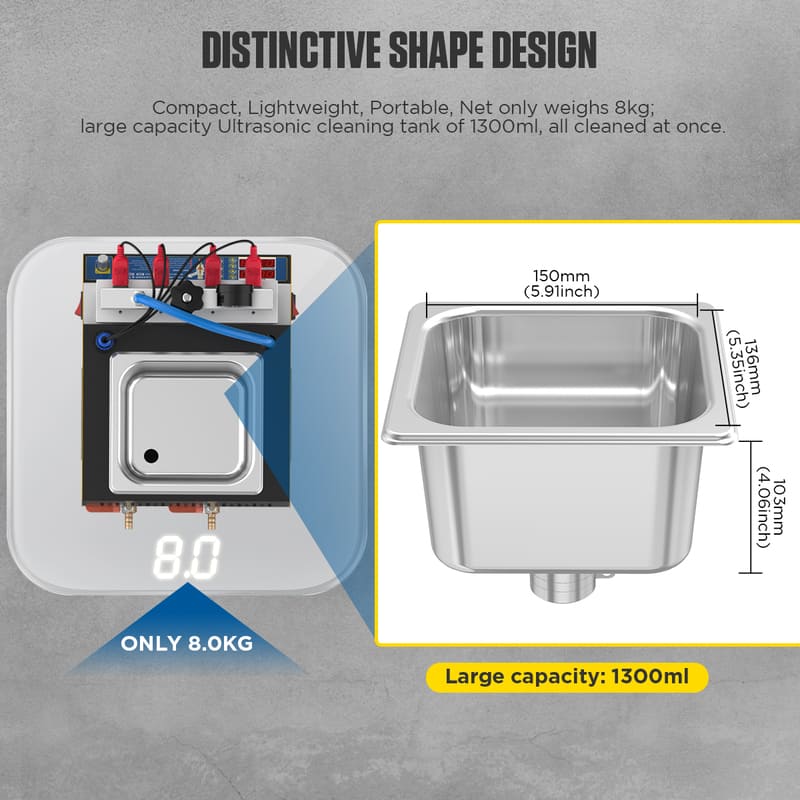

- Smart, Compact Design: This fuel injector has a unique lightweight design which makes it easy to transport or move around the workshop. Although compact, it has a large, ultrasonic cleaning tank of 1300ml as well as volume detection for optimal cleaning results.

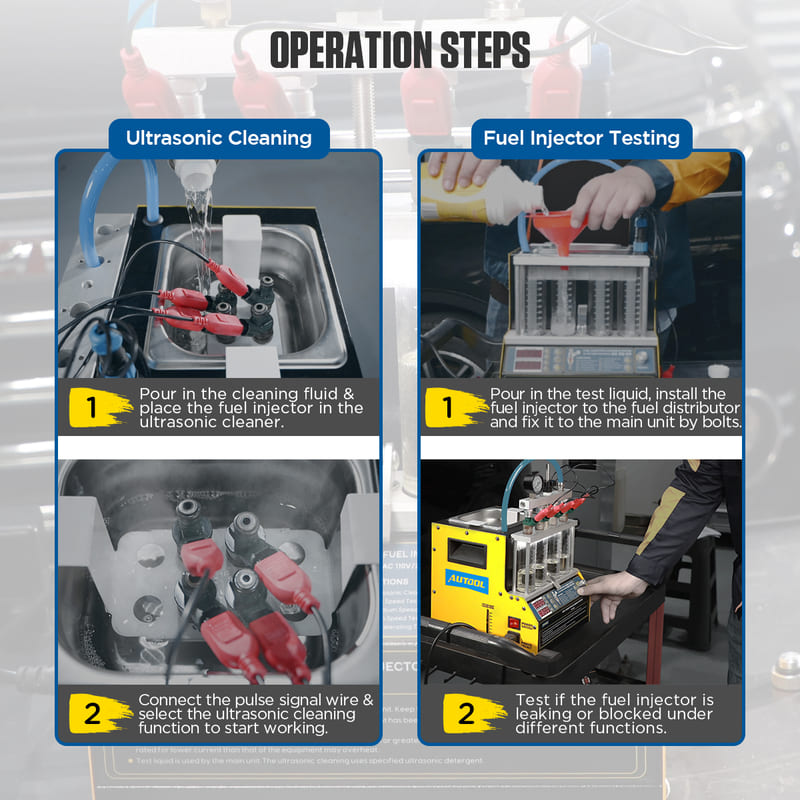

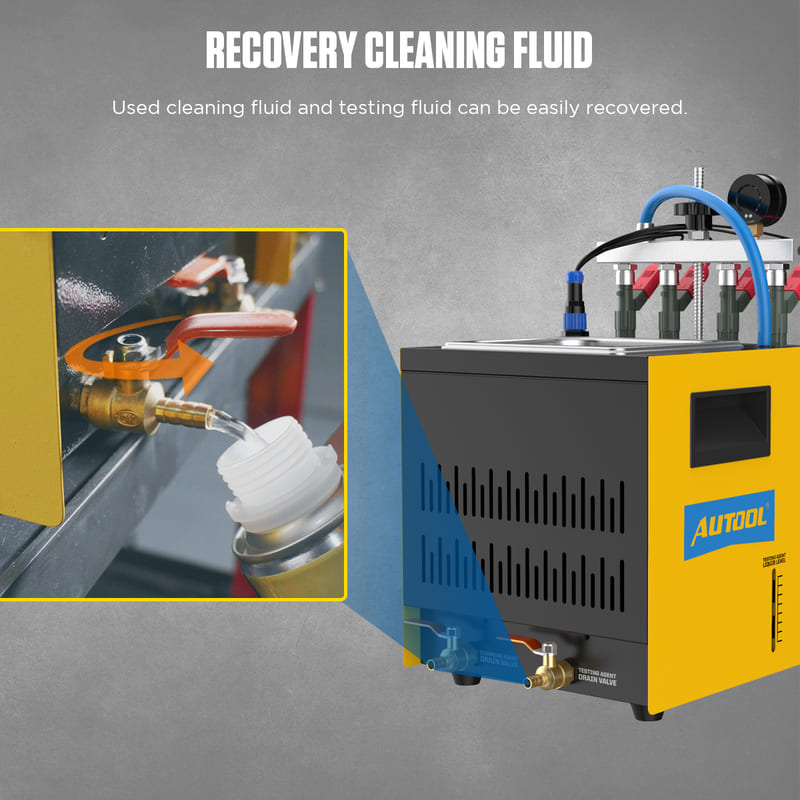

- Ultra Safe & Easy to Operate: The Autool CT160 is easy to operate and requires a simple connection of the cables and filling of the tank before testing and cleaning can begin. A detergent recycling feature ensures that no fluid is wasted or lost. Additionally, if the machine short circuits, the fuse inside will automatically trip and shut down the running machine.
Features/Functions
|
|
Specifications
Item Type | Car Fuel Injector Tester & Cleaner |
Brand | Autool |
Model Number | CT160 |

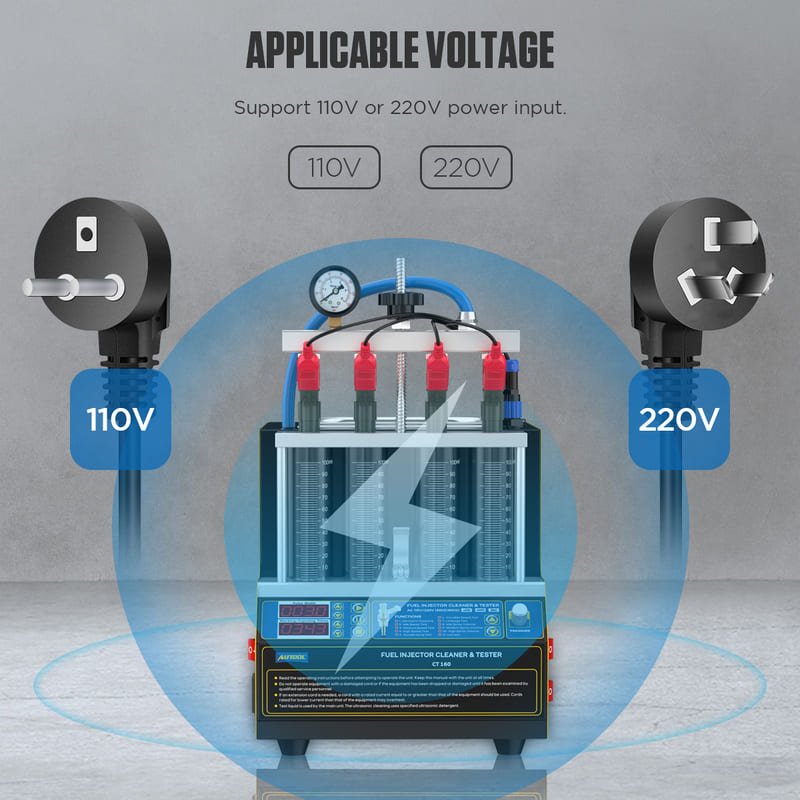

Power Supply | AC 110V/220V |
Frequency | 50HZ ± 0.5 |
Relative Humidity | <85% |
Environment Temperature | 0°C~40°C |
External Magnetic Field Strength | <40A/m |
Tank Capacity | 1300ml |
Range of Rotation | 0~7500r/min |
Pulse Width Modulation | 0~20.0ms step 0.1ms |
Time | 0~20min |
Cleaning Frequency | 40KHz |
Cylinder Volume | 100ml |
Injection Times | 0~9900 times, step 100ms |
System Pressure | 0~0.6Mpa |
Ultrasonic Cleaning Power | 70W |
Color | Yellow & Black |

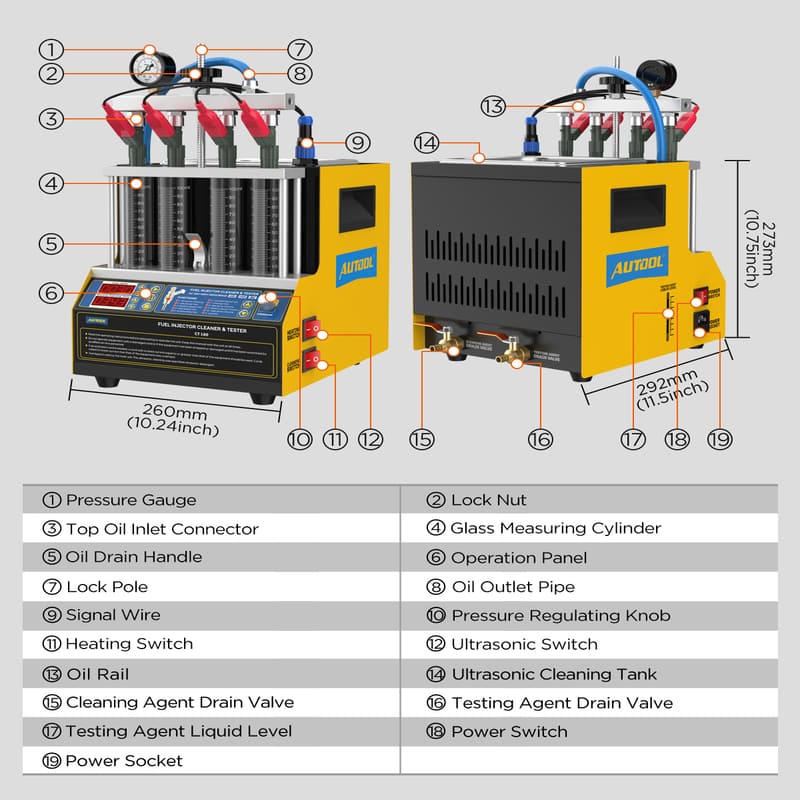

Product Dimensions | 2.6×2.92×2.73cm |
Weight | 8 kg |
Warranty | 3 Years |

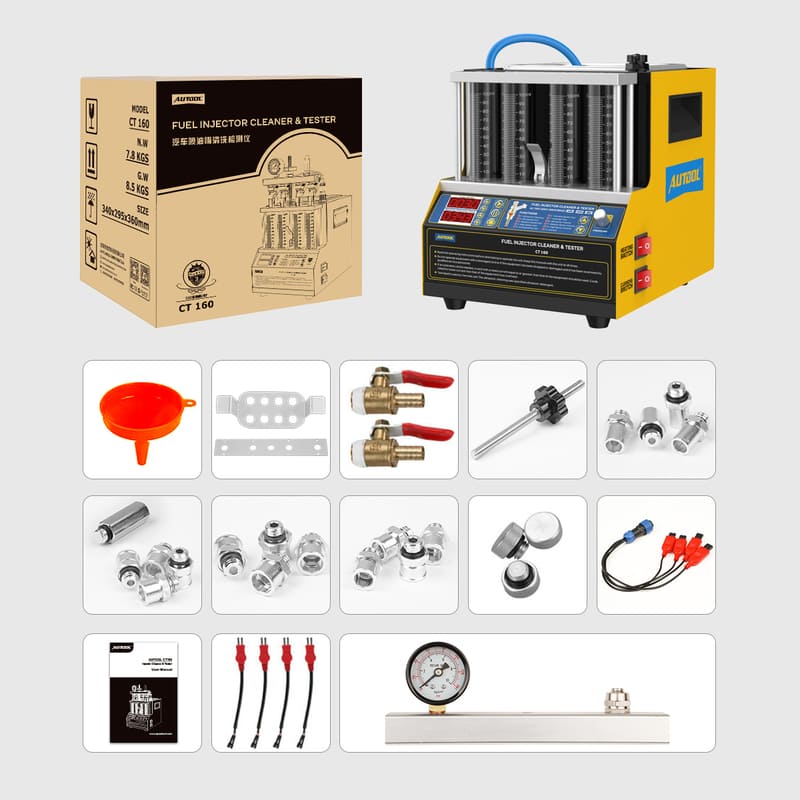

Package Includes
- 1x Autool CT160 Fuel injector Tester & Cleaner main unit
- 1x Refilling funnel
- 1x Ultrasonic leaning stand
- 1x Testing pad
- 2x Oil drain valve
- 1x Lock pole
- 1x Lock nut
- 4x Extended plug
- 4x Motorcycle top oil inlet connectorⅠφ10mm
- 4x Motorcycle top oil inlet connectorⅡφ11mm
- 4x Motorcycle top oil inlet connectorⅢφ10.6mm
- 4x Car top oil inlet connectorⅢφ10.6mm&13.4mm
- 3x Plug
- 1x Signal wire
- 4x Adapter cable
- 1x Oil rail
- 1x User manual
